Conversion Factor= 0.531e-/ADU ±0.001 for 20736.6ADU
RMS noise = 4.1e- ±0.2
CCD temperature : -135Cº
Window area is : X1= 61 X2= 2028 Y1= 11 Y2= 506
Bandwidth 5nm

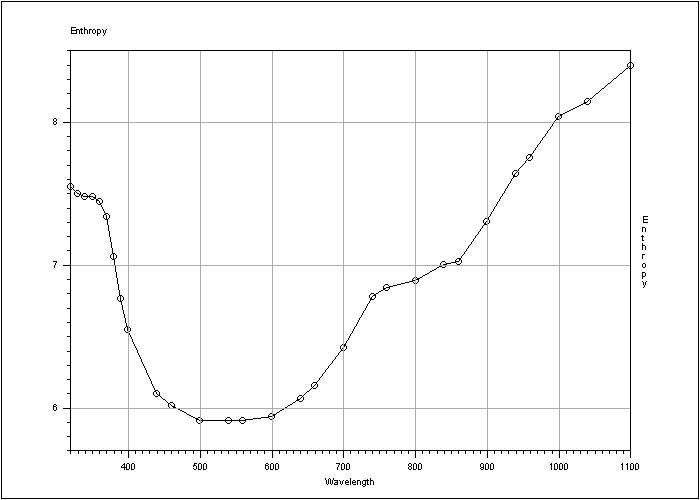

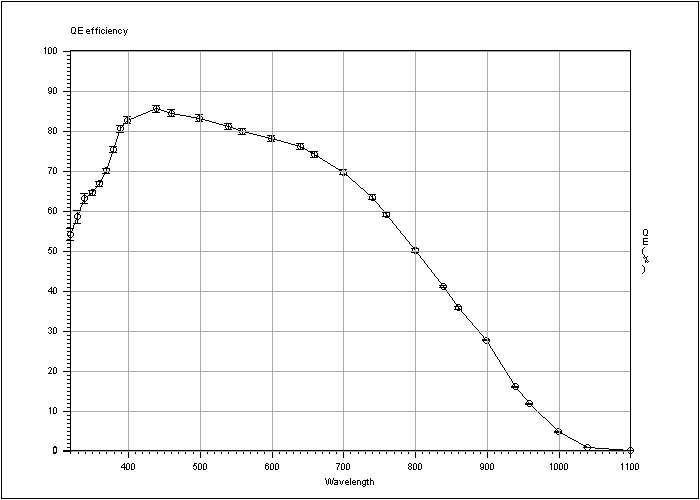

Wav. PRNU rms% QE% Enthropy
320 4.49 54 ±1.5 7.545318
330 4.3 58.4 ±1.7 7.50145
340 4.21 63 ±1.2 7.480298
350 4.21 64.4 ±0.63 7.476821
360 4.07 66.7 ±0.66 7.443438
370 3.66 69.9 ±0.69 7.337103
380 2.76 75.2 ±0.74 7.05684
390 2.07 80.4 ±0.83 6.765366
400 1.67 82.6 ±0.84 6.549568
440 1.09 85.4 ±0.86 6.09861
460 1 84.3 ±0.85 6.013783
500 0.909 83.1 ±0.83 5.909189
540 0.912 81 ±0.82 5.911546
560 0.913 79.7 ±0.8 5.912072
600 0.938 78.1 ±0.77 5.941142
640 1.05 75.9 ±0.74 6.061024
660 1.14 74.1 ±0.72 6.152392
700 1.49 69.6 ±0.65 6.423616
740 2.16 63.3 ±0.58 6.774507
760 2.27 59 ±0.53 6.840842
800 2.36 50 ±0.43 6.887156
840 2.64 41 ±0.36 7.001454
860 2.69 35.4 ±0.3 7.026459
900 3.61 27.6 ±0.22 7.29979
940 5.09 16 ±0.12 7.641191
960 5.66 11.7 ±0.09 7.747641
1000 7.66 4.65 ±0.035 8.039768
1040 8.3 0.805 ±0.006 8.141162
1100 11.4 0.0981 ±0.00073 8.392152
Cosmetic Defects
Flat Field

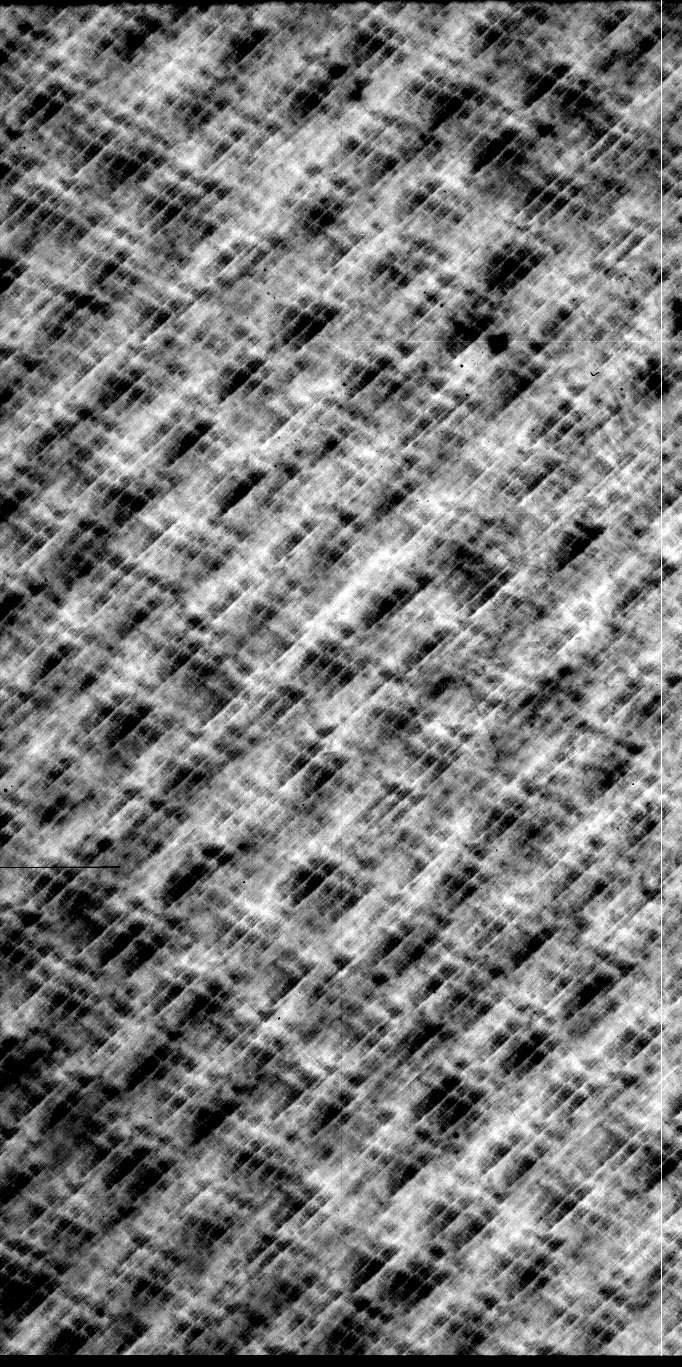

350 nm (UV), bandwidth 5 nm
High level
Low level

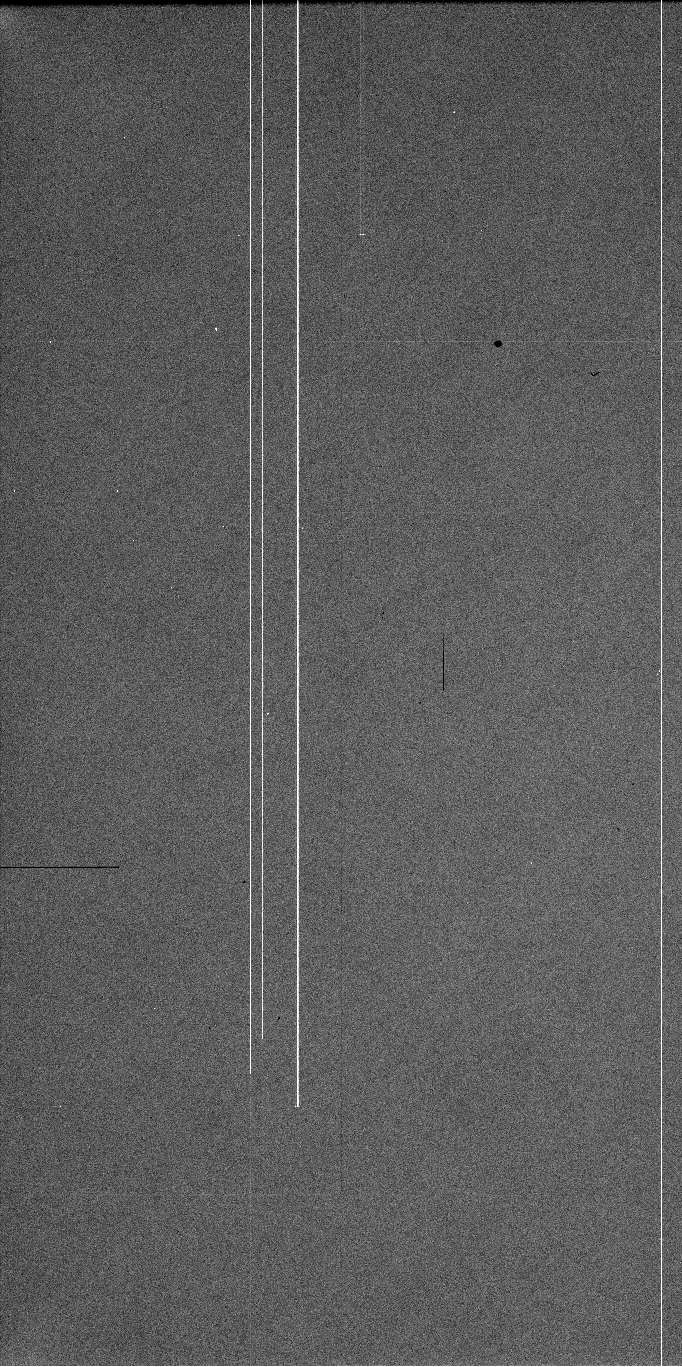

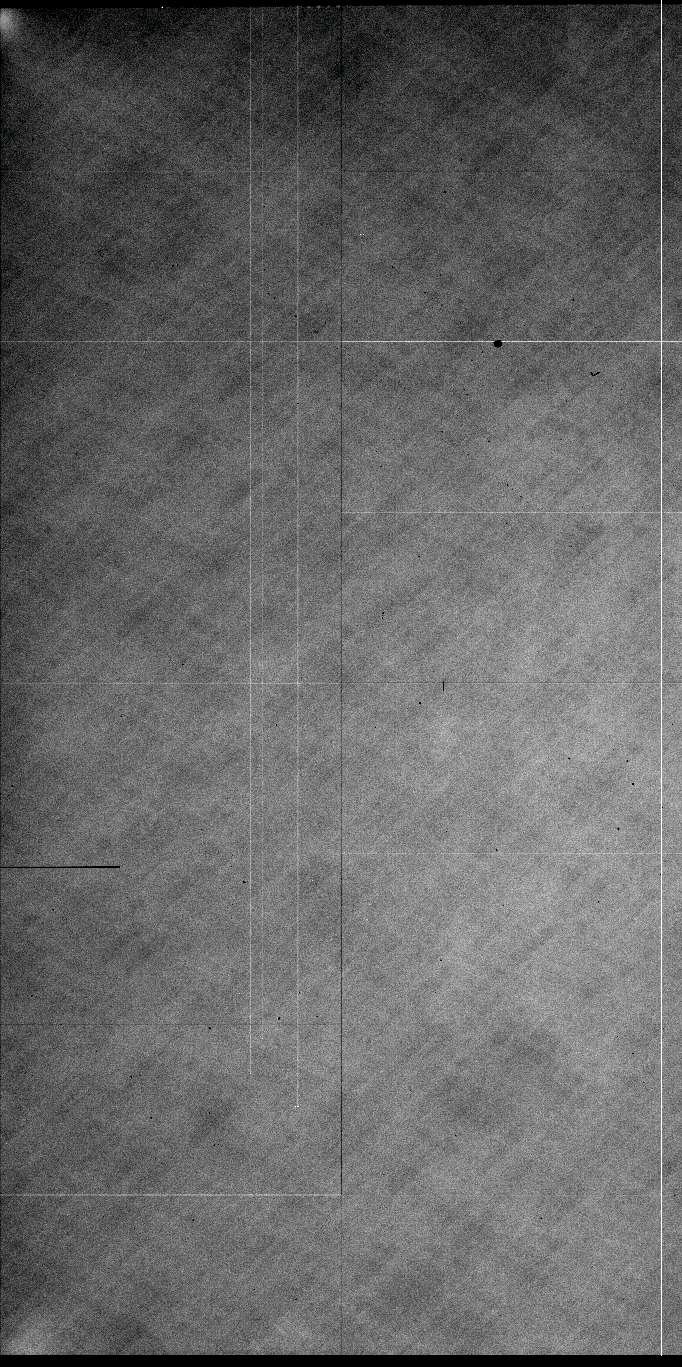

600 nm, bandwidth 5 nm
High level
Low level

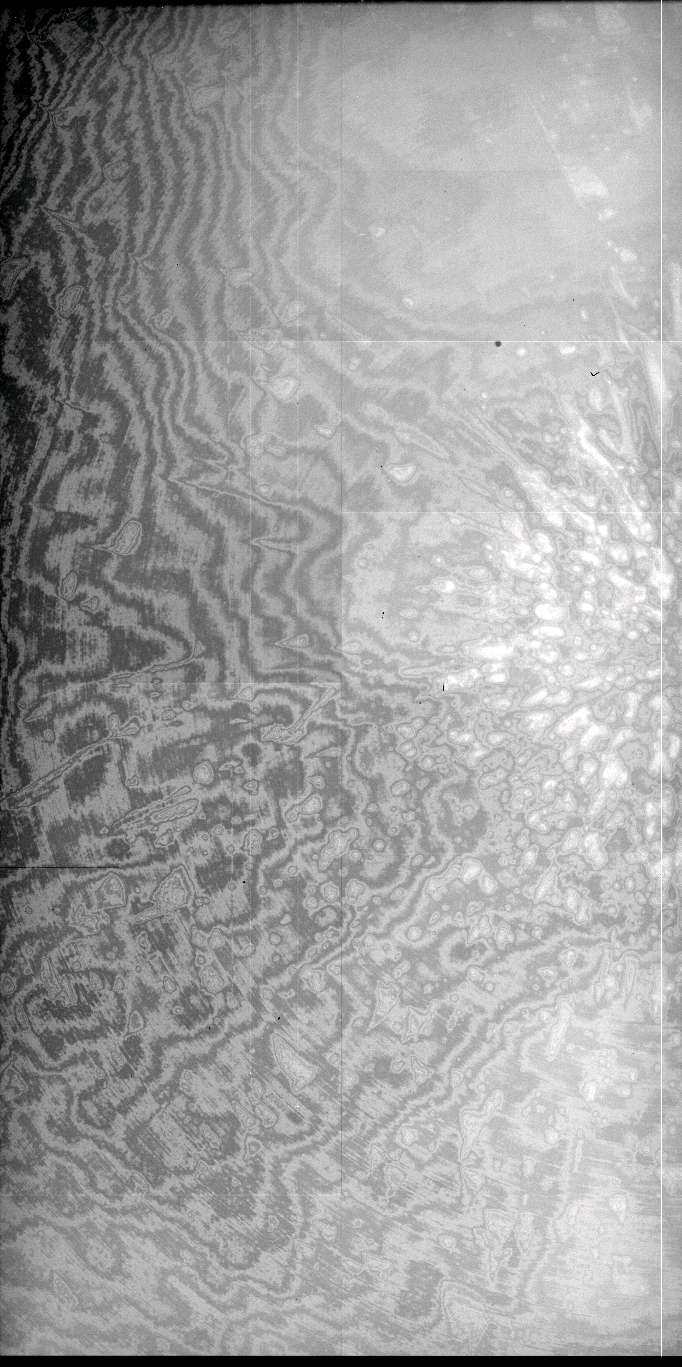

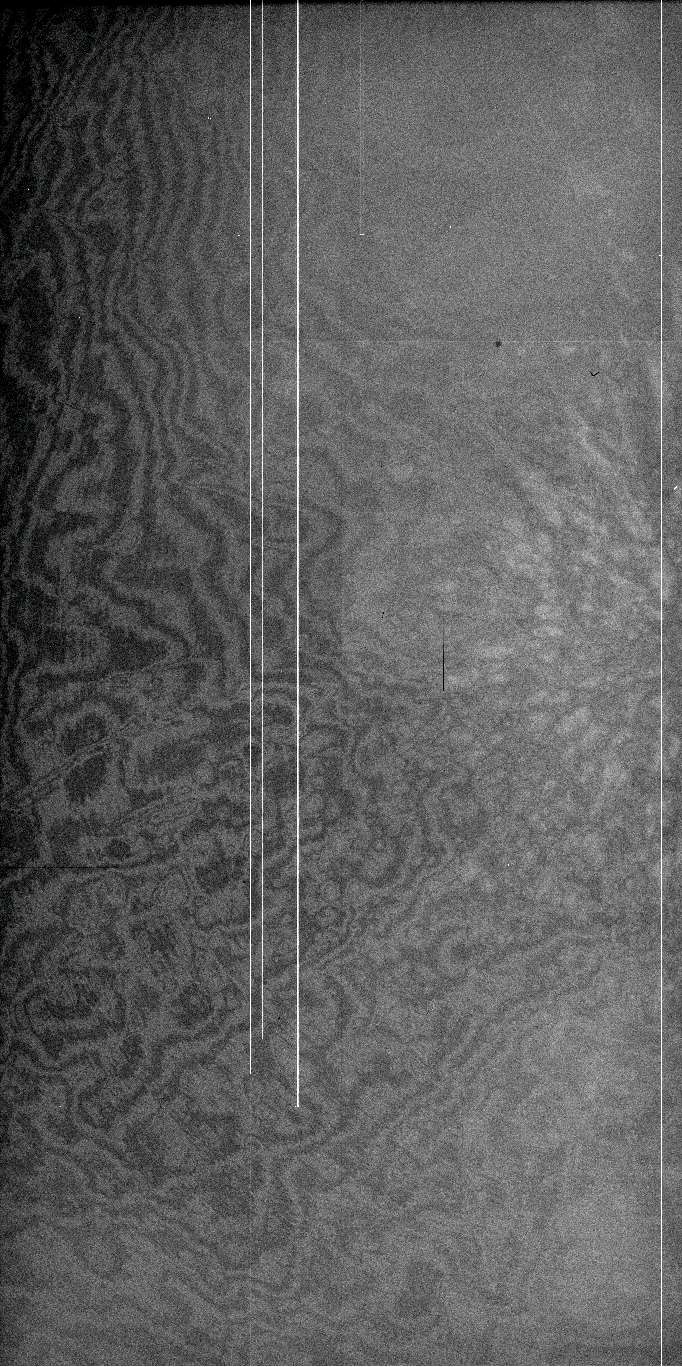

900 nm, bandwidth 5 nm
High level
| Type of defect | Location (x,y) | Number of pixels affected |
| Hot pixel | (947, 785),(804, 882),(842, 985),(1136, 3397),(2037, 1) | 3000*7+800*2+4000 |

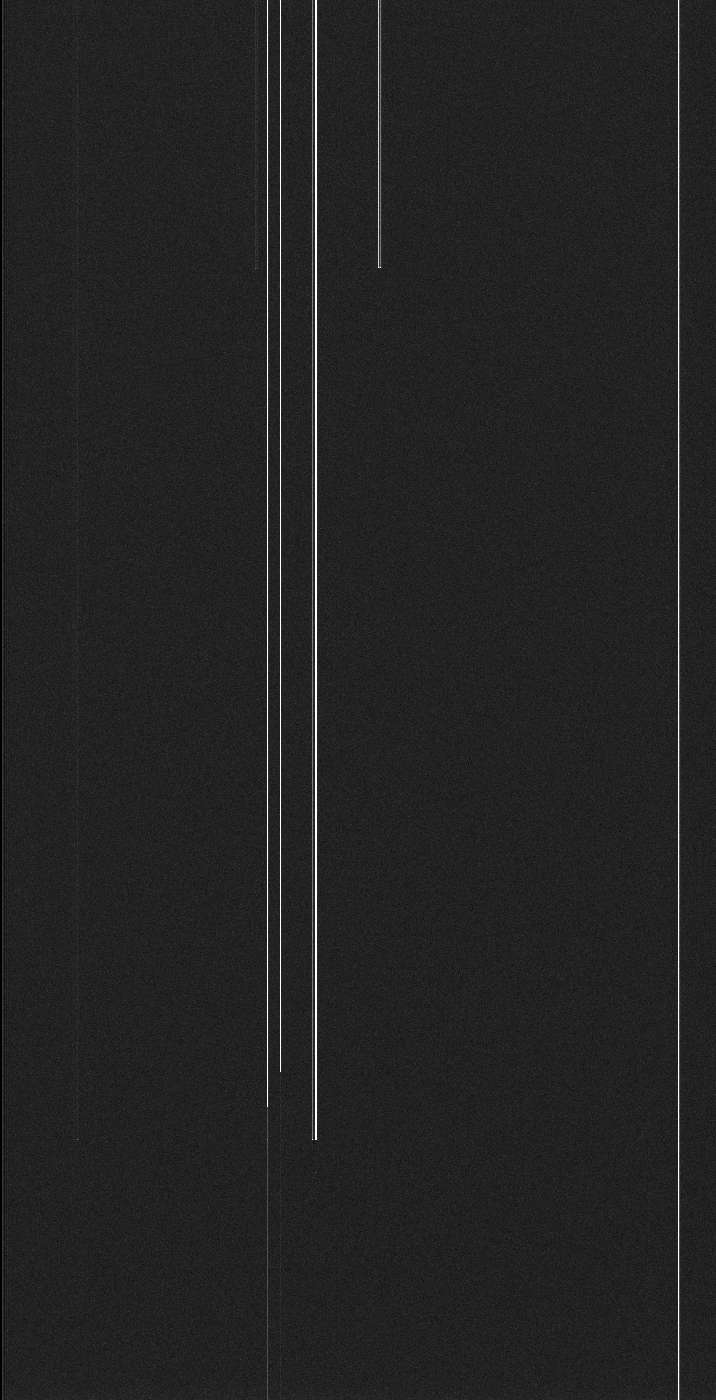

Bias
| Type of defect | Location | Number of pixels affected |
| Hot pixel | (947, 785),(804, 882),(842, 985),(1136, 3397),(2037, 1) | 3000*7+800*2+4000 |
Long exposure dark image
| Type of defect | Location | Number of pixels affected |
| Hot pixel | (947, 785),(804, 882),(842, 985),(1136, 3397),(2037, 1) | 3000*7+800*2+4000 |
Readout Noise/Conversion Factor
Readout speed: 225kps Conversion Factor= 0.531e-/ADU ±0.001 for 20633.2ADU RMS noise = 4.1e- ±0.2 Readout speed: 50kps Conversion Factor= 0.550e-/ADU ±0.001 for 27241.8ADU RMS noise = 2.7e- ±0.1

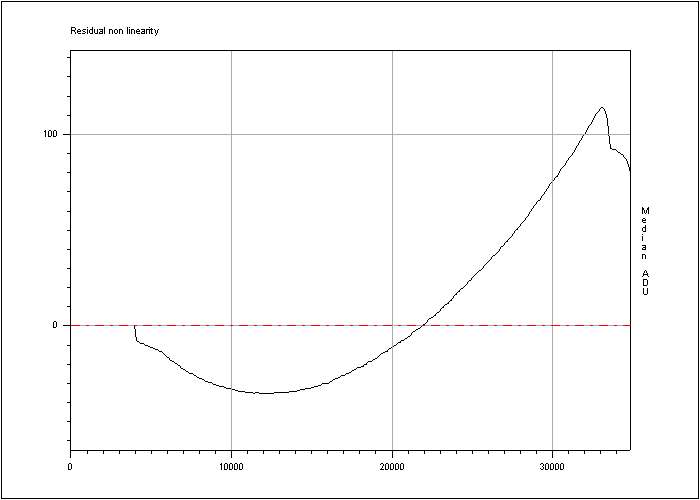

Linearity (TDI method)
RMS non linearity (%) = 0.29 Peak to peak non linearity (%)= 0.94
Dark Current
Exposure time (s) = 3600 Dark current : 0.4 ± 0.2 e-/hour/pixel Cosmic event rate : 1.6 ± 0.2 events/min/cm²
Charge Transfer Efficiency (CTE)
Horizontal CTE = 0.9999981 Vertical CTE = 0.9999995
