baciCharacteristicComponentImpl.h File Reference

#include <vector>
#include <baci.h>
#include <baciCORBA.h>
#include <acsutil.h>
#include <acscomponentImpl.h>
#include <baciCharacteristicModelImpl.h>
#include <acsErrTypeLifeCycle.h>

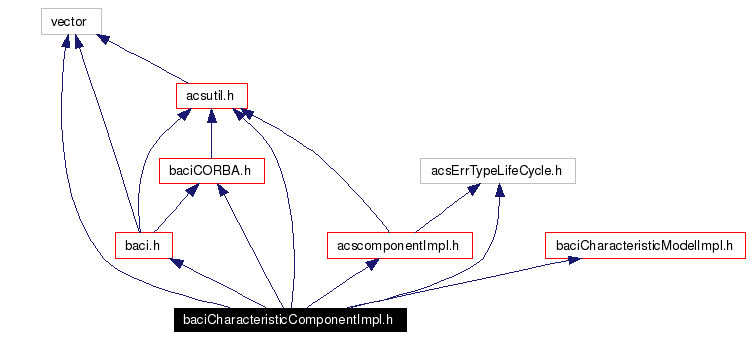

Include dependency graph for baciCharacteristicComponentImpl.h:

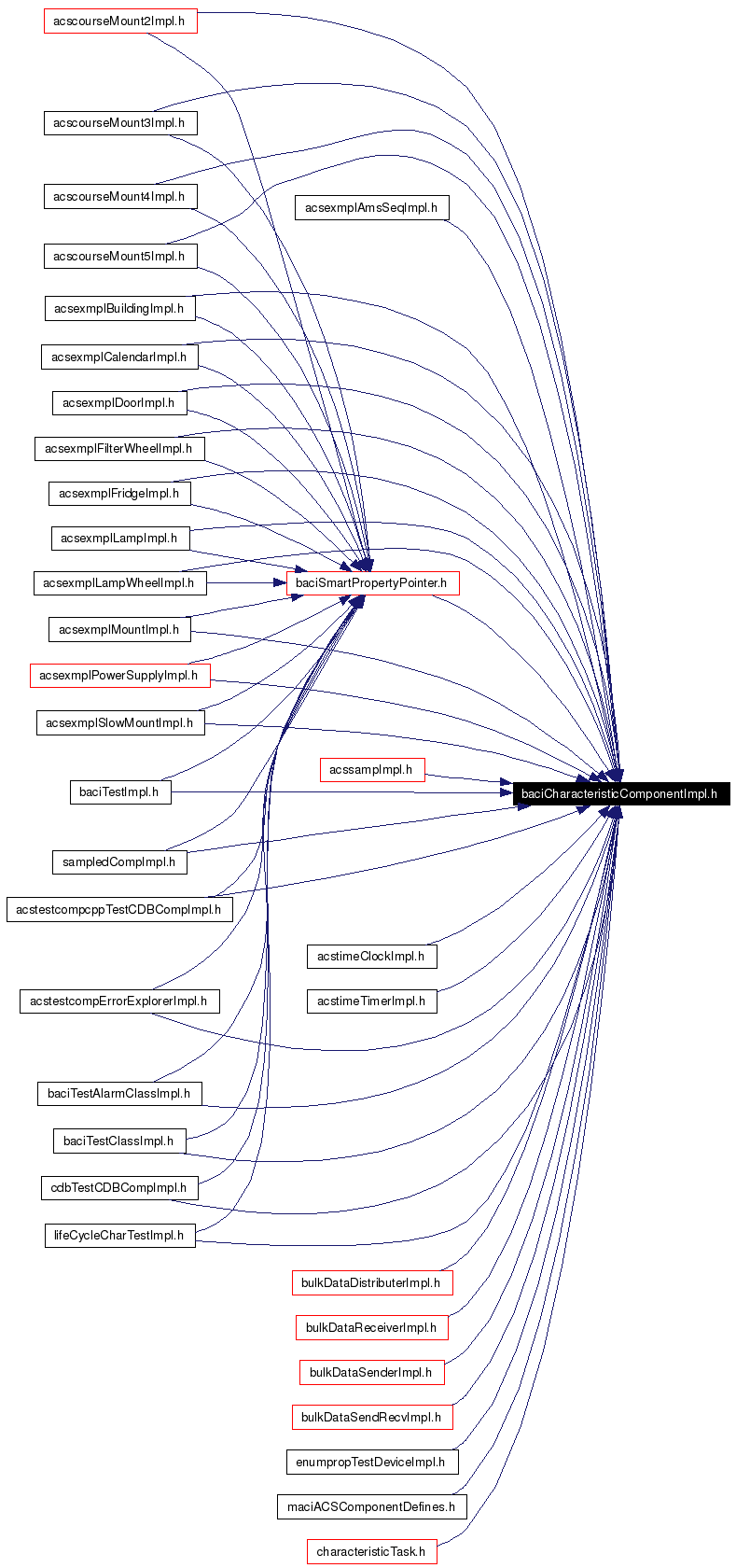

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	baci
Classes
class	baci::CharacteristicComponentImpl
Defines
#define	CHARACTERISTIC_COMPONENT_PROPERTY(IdlAccessor, CppImplVar)

---

Detailed Description

Header file BACI Characteristic Component.

---

Define Documentation

#define CHARACTERISTIC_COMPONENT_PROPERTY (  IdlAccessor, CppImplVar   )

Value: if (CppImplVar == 0) return; \ else if (CppImplVar->initialization() == 1) \ return; \ { \ \ desc_m->properties.length(desc_m->properties.length()+1); \ desc_m->properties[desc_m->properties.length()-1].property_ref = this->IdlAccessor(); \ desc_m->properties[desc_m->properties.length()-1].name = CppImplVar->name(); \ desc_m->properties[desc_m->properties.length()-1].characteristics = CppImplVar->get_all_characteristics(); \ } This macro checks to see if a property object has been created and initialized correctly. It should normally be put in the distributed object's constructor after creating each new property. Also adds property information to a vector that is then used to define the descriptor. Use this macro for each of the properties. Parameters: IdlAccessor  Name of the property located in the IDL file. This is also the name of the C++ method that must be implemented to acccess the IDL property. CppImplVariable  Name of the C++ variable used in the C++ method for each IDL property. CORBA poses no restrictions on the name of this variable although the "C++ Coding Standards" document does. * *

---
