ACSAlarmSystemInterfaceFactory Class Reference

#include <ACSAlarmSystemInterfaceFactory.h>

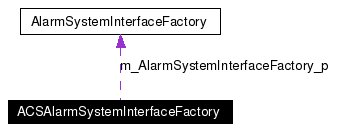

Collaboration diagram for ACSAlarmSystemInterfaceFactory:

[legend]List of all members.


Static Public Member Functions
maci::Manager_ptr	getManager ()
bool	init (maci::Manager_ptr manager) throw (acsErrTypeAlarmSourceFactory::ErrorLoadingCERNDLLExImpl)
bool	usingACSAlarmSystem () throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
void	done ()
std::auto_ptr< acsalarm::AlarmSystemInterface >	createSource (std::string sourceName) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
std::auto_ptr< acsalarm::AlarmSystemInterface >	createSource () throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
std::auto_ptr< acsalarm::FaultState >	createFaultState (std::string family, std::string member, int code) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
std::auto_ptr< acsalarm::FaultState >	createFaultState () throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
void	createAndSendAlarm (std::string &faultFamily, std::string &faultMember, int faultCode, bool active, std::string sourceName=asiConfigurationConstants::ALARM_SOURCE_NAME) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
void	createAndSendAlarm (std::string &faultFamily, std::string &faultMember, int faultCode, bool active, acsalarm::Properties &faultProperties, std::string sourceName=asiConfigurationConstants::ALARM_SOURCE_NAME) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
Private Member Functions
	ACSAlarmSystemInterfaceFactory ()
	ACSAlarmSystemInterfaceFactory (const ACSAlarmSystemInterfaceFactory &)
ACSAlarmSystemInterfaceFactory	operator= (const ACSAlarmSystemInterfaceFactory &)
	~ACSAlarmSystemInterfaceFactory ()
Static Private Member Functions
void	cleanUpAlarmSystemInterfacePtr ()
void	cleanUpSharedSource ()
void	cleanUpDLL ()
void	cleanUpBooleanPtr ()
void	cleanUpManagerReference ()
void	initImplementationType (maci::Manager_ptr manager)
bool	initDLL ()
Static Private Attributes
void *	dllHandle
std::auto_ptr< acsalarm::AlarmSystemInterface >	sharedSource
bool *	m_useACSAlarmSystem
maci::Manager_ptr	m_manager
AlarmSystemInterfaceFactory *	m_AlarmSystemInterfaceFactory_p
ACE_Recursive_Thread_Mutex	main_mutex

Detailed Description

The class to create sources and fault states. It extends the laser source but it returns different implementations of the sources depending of a value of a property of the CDB

The ACS implementation of the source logs a message for each alarm

Before using the static methods of this class, the init method must be called otherwise an exception is thrown.

Constructor & Destructor Documentation

ACSAlarmSystemInterfaceFactory::ACSAlarmSystemInterfaceFactory ( ) [private]

Default constructor.

ACSAlarmSystemInterfaceFactory::ACSAlarmSystemInterfaceFactory ( const ACSAlarmSystemInterfaceFactory & ) [private]

ACSAlarmSystemInterfaceFactory::~ACSAlarmSystemInterfaceFactory ( ) [private]

Member Function Documentation

void ACSAlarmSystemInterfaceFactory::cleanUpAlarmSystemInterfacePtr ( ) [static, private]

void ACSAlarmSystemInterfaceFactory::cleanUpBooleanPtr ( ) [static, private]

void ACSAlarmSystemInterfaceFactory::cleanUpDLL ( ) [static, private]

void ACSAlarmSystemInterfaceFactory::cleanUpManagerReference ( ) [static, private]

void ACSAlarmSystemInterfaceFactory::cleanUpSharedSource ( ) [static, private]

void ACSAlarmSystemInterfaceFactory::createAndSendAlarm ( std::string & faultFamily,

std::string & faultMember,

int faultCode,

bool active,

acsalarm::Properties & faultProperties,

std::string sourceName = asiConfigurationConstants::ALARM_SOURCE_NAME

) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Convenience API for creating/sending an alarm in a single step, with user-defined properties.
Parameters:

family a string indicating the 'family' of the alarm (see alarm system documentation for explanation).

member a string indicating the 'member' of the alarm (see alarm system documentation for explanation).

code an int indicating the 'code' of the alarm (see alarm system documentation for explanation).

active a boolean indicating if the alarm is active (true) or not (false)

faultProperties user-defined properties associated with the alarm.

sourceName the source name, defaults to ALARM_SOURCE_NAME constant defined in "asiConfigurationConstants.h"

Exceptions:

ACSASFactoryNotInitedExImpl if the alarm system has not been previously initialized.

void ACSAlarmSystemInterfaceFactory::createAndSendAlarm ( std::string & faultFamily,

std::string & faultMember,

int faultCode,

bool active,

std::string sourceName = asiConfigurationConstants::ALARM_SOURCE_NAME

) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Convenience API for creating/sending an alarm in a single step, without user defined properties.
Parameters:

family a string indicating the 'family' of the alarm (see alarm system documentation for explanation).

member a string indicating the 'member' of the alarm (see alarm system documentation for explanation).

code an int indicating the 'code' of the alarm (see alarm system documentation for explanation).

active a boolean indicating if the alarm is active (true) or not (false)

sourceName the source name, defaults to ALARM_SOURCE_NAME constant defined in "asiConfigurationConstants.h"

Exceptions:

ACSASFactoryNotInitedExImpl if the alarm system has not been previously initialized.

std::auto_ptr<acsalarm::FaultState> ACSAlarmSystemInterfaceFactory::createFaultState ( ) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Create a fault state
Exceptions:

ACSASFactoryNotInitedExImpl if the alarm system has not been previously initialized.

std::auto_ptr<acsalarm::FaultState> ACSAlarmSystemInterfaceFactory::createFaultState ( std::string family,

std::string member,

int code

) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Create a fault state with the given family, member and code
Parameters:

family a string indicating the 'family' of the alarm (see alarm system documentation for explanation).

member a string indicating the 'member' of the alarm (see alarm system documentation for explanation).

code an int indicating the 'code' of the alarm (see alarm system documentation for explanation).

Exceptions:

ACSASFactoryNotInitedExImpl if the alarm system has not been previously initialized.

std::auto_ptr<acsalarm::AlarmSystemInterface> ACSAlarmSystemInterfaceFactory::createSource ( ) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Create a new instance of an alarm system interface without binding it to any source.
Exceptions:

ACSASFactoryNotInitedExImpl if the alarm system has not been previously initialized.

Returns:
the interface instance.

std::auto_ptr<acsalarm::AlarmSystemInterface> ACSAlarmSystemInterfaceFactory::createSource ( std::string sourceName ) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Create a new instance of an alarm system interface.
Parameters:

sourceName the source name.

Exceptions:

ACSASFactoryNotInitedExImpl if the alarm system has not been previously initialized.

Returns:
the interface instance.

void ACSAlarmSystemInterfaceFactory::done ( ) [static]

Release the resources: must be called when finished using the methods of this class

maci::Manager_ptr ACSAlarmSystemInterfaceFactory::getManager ( ) [static]

bool ACSAlarmSystemInterfaceFactory::init ( maci::Manager_ptr manager ) throw (acsErrTypeAlarmSourceFactory::ErrorLoadingCERNDLLExImpl) [static]

Init the object of the class: must be called before using the other methods of this class otherwise an exception will be thrown.
Parameters:

manager ptr to the acs manager.

Exceptions:

acsErrTypeAlarmSourceFactory::ErrorLoadingCERNDLLExImpl if there was a problem loading the DLL

Returns:
true if the initialization went ok

bool ACSAlarmSystemInterfaceFactory::initDLL ( ) [static, private]

void ACSAlarmSystemInterfaceFactory::initImplementationType ( maci::Manager_ptr manager ) [static, private]

ACSAlarmSystemInterfaceFactory ACSAlarmSystemInterfaceFactory::operator= ( const ACSAlarmSystemInterfaceFactory & ) [private]

bool ACSAlarmSystemInterfaceFactory::usingACSAlarmSystem ( ) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Getter for whether we're using the ACS Alarm system (true) or not (false).
Exceptions:

ACSASFactoryNotInitedExImpl if the alarm system has not been previously initialized.

Returns:
boolean indicating whether the ACS alarm system is in use (true) or not (false), where ACS alarm system means alarms are sent to the logs, otherwise they are sent to the alarm channel.
