ACSAlarmSystemInterfaceProxy Class Reference

#include <ACSAlarmSystemInterfaceProxy.h>

Inheritance diagram for ACSAlarmSystemInterfaceProxy:

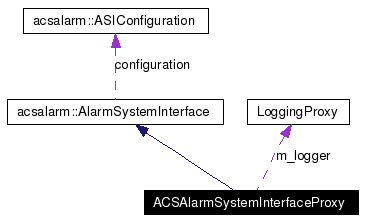

[legend]Collaboration diagram for ACSAlarmSystemInterfaceProxy:

[legend]List of all members.

Public Member Functions
	ACSAlarmSystemInterfaceProxy (std::string name)
virtual	~ACSAlarmSystemInterfaceProxy ()
virtual void	push (acsalarm::FaultState &state)
virtual void	push (std::vector< acsalarm::FaultState > &states)
virtual void	pushActiveList (std::vector< acsalarm::FaultState > &activeFaults)
Protected Member Functions
virtual bool	publishMessage (acsalarm::ASIMessage)
Private Member Functions
virtual void	close ()
Private Attributes
LoggingProxy *	m_logger

---

Detailed Description

Implementation of a source that log messages instead of sending msg to the AlarmSrevice

---

Constructor & Destructor Documentation

ACSAlarmSystemInterfaceProxy::ACSAlarmSystemInterfaceProxy (  std::string  name  )

virtual ACSAlarmSystemInterfaceProxy::~ACSAlarmSystemInterfaceProxy (   )  [inline, virtual]

---

Member Function Documentation

virtual void ACSAlarmSystemInterfaceProxy::close (   )  [inline, private, virtual]

Cleanup. Must be implemented by concrete sub classes; may be called by destructor or explicitly by client; it's up to you how you wish the cleanup process to be initiated. Implements acsalarm::AlarmSystemInterface.

virtual bool ACSAlarmSystemInterfaceProxy::publishMessage (  acsalarm::ASIMessage   )  [inline, protected, virtual]

Sends the message to the alarm server; concrete classes must override this and use the communication mechanism of their choice. For an example of a concrete class, see ACSLaser/laser-source-cpp/CERNAlarmSystemInterfaceProxy. Implements acsalarm::AlarmSystemInterface.

virtual void ACSAlarmSystemInterfaceProxy::push (  std::vector< acsalarm::FaultState > &  states  )  [virtual]

Push a collection of fault states. Parameters: states

virtual void ACSAlarmSystemInterfaceProxy::push (  acsalarm::FaultState &  state  )  [virtual]

Push a fault state. Parameters: state  the fault state change to push. Reimplemented from acsalarm::AlarmSystemInterface.

virtual void ACSAlarmSystemInterfaceProxy::pushActiveList (  std::vector< acsalarm::FaultState > &  activeFaults  )  [virtual]

Push the set of active fault states. Parameters: activeFaults  the active fault states.

---

Member Data Documentation

LoggingProxy* ACSAlarmSystemInterfaceProxy::m_logger [private]

The logger

---

The documentation for this class was generated from the following file:

• ACSAlarmSystemInterfaceProxy.h

---
