BaciPropTest Class Reference

Contains the defintion of the standard superclass for C++ componentsCORBA generated servant stubIncludes for each BACI property used in this exampleInclude the smart pointer for properties. More...

#include <baciTestImpl.h>

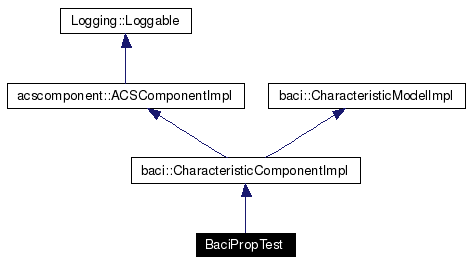

Inheritance diagram for BaciPropTest:

[legend]Collaboration diagram for BaciPropTest:

[legend]List of all members.

Public Member Functions
	BaciPropTest (ACE_CString name, maci::ContainerServices *containerServices)
virtual void	execute ()
virtual	~BaciPropTest ()
virtual void	setDoubleVar (CORBA::Float)
virtual void	setPatternVar (CORBA::Long)
virtual void	setEnumVar (alarmsystemPropTest::AlarmEnum)
virtual ACS::ROdouble_ptr	testDoubleVar ()
virtual ACS::ROpattern_ptr	testPatternVar ()
virtual::alarmsystemPropTest::ROAlarmEnum_ptr	testEnumVar ()
Private Attributes
baci::SmartPropertyPointer< baci::ROdouble >	m_testDoubleVar_sp
baci::SmartPropertyPointer< ROEnumImpl< ACS_ENUM_T(alarmsystemPropTest::AlarmEnum), POA_alarmsystemPropTest::ROAlarmEnum >	m_testEnumVar_sp )
baci::SmartPropertyPointer< baci::ROpattern >	m_testPatternVar_sp

---

Detailed Description

Contains the defintion of the standard superclass for C++ componentsCORBA generated servant stubIncludes for each BACI property used in this exampleInclude the smart pointer for properties.

A component for testing if baci sends alarms when a property goes out of range.

---

Constructor & Destructor Documentation

BaciPropTest::BaciPropTest (  ACE_CString  name, maci::ContainerServices *  containerServices )

Constructor Parameters: name  component's name. This is also the name that will be used to find the configuration data for the component in the Configuration Database. containerService  The pointer to the container services

virtual BaciPropTest::~BaciPropTest (   )  [virtual]

Destructor

---

Member Function Documentation

virtual void BaciPropTest::execute (   )  [virtual]

Exceptions: ACSErr::ACSbaseExImpl  Reimplemented from acscomponent::ACSComponentImpl.

virtual void BaciPropTest::setDoubleVar (  CORBA::Float   )  [virtual]

virtual void BaciPropTest::setEnumVar (  alarmsystemPropTest::AlarmEnum   )  [virtual]

virtual void BaciPropTest::setPatternVar (  CORBA::Long   )  [virtual]

virtual ACS::ROdouble_ptr BaciPropTest::testDoubleVar (   )  [virtual]

Returns a reference to the double property

virtual ::alarmsystemPropTest::ROAlarmEnum_ptr BaciPropTest::testEnumVar (   )

Returns a reference to the enum property

virtual ACS::ROpattern_ptr BaciPropTest::testPatternVar (   )  [virtual]

Returns a reference to the pattern property

---

Member Data Documentation

baci::SmartPropertyPointer<baci::ROdouble> BaciPropTest::m_testDoubleVar_sp [private]

The test properties

baci::SmartPropertyPointer<ROEnumImpl<ACS_ENUM_T(alarmsystemPropTest::AlarmEnum), POA_alarmsystemPropTest::ROAlarmEnum> BaciPropTest::m_testEnumVar_sp) [private]

baci::SmartPropertyPointer<baci::ROpattern> BaciPropTest::m_testPatternVar_sp [private]

---

The documentation for this class was generated from the following file:

• baciTestImpl.h

---
