ClockImpl Class Reference

#include <acstimeClockImpl.h>

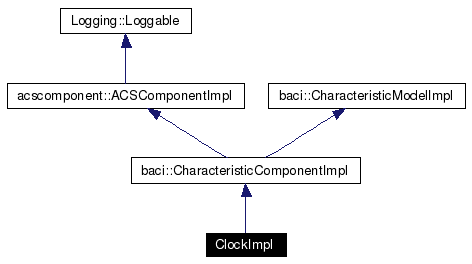

Inheritance diagram for ClockImpl:

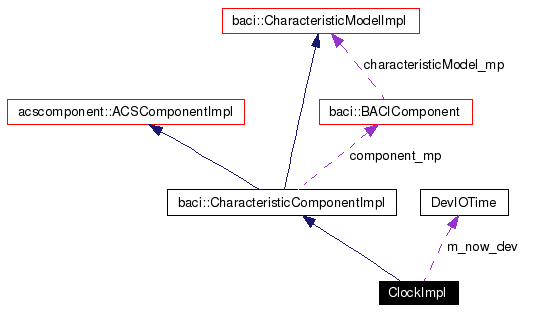

[legend]Collaboration diagram for ClockImpl:

[legend]List of all members.

Public Member Functions
	ClockImpl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~ClockImpl ()
virtual acstime::Duration	getTimeInterval (const acstime::Epoch &prevEpoch)
virtual ACS::RWlong_ptr	array2TAI ()
virtual ACS::RWlong_ptr	TAI2UTC ()
virtual ACS::ROuLongLong_ptr	now ()
virtual acstime::Epoch	fromISO8601 (acstime::TimeSystem ts, const char *iso)
virtual char *	toISO8601 (acstime::TimeSystem ts, const acstime::Epoch &timeValue)
Private Member Functions
	ClockImpl (const ClockImpl &)
	copy not allowed
void	operator= (const ClockImpl &)
	assignment not allowed
Private Attributes
baci::RWlong *	m_array2TAI
baci::RWlong *	m_TAI2UTC
baci::ROuLongLong *	m_now
DevIOTime *	m_now_dev

---

Detailed Description

ClockImpl is the implementation of Clock IDL interface and it provides an interface into the ACS time service which is based mainly on ALMA Control System software. It has the ability to do time conversions, return the current time, etc. There should be one Clock device running on each PC/LCU.

TODO:

• use devIOs on array2TAI and TAI2UTC properties and make them read-only. This requires figuring out exactly who writes values out to these properties.
• provide way more time conversion methods in this class (and the IDL interface). Won't be terribly useful until this is done.

---

Constructor & Destructor Documentation

ClockImpl::ClockImpl (  const ACE_CString &  name, maci::ContainerServices *  containerServices )

Constructor Parameters: poa  Poa which will activate this and also all other components. name  component's name. This is also the name that will be used to find the configuration data for the component in the Configuration Database. containerServices  container services object

virtual ClockImpl::~ClockImpl (   )  [virtual]

Destructor

ClockImpl::ClockImpl (  const ClockImpl &   )  [private]

copy not allowed

---

Member Function Documentation

virtual ACS::RWlong_ptr ClockImpl::array2TAI (   )  [virtual]

Implementation of IDL method. Please see the documenation for the Clock IDL interface. IDL Documentation

virtual acstime::Epoch ClockImpl::fromISO8601 (  acstime::TimeSystem  ts, const char *  iso )  [virtual]

Implementation of IDL method. Please see the documenation for the Clock IDL interface. Exceptions: ACSTimeError::ArgErrorEx  IDL Documentation

virtual acstime::Duration ClockImpl::getTimeInterval (  const acstime::Epoch &  prevEpoch  )  [virtual]

Implementation of IDL method. Please see the documenation for the Clock IDL interface. IDL Documentation

virtual ACS::ROuLongLong_ptr ClockImpl::now (   )  [virtual]

Implementation of IDL method. Please see the documenation for the Clock IDL interface. IDL Documentation

void ClockImpl::operator= (  const ClockImpl &   )  [private]

assignment not allowed

virtual ACS::RWlong_ptr ClockImpl::TAI2UTC (   )  [virtual]

Implementation of IDL method. Please see the documenation for the Clock IDL interface. IDL Documentation

virtual char* ClockImpl::toISO8601 (  acstime::TimeSystem  ts, const acstime::Epoch &  timeValue )  [virtual]

Implementation of IDL method. Please see the documenation for the Clock IDL interface. Exceptions: ACSTimeError::ArgErrorEx  IDL Documentation

---

Member Data Documentation

baci::RWlong* ClockImpl::m_array2TAI [private]

Implementation of the array2TAI IDL property.

baci::ROuLongLong* ClockImpl::m_now [private]

Implementation of the now IDL property (current time).

DevIOTime* ClockImpl::m_now_dev [private]

devIO used to get the current time used by the now property.

baci::RWlong* ClockImpl::m_TAI2UTC [private]

Implementation of the TAI2UTC IDL property.

---

The documentation for this class was generated from the following file:

• acstimeClockImpl.h

---
