LoggingService Class Reference

#include <loggingService.h>

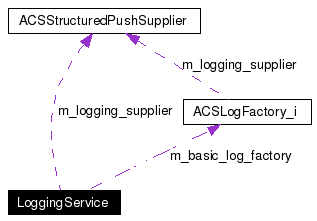

Collaboration diagram for LoggingService:

[legend]List of all members.

Public Member Functions
	LoggingService ()
virtual	~LoggingService ()
bool	isInitialized ()
int	parse_args (int argc, char *argv[])
void	startup (int argc, char *argv[])
int	run ()
void	shutdown ()
Protected Member Functions
void	init_ORB (int &argc, char *argv[])
void	resolve_naming_service ()
void	resolve_notify_factory ()
void	create_EC ()
void	create_supplieradmin ()
void	create_suppliers ()
void	create_basic_log_factory ()
void	create_basic_log ()
Protected Attributes
CosNotifyChannelAdmin::EventChannelFactory_var	m_notify_factory
CosNotifyChannelAdmin::EventChannel_var	m_logging_ec
CosNotification::QoSProperties	m_initial_qos
CosNotification::AdminProperties	m_initial_admin
CosNotifyChannelAdmin::InterFilterGroupOperator	m_ifgop
CosNotifyChannelAdmin::SupplierAdmin_var	m_logging_supplier_admin
ACSStructuredPushSupplier *	m_logging_supplier
const char *	m_basic_log_factory_name
const char *	m_basic_log_name
ACSLogFactory_i	m_basic_log_factory
DsLogAdmin::BasicLog_var	m_basic_log
bool	m_logBin
bool	m_isInitialized
CORBA::ORB_var	m_orb
PortableServer::POA_var	m_poa
CosNaming::NamingContext_var	m_naming_context

---

Detailed Description

Implementation of the Telecom Log Service

---

Constructor & Destructor Documentation

LoggingService::LoggingService (   )

Constructor

virtual LoggingService::~LoggingService (   )  [virtual]

Destructor

---

Member Function Documentation

void LoggingService::create_basic_log (   )  [protected]

Create the Basic Log

void LoggingService::create_basic_log_factory (   )  [protected]

Create the Basic Log Factory

void LoggingService::create_EC (   )  [protected]

Create an EC.

void LoggingService::create_supplieradmin (   )  [protected]

Create the Supplier Admin.

void LoggingService::create_suppliers (   )  [protected]

create and initialize the suppliers.

void LoggingService::init_ORB (  int &  argc, char *  argv[] )  [protected]

initialize the ORB.

bool LoggingService::isInitialized (   )  [inline]

Initalization status

int LoggingService::parse_args (  int  argc, char *  argv[] )

Parses the command line arguments. Returns: Returns 0 on success, -1 on error.

void LoggingService::resolve_naming_service (   )  [protected]

Resolve the naming service.

void LoggingService::resolve_notify_factory (   )  [protected]

Try to resolve the Notify factory from the Naming service.

int LoggingService::run (   )

run the Telecom Log Service. Returns: Returns 0 on success, -1 on error.

void LoggingService::shutdown (   )

Shutdown the Telecom Log Service.

void LoggingService::startup (  int  argc, char *  argv[] )

Initializes the Telecom Log Service.

---

Member Data Documentation

DsLogAdmin::BasicLog_var LoggingService::m_basic_log [protected]

The Basic Log

ACSLogFactory_i LoggingService::m_basic_log_factory [protected]

The Basic Log Factory.

const char* LoggingService::m_basic_log_factory_name [protected]

The Log Factory name.

const char* LoggingService::m_basic_log_name [protected]

The Log name.

CosNotifyChannelAdmin::InterFilterGroupOperator LoggingService::m_ifgop [protected]

The group operator between admin-proxy's.

CosNotification::AdminProperties LoggingService::m_initial_admin [protected]

Initial admin props specified to the factory when creating the EC.

CosNotification::QoSProperties LoggingService::m_initial_qos [protected]

Initial qos specified to the factory when creating the EC.

bool LoggingService::m_isInitialized [protected]

Initialization status

bool LoggingService::m_logBin [protected]

CosNotifyChannelAdmin::EventChannel_var LoggingService::m_logging_ec [protected]

The logging channel that we create using the factory.

ACSStructuredPushSupplier* LoggingService::m_logging_supplier [protected]

The loggingg supplier

CosNotifyChannelAdmin::SupplierAdmin_var LoggingService::m_logging_supplier_admin [protected]

The logging supplier admin used by suppliers.

CosNaming::NamingContext_var LoggingService::m_naming_context [protected]

A naming context.

CosNotifyChannelAdmin::EventChannelFactory_var LoggingService::m_notify_factory [protected]

Channel factory

CORBA::ORB_var LoggingService::m_orb [protected]

The ORB that we use.

PortableServer::POA_var LoggingService::m_poa [protected]

Reference to the root poa.

---

The documentation for this class was generated from the following file:

• loggingService.h

---
