StaticContainerServices Class Reference

#include <taskStaticContainerServices.h>

Inheritance diagram for StaticContainerServices:

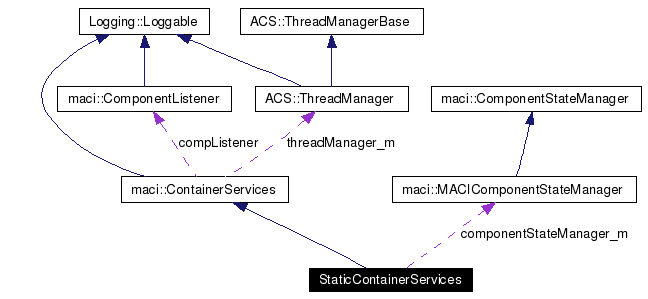

[legend]Collaboration diagram for StaticContainerServices:

[legend]List of all members.

Public Member Functions
	StaticContainerServices (const maci::Handle componentHandle, ACE_CString &name, PortableServer::POA_ptr poa, CORBA::ORB_ptr orb)
virtual	~StaticContainerServices ()
CORBA::Object *	getCORBAComponent (const char *name)
CORBA::Object *	getCORBAComponentNonSticky (const char *name)
CORBA::Object *	getCORBADynamicComponent (maci::ComponentSpec compSpec, bool markAsDefault)
CORBA::Object *	getCORBADefaultComponent (const char *idlType)
maci::ComponentInfo	getComponentDescriptor (const char *componentName)
ACE_CString_Vector	findComponents (const char *nameWilcard, const char *typeWildcard)
void	releaseComponent (const char *name)
void	releaseAllComponents ()
CDB::DAL_ptr	getCDB ()
PortableServer::POA_var	getOffShootPOA ()
ACS::OffShoot_ptr	activateOffShoot (PortableServer::Servant cbServant)
void	deactivateOffShoot (PortableServer::Servant cbServant)
PortableServer::POA_var	createOffShootPOA ()
maci::ComponentStateManager *	getComponentStateManager ()
virtual CORBA::Object *	getCORBACollocatedComponent (maci::ComponentSpec, bool, const char *)
Private Attributes
CORBA::ORB_var	orb_m
maci::Handle	m_componentHandle
	Component handle.
maci::MACIComponentStateManager	componentStateManager_m
	The component state manager.

---

Constructor & Destructor Documentation

StaticContainerServices::StaticContainerServices (  const maci::Handle  componentHandle, ACE_CString &  name, PortableServer::POA_ptr  poa, CORBA::ORB_ptr  orb )

Constructor

virtual StaticContainerServices::~StaticContainerServices (   )  [inline, virtual]

Destructor

---

Member Function Documentation

ACS::OffShoot_ptr StaticContainerServices::activateOffShoot (  PortableServer::Servant  cbServant  )  [inline, virtual]

Activates a CORBA servant that implements the OffShoot interface. Parameters: cbServant  the CORBA-generated servant, e.g. CBdoublePOA Returns: A reference to the OffShoot * * Implements maci::ContainerServices.

PortableServer::POA_var StaticContainerServices::createOffShootPOA (   )  [inline, virtual]

Create the offshoot POA Returns: The newly created POA Implements maci::ContainerServices.

void StaticContainerServices::deactivateOffShoot (  PortableServer::Servant  cbServant  )  [inline, virtual]

Deactivate the offshoot CORBA servant Parameters: cbServant  the CORBA servant Exceptions: acsErrTypeContainerServices::OffShootDeactivationExImpl  acsErrTypeContainerServices::OffShootPOAExImpl  Implements maci::ContainerServices.

ACE_CString_Vector StaticContainerServices::findComponents (  const char *  nameWilcard, const char *  typeWildcard )  [inline, virtual]

Finds components by their instance name (curl) and/or by their type. Wildcards can be used for the curl and type. This method returns a possibly empty array of component curls; for each curl, you may use getComponent to obtain the reference. Parameters: nameWildcard  (null is understood as "*") typeWildcard  (null is understood as "*") Returns: A vector of ACE_CString that contains the name of the component(s) that match the search. * * Implements maci::ContainerServices.

CDB::DAL_ptr StaticContainerServices::getCDB (   )  [virtual]

Get a reference to the DAL object Returns: A reference to the DAL Exceptions: acsErrTypeContainerServices::CanNotGetCDBExImpl  * * Implements maci::ContainerServices.

maci::ComponentInfo StaticContainerServices::getComponentDescriptor (  const char *  componentName  )  [inline, virtual]

Gets the component info for the component Parameters: componentName  The name of the component Exceptions: acsErrTypeContainerServices::GettingCompInfoExImpl  Returns: The ComponentInfo struct of the component Implements maci::ContainerServices.

maci::ComponentStateManager* StaticContainerServices::getComponentStateManager (   )  [inline, virtual]

Returns a pointer to the ComponentStateManager through which the component and the container administrate the state of the component. The component needs to access the ComponentStateManager if it wishes to change its state. If it doesn't, only the container will change the state based on the information it has available. Exceptions: maciErrType::IncompleteComponentSpecEx  maciErrType::InvalidComponentSpecEx  maciErrType::ComponentSpecIncompatibleWithActiveComponentEx  maciErrType::CannotGetComponentEx  Returns: the state manager See also: alma.ACS.ComponentStates Implements maci::ContainerServices.

virtual CORBA::Object* StaticContainerServices::getCORBACollocatedComponent (  maci::ComponentSpec  , bool  , const char *  )  [inline, virtual]

Gets a collocated component as a Corba object. Parameters: compSpec  The description of the component to activate markAsDefault  If true, the component becomes the default component for that IDL type targetComponent  name of the target component (where to activate component) Exceptions: maciErrType::NoPermissionExImpl  maciErrType::IncompleteComponentSpecExImpl  maciErrType::InvalidComponentSpecExImpl  maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl  maciErrType::CannotGetComponentExImpl  Returns: The reference to the component Implements maci::ContainerServices.

CORBA::Object* StaticContainerServices::getCORBAComponent (  const char *  name  )  [inline, virtual]

Exceptions: maciErrType::CannotGetComponentExImpl  Implements maci::ContainerServices.

CORBA::Object* StaticContainerServices::getCORBAComponentNonSticky (  const char *  name  )  [inline, virtual]

Exceptions: maciErrType::CannotGetComponentExImpl  Implements maci::ContainerServices.

CORBA::Object* StaticContainerServices::getCORBADefaultComponent (  const char *  idlType  )  [inline, virtual]

Implementation of acsContainerServices::getCORBADefaultComponent(const char* name) Exceptions: maciErrType::NoDefaultComponentExImpl  maciErrType::CannotGetComponentExImpl  Implements maci::ContainerServices.

CORBA::Object* StaticContainerServices::getCORBADynamicComponent (  maci::ComponentSpec  compSpec, bool  markAsDefault )  [inline, virtual]

Implementation of acsContainerServices::getCORBADynamicComponent(const char* name) Exceptions: maciErrType::IncompleteComponentSpecExImpl  maciErrType::InvalidComponentSpecExImpl  maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl  maciErrType::CannotGetComponentExImpl  Implements maci::ContainerServices.

PortableServer::POA_var StaticContainerServices::getOffShootPOA (   )  [inline, virtual]

Get the OffShoot POA Returns: The offshoot POA Implements maci::ContainerServices.

void StaticContainerServices::releaseAllComponents (   )  [inline, virtual]

Release all the components Returns: void Implements maci::ContainerServices.

void StaticContainerServices::releaseComponent (  const char *  name  )  [inline, virtual]

Releases the specified component. Parameters: The  name of the component instance to be released Exceptions: maciErrType::CannotReleaseComponentExImpl  Returns: void * * Implements maci::ContainerServices.

---

Member Data Documentation

maci::MACIComponentStateManager StaticContainerServices::componentStateManager_m [private]

The component state manager.

maci::Handle StaticContainerServices::m_componentHandle [private]

Component handle.

CORBA::ORB_var StaticContainerServices::orb_m [private]

---

The documentation for this class was generated from the following file:

• taskStaticContainerServices.h

---
