baci::AlarmSystemMonitor< TPROP > Class Template Reference

#include <baciAlarmSystemMonitor_T.h>

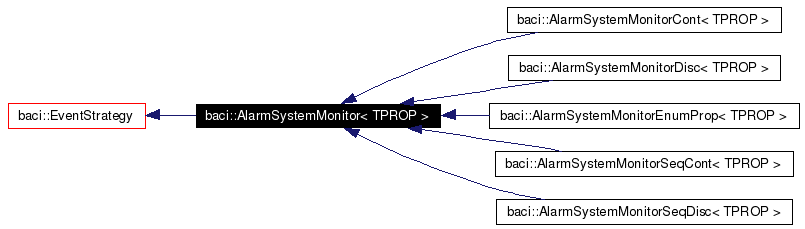

Inheritance diagram for baci::AlarmSystemMonitor< TPROP >:

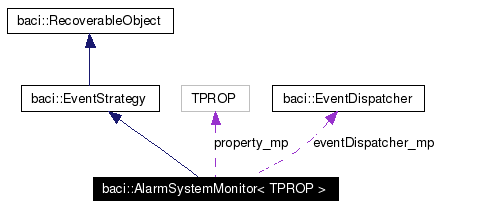

[legend]Collaboration diagram for baci::AlarmSystemMonitor< TPROP >:

[legend]List of all members.

Public Member Functions
	AlarmSystemMonitor (TPROP *property, EventDispatcher *eventDispatcher)
virtual	~AlarmSystemMonitor ()
bool	failed ()
void	succeeded ()
virtual bool	isSuspended ()
virtual int	getId (void)
virtual const char *	getName (void)
virtual char *	getObjectState (void)
virtual void	setObjectState (const char *state)
virtual void	suspend ()
virtual void	resume ()
virtual void	destroy ()
virtual void	check (BACIValue &val, const ACSErr::Completion &c, const ACS::CBDescOut &desc)=0
void	sendAlarm (std::string family, std::string member, int code, bool active)
Protected Attributes
auto_ptr< acsalarm::AlarmSystemInterface >	alarmSource_map
TPROP *	property_mp
int	alarmRaised_m
Private Member Functions
void	operator= (const AlarmSystemMonitor &)
	AlarmSystemMonitor (const AlarmSystemMonitor &)
Private Attributes
ACE_CString	name_m
bool	suspended_m
int	failureCount_m
CBDescIn	desc_mIn
ACS::TimeInterval	interval_m
EventDispatcher *	eventDispatcher_mp

---

Detailed Description

template<class TPROP>
class baci::AlarmSystemMonitor< TPROP >

Common class for the Alarm System Monitors. Implementation classes have only to implement check method. The purpose of this class or better its implementation is to send alarms to the ACS alarm system

---

Constructor & Destructor Documentation

template<class TPROP> baci::AlarmSystemMonitor< TPROP >::AlarmSystemMonitor (  TPROP *  property, EventDispatcher *  eventDispatcher )

template<class TPROP> virtual baci::AlarmSystemMonitor< TPROP >::~AlarmSystemMonitor (   )  [virtual]

template<class TPROP> baci::AlarmSystemMonitor< TPROP >::AlarmSystemMonitor (  const AlarmSystemMonitor< TPROP > &   )  [private]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

template<class TPROP> virtual void baci::AlarmSystemMonitor< TPROP >::check (  BACIValue &  val, const ACSErr::Completion &  c, const ACS::CBDescOut &  desc )  [pure virtual]

Event cheking method This virtual method is called periodically to check property state if event should be raised Implements baci::EventStrategy. Implemented in baci::AlarmSystemMonitorCont< T, TPROP >, baci::AlarmSystemMonitorDisc< T, TPROP >, baci::AlarmSystemMonitorSeqCont< T, TPROP >, baci::AlarmSystemMonitorSeqDisc< TPROP >, baci::AlarmSystemMonitorEnumProp< T, TPROP >, baci::AlarmSystemMonitorCont< TS, PropType >, baci::AlarmSystemMonitorSeqCont< TM, PropType >, baci::AlarmSystemMonitorSeqDisc< TM, PropType >, and baci::AlarmSystemMonitorEnumProp< T, ROEnumImpl< ACS_ENUM_T(T), SK > >.

template<class TPROP> virtual void baci::AlarmSystemMonitor< TPROP >::destroy (   )  [inline, virtual]

Destroy event subscription Implements baci::EventStrategy.

template<class TPROP> bool baci::AlarmSystemMonitor< TPROP >::failed (   )

template<class TPROP> virtual int baci::AlarmSystemMonitor< TPROP >::getId (  void   )  [inline, virtual]

Get object's "recovery" id; each object type sould have unique id Returns: object's id Implements baci::EventStrategy.

template<class TPROP> virtual const char* baci::AlarmSystemMonitor< TPROP >::getName (  void   )  [inline, virtual]

Returns objects name; each instance should have unique name Returns: object's name Implements baci::EventStrategy.

template<class TPROP> virtual char* baci::AlarmSystemMonitor< TPROP >::getObjectState (  void   )  [inline, virtual]

Get object's state represented as string Returns: pointer to stringified object's state Implements baci::EventStrategy.

template<class TPROP> virtual bool baci::AlarmSystemMonitor< TPROP >::isSuspended (   )  [inline, virtual]

Is suspended Implements baci::EventStrategy.

template<class TPROP> void baci::AlarmSystemMonitor< TPROP >::operator= (  const AlarmSystemMonitor< TPROP > &   )  [private]

ALMA C++ coding standards state assignment operators should be disabled.

template<class TPROP> virtual void baci::AlarmSystemMonitor< TPROP >::resume (   )  [inline, virtual]

Resume suspended event subscription Implements baci::EventStrategy.

template<class TPROP> void baci::AlarmSystemMonitor< TPROP >::sendAlarm (  std::string  family, std::string  member, int  code, bool  active )

Send an alarm to the AlarmSystem

template<class TPROP> virtual void baci::AlarmSystemMonitor< TPROP >::setObjectState (  const char *  state  )  [inline, virtual]

Set object's state stored in given string Parameters: stringified  object's state Implements baci::EventStrategy.

template<class TPROP> void baci::AlarmSystemMonitor< TPROP >::succeeded (   )

template<class TPROP> virtual void baci::AlarmSystemMonitor< TPROP >::suspend (   )  [inline, virtual]

Suspend event subscription Implements baci::EventStrategy.

---

Member Data Documentation

template<class TPROP> int baci::AlarmSystemMonitor< TPROP >::alarmRaised_m [protected]

template<class TPROP> auto_ptr<acsalarm::AlarmSystemInterface> baci::AlarmSystemMonitor< TPROP >::alarmSource_map [protected]

template<class TPROP> CBDescIn baci::AlarmSystemMonitor< TPROP >::desc_mIn [private]

template<class TPROP> EventDispatcher* baci::AlarmSystemMonitor< TPROP >::eventDispatcher_mp [private]

template<class TPROP> int baci::AlarmSystemMonitor< TPROP >::failureCount_m [private]

template<class TPROP> ACS::TimeInterval baci::AlarmSystemMonitor< TPROP >::interval_m [private]

template<class TPROP> ACE_CString baci::AlarmSystemMonitor< TPROP >::name_m [private]

template<class TPROP> TPROP* baci::AlarmSystemMonitor< TPROP >::property_mp [protected]

template<class TPROP> bool baci::AlarmSystemMonitor< TPROP >::suspended_m [private]

---

The documentation for this class was generated from the following file:

• baciAlarmSystemMonitor_T.h

---
