bulkdata::BulkDataReceiver Interface Reference
import "bulkDataReceiver.idl";

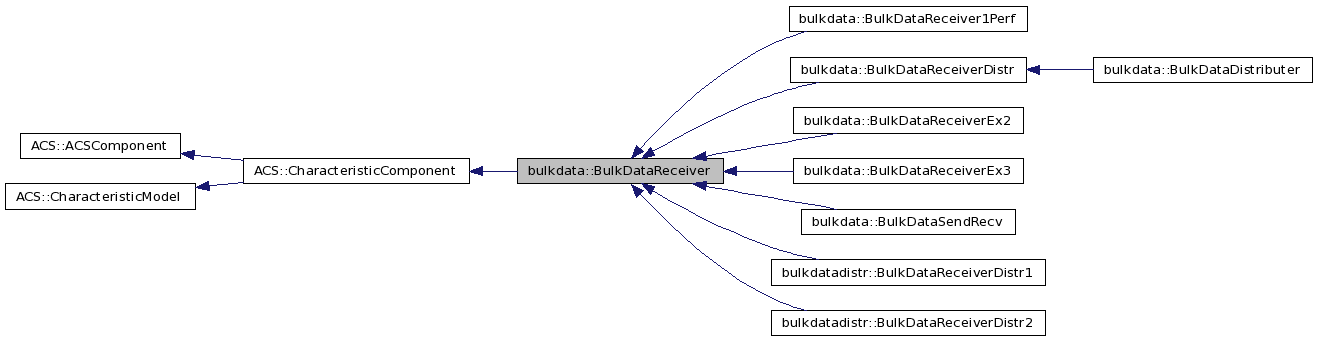

Inheritance diagram for bulkdata::BulkDataReceiver:

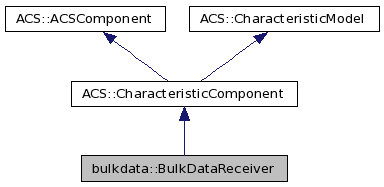

Collaboration diagram for bulkdata::BulkDataReceiver:
Public Member Functions | |
| void | openReceiver () raises (ACSBulkDataError::AVOpenReceiverErrorEx) |
| BulkDataReceiverConfig | getReceiverConfig () raises (ACSBulkDataError::AVReceiverConfigErrorEx) |
| void | closeReceiver () raises (ACSBulkDataError::AVCloseReceiverErrorEx) |
| ACSErr::Completion | getCbStatus (in unsigned long flowNumber) raises (ACSBulkDataError::AVInvalidFlowNumberEx, ACSBulkDataError::AVFlowEndpointErrorEx) |
| void | setTimeout (in unsigned long flowNumber, in unsigned long timeout) raises (ACSBulkDataError::AVInvalidFlowNumberEx, ACSBulkDataError::AVFlowEndpointErrorEx) |
| void | setRecvName (in string recvName) raises (ACSBulkDataError::AVSetReceiverNameErrorEx) |
| void | subscribeNotification (in ACS::CBvoid notifCb) raises (ACSBulkDataError::AVNotificationMechanismErrorEx) |
Detailed Description
Defines the interface for the Bulk Data Receiver Component
Member Function Documentation
| void bulkdata::BulkDataReceiver::closeReceiver | ( | ) | raises (ACSBulkDataError::AVCloseReceiverErrorEx) |
Closes connection.......
- Returns:
- void
| ACSErr::Completion bulkdata::BulkDataReceiver::getCbStatus | ( | in unsigned long | flowNumber | ) | raises (ACSBulkDataError::AVInvalidFlowNumberEx, ACSBulkDataError::AVFlowEndpointErrorEx) |
Get callback status
- Returns:
- ACSErr::Completion
| BulkDataReceiverConfig bulkdata::BulkDataReceiver::getReceiverConfig | ( | ) | raises (ACSBulkDataError::AVReceiverConfigErrorEx) |
This property is the Receiver Steam End Point.
| void bulkdata::BulkDataReceiver::openReceiver | ( | ) | raises (ACSBulkDataError::AVOpenReceiverErrorEx) |
Opens connection creating an out-of-bound channel using TAO A/V services. It creates the Receiver Stream End Point and Flow End Point for the connection with the Sender. The Receiver Stream End Point can be retrieved as an attribute.
- Returns:
- void
| void bulkdata::BulkDataReceiver::setRecvName | ( | in string | recvName | ) | raises (ACSBulkDataError::AVSetReceiverNameErrorEx) |
Set receiver name in receiver callback
- Parameters:
-
recName receiver name.
- Returns:
- void
| void bulkdata::BulkDataReceiver::setTimeout | ( | in unsigned long | flowNumber, | |
| in unsigned long | timeout | |||
| ) | raises (ACSBulkDataError::AVInvalidFlowNumberEx, ACSBulkDataError::AVFlowEndpointErrorEx) |
Set receiver timeout
- Returns:
- void
| void bulkdata::BulkDataReceiver::subscribeNotification | ( | in ACS::CBvoid | notifCb | ) | raises (ACSBulkDataError::AVNotificationMechanismErrorEx) |
Subscribe to the Notification Mechanism
- Parameters:
-
notifCb receiver name.
- Returns:
- void
The documentation for this interface was generated from the following file:
