alma::acs::logging::engine::parser::ACSLogParserVTD Class Reference

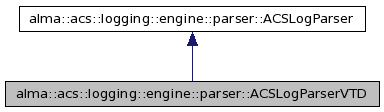

Inheritance diagram for alma::acs::logging::engine::parser::ACSLogParserVTD:

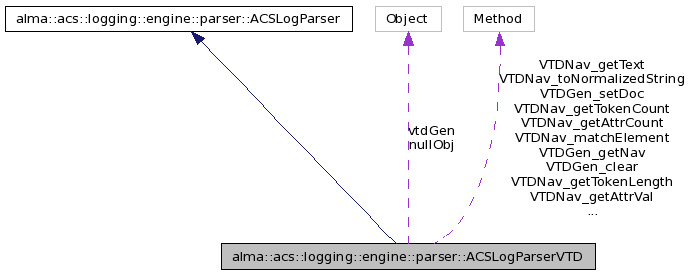

Collaboration diagram for alma::acs::logging::engine::parser::ACSLogParserVTD:

Public Member Functions
	ACSLogParserVTD () throws Exception
synchronized ILogEntry	parse (String xmlString) throws LogParseException
Private Member Functions
void	initReflection () throws Exception
Vector< AdditionalData >	getAdditionalData (Object vNav, ByteArrayOutputStream os, byte[] bytesArray) throws Exception
String	getString (Object vtdNav, ByteArrayOutputStream os, String attrName, byte[] bytesXML) throws Exception
Integer	getInteger (Object vtdNav, ByteArrayOutputStream os, String attrName, byte[] bytesXML) throws Exception
Long	getLongFromTimestamp (Object vtdNav, ByteArrayOutputStream os, String attrName, byte[] bytesXML) throws LogParseException, Exception
LogTypeHelper	determineEntryType (Object vtdNav) throws Exception
LogEntry	makeLogEntryFromParsedXML (byte[] bytesArray, String xmlString) throws LogParseException
String	getLogMessage (Object vn) throws Exception
Private Attributes
Object	vtdGen = null
Method	VTDGen_clear = null
Method	VTDGen_setDoc = null
Method	VTDGen_parse = null
Method	VTDGen_getNav = null
int	NAV_ROOT
int	NAV_FIRST_CHILD
int	NAV_NEXT_SIBLING
Method	VTDNav_toElement = null
Method	VTDNav_toElement_String = null
Method	VTDNav_matchElement = null
Method	VTDNav_hasAttr = null
Method	VTDNav_toString = null
Method	VTDNav_getText = null
Method	VTDNav_getAttrVal = null
Method	VTDNav_getAttrCount = null
Method	VTDNav_getTokenOffset = null
Method	VTDNav_getTokenCount = null
Method	VTDNav_getTokenLength = null
Method	VTDNav_toNormalizedString = null
Static Private Attributes
static final Object[]	nullObj = new Object[0]

Detailed Description

ACSLogParserVTD uses the VTD XML parser to parse XML logs. VTD is used for performance reasons. For more information on VTD, see their web site.

Author:: sharring

See also:: http://vtd-xml.sourceforge.net/; ACSLogParser

Constructor & Destructor Documentation

alma::acs::logging::engine::parser::ACSLogParserVTD::ACSLogParserVTD ( ) throws Exception [inline]

Constructor.

References initReflection().

Member Function Documentation

LogTypeHelper alma::acs::logging::engine::parser::ACSLogParserVTD::determineEntryType ( Object vtdNav ) throws Exception [inline, private]

Returns the entry type as an Integer for the current log that is being parsed.

Parameters:

vn

an instance of a VTDNav object to use in ascertaining the entry type of the log that is being parsed.

Returns:: a LogTypeHelper denoting the type of entry (e.g. INFO, DEBUG, WARNING, etc.)
null if the entry does not match with any log type

Exceptions:

NavException

if the VTDNav navigation fails for some reason.

See also:: LogTypeHelper

Vector<AdditionalData> alma::acs::logging::engine::parser::ACSLogParserVTD::getAdditionalData	(	Object	vNav,
		ByteArrayOutputStream	os,
		byte[]	bytesArray
	)			throws Exception `[inline, private]`

Gets a Vector<AdditionalData> from VTD XML parser (using VTDNav navigation)

Parameters:

	vtdNav	the navigator to use to navigate the parsed xml
	os	output stream to use for conversion of bytes to useful formatted data.
	bytesXML	the bytes (containing XML) that are being referenced by the navigator.

Returns:: Vector<AdditionalData> populated with the additional data for the log message, if any, else null

Exceptions:

NavException

if navigation encounters problems

References NAV_FIRST_CHILD, and VTDNav_toElement_String.

Integer alma::acs::logging::engine::parser::ACSLogParserVTD::getInteger	(	Object	vtdNav,
		ByteArrayOutputStream	os,
		String	attrName,
		byte[]	bytesXML
	)			throws Exception `[inline, private]`

Gets an Integer from VTD XML parser (using VTDNav navigation)

Parameters:

	vtdNav	the navigator to use to navigate the parsed xml
	os	output stream to use for conversion of bytes to useful formatted data.
	attrName	the name of the field we are searching for
	bytesXML	the bytes (containing XML) that are being referenced by the navigator.

Returns:: Integer populated with the attribute's value

Exceptions:

NavException

if navigation encounters problems

String alma::acs::logging::engine::parser::ACSLogParserVTD::getLogMessage ( Object vn ) throws Exception [inline, private]

Get the body of a log.

The log message must be read with this method because of the mixed content

Parameters:

vn

The VTDNav

Returns:: The message of the log

Exceptions:

Exception

Long alma::acs::logging::engine::parser::ACSLogParserVTD::getLongFromTimestamp	(	Object	vtdNav,
		ByteArrayOutputStream	os,
		String	attrName,
		byte[]	bytesXML
	)			throws LogParseException, Exception `[inline, private]`

Gets a Long from VTD XML parser (using VTDNav navigation)

Parameters:

	vtdNav	the navigator to use to navigate the parsed xml
	os	output stream to use for conversion of bytes to useful formatted data.
	attrName	the name of the field we are searching for
	bytesXML	the bytes (containing XML) that are being referenced by the navigator.

Returns:: Long populated with the attribute's value

Exceptions:

	NavException	if navigation encounters problems
	LogParseException	if parsing fails

String alma::acs::logging::engine::parser::ACSLogParserVTD::getString	(	Object	vtdNav,
		ByteArrayOutputStream	os,
		String	attrName,
		byte[]	bytesXML
	)			throws Exception `[inline, private]`

Gets a String from VTD XML parser (using VTDNav navigation)

Parameters:

	vtdNav	the navigator to use to navigate the parsed xml
	os	output stream to use for conversion of bytes to useful formatted data.
	attrName	the name of the field we are searching for
	bytesXML	the bytes (containing XML) that are being referenced by the navigator.

Returns:: String populated with the attribute's value

Exceptions:

NavException

if navigation encounters problems

void alma::acs::logging::engine::parser::ACSLogParserVTD::initReflection ( ) throws Exception [inline, private]

Initialize all the fields and methods with reflection.

Exceptions:

Exception

If fails instantiating fields and methods

References NAV_FIRST_CHILD, NAV_NEXT_SIBLING, NAV_ROOT, vtdGen, VTDGen_clear, VTDGen_getNav, VTDGen_parse, VTDGen_setDoc, VTDNav_getAttrCount, VTDNav_getAttrVal, VTDNav_getText, VTDNav_getTokenCount, VTDNav_getTokenLength, VTDNav_getTokenOffset, VTDNav_hasAttr, VTDNav_matchElement, VTDNav_toElement, VTDNav_toElement_String, VTDNav_toNormalizedString, and VTDNav_toString.

Referenced by ACSLogParserVTD().

LogEntry alma::acs::logging::engine::parser::ACSLogParserVTD::makeLogEntryFromParsedXML	(	byte[]	bytesArray,
		String	xmlString
	)			throws LogParseException `[inline, private]`

Creates a LogEntry from raw XML, using a VTD XML parser.

Parameters:

	xmlString	the XML string that is being parsed.
	bytesArray	the array of bytes (also containing the xml string that we are parsing, in byte form) to be used by VTD.
	vtdGen	the instance of VTDGen to use for parsing the XML
