cern::gp::beans::BeanInfoSupport Class Reference

Inheritance diagram for cern::gp::beans::BeanInfoSupport:

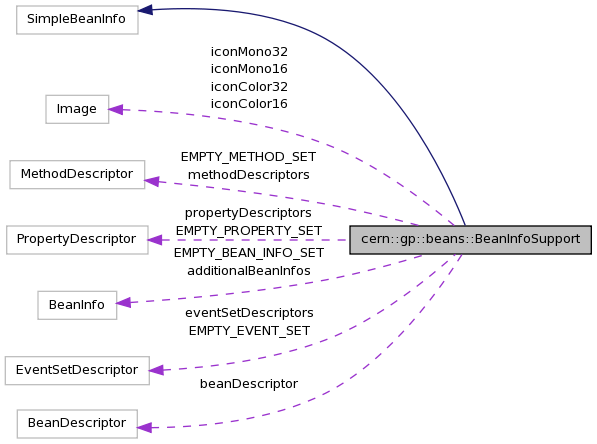

Collaboration diagram for cern::gp::beans::BeanInfoSupport:

Public Member Functions
	BeanInfoSupport ()
final BeanInfo[]	getAdditionalBeanInfo ()
final BeanDescriptor	getBeanDescriptor ()
final PropertyDescriptor[]	getPropertyDescriptors ()
final EventSetDescriptor[]	getEventSetDescriptors ()
final MethodDescriptor[]	getMethodDescriptors ()
final int	getDefaultPropertyIndex ()
final int	getDefaultEventIndex ()
final java.awt.Image	getIcon (int iconKind)
Protected Member Functions
BeanDescriptor	getBeanDescriptorLazy ()
PropertyDescriptor[]	getPropertyDescriptorsLazy () throws IntrospectionException
EventSetDescriptor[]	getEventSetDescriptorsLazy () throws IntrospectionException
MethodDescriptor[]	getMethodDescriptorsLazy () throws IntrospectionException
String	getIconNameM16 ()
String	getIconNameM32 ()
String	getIconNameC16 ()
String	getIconNameC32 ()
int	getDefaultPropertyIndexLazy ()
int	getDefaultEventIndexLazy ()
Class	getSuperclass ()
EventSetDescriptor	createPropertyChangeEventSet (Class beanClass) throws IntrospectionException
Static Protected Attributes
static final PropertyDescriptor[]	EMPTY_PROPERTY_SET = new PropertyDescriptor[0]
static final MethodDescriptor[]	EMPTY_METHOD_SET = new MethodDescriptor[0]
static final EventSetDescriptor[]	EMPTY_EVENT_SET = new EventSetDescriptor[0]
Private Member Functions
void	setActionsFromAdditionalBeanInfo ()
Private Attributes
java.awt.Image	iconColor16
java.awt.Image	iconColor32
java.awt.Image	iconMono16
java.awt.Image	iconMono32
BeanDescriptor	beanDescriptor
PropertyDescriptor[]	propertyDescriptors
EventSetDescriptor[]	eventSetDescriptors
MethodDescriptor[]	methodDescriptors
BeanInfo[]	additionalBeanInfos
Static Private Attributes
static final BeanInfo[]	EMPTY_BEAN_INFO_SET = new BeanInfo[0]

Detailed Description

Utility class that provides default implementation and caching for all aspect of the BeanInfo.

Should be subclassed in order to overwrite the protected methods.

Version:

Revision: 1.2

Date: 2006/09/25 08:52:36

Author:: Lionel Mestre

Constructor & Destructor Documentation

cern::gp::beans::BeanInfoSupport::BeanInfoSupport ( ) [inline]

References setActionsFromAdditionalBeanInfo().

Member Function Documentation

EventSetDescriptor cern::gp::beans::BeanInfoSupport::createPropertyChangeEventSet ( Class beanClass ) throws IntrospectionException [inline, protected]

Returns a new EventSetDescriptor for PropertyChangeEvent. Call this method inside the method getEventSetDescriptorsLazy in order to include PropertyChangeEvent in the array of EventSetDescriptor you return. You do that if the bean class has the methods addPropertyChangeListener and removePropertyChangeListener.

Parameters:

<code>beanClass</code>

the class of the bean this BeanInfo is for

Returns:: A EventSetDescriptor for the PropertyChange events.

Exceptions:

IntrospectionException

if the EventSetDescriptor cannot be built.

final BeanInfo [] cern::gp::beans::BeanInfoSupport::getAdditionalBeanInfo ( ) [inline]

References additionalBeanInfos, EMPTY_BEAN_INFO_SET, and getSuperclass().

Referenced by setActionsFromAdditionalBeanInfo().

final BeanDescriptor cern::gp::beans::BeanInfoSupport::getBeanDescriptor ( ) [inline]

Gets the bean's BeanDescriptors.

Returns:: BeanDescriptor describing the editable properties of this bean. May return null if the information should be obtained by automatic analysis.

References beanDescriptor, and getBeanDescriptorLazy().

BeanDescriptor cern::gp::beans::BeanInfoSupport::getBeanDescriptorLazy ( ) [inline, protected]

Returns the bean descriptor for this bean info.

Returns:: the bean descriptor for this bean info.

Reimplemented in cern::gp::actions::test::helpers::AcceptorBeanBeanInfo.

Referenced by getBeanDescriptor().

final int cern::gp::beans::BeanInfoSupport::getDefaultEventIndex ( ) [inline]

A bean may have a "default" event that is the event that will mostly commonly be used by human's when using the bean.

Returns:: Index of default event in the EventSetDescriptor array returned by getEventSetDescriptors.

Returns -1 if there is no default event.

References getDefaultEventIndexLazy().

int cern::gp::beans::BeanInfoSupport::getDefaultEventIndexLazy ( ) [inline, protected]

Returns the index of the event. Default implementation returns -1.

Returns:: the index of the default event.

Referenced by getDefaultEventIndex().

final int cern::gp::beans::BeanInfoSupport::getDefaultPropertyIndex ( ) [inline]

A bean may have a "default" property that is the property that will mostly commonly be initially chosen for update by human's who are customizing the bean.

Returns:: Index of default property in the PropertyDescriptor array returned by getPropertyDescriptors.

Returns -1 if there is no default property.

References getDefaultPropertyIndexLazy().

int cern::gp::beans::BeanInfoSupport::getDefaultPropertyIndexLazy ( ) [inline, protected]

Returns the index of the default property. Default implementation returns -1.

Returns:: the index of the default property.

Referenced by getDefaultPropertyIndex().

final EventSetDescriptor [] cern::gp::beans::BeanInfoSupport::getEventSetDescriptors ( ) [inline]

Gets the bean's EventSetDescriptors.

Returns:: An array of EventSetDescriptors describing the kinds of events fired by this bean. May return null if the information should be obtained by automatic analysis.

References EMPTY_EVENT_SET, eventSetDescriptors, and getEventSetDescriptorsLazy().

EventSetDescriptor [] cern::gp::beans::BeanInfoSupport::getEventSetDescriptorsLazy ( ) throws IntrospectionException [inline, protected]

Returns the event set descriptors for this bean info. Default implementation returns null which means that the Introspector will perform the introspection to get the EventSetDescriptors This method is guarantee to be called once

Returns:: the event set descriptors for this bean info.

Referenced by getEventSetDescriptors().

final java.awt.Image cern::gp::beans::BeanInfoSupport::getIcon ( int iconKind ) [inline]

This method returns an image object that can be used to represent the bean in toolboxes, toolbars, etc. Icon images will typically be GIFs, but may in future include other formats.

Beans aren't required to provide icons and may return null from this method.

There are four possible flavors of icons (16x16 color, 32x32 color, 16x16 mono, 32x32 mono). If a bean choses to only support a single icon we recommend supporting 16x16 color.

We recommend that icons have a "transparent" background so they can be rendered onto an existing background.

Parameters:

iconKind

The kind of icon requested. This should be one of the constant values ICON_COLOR_16x16, ICON_COLOR_32x32, ICON_MONO_16x16, or ICON_MONO_32x32.

Returns:: An image object representing the requested icon. May return null if no suitable icon is available.

References getIconNameC16(), getIconNameC32(), getIconNameM16(), getIconNameM32(), iconColor16, iconColor32, iconMono16, and iconMono32.

String cern::gp::beans::BeanInfoSupport::getIconNameC16 ( ) [inline, protected]

Returns the name of the icon C16. Default implementation returns null.

Returns:: the name of the icon C16 or null if no icon.

Referenced by getIcon().

String cern::gp::beans::BeanInfoSupport::getIconNameC32 ( ) [inline, protected]

Returns the name of the icon C32. Default implementation returns null.

Returns:: the name of the icon C32 or null if no icon.

Referenced by getIcon().

String cern::gp::beans::BeanInfoSupport::getIconNameM16 ( ) [inline, protected]

Returns the name of the icon M16. Default implementation returns null.

Returns:: the name of the icon M16 or null if no icon.

Referenced by getIcon().

String cern::gp::beans::BeanInfoSupport::getIconNameM32 ( ) [inline, protected]

Returns the name of the icon M32. Default implementation returns null.

Returns:: the name of the icon M32 or null if no icon.

Referenced by getIcon().

final MethodDescriptor [] cern::gp::beans::BeanInfoSupport::getMethodDescriptors ( ) [inline]

Gets the bean's MethodDescriptors.

Returns:: An array of MethodDescriptors describing the methods implemented by this bean. May return null if the information should be obtained by automatic analysis.

References EMPTY_METHOD_SET, getMethodDescriptorsLazy(), and methodDescriptors.

MethodDescriptor [] cern::gp::beans::BeanInfoSupport::getMethodDescriptorsLazy ( ) throws IntrospectionException [inline, protected]

Returns the method descriptors for this bean info. Default implementation returns null which means that the Introspector will perform the introspection to get the MethodDescriptors. This method is guarantee to be called once

Returns:: the method descriptors for this bean info.

Referenced by getMethodDescriptors().

final PropertyDescriptor [] cern::gp::beans::BeanInfoSupport::getPropertyDescriptors ( ) [inline]

Gets the bean's PropertyDescriptors.

Returns:: An array of PropertyDescriptors describing the editable properties supported by this bean. May return null if the information should be obtained by automatic analysis.

If a property is indexed, then its entry in the result array will belong to the IndexedPropertyDescriptor subclass of PropertyDescriptor. A client of getPropertyDescriptors can use "instanceof" to check if a given PropertyDescriptor is an IndexedPropertyDescriptor.

References EMPTY_PROPERTY_SET, getPropertyDescriptorsLazy(), and propertyDescriptors.

PropertyDescriptor [] cern::gp::beans::BeanInfoSupport::getPropertyDescriptorsLazy ( ) throws IntrospectionException [inline, protected]

Returns the property descriptors for this bean info. Default implementation returns null which means that the Introspector will perform the introspection to get the PropertyDescriptors This method is guarantee to be called once

Returns:: the property descriptors for this bean info.

Reimplemented in cern::gp::explorer::test::helpers::ColoredBeanBeanInfo.

Referenced by getPropertyDescriptors().

Class cern::gp::beans::BeanInfoSupport::getSuperclass ( ) [inline, protected]

Returns the superclass of the class this bean info is for. This is used in order to look for additional BeanInfo. Default implementation returns null which means that there is no additional BeanInfo

Returns:: the superclass of the class this bean info is for or null.

Referenced by getAdditionalBeanInfo().

void cern::gp::beans::BeanInfoSupport::setActionsFromAdditionalBeanInfo ( ) [inline, private]

Sets the qname of available actions for this BeanInfo by getting the ones of all additional BeanInfos.

References getAdditionalBeanInfo().

Referenced by BeanInfoSupport().

Member Data Documentation

BeanInfo [] cern::gp::beans::BeanInfoSupport::additionalBeanInfos [private]

cached additional beaninfos

Referenced by getAdditionalBeanInfo().

BeanDescriptor cern::gp::beans::BeanInfoSupport::beanDescriptor [private]

cached value if the bean descriptor

Referenced by getBeanDescriptor().

final BeanInfo [] cern::gp::beans::BeanInfoSupport::EMPTY_BEAN_INFO_SET = new BeanInfo[0] [static, private]

Referenced by getAdditionalBeanInfo().

final EventSetDescriptor [] cern::gp::beans::BeanInfoSupport::EMPTY_EVENT_SET = new EventSetDescriptor[0] [static, protected]

Empty array of event set descriptor that you can return in getEventSetDescriptorsLazy in order not to have any event set and to prevent the Introspector to introspect the event set from the bean

Referenced by getEventSetDescriptors().

final MethodDescriptor [] cern::gp::beans::BeanInfoSupport::EMPTY_METHOD_SET = new MethodDescriptor[0] [static, protected]

Empty array of method descriptors that you can return in getMethodDescriptorsLazy in order not to have any method descriptor and to prevent the Introspector to introspect the methods from the bean

Referenced by getMethodDescriptors().

final PropertyDescriptor [] cern::gp::beans::BeanInfoSupport::EMPTY_PROPERTY_SET = new PropertyDescriptor[0] [static, protected]

Empty array of property set that you can return in getPropertyDescriptorsLazy in order not to have any property and to prevent the Introspector to introspect the properties from the bean

Referenced by getPropertyDescriptors().

EventSetDescriptor [] cern::gp::beans::BeanInfoSupport::eventSetDescriptors [private]

cached value if the event set descriptors

Referenced by getEventSetDescriptors().

java.awt.Image cern::gp::beans::BeanInfoSupport::iconColor16 [private]

cached value if the icon

Referenced by getIcon().

java.awt.Image cern::gp::beans::BeanInfoSupport::iconColor32 [private]

cached value if the icon

Referenced by getIcon().

java.awt.Image cern::gp::beans::BeanInfoSupport::iconMono16 [private]

cached value if the icon
