ESPRESSO trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-07-14T18:53:35 (UT)
  | now: 2024-07-14T20:36:54 (UT) muc11 QC pipeline: espdr-2.5.0 (installed 2022-06-28)
same group: HR_1x1 HR_2x1 HR_4x2 UHR_1x1 MR_4x2 MR_8x4
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
The links to KMOS, UVES, and ESPRESSO have been moved to a new section (qcFlow operational) at the lower part of the navigation bar.
ESPRESSO news:
Report news:
DATE*: [?] 2024-07-07
report | NLT
2024-07-08
report | NLT
2024-07-09
report | NLT
2024-07-10
report | NLT
2024-07-11
report | NLT
2024-07-12
report | NLT
2024-07-13
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB none   NONE VAL170,170 170 fiba_order_nb this | last_yr | all total number of found orders, fibre A
2 QC1DB MEDIAN 4.68e+03 px VAL4682.67,4683.07 170 fiba_centorder_pos this | last_yr | all y position of central order, fibre A, BLUE detector
3 QC1DB MEDIAN 4.47e+03 px VAL4471.79,4472.19 170 fiba_centorder_pos this | last_yr | all y position of central order, fibre A, RED detector
4 QC1DB none   NONE VAL170,170 170 fibb_order_nb this | last_yr | all total number of found orders, fibre B
5 QC1DB MEDIAN 4.75e+03 px VAL4751.28,4751.68 170 fibb_centorder_pos this | last_yr | all y position of central order, fibre B, BLUE detector
6 QC1DB MEDIAN 4.54e+03 px VAL4541.91,4542.31 170 fibb_centorder_pos this | last_yr | all y position of central order, fibre B, RED detector
*Data sources: QC1DB: QC1 database; LOCAL: local data source

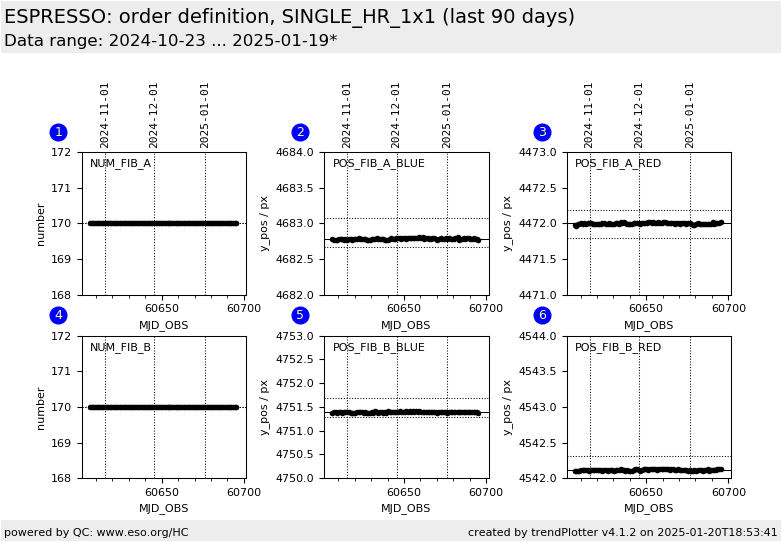

Plot 1
scores: 14|
data source:espresso_orderdef
(QC1 database)
dataset:fiba_order_nb
average:none
fixed thresholds:170...170NONE
N_data plotted:170
[click plot for closeup]
Plot 2
scores: 14|
data source:espresso_orderdef
(QC1 database)
dataset:fiba_centorder_pos
median:4.68e+03px
fixed thresholds:4682.67...4683.07px
N_data plotted:170
[click plot for closeup]
Plot 3
scores: 14|
data source:espresso_orderdef
(QC1 database)
dataset:fiba_centorder_pos
median:4.47e+03px
fixed thresholds:4471.79...4472.19px
N_data plotted:170
[click plot for closeup]
Plot 4
scores: 14|
data source:espresso_orderdef
(QC1 database)
dataset:fibb_order_nb
average:none
fixed thresholds:170...170NONE
N_data plotted:170
[click plot for closeup]
Plot 5
scores: 14|
data source:espresso_orderdef
(QC1 database)
dataset:fibb_centorder_pos
median:4.75e+03px
fixed thresholds:4751.28...4751.68px
N_data plotted:170
[click plot for closeup]
Plot 6
scores: 14|
data source:espresso_orderdef
(QC1 database)
dataset:fibb_centorder_pos
median:4.54e+03px
fixed thresholds:4541.91...4542.31px
N_data plotted:170
[click plot for closeup]
This plot

Trending plot for order-definition calibrations. This plot shows the total number of found orders and the y position of two dedicated orders on the detector.

For the HR and UHR modes, the pipeline recipe should identify 170 orders in total, 90 on the BLUE chip and 80 on the RED chip. This number is trended separately for fibres A and B.

For trending the order position on the detector, a central order number has been chosen. The y position of this order is trended separately for the BLUE and the RED chip and for fibres A and B.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
