ESPRESSO trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-07-13T20:31:04 (UT)
  | now: 2024-07-14T05:15:41 (UT) muc11 QC pipeline: espdr-2.5.0 (installed 2022-06-28)
same group: disp_HR_1x1 disp_HR_2x1 disp_HR_4x2 disp_UHR_1x1 disp_MR_4x2 disp_MR_8x4
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
The links to KMOS, UVES, and ESPRESSO have been moved to a new section (qcFlow operational) at the lower part of the navigation bar.
ESPRESSO news:
Report news:
DATE*: [?] 2024-07-07
report | NLT
2024-07-08
report | NLT
2024-07-09
report | NLT
2024-07-10
report | NLT
2024-07-11
report | NLT
2024-07-12
report | NLT
2024-07-13
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 4.56 NONE VAL0,6 167 fiba_disp_avg this | last_yr | all RMS of dispersion solution, average of all orders, fibre A
2 QC1DB MEDIAN 1.71 NONE VAL1,4 167 fiba_disp_rms this | last_yr | all RMS of dispersion solution, RMS across all orders, fibre A
3 QC1DB MEDIAN 4.6 NONE VAL0,6 167 fibb_disp_avg this | last_yr | all RMS of dispersion solution, average of all orders, fibre B
4 QC1DB MEDIAN 1.71 NONE VAL1,4 167 fibb_disp_rms this | last_yr | all RMS of dispersion solution, RMS across all orders, fibre B
*Data sources: QC1DB: QC1 database; LOCAL: local data source

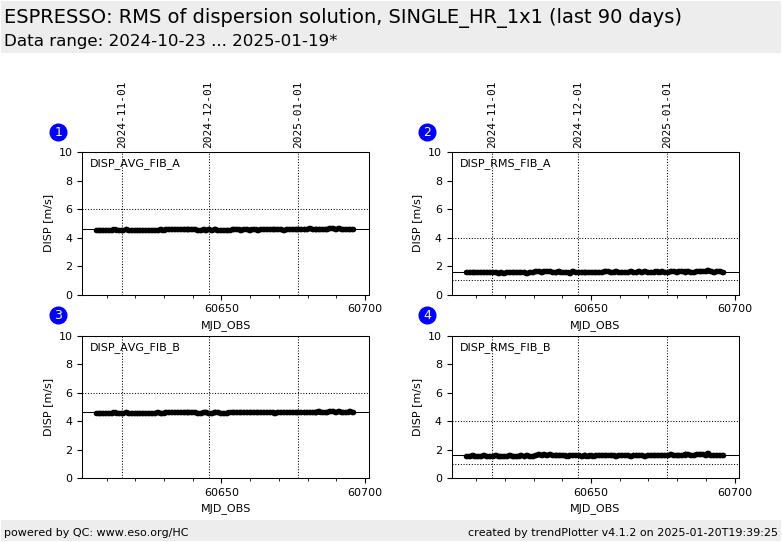

Plot 1
scores: 14|
data source:espresso_wave_thar_a
(QC1 database)
dataset:fiba_disp_avg
median:4.56NONE
fixed thresholds:0...6NONE
N_data plotted:167
[click plot for closeup]
Plot 2
scores: 14|
data source:espresso_wave_thar_a
(QC1 database)
dataset:fiba_disp_rms
median:1.71NONE
fixed thresholds:1...4NONE
N_data plotted:167
[click plot for closeup]
Plot 3
scores: 14|
data source:espresso_wave_thar_b
(QC1 database)
dataset:fibb_disp_avg
median:4.6NONE
fixed thresholds:0...6NONE
N_data plotted:167
[click plot for closeup]
Plot 4
scores: 14|
data source:espresso_wave_thar_b
(QC1 database)
dataset:fibb_disp_rms
median:1.71NONE
fixed thresholds:1...4NONE
N_data plotted:167
[click plot for closeup]
This plot

Trending plot for the RMS of the dispersion solution. The wavelength solution is achieved by calibrating the Fabry-Perot (FP) lines with Th-Ar arc lines.

The dispersion RMS is calculated per order. The trending plots show the average dispersion RMS of all orders and the RMS of the individual values.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
