GRAVITY trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-06-27T18:30:26 (UT)
  | now: 2022-06-28T01:01:04 (UT) muc05 QC pipeline: gravity-1.5.4 (installed 2022-03-24)
same group: coherence phase
General news:
GRAVITY news:
Report news:
DATE*: [?] 2022-06-21
report | NLT
2022-06-22
report | NLT
2022-06-23
report | NLT
2022-06-24
report | NLT
2022-06-25
report | NLT
2022-06-26
report | NLT
2022-06-27
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.924 none VAL0.85,0.97 22 coherence_avg_sc this | last_yr | all average coherence of P2VM, LOW resolution, SPLIT polarisation, Science Camera (SC) detector
2 QC1DB MEDIAN 0.944 none VAL0.90,0.97 121 coherence_avg_sc this | last_yr | all average coherence of P2VM, MEDIUM resolution, SPLIT polarisation, Science Camera (SC) detector
3 QC1DB MEDIAN 0.952 none VAL0.87,0.96 11 coherence_avg_sc this | last_yr | all average coherence of P2VM, HIGH resolution, SPLIT polarisation, Science Camera (SC) detector
4 QC1DB MEDIAN 0.946 none VAL0.90,0.98 154 coherence_avg_ft this | last_yr | all average coherence of P2VM, SPLIT polarisation, Fringe Tracker (FT) detector
5 QC1DB MEDIAN 0.919 none VAL0.87,0.98 8 coherence_avg_sc this | last_yr | all average coherence of P2VM, LOW resolution, COMBINED polarisation, Science Camera (SC) detector
6 QC1DB MEDIAN 0.939 none VAL0.85,0.97 31 coherence_avg_sc this | last_yr | all average coherence of P2VM, MEDIUM resolution, COMBINED polarisation, Science Camera (SC) detector
7 QC1DB MEDIAN 0.948 none VAL0.88,0.96 38 coherence_avg_sc this | last_yr | all average coherence of P2VM, HIGH resolution, COMBINED polarisation, Science Camera (SC) detector
8 QC1DB MEDIAN 0.935 none VAL0.88,0.95 77 coherence_avg_ft this | last_yr | all average coherence of P2VM, COMBINED polarisation, Fringe Tracker (FT) detector
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 7|
data source:gravity_p2vm
(QC1 database)
dataset:coherence_avg_sc
median:0.924none
fixed thresholds:0.85...0.97none
N_data plotted:22
[click plot for closeup]
Plot 2
scores: 13|
data source:gravity_p2vm
(QC1 database)
dataset:coherence_avg_sc
median:0.944none
fixed thresholds:0.9...0.97none
N_data plotted:121
[click plot for closeup]
Plot 3
scores: 1|
data source:gravity_p2vm
(QC1 database)
dataset:coherence_avg_sc
median:0.952none
fixed thresholds:0.87...0.96none
N_data plotted:11
[click plot for closeup]
Plot 4
scores: 20|
data source:gravity_p2vm
(QC1 database)
dataset:coherence_avg_ft
median:0.946none
fixed thresholds:0.9...0.98none
N_data plotted:154
[click plot for closeup]
Plot 5
scores: 2|
data source:gravity_p2vm
(QC1 database)
dataset:coherence_avg_sc
median:0.919none
fixed thresholds:0.87...0.98none
N_data plotted:8
[click plot for closeup]
Plot 6
scores: 6|
data source:gravity_p2vm
(QC1 database)
dataset:coherence_avg_sc
median:0.939none
fixed thresholds:0.85...0.97none
N_data plotted:31
[click plot for closeup]
Plot 7
scores: 10|
data source:gravity_p2vm
(QC1 database)
dataset:coherence_avg_sc
median:0.948none
fixed thresholds:0.88...0.96none
N_data plotted:38
[click plot for closeup]
Plot 8
scores: 14|
data source:gravity_p2vm
(QC1 database)
dataset:coherence_avg_ft
median:0.935none
fixed thresholds:0.88...0.95none
N_data plotted:77
[click plot for closeup]
This plot

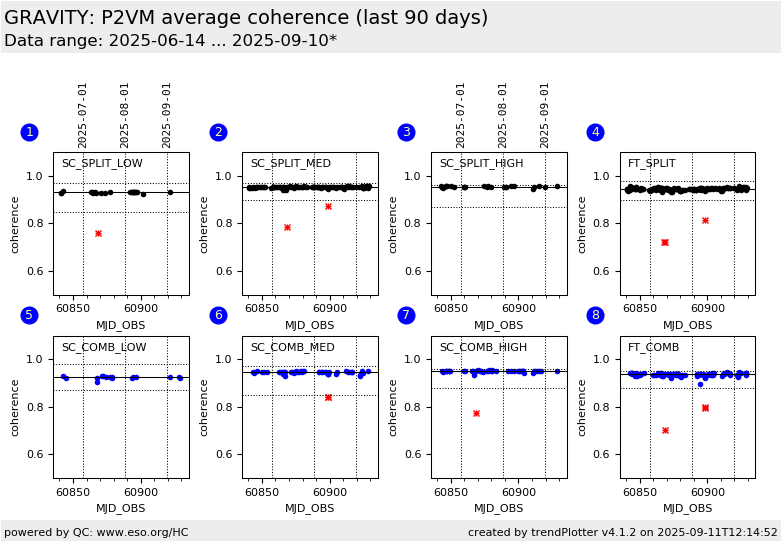

Trending plots for pixel-to-visibility-maxtrix (P2VM) calibrations. This plot contains values that are averaged over the six baselines.

Note about LOW resolution: with pipeline version 1.2.x, installed 2019-03-25 for QC, some QC parameters for P2VM do not give meaningful values. This includes the phase RMS. Plotting of these parameters and scoring has therefore been stopped for LOW resolution.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
