AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback > Class Template Reference

#include <bulkDataNTReceiverStream.h>

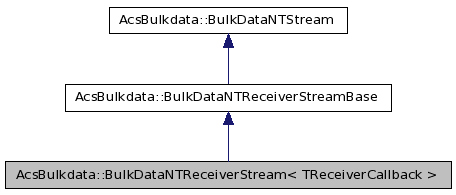

Inheritance diagram for AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >:

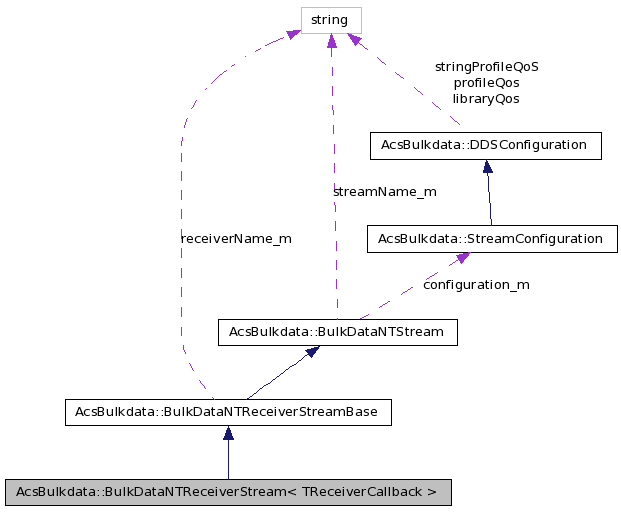

Collaboration diagram for AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >:

List of all members.

Public Member Functions
	BulkDataNTReceiverStream (const char *streamName, const ReceiverStreamConfiguration &cfg=ReceiverStreamConfiguration(), bool enabledCallingCBforAllFlows=true)
	BulkDataNTReceiverStream (const char *receiverName, const char *streamName, const ReceiverStreamConfiguration &cfg=ReceiverStreamConfiguration(), bool enabledCallingCBforAllFlows=true)
virtual	~BulkDataNTReceiverStream ()
BulkDataNTReceiverFlow *	createFlow (const char *flowName, const ReceiverFlowConfiguration &cfg=ReceiverFlowConfiguration(), BulkDataNTCallback *cb=0, bool releaseCB=false)
BulkDataNTReceiverFlow *	getFlow (const char *flowName)
bool	existFlow (const char *flowName)
void	createMultipleFlowsFromConfig (const char *config)
std::vector< std::string >	getFlowNames ()
unsigned int	getFlowNumber ()
void	enableCallingCBforAllFlows ()
	Enables calling user's CB (cbStart, cbReceiver, cbStop) for All flows.
void	disableCallingCBforAllFlows ()
	Disables calling user's CB (cbStart, cbReceiver, cbStop) for All Flows.
Protected Types
typedef std::map< std::string, BulkDataNTReceiverFlow * >	ReceiverFlowMap
Protected Member Functions
virtual void	removeFlowFromMap (const char *flow)
	void subscribeNotification(ACS::CBvoid_ptr notifCb);
	BulkDataNTReceiverStream ()
	disable default - empty constructor
void	operator= (const BulkDataNTReceiverStream &)
	ALMA C++ coding standards state assignment operators should be disabled.
	BulkDataNTReceiverStream (const BulkDataNTReceiverStream &)
	ALMA C++ coding standards state copy constructors should be disabled.
Protected Attributes
ReceiverFlowMap	receiverFlows_m
bool	notRemoveFromMap_m
bool	enabledCallingCBforAllFlows_m

template<class TReceiverCallback>
class AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >

---

Member Typedef Documentation

template<class TReceiverCallback>

typedef std::map<std::string, BulkDataNTReceiverFlow*> AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::ReceiverFlowMap [protected]

---

Constructor & Destructor Documentation

template<class TReceiverCallback>

AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::BulkDataNTReceiverStream	(	const char *	streamName,
		const ReceiverStreamConfiguration &	cfg = ReceiverStreamConfiguration(),
		bool	enabledCallingCBforAllFlows = true
	)

Receiver stream constructor where we do not specify receiver name. Receiver name can be specified later using setReceiverName method

Parameters:

	streamName	name of the stream that will be create
	cfg	configuration (optional)

Exceptions:

StreamCreateProblemExImpl

template<class TReceiverCallback>

AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::BulkDataNTReceiverStream	(	const char *	receiverName,
		const char *	streamName,
		const ReceiverStreamConfiguration &	cfg = ReceiverStreamConfiguration(),
		bool	enabledCallingCBforAllFlows = true
	)

Receiver stream constructor where we specify receiver name.

Parameters:

	receiverName	receiver's name that it is easier to distinguish between differnet receivers in the ssytem.
	streamName	name of the stream that will be create
	cfg	configuration (optional)

Exceptions:

StreamCreateProblemExImpl

template<class TReceiverCallback>

virtual AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::~BulkDataNTReceiverStream

(

)

[virtual]

Receiver Stream destructor. It destroys also all flows belonging to the stream.

template<class TReceiverCallback>

AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::BulkDataNTReceiverStream

(

)

[protected]

disable default - empty constructor

template<class TReceiverCallback>

AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::BulkDataNTReceiverStream

(

const BulkDataNTReceiverStream< TReceiverCallback > &

)

[protected]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

template<class TReceiverCallback>

BulkDataNTReceiverFlow* AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::createFlow	(	const char *	flowName,
		const ReceiverFlowConfiguration &	cfg = ReceiverFlowConfiguration(),
		BulkDataNTCallback *	cb = 0,
		bool	releaseCB = false
	)

The method creates a flow an the stream

Parameters:

	flowName	name of flow that willb e created
	cfg	(optional) REceiver's flow configuration
	cb	callback - if no specified it is created from tempalte parameter
	releaseCB	- should be the callback relased when the flow is destroyed

Returns:

template<class TReceiverCallback>

void AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::createMultipleFlowsFromConfig

(

const char *

config

)

Create multiple flows (user defined)

Parameters:

fepsConfig

Exceptions:

	ACSBulkDataError::AVStreamEndpointErrorExImpl
	ACSBulkDataError::AVInvalidFlowNumberExImpl
	ACSBulkDataError::AVFlowEndpointErrorExImpl

Returns:

void

template<class TReceiverCallback>

void AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::disableCallingCBforAllFlows

(

)

Disables calling user's CB (cbStart, cbReceiver, cbStop) for All Flows.

template<class TReceiverCallback>

void AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::enableCallingCBforAllFlows

(

)

Enables calling user's CB (cbStart, cbReceiver, cbStop) for All flows.

template<class TReceiverCallback>

bool AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::existFlow

(

const char *

flowName

)

Method just to check if the flow exists in the stream.

Parameters:

flowName

the name of the flow

Returns:

true if the flow with name flowName exists in the stream otherwise flase

template<class TReceiverCallback>

BulkDataNTReceiverFlow* AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::getFlow

(

const char *

flowName

)

It returns pointer to Receiver Flow.

Parameters:

flowName

the name of the flow

Returns:

receiver flow if present in the stream, otherwise exception

Exceptions:

FlowNotExistExImpl

template<class TReceiverCallback>

std::vector<std::string> AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::getFlowNames

(

)

Get the receiver flow and sep configuration

Exceptions:

ACSBulkDataError::AVReceiverConfigErrorExImpl

Returns:

bulkdata::BulkDataReceiverConfig * Get the names of the all flows created by the stream

vector<string>

template<class TReceiverCallback>

unsigned int AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::getFlowNumber

(

)

Returns number of flows in the stream.

Returns:

number of flows

template<class TReceiverCallback>

void AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::operator=

(

const BulkDataNTReceiverStream< TReceiverCallback > &

)

[protected]

ALMA C++ coding standards state assignment operators should be disabled.

template<class TReceiverCallback>

virtual void AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::removeFlowFromMap

(

const char *

flow

)

[protected, virtual]

void subscribeNotification(ACS::CBvoid_ptr notifCb);

Subscribe to the Notification Mechanism

Exceptions:

ACSBulkDataError::AVNotificationMechanismErrorExImpl

Parameters:

ACS::CBvoid_ptr

Returns:

void

---

Enable or disable that data are sent to the user's CB. By default this is enable. This operation has to be use with caution!!!

Parameters:

enable

true -> data will be sent to the user's CB, false -> data will *not* be sent to the user's CB,

Returns:

void

---

void fwdData2UserCB(CORBA::Boolean enable); void notifySender(const ACSErr::Completion& comp); void setCbTimeout(const char * cbTimeout);

Implements AcsBulkdata::BulkDataNTStream.

---

Member Data Documentation

template<class TReceiverCallback>

bool AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::enabledCallingCBforAllFlows_m [protected]

template<class TReceiverCallback>

bool AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::notRemoveFromMap_m [protected]

template<class TReceiverCallback>

ReceiverFlowMap AcsBulkdata::BulkDataNTReceiverStream< TReceiverCallback >::receiverFlows_m [protected]

---

The documentation for this class was generated from the following file:

• bulkDataNTReceiverStream.h
