#include <loggingLogger.h>

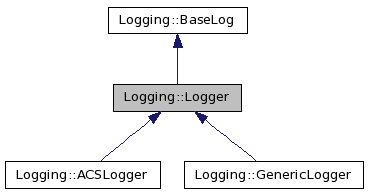

Inheritance diagram for Logging::Logger:

Collaboration diagram for Logging::Logger:

Classes
class	Logger_ptr
Public Types
typedef Loki::SmartPtr< Logger, Loki::RefCountedMTAdj < Loki::ObjectLevelLockable > ::RefCountedMT, Loki::AllowConversion, Loki::NoCheck, Loki::DefaultSPStorage >	LoggerSmartPtr
	Logger smart pointer.
typedef std::list< Logger * >	LoggerList
typedef void(*	ConfigureLoggerFunction )(const std::string &loggerName)
Public Member Functions
virtual LoggerSmartPtr	getLogger (const std::string &loggerName)=0
int	getLocalLevel ()
int	getRemoteLevel ()
int	getLocalLevel (const std::string &loggerName)
int	getRemoteLevel (const std::string &loggerName)
virtual std::string	getName () const
virtual	~Logger ()
virtual void	addHandler (Handler::HandlerSmartPtr newHandler_p)
virtual bool	removeHandler (const std::string &handlerName)
virtual void	log (const LogRecord &lr)
	Overridden. Invokes the log method of registered Handler objects.
virtual void	log (Priority priority, const std::string &message, const std::string &file, unsigned long line, const std::string &method)
virtual void	log (Priority priority, const std::string &message)
virtual void	setName (const std::string &newName)
virtual void	setLevels (Priority remotePriority, Priority localPriority, int type)
virtual void	setLevels (const std::string &loggerName, Priority remotePriority, Priority localPriority, int type)
void	setLevelsLoggerHandlers (Priority remotePriority, Priority localPriority, int type)
virtual bool	exists (const std::string &loggerName)
virtual std::list< std::string >	getLoggerNames ()
Static Public Member Functions
static LoggerSmartPtr	getAnonymousLogger ()
static void	setAnonymousLogger (LoggerSmartPtr anonyLogger)
static LoggerSmartPtr	getStaticLogger ()
static void	setStaticLogger (LoggerSmartPtr anonyLogger)
static LoggerSmartPtr	getGlobalLogger ()
static void	setGlobalLogger (LoggerSmartPtr globalLogger)
static void	setConfigureLoggerFunction (ConfigureLoggerFunction configureLoggerFunction)
static void	configureLogger (const std::string &loggerName)
Protected Member Functions
	Logger (const std::string &loggerName)
virtual void	acquireHandlerMutex ()
virtual void	releaseHandlerMutex ()
Private Attributes
std::string	loggerName_m
std::list < Handler::HandlerSmartPtr >	handlers_m
Static Private Attributes
static ACE_Thread_Mutex	loggersMutex_m
static ConfigureLoggerFunction	configureLoggerFunction_m

Detailed Description

Logger is an abstract class which provides the interface used to log messages and errors throughout ALMA software. This class assumes nothing about the ACS logging service and is based in part on the implementation of the Java Logger interface.

Member Typedef Documentation

typedef void(* Logging::Logger::ConfigureLoggerFunction)(const std::string &loggerName)

typedef std::list<Logger*> Logging::Logger::LoggerList

typedef Loki::SmartPtr<Logger, Loki::RefCountedMTAdj<Loki::ObjectLevelLockable>::RefCountedMT, Loki::AllowConversion, Loki::NoCheck, Loki::DefaultSPStorage> Logging::Logger::LoggerSmartPtr

Logger smart pointer.

Constructor & Destructor Documentation

virtual Logging::Logger::~Logger ( ) [virtual]

Destructor.

Logging::Logger::Logger ( const std::string & loggerName ) [protected]

Constructor.

Parameters:

loggerName

A name for the logger. This should be a dot-separated name and should normally be based on the container/ component/client name.

Member Function Documentation

virtual void Logging::Logger::acquireHandlerMutex ( ) [inline, protected, virtual]

Mmethod used to facilitate logging within a multi-threaded environment. Subclasses should override this method with code used to acquire a mutual exclusion lock. The developer is free to use any type of mutex they prefer (e.g., ACE_Thread_Mutex for example).

Reimplemented in Logging::ACSLogger.

virtual void Logging::Logger::addHandler ( Handler::HandlerSmartPtr newHandler_p ) [virtual]

Add a log Handler to receive logging messages.

By default, Loggers also send their output to their parent logger. Typically the root Logger is configured with a set of Handlers that essentially act as default handlers for all loggers.

Parameters:

newHandler_p

A handler to add.

static void Logging::Logger::configureLogger ( const std::string & loggerName ) [inline, static]

Configure logger.

virtual bool Logging::Logger::exists ( const std::string & loggerName ) [virtual]

Logger existance check.

Parameters:

loggerName

logger name.

Returns:: bool

static LoggerSmartPtr Logging::Logger::getAnonymousLogger ( ) [static]

Static method used to get a nameless Logger object.

Returns:: A Logger with an empty name.

static LoggerSmartPtr Logging::Logger::getGlobalLogger ( ) [static]

Static method used to get the global Logger object.

Returns:: The global Logger.

int Logging::Logger::getLocalLevel ( const std::string & loggerName )

int Logging::Logger::getLocalLevel ( )

virtual LoggerSmartPtr Logging::Logger::getLogger ( const std::string & loggerName ) [pure virtual]

Create a logger for a named subsystem. This method is pure abstract requiring subclasses to return an instance of their own subclass.

Parameters:

loggerName

Name of the logger desired (i.e., "POWER_SUPPLY1")

Returns:: A new Logger instance.

Implemented in Logging::ACSLogger, and Logging::GenericLogger.

virtual std::list<std::string> Logging::Logger::getLoggerNames ( ) [virtual]

Get all logger names.

Returns:: logger names.

virtual std::string Logging::Logger::getName ( ) const [virtual]

Retrieves the name (usually a container/component/client/) of this Logger instance

Returns:: The name of this Logger instance

Implements Logging::BaseLog.

int Logging::Logger::getRemoteLevel ( const std::string & loggerName )

int Logging::Logger::getRemoteLevel ( )

static LoggerSmartPtr Logging::Logger::getStaticLogger ( ) [static]

Static method used to get the Logger object for logging from static methods. getStaticLogger() is used in ACS_STATIC_XXX macros

Returns:: The static Logger.

virtual void Logging::Logger::log	(	Priority	priority,
		const std::string &	message
	)			`[inline, virtual]`

This signature of log is provided as a pure convenience to developers not wishing to deal with the file name, line number, etc.

Parameters:

	priority	Priority of the log
	message	Log message.

Returns:: void

virtual void Logging::Logger::log	(	Priority	priority,
		const std::string &	message,
		const std::string &	file,
		unsigned long	line,
		const std::string &	method
	)			`[inline, virtual]`

Overridden. For some reason this signature of "log" cannot be resolved from BaseLog. As a result, it must be defined here and just delegates to BaseLog

Reimplemented from Logging::BaseLog.

References Logging::BaseLog::log().

virtual void Logging::Logger::log ( const LogRecord & lr ) [virtual]

Overridden. Invokes the log method of registered Handler objects.

Implements Logging::BaseLog.

virtual void Logging::Logger::releaseHandlerMutex ( ) [inline, protected, virtual]

Method used to facilitate logging within a multi-threaded environment. Subclasses should override this method with code used to release a mutual exclusion lock. The developer is free to use any type of mutex they prefer (e.g., ACE_Thread_Mutex for example).

Reimplemented in Logging::ACSLogger.

virtual bool Logging::Logger::removeHandler ( const std::string & handlerName ) [virtual]

Remove a log Handler.

Parameters:

handlerName

is the name of the handler as returned by the the getName method of Handler objects.

Returns:: true if the Handle is found/removed and false otherwise.

static void Logging::Logger::setAnonymousLogger ( LoggerSmartPtr anonyLogger ) [static]

Static method used to set the anonymous Logger object.

Parameters:

The

anonymous Logger.

static void Logging::Logger::setConfigureLoggerFunction ( ConfigureLoggerFunction configureLoggerFunction ) [inline, static]

Set logger configuration function.

static void Logging::Logger::setGlobalLogger ( LoggerSmartPtr globalLogger ) [static]

Static method used to set the global Logger object.

Parameters:

The

global Logger.

Referenced by ACSDaemonServiceImpl< T >::ACSDaemonServiceImpl().

virtual void Logging::Logger::setLevels	(	Priority	remotePriority,
		Priority	localPriority,
		int	type
	)			`[virtual]`

Set levels for local and remote logging. There levels are passed to the handlers.

Returns:: void

virtual void Logging::Logger::setLevels	(	const std::string &	loggerName,
		Priority	remotePriority,
		Priority	localPriority,
		int	type
	)			`[virtual]`

Set levels for local and remote logging of a child logger with given name. There levels are passed to the handlers.

Parameters:

loggerName

logger name.

Returns:: void

void Logging::Logger::setLevelsLoggerHandlers	(	Priority	remotePriority,
		Priority	localPriority,
		int	type
	)

virtual void Logging::Logger::setName ( const std::string & newName ) [virtual]

Facilitates changing the name of this logger.

Parameters:

newName

New name for this Logger instance

Returns:: void

static void Logging::Logger::setStaticLogger ( LoggerSmartPtr anonyLogger ) [static]

Static method used to set the static Logger object.

Parameters:

The

static Logger.

Member Data Documentation

ConfigureLoggerFunction Logging::Logger::configureLoggerFunction_m [static, private]

External function that configures logger.

std::list<Handler::HandlerSmartPtr> Logging::Logger::handlers_m [private]

List of handlers which will have their "log" method invoked each time a log is received. DWF-access to this should be guarded by a mutex lock.

std::string Logging::Logger::loggerName_m [private]

Name of this logger

ACE_Thread_Mutex Logging::Logger::loggersMutex_m [static, private]

mutex which guards the loggers lost making this class completely thread-safe

The documentation for this class was generated from the following file:

loggingLogger.h
