AcsLogServiceImpl::LogRecordBatch Class Reference

#include <loggingAcsLogServiceImpl.h>

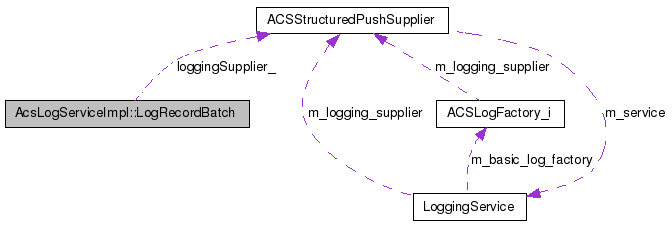

Collaboration diagram for AcsLogServiceImpl::LogRecordBatch:

List of all members.

Public Member Functions
	LogRecordBatch ()
	~LogRecordBatch ()
void	sendRecords ()
void	add (const ::Logging::XmlLogRecordSeq *reclist)
void	set_logging_supplier (ACSStructuredPushSupplier *supplier)
Static Public Member Functions
static void *	worker (void *)
Private Member Functions
void	sendRecords (::Logging::XmlLogRecordSeq *reclist)
int	svc ()
Private Attributes
::Logging::XmlLogRecordSeq *	buffer_
::Logging::XmlLogRecordSeq	buffer [3]
volatile unsigned int	size_
ACSStructuredPushSupplier *	loggingSupplier_
ACE_SYNCH_MUTEX	mutex_
ACE_SYNCH_MUTEX	batchMutex_
ACE_SYNCH_CONDITION	waitCond_
volatile bool	shutdown_
int	nBuff
::Logging::XmlLogRecordSeq *	tmpBuffer
unsigned int	tmpSize
ACE_thread_t	logRecordBatchTh_

---

Detailed Description

This class implements the functions necessary to send the log records in a batch through the logging Notification Channel. It implements the batch cache as triple buffer to improve the overall throughput of the service.

This class uses a worker thread to dispatch the log records through the Notification Channel when buffer is full or each 1 second

---

Constructor & Destructor Documentation

AcsLogServiceImpl::LogRecordBatch::LogRecordBatch

(

)

Initializes the buffers and the worker thread

AcsLogServiceImpl::LogRecordBatch::~LogRecordBatch

(

)

Stop the worker thread

---

Member Function Documentation

void AcsLogServiceImpl::LogRecordBatch::add

(

const ::Logging::XmlLogRecordSeq *

reclist

)

Add log records to the buffer, if the buffer is full will dispatch to the worker thread to send the records through NC

void AcsLogServiceImpl::LogRecordBatch::sendRecords

(

::Logging::XmlLogRecordSeq *

reclist

)

[private]

Send the records through the Notification Channel

void AcsLogServiceImpl::LogRecordBatch::sendRecords

(

)

Function used by the thread to send the log records to the NC

void AcsLogServiceImpl::LogRecordBatch::set_logging_supplier

(

ACSStructuredPushSupplier *

supplier

)

int AcsLogServiceImpl::LogRecordBatch::svc

(

)

[private]

Entry point for worker thread

static void* AcsLogServiceImpl::LogRecordBatch::worker

(

void *

)

[static]

function to initilizate the thread

---

Member Data Documentation

ACE_SYNCH_MUTEX AcsLogServiceImpl::LogRecordBatch::batchMutex_ [private]

mutex used to protect the batch

::Logging::XmlLogRecordSeq AcsLogServiceImpl::LogRecordBatch::buffer[3] [private]

triple buffer

::Logging::XmlLogRecordSeq* AcsLogServiceImpl::LogRecordBatch::buffer_ [private]

reference to the current buffer in use

ACSStructuredPushSupplier* AcsLogServiceImpl::LogRecordBatch::loggingSupplier_ [private]

ACE_thread_t AcsLogServiceImpl::LogRecordBatch::logRecordBatchTh_ [private]

thread id

ACE_SYNCH_MUTEX AcsLogServiceImpl::LogRecordBatch::mutex_ [private]

mutex used by the wait condition

int AcsLogServiceImpl::LogRecordBatch::nBuff [private]

number of the current buffer in use

volatile bool AcsLogServiceImpl::LogRecordBatch::shutdown_ [private]

volatile unsigned int AcsLogServiceImpl::LogRecordBatch::size_ [private]

current size of the batch

::Logging::XmlLogRecordSeq* AcsLogServiceImpl::LogRecordBatch::tmpBuffer [private]

Internal usage

unsigned int AcsLogServiceImpl::LogRecordBatch::tmpSize [private]

Internal usage

ACE_SYNCH_CONDITION AcsLogServiceImpl::LogRecordBatch::waitCond_ [private]

---

The documentation for this class was generated from the following file:

• loggingAcsLogServiceImpl.h
