BulkDataReceiverImpl< TCallback > Class Template Reference

#include <bulkDataReceiverImpl.h>

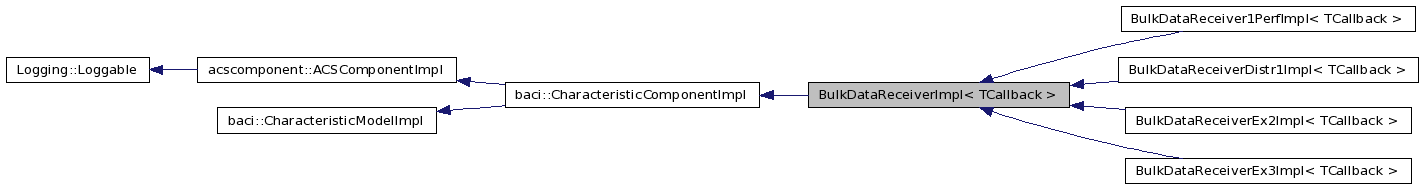

Inheritance diagram for BulkDataReceiverImpl< TCallback >:

[legend]

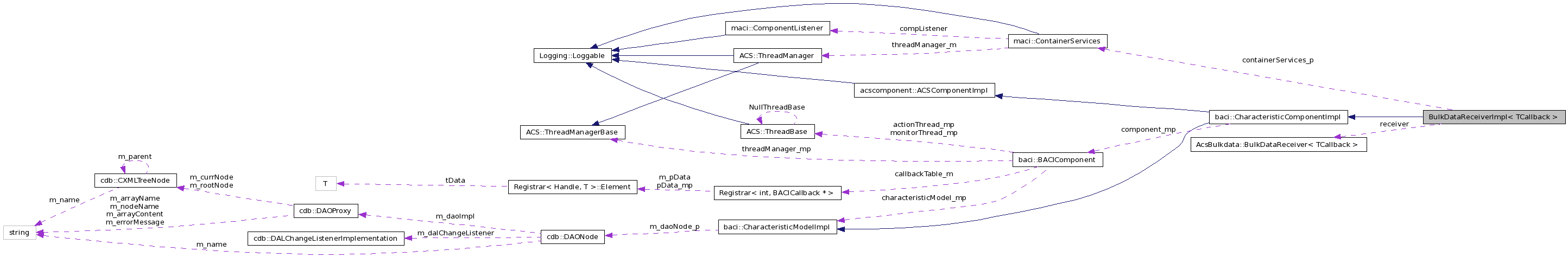

Collaboration diagram for BulkDataReceiverImpl< TCallback >:

[legend]

List of all members.

Public Member Functions
	BulkDataReceiverImpl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~BulkDataReceiverImpl ()
void	cleanUp ()
virtual AcsBulkdata::BulkDataReceiver < TCallback > *	getReceiver ()
virtual void	openReceiver ()
bulkdata::BulkDataReceiverConfig *	getReceiverConfig ()
virtual void	closeReceiver ()
virtual ACSErr::Completion *	getCbStatus (CORBA::ULong flowNumber)
virtual void	setTimeout (CORBA::ULong flowNumber, CORBA::ULong timeout)
virtual void	setRecvName (const char *recvName)
virtual void	subscribeNotification (ACS::CBvoid_ptr notifCb)
Private Attributes
AcsBulkdata::BulkDataReceiver < TCallback >	receiver
maci::ContainerServices *	containerServices_p

template<class TCallback>
class BulkDataReceiverImpl< TCallback >

---

Constructor & Destructor Documentation

template<class TCallback>

BulkDataReceiverImpl< TCallback >::BulkDataReceiverImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

Constructor

Parameters:

	poa	Poa which will activate this and also all other Components.
	name	component name.

template<class TCallback>

virtual BulkDataReceiverImpl< TCallback >::~BulkDataReceiverImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

template<class TCallback>

void BulkDataReceiverImpl< TCallback >::cleanUp

(

)

[virtual]

Called after the last functional call to the component has finished. The component should then orderly release resources etc. If this method is overwritten in a subclass, the developer has to make sure that all cleanup performed by the implementation of the base class take place. The best way to do this is to call the implementation of the base itself explicitly, as would be done implicitly in a destructor chain.

Returns:

void

---

Reimplemented from acscomponent::ACSComponentImpl.

Reimplemented in BulkDataReceiver1PerfImpl< TCallback >, BulkDataReceiverDistr1Impl< TCallback >, BulkDataReceiverDistr2Impl, BulkDataReceiverEx2Impl< TCallback >, and BulkDataReceiverEx3Impl< TCallback >.

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::closeReceiver

(

)

[virtual]

Exceptions:

ACSBulkDataError::AVCloseReceiverErrorEx

template<class TCallback>

virtual ACSErr::Completion* BulkDataReceiverImpl< TCallback >::getCbStatus

(

CORBA::ULong

flowNumber

)

[virtual]

Exceptions:

	ACSBulkDataError::AVInvalidFlowNumberEx
	ACSBulkDataError::AVFlowEndpointErrorEx

template<class TCallback>

virtual AcsBulkdata::BulkDataReceiver<TCallback>* BulkDataReceiverImpl< TCallback >::getReceiver

(

)

[inline, virtual]

template<class TCallback>

bulkdata::BulkDataReceiverConfig* BulkDataReceiverImpl< TCallback >::getReceiverConfig

(

)

Exceptions:

ACSBulkDataError::AVReceiverConfigErrorEx

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::openReceiver

(

)

[virtual]

Opens connection creating an out-of-bound channel using TAO A/V services. It creates the Receiver Stream End Point and Flow End Point for the connection with the Sender. The Receiver Stream End Point can be retrieved as an attribute.

Exceptions:

ACSBulkDataError::AVOpenReceiverErrorEx

Returns:

void

---

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::setRecvName

(

const char *

recvName

)

[virtual]

Exceptions:

ACSBulkDataError::AVSetReceiverNameErrorEx

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::setTimeout	(	CORBA::ULong	flowNumber,
		CORBA::ULong	timeout
	)			[virtual]

Exceptions:

	ACSBulkDataError::AVInvalidFlowNumberEx
	ACSBulkDataError::AVFlowEndpointErrorEx

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::subscribeNotification

(

ACS::CBvoid_ptr

notifCb

)

[virtual]

Exceptions:

ACSBulkDataError::AVNotificationMechanismErrorEx

---

Member Data Documentation

template<class TCallback>

maci::ContainerServices* BulkDataReceiverImpl< TCallback >::containerServices_p [private]

template<class TCallback>

AcsBulkdata::BulkDataReceiver<TCallback> BulkDataReceiverImpl< TCallback >::receiver [private]

Referenced by BulkDataReceiverImpl< BulkDataReceiverCbDistr2 >::getReceiver().

---

The documentation for this class was generated from the following file:

• bulkDataReceiverImpl.h
