hlcc::trksim::OldbInterface Class Reference

#include <oldbInterface.hpp>

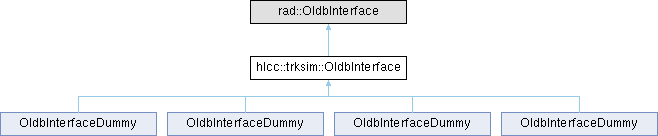

Inheritance diagram for hlcc::trksim::OldbInterface:

Public Member Functions
	OldbInterface (const std::string &prefix="")
virtual	~OldbInterface ()
void	Init (::hlcc::trksim::Config &config)
void	PublishTargets (ElapsedTimeStats &stats)
void	PublishCurrentPositions (ElapsedTimeStats &stats, const bool &radec_validity, taiclock::TaiClock::time_point timestamp)
ptk::HorizonPositionEsoTimestamped	GetCurrentObservedAltAz ()
void	SetConfig (hlcc::trksim::Config &cfg)
void	SetControlState (const std::string &value, const taiclock::TaiClock::time_point &timestamp, ElapsedTimeStats &stats)
void	SetTrackingState (const std::string &value, const taiclock::TaiClock::time_point &timestamp, ElapsedTimeStats &stats)
void	SetConfig (const rad::Config &cfg)
void	SetControlState (const std::string &value)
AsmData	ReadAsm ()
void	UpdateHeartbeat ()
	OldbInterface (const OldbInterface &)=delete
OldbInterface &	operator= (const OldbInterface &)=delete
	Disable copy constructor.
OldbData &	GetOldbData ()
	Disable assignment operator.

Detailed Description

This class is the interface to the CII OLDB.

Constructor & Destructor Documentation

OldbInterface() [1/2]

hlcc::trksim::OldbInterface::OldbInterface

(

const std::string &

prefix = ""

)

Constructor.

Parameters

[in]

prefix

String used as prefix when building the keys. Typically prefix will be set by Application::Init calling rad::OldbInterface::SetPrefix.

~OldbInterface()

hlcc::trksim::OldbInterface::~OldbInterface ( )

virtual

Destructor

OldbInterface() [2/2]

hlcc::trksim::OldbInterface::OldbInterface ( const OldbInterface & )

delete

Member Function Documentation

GetCurrentObservedAltAz()

HorizonPositionEsoTimestamped hlcc::trksim::OldbInterface::GetCurrentObservedAltAz

(

)

Publishes current_time. Probably an eltpk task. Retrieves the current observed (alt,az) position and returns it as an HorizonPositionEso

GetOldbData()

OldbData & hlcc::trksim::OldbInterface::GetOldbData

(

)

Disable assignment operator.

Init()

void hlcc::trksim::OldbInterface::Init

(

::hlcc::trksim::Config &

config

)

Creates an ObservablePublisher for pub/sub and OLDB publishing. Initializes OLDB datapoints (target_alt_az) and publishers (target_alt_az_publisher).

operator=()

OldbInterface & hlcc::trksim::OldbInterface::operator= ( const OldbInterface & )

delete

Disable copy constructor.

PublishCurrentPositions()

void hlcc::trksim::OldbInterface::PublishCurrentPositions	(	ElapsedTimeStats &	stats,
		const bool &	radec_validity,
		taiclock::TaiClock::time_point	timestamp )

Publishes all current positions (currently current_alt_az, tracking_data).

PublishTargets()

void hlcc::trksim::OldbInterface::PublishTargets

(

ElapsedTimeStats &

stats

)

Publishes all target coordinates (currently only ALT-AZ target).

ReadAsm()

AsmData hlcc::trksim::OldbInterface::ReadAsm

(

)

Read site information published by Astronomical site monitor

Returns

AsmData struct, containing site data

SetConfig() [1/2]

void hlcc::trksim::OldbInterface::SetConfig

(

const rad::Config &

cfg

)

SetConfig() [2/2]

void hlcc::trksim::OldbInterface::SetConfig

(

hlcc::trksim::Config &

cfg

)

Will call the base class SetConfig method, and will also write to OLDB all config values specific to this module.

SetControlState() [1/2]

void hlcc::trksim::OldbInterface::SetControlState

(

const std::string &

value

)

SetControlState() [2/2]

void hlcc::trksim::OldbInterface::SetControlState	(	const std::string &	value,
		const taiclock::TaiClock::time_point &	timestamp,
		ElapsedTimeStats &	stats )

We do not use the base class method void SetControlState(const std::string& value) because writing control state to OLDB is done frequently, and we want to use CiiOldbDataPointAsync and also keep the option to evaluate ElapsedTimeStats.

SetTrackingState()

void hlcc::trksim::OldbInterface::SetTrackingState	(	const std::string &	value,
		const taiclock::TaiClock::time_point &	timestamp,
		ElapsedTimeStats &	stats )

Sets the LSV tracking state, which is separate from the application/control state.

UpdateHeartbeat()

void hlcc::trksim::OldbInterface::UpdateHeartbeat

(

)

---

The documentation for this class was generated from the following files:

• /home/abuild/rpmbuild/BUILD/hlcc-v2.2.0/software/trksim/app/src/include/trksim/oldbInterface.hpp
• /home/abuild/rpmbuild/BUILD/hlcc-v2.2.0/software/trksim/app/src/oldbInterface.cpp
