7. SysSup Widgets

The SysSup (System Supervisor) widgets provide controls for subsystem-level state management and instrument-specific operation from the system supervisor perspective. These widgets are used in ccfGui for overall CCF and NGC monitoring and control.

7.1. Widget Constructor Signatures

Widget	Parameters
SubSysStateWidget	parent, syssup_facade, syssup_db_prefix, subsystem_name
CcfControlWidget	parent, base_uri, dcs_db_prefix, camera_name, camera_alias
NgcControlWidget	parent, base_uri, dcs_db_prefix, camera_name, camera_alias

7.2. SubSysStateWidget

This widget displays the state machine state and sub-state of an IFW subsystem via Taurus labels connected to the System Supervisor OLDB paths. It provides a combo box to send Init, Enable, Disable, and Reset commands through the system supervisor facade.

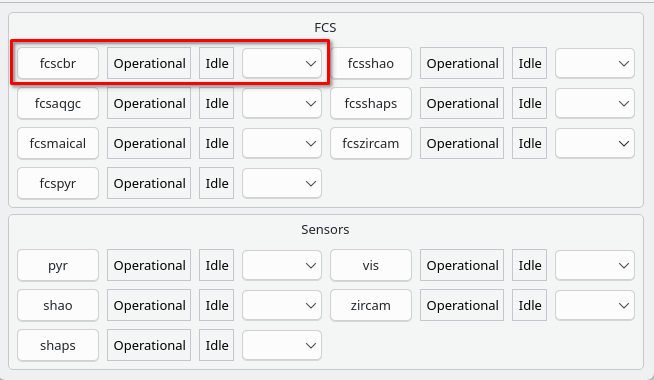

SubSysStateWidget instances in a panel layout, each displaying state and sub-state for a different subsystem. One widget instance is outlined in red.

The widget is unusual in that it takes an existing SysSupCmdsFacade instance rather than a base_uri — the facade is looked up by the calling application and passed in.

OLDB paths are constructed as:

stat/subsystems/{subsystem_name_lowercase}/states/state
stat/subsystems/{subsystem_name_lowercase}/states/substate

under the syssup_db_prefix.

Example:

from ifw.wdglib.comm import ConnectionManager
from ifw.wdglib.widgets.syssup import SubSysStateWidget

conn_mgr = ConnectionManager()
syssup_facade = conn_mgr.get_syssupcmds("zpb.rr://127.0.0.1:12081/AppCmds")

subsys_wdg = SubSysStateWidget(
    parent=self,
    syssup_facade=syssup_facade,
    syssup_db_prefix="cii.oldb:///elt/syssup/stat",
    subsystem_name="ccf",
)
layout.addWidget(subsys_wdg)

The combo box (action_comboBox) triggers facade commands on selection:

@Slot(str)
def on_action_comboBox_textActivated(self, text):
    if text == "Init":
        self._syssupcmds.init(self._subsystem_name)
    elif text == "Enable":
        self._syssupcmds.enable(self._subsystem_name)
    # ... etc.

7.3. CcfControlWidget

This is a composite widget for operating the CCF from a system supervisor or OCS (Observation Coordination System) perspective. It provides pages for state monitoring, acquisition control, recording, and setup.

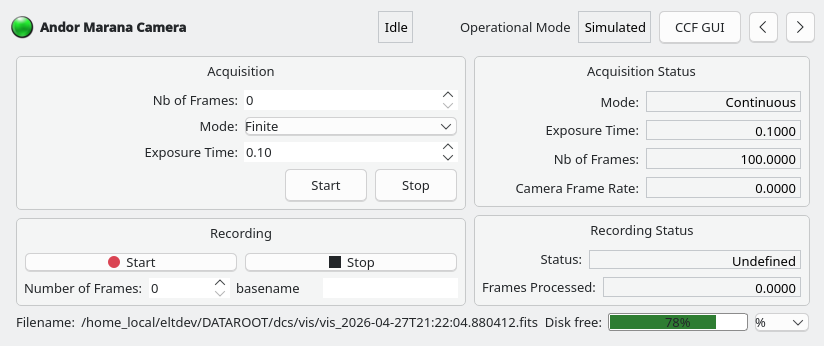

CcfControlWidget panel: state monitoring, acquisition control, and recording status

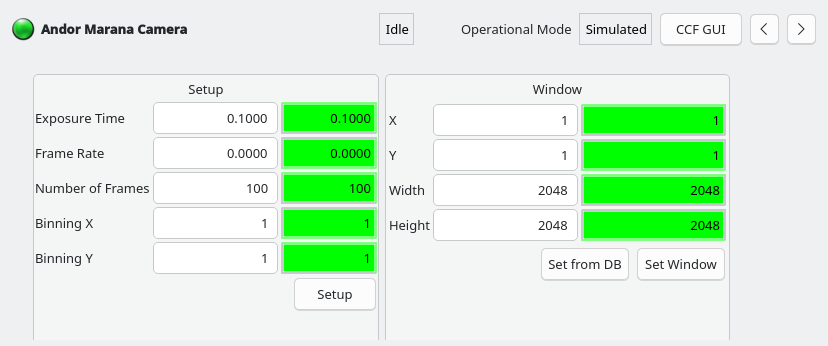

CcfControlWidget panel, setup page

Key features:

• Displays state, sub-state, simulation mode, exposure time, frame rate, recording status, and frames processed via Taurus labels

• Start/stop acquisition with DcsCmdsFacade and StdCmdsFacade

• Start/stop recording with RecCmdsFacade

• PubFits file publisher number-of-frames and basename setup

• Disk free space monitoring bar, updated on file path changes

• Page navigation through a stacked widget with left/right buttons

• Green/red LED indicating overall connection state across StdCmds, DcsCmds, and RecCmds facades

• Auto-connect action and external ccfGui launch button

The widget embeds a CcfSetupWidget on its setup page.

At startup, it queries OLDB for pipeline and publisher information to discover PubFits publishers:

• get_children_from_ui_path() for pipeline and publisher names (see OLDB Query Functions)

• get_datapoint_value() to check the adapter type for each publisher (see OLDB Query Functions)

7.3.1. Connection State Handling

The widget tracks connection state for three facades independently

@Slot(bool)
def on_stdcmds_connection_changed(self, state):
    self.connection_state["StdCmds"] = state
    self._update_connection()

def _update_connection(self):
    final_state = all(self.connection_state.values())
    self.ui.statusQLed.setLedColor("green" if final_state else "red")

The LED turns green only when all three facades are connected.

7.3.2. Error Handling

Errors from facade commands are caught globally and shown in a modal ErrorDialog (see ErrorDialog)

@Slot()
def _error_slot(self, exception_err):
    exctype, value, tb = exception_err
    dlg = ErrorDialog(str(value), str(tb))
    dlg.exec_()

Example:

from ifw.wdglib.widgets.syssup import CcfControlWidget

ccf_wdg = CcfControlWidget(
    self,
    "zpb.rr://127.0.0.1:12081",
    "cii.oldb:///ccftest/testdcs",
    "camera0",
    "CCF Camera 0",
)
layout.addWidget(ccf_wdg)

7.4. NgcControlWidget

This widget extends CcfControlWidget for the New General Detector Controller instrument. It reuses the parent widget’s structure but overrides OLDB paths via NgcOldbPaths (which extends CcfOldbPaths) and replaces the embedded setup widget with NgcCompactSetupWidget.

Key differences from CcfControlWidget:

• OLDB paths are adapted to NGC server structure

• Simulated mode maps three string values (NORMAL, HW-SIM, WS-SIM) using EventValueMap

• Acquisition setup command is NGC-specific

• The external GUI launched is dcfGui instead of ccfGui

• The setup page embeds NgcCompactSetupWidget

Because it inherits CcfControlWidget, its constructor signature is the same:

from ifw.wdglib.widgets.syssup import NgcControlWidget

ngc_wdg = NgcControlWidget(
    self,
    "zpb.rr://127.0.0.1:12081",
    "cii.oldb:///ngctest/testdcs",
    "ngc0",
    "NGC Detector",
)
layout.addWidget(ngc_wdg)

7.5. Using SysSup Widgets in a Panel

A typical panel using SysSup widgets might show the overall subsystem state alongside instrument control widgets

from ifw.wdglib.comm import ConnectionManager
from ifw.wdglib.widgets.syssup import SubSysStateWidget
from ifw.wdglib.widgets.syssup import CcfControlWidget

conn_mgr = ConnectionManager()
conn_mgr.auto_connect = True

# System supervisor state widget
syssup_facade = conn_mgr.get_syssupcmds("zpb.rr://127.0.0.1:12081/AppCmds")
subsys_wdg = SubSysStateWidget(
    self, syssup_facade, "cii.oldb:///elt/syssup/stat", "ccf"
)

# CCF control widget
ccf_wdg = CcfControlWidget(
    self, "zpb.rr://127.0.0.1:12081",
    "cii.oldb:///ccftest/testdcs", "camera0", "CCF Camera 0",
)

sys_dock.addWidget(subsys_wdg)
instr_dock.addWidget(ccf_wdg)

The CcfControlWidget and NgcControlWidget are also the widgets used directly in ccfGui by the OCS.
