DdtWidget Class Reference

The DdtWidget class Use as wrapper class for new widgets. More...

#include <ddtWidget.hpp>

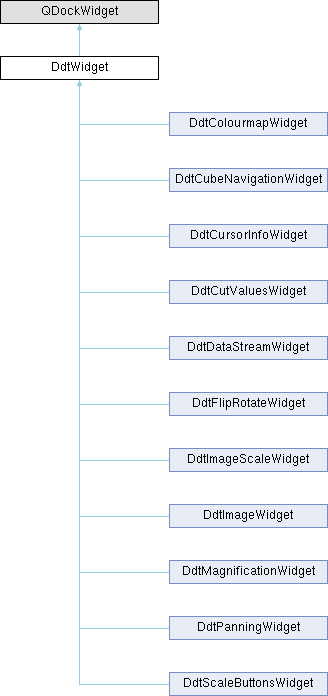

Inheritance diagram for DdtWidget:

Public Member Functions
virtual	~DdtWidget ()=default
	DdtWidget (QWidget *parent=nullptr)
	DdtWidget.
QWidget *	AddParentWidget (QLayout *child_layout)
	AddParentWidget This will add the given layout to a QGroupBox Widget to integrate in the parent layout.
void	connect (const QObject *sender, const char *signal, const QObject *receiver, const char *member)
	connect Group of overloaded functions that use the QObject::connect method with the Qt::QueuedConnection flag. This defines Qt Signal and Slots connection the same way thought out the QApplication.
void	connect (const QObject *sender, const QMetaMethod &signal, const QObject *receiver, const QMetaMethod &method)
void	connect (const QObject *sender, const char *signal, const char *member)
template<typename Func1 , typename Func2 >
void	connect (const typename QtPrivate::FunctionPointer< Func1 >::Object *sender, Func1 signal, const QObject *context, Func2 slot)
	connect Template version of QObject::connection with fixed Qt::QueuedConnection flag. Normally used to connect a signal with a lambda function.

Detailed Description

The DdtWidget class Use as wrapper class for new widgets.

Constructor & Destructor Documentation

DdtWidget()

DdtWidget::DdtWidget ( QWidget * parent = nullptr )

explicit

DdtWidget.

Parameters

parent

Pointer to the parent widget

~DdtWidget()

virtual DdtWidget::~DdtWidget ( )

virtualdefault

Destructor

Member Function Documentation

AddParentWidget()

QWidget * DdtWidget::AddParentWidget

(

QLayout *

child_layout

)

AddParentWidget This will add the given layout to a QGroupBox Widget to integrate in the parent layout.

Parameters

child_layout

Returns

QLayout pointer to the complete layout

connect() [1/4]

void DdtWidget::connect	(	const QObject *	sender,
		const char *	signal,
		const char *	member )

connect() [2/4]

void DdtWidget::connect	(	const QObject *	sender,
		const char *	signal,
		const QObject *	receiver,
		const char *	member )

connect Group of overloaded functions that use the QObject::connect method with the Qt::QueuedConnection flag. This defines Qt Signal and Slots connection the same way thought out the QApplication.

Parameters

const	QObject* - sender
const	chat* - signal
const	QObject* - receiver
const	char* - member

connect() [3/4]

void DdtWidget::connect	(	const QObject *	sender,
		const QMetaMethod &	signal,
		const QObject *	receiver,
		const QMetaMethod &	method )

connect() [4/4]

template<typename Func1 , typename Func2 >

void DdtWidget::connect	(	const typename QtPrivate::FunctionPointer< Func1 >::Object *	sender,
		Func1	signal,
		const QObject *	context,
		Func2	slot )

connect Template version of QObject::connection with fixed Qt::QueuedConnection flag. Normally used to connect a signal with a lambda function.

Parameters

const	typename QtPrivate::FunctionPointer<Func1>::Object* - sender
typename	- signal
const	QObject* - context
typename	- slot

---

The documentation for this class was generated from the following files:

• datavisualisation/widgetsdialogs/src/include/ddt/widgets/ddtWidget.hpp
• datavisualisation/widgetsdialogs/src/widgets/ddtWidget.cpp
