Introduction
TCS General architecture
Hierarchy of TCS WS modules
Common architecture of a WS TCS module
Main loop handling. Error recovery
Failure handling
Modular testing
Reference documents
Conclusion

INTRODUCTION

The Telescope Control Software for the VLT (and for the NTT Upgrade) has been designed and implemented using OO methodologies.

The workstation components are implemented in C++ and are based on the EVH toolkit.

Purpose of this presentation is:

To analyse the general design architecture of the software
To show common design patterns that can be reused elsewhere
To examine specific details of the implementation

The presentation is focused on

technical and implementation issues

and not on

functional specifications

TCS General architecture (cont.)

The TCS is subdivided in many modules, identified by the functional responsibility.
A module consist of:

· One/more processes · Database · Command interface

Every module runs on workstation and/or LCU platform.
The tif module provides a single interface for external users. Such users do not see the module's structure and interact only with tif.
The functional modules (msw, prs, tkrws,...) provide coordination features on the workstation side.
The subsystem modules (trk, ag,...) provide real-time functionalities on the LCUs

TCS Online Database

The TCS workstation contains the TCS Online database.

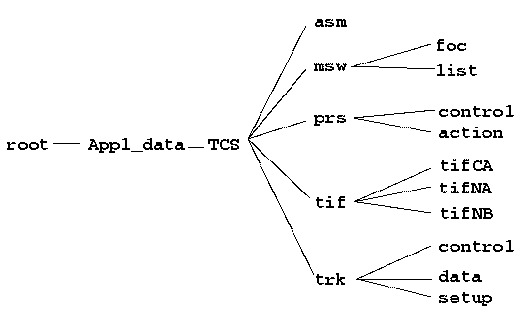

The whole TCS database lies under the Appl_data:TCS point.
Every functional module correspond to a branch in the database
Every subsystem has its own LCU database and a scan image on the TCS WS database

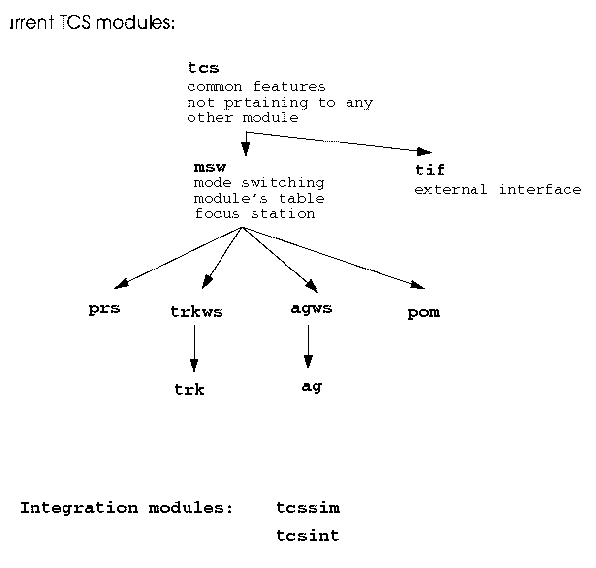

Hierarchy of TCS WS modules

TCS module's are as much as possible independent,
so that it is possible
to develop and test them one by one

A few unavoidable dependencies are due to the fact that some modules need services provided by other ones. No circular dependencies between modules are allowed.

Common services are provided through:

Libraries
Database classes

This define the hierarchy between modules.

The online database is used to have "configurable" any dependency between modules. For example:

process names for commands
address of external db branches

are always stored in the database.

Hierarchy of TCS modules (cont.)

Common architecture of a WS TCS module

All workstation modules
have the same architecture

A module is implemented as one or more processes
One of the processes (called control) provides the only interface to other modules and coordinates the other internal processes.
A module defines a single database branch.
The root point of the branch provide attributes for:

· state · substate

Every process has its own private sub-branch

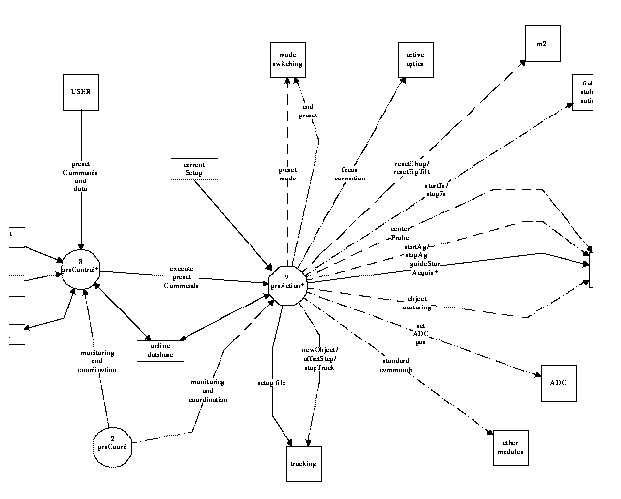

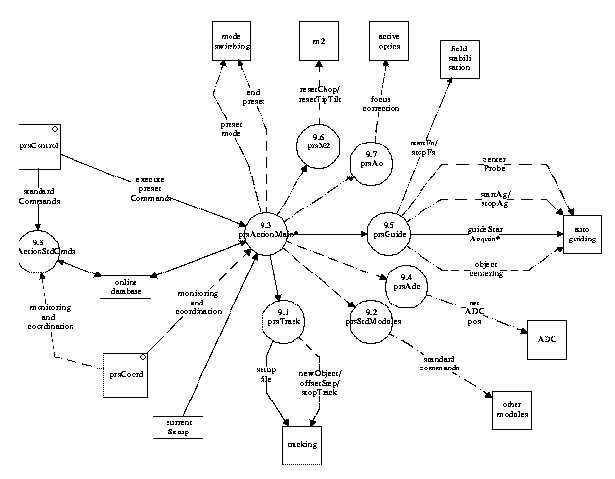

High level DFD for the prs module

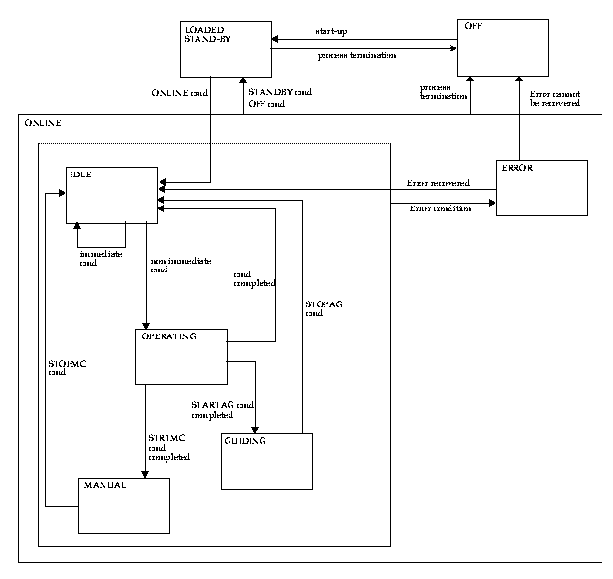

The prs global state

Table 1 - TCS Preset Global State

--------------------------------------------------------------------------------------
 Control    OFF      LOADED/   READY       PRESETTING  STOPPING    ERROR       UNKNOWN
Action               STAND-BY
OFF         OFF      OFF       OFF         OFF         OFF         OFF         UNKNOWN
            IDLE     IDLE      IDLE        IDLE        IDLE        ERROR       UNKNOWN
LOADED/     OFF      LOAD/SB   LOAD/SB     LOAD/SB     LOAD/SB     LOAD/SB     UNKNOWN
STAND-BY    IDLE     IDLE      IDLE        IDLE        IDLE        ERROR       UNKNOWN
READY       OFF      LOAD/SB   ON-LINE     ON-LINE     ON-LINE     ON-LINE     UNKNOWN
            IDLE     IDLE                                          ERROR       UNKNOWN
PRESETTING  OFF      LOAD/SB   ON-LINE     ON-LINE     ON-LINE     PRESETTING  UNKNOWN
            IDLE     IDLE      PRESETTING  PRESETTING  PRESETTING  ERROR       UNKNOWN
STOPPING    OFF      LOAD/SB   ON-LINE     ON-LINE     ON-LINE     STOPPING    UNKNOWN
            IDLE     IDLE      STOPPING    STOPPING    STOPPING    ERROR       UNKNOWN
ERROR       OFF      LOAD/SB   ON-LINE     PRESETTING  STOPPING    prev state  UNKNOWN
            ERROR    ERROR     ERROR       ERROR       ERROR       ERROR       UNKNOWN
UNKNOWN     UNKNOWN  UNKNOWN   UNKNOWN     UNKNOWN     UNKNOWN     UNKNOWN     UNKNOWN
            UNKNOWN  UNKNOWN   UNKNOWN     UNKNOWN     UNKNOWN     UNKNOWN     UNKNOWN
--------------------------------------------------------------------------------------

The database calculation engine formula:

ATTRIBUTE int32            state      prsSTATE_OFF
    BEGIN
      Definition                                                              \
       IF([<relative>control.state]=evhSTATE_UNK        OR                    \
          [<relative>action.state] =evhSTATE_UNK,        evhSTATE_UNK,        \
       IF([<relative>control.state]=prsSTATE_OFF        OR                    \
          [<relative>action.state] =prsSTATE_OFF,        prsSTATE_OFF,        \
       IF([<relative>control.state]=prsSTATE_LOADED     OR                    \
          [<relative>action.state] =prsSTATE_LOADED,     prsSTATE_LOADED,     \
       IF([<relative>control.state]=prsSTATE_STANDBY    OR                    \
          [<relative>action.state] =prsSTATE_STANDBY,    prsSTATE_STANDBY,    \
       prsSTATE_ONLINE ))))
    END
   ATTRIBUTE int32            substate   prsSTATE_STEADY
    BEGIN
      Definition                                                              \
       IF([<relative>control.state]=evhSTATE_UNK        OR                    \
          [<relative>action.state] =evhSTATE_UNK,        evhSTATE_UNK,        \
       IF([<relative>control.state]=prsSTATE_OFF        OR                    \
          [<relative>action.state] =prsSTATE_OFF,        prsSTATE_STEADY,     \
       IF([<relative>control.state]=prsSTATE_LOADED     OR                    \
          [<relative>action.state] =prsSTATE_LOADED,     prsSTATE_STEADY,     \
       IF([<relative>control.state]=prsSTATE_STANDBY    OR                    \
          [<relative>action.state] =prsSTATE_STANDBY,    prsSTATE_STEADY,     \
       IF([<relative>control.state]=prsSTATE_ERROR      OR                    \
          [<relative>action.state] =prsSTATE_ERROR,      prsSTATE_ERROR ,     \
       IF([<relative>control.state]=prsSTATE_STOPPING,   prsSTATE_STOPPING,   \
       IF([<relative>control.state]=prsSTATE_PRESETTING, prsSTATE_PRESETTING, \
       prsSTATE_READY )))))))
     END
    ATTRIBUTE prsCONTROL       control
    ATTRIBUTE prsACTION        action
END

Main loop handling. Error recovery

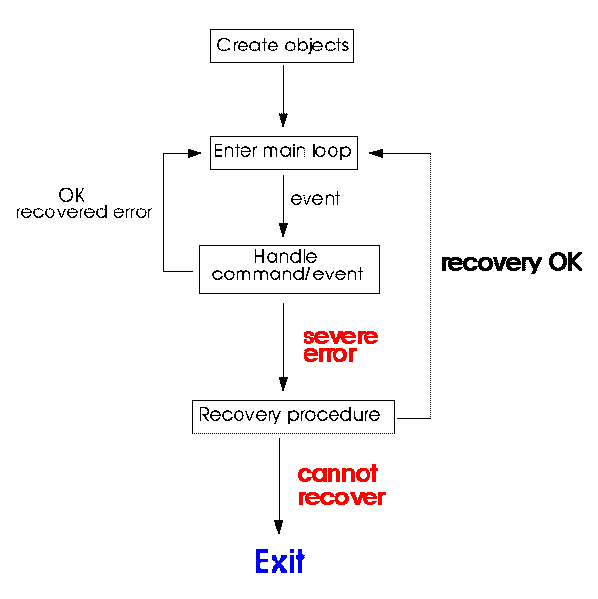

The tcsMAIN_HANDLER class

Main loop handling
Command line parsing
Severe error recovery

template<class T> class tcsMAIN_HANDLER : public eccsERROR_CLASS { tcsMAIN_HANDLER(); ccsCOMPL_STAT Init(int argCount, char *arg[]); ccsCOMPL_STAT RunMainLoop(T *obj, ccsCOMPL_STAT(T::* recover)()); const char* DbRoot(); const char* ProcName(); }; int main (int argc, char *argv[]) { tcsMAIN_HANDLER<mswCONTROL_MAIN> mainHandler; mainHandler.Init(argc, argv); dbSYMADDRESS dbEntryPoint; sprintf(dbEntryPoint, "%s:%s", mainHandler.DbRoot(),mswDB_ENTRY_POINT); mswSTD_COMMANDS mswStandardCmds (dbEntryPoint); swCONTROL_MAIN mswControlMain(dbEntryPoint); mainHandler.RunMainLoop(&mswControlMain, &mswCONTROL_MAIN::Recover); return(EXIT_SUCCESS); }

Command handling and dispatching

This area is not yet standardized.

The modules use different strategies

depending on the specific needs

Some action is necessary in this area

prs, msw, trkws:

evhDB_CMD_SEND

high parallelism
synchronization issues
special handling of mode switching list

agws, pom:

evhCOMMAND

multi step commands

Example: prs preset sequence

evhCB_COMPL_STAT prsAH_MAIN_TASK_VLT::ExePresetCB(msgMESSAGE &, void *)
{
    evhCB_COMPL_STAT stat = evhCB_DELETE;
    ccsCOMPL_STAT    res  = SUCCESS;
    prsTRACK_MODE    target;
    evhDB_SEND_ID    id = 0;
    errFlag(res, track.Preset(*currentSetupFile,&target));
    //#= If target != altaz, asks for preset of the other subsystems
    if( (target != prsTARG_NONE) && (target != prsTARG_ALAZ))
      {
  id = 0;
        //#= Executes a focus correction based on calibrated values
  errFlag(res,ao.CalibratedFocusCorrection(*currentSetupFile));

  //#= Preset of Auto Guide
  errFlag(res,guide.Preset(*currentSetupFile));
  errFlag(res,guide.FindGuideStar(*currentSetupFile, &id));
  errFlag(res,guide.ObjectCenter(*currentSetupFile, &id, id));

  //#= Offset step. When step ObjectCentering is completed
  errFlag(res,track.OffsetStep(*currentSetupFile, &id, id));

  //#= Execute an accurate focus correction
  errFlag(res,ao.FocusCorrection(*currentSetupFile, &id, id));

  //#= Acquisition of final guide star and start guiding
  errFlag(res,guide.Start(*currentSetupFile, &id, id));
      }
    //#= Ask the stdMod object to request a SETUP for all the other standard
    //#= modules registered in the application:
    stdMod.Setup(*currentSetupFile, &id, id);

    //#= Activates a syncronizzation object to wait until all the subsystems
    //#= are ready (or a timeout occurrs):
    //#=        Events:     DB:prsAction.track.state  >= IDLE
    //#=                    DB:prsAction.guide.state  >= IDLE
    //#=                    DB:prsAction.ao.state     >= IDLE
    //#=                    DB:prsAction.stdMod.state >= IDLE
    //#=        Action CB:  ReadyCB
    //#=        Timeout:    ErrorCB   Time:     DB:prsAction.readyTimeout
    dbSYMADDRESS  objDbName;

    waitAllReady.ClearConditions();
    sprintf(objDbName, "%s.%s",track.DbPoint(),"state");
    waitAllReady.AddCondition(objDbName,evhSTATE_IDLE,TRUE);
    sprintf(objDbName, "%s.%s",guide.DbPoint(),"state");
    waitAllReady.AddCondition(objDbName,evhSTATE_IDLE,TRUE);
    sprintf(objDbName, "%s.%s",ao.DbPoint(),"state");
    waitAllReady.AddCondition(objDbName,evhSTATE_IDLE,TRUE);
    sprintf(objDbName, "%s.%s",stdMod.DbPoint(),"state");
    waitAllReady.AddCondition(objDbName,evhSTATE_IDLE,TRUE);
    waitAllReady.Run();
    if(res == FAILURE).....
    return stat;
}

Example: pom parallel commands

class pomMAIN_TASK : public evhDB_TASK {
  public:
    virtual evhCB_COMPL_STAT ReadPosReceiveCB(msgMESSAGE &msg, void *);
private:
    virtual evhCB_COMPL_STAT ReadPosReplyCB(msgMESSAGE &msg, int seq);
    virtual evhCB_COMPL_STAT ReadPosErrorCB(msgMESSAGE &msg, int seq);
    msgMESSAGE       readPosMsg;
    evhDB_COMMAND    readPos_1Cmd;
    evhDB_COMMAND    readPos_2Cmd;
    vltINT8          readPosFlag;
};
evhCB_COMPL_STAT pomMAIN_TASK::ReadPosReceiveCB(msgMESSAGE &msg,      void *)
{
  msgMESSAGE sendMsg;
  ErrReset();
    // Save received message, to send final reply later on
    readPosMsg = msg;
  // Prepare and send the 1st command
    sendMsg.Command(xxxFIRST_CMD).Buffer("test buffer send to process 1");
    readPos_1Cmd.Send(sendMsg);
    // Prepare and send the 2nd command
    sendMsg.Command(xxxSECOND_CMD).Buffer("test buffer send to process 2");
    readPos_2Cmd.Send(sendMsg);
  readPosFlag = 2; //  Set the counter flag
    return evhCB_NO_DELETE;
}

evhCB_COMPL_STAT pomMAIN_TASK::ReadPosReplyCB(msgMESSAGE &msg, int seq)
{
    evhCB_COMPL_STAT stat = evhCB_NO_DELETE;
  ErrReset();
    // If it is the last reply, I am done
    if( msg.LastReply())  {
    readPosFlag = readPosFlag -1;
    if(readPosFlag == 0)
       if( readPosMsg.SendReply(tcsOK_MSG) == FAILURE )    {
        ErrAdd("evh",evhERR_SEND_REPLY,__FILE_LINE__);
        ErrStackClose();
        }
    stat = evhCB_DELETE;
  }
  return stat;
}
evhCB_COMPL_STAT pomMAIN_TASK::ReadPosErrorCB(msgMESSAGE &msg, int seq)
{
  ErrReset();
  ErrAdd("eccs",eccsERR_GENERIC, __FILE_LINE__);
  readPosFlag = readPosFlag - 1; // we decrement the flag first
    /* If there is still a pending command we must abort it */
    if(readPosFlag & (seq == 1))  readPos_2Cmd.Reset();
    if(readPosFlag & (seq == 2))  readPos_1Cmd.Reset();
    // Send back the final error reply
    if( readPosMsg.SendReply(ErrStack()) == FAILURE )   {
    ErrAdd("evh",evhERR_SEND_REPLY,__FILE_LINE__);
    ErrStackClose();
  }
    else
    ErrStackReset();
  return evhCB_DELETE;
}

Failure handling

Error conditions must be recovered before returning in the main loop.
Only internal severe errors (like database not available) can be passed to the main loop.
In case of error on handling a command, the error must be reported with an error reply:

evhCB_COMPL_STAT agwsCON_MAIN_TASK::GenericCB(msgMESSAGE &msg, void *) { eccsLOG_1(("agwsCON_MAIN_TASK::GenericCB - Command: %s, Buffer: %.60s", msg.Command(), msg.Buffer())); ErrReset(); //#= send back an error reply, telling "command not yet supported" ErrAdd(agwsMOD, agwsERR_GENERAL, __FILE_LINE__, "Command not yet supported"); if (msg.SendReply(ErrStack()) == FAILURE) { ErrAdd(tcsMOD, tcsERR_SEND_ERROR_REPLY, __FILE_LINE__); ErrStackClose(); // Close and log, since error not reported } else ErrStackReset(); // Error recovered. Close, since error reported return evhCB_SUCCESS; }

Modular testing

In the modular test it is necessary to test:

module's functionalities and command interface (application level testing)
any class, one by one (class level testing).

Tests on different modules are independent one another:

Dummy processes
Test database
Independent environments

Reference documents

TCS Functional Specification
VLT-SPE-ESO-11720-0001
TCS Package Design Description
VLT-SPE-ESO-17230-0754
TCS Preset Design Description
VLT-SPE-ESO-17230-0797
TCS Mode Switching Design Description
VLT-SPE-ESO-17230-0819
TCS Tracking Design Description
VLT-SPE-ESO-17230-0755
TCS Auto Guiding Design Description
VLT-SPE-ESO-17230-0933

Conclusion

All TCS workstation modules have the same general architecture.

This makes the software coherent and easier to maintain.

A periodic parallel cleanup of all modules is very important to factorize common problems and solutions.

Handling of command dispatching is still implemented using different strategies in the various modules.

It is important to codify the allowed strategies in design patterns and to develop common classes to implement them.

This is a major open point.

Table of Contents

OOWG Tutorial
The Design of the VLT
Telescope Control Software

Contents
