alma::acs::eclipse::utils::pluginbuilder::PluginBuilder Class Reference

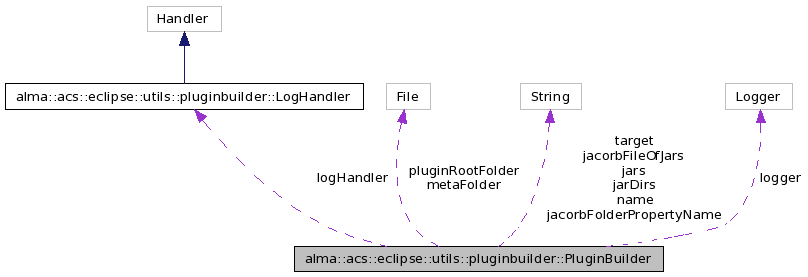

Collaboration diagram for alma::acs::eclipse::utils::pluginbuilder::PluginBuilder:

Public Member Functions
	PluginBuilder (String pluginName, String target, Boolean wrap, String[] jars) throws Exception
void	build () throws Exception
Static Public Member Functions
static void	main (String[] args)
static void	printUsage (OutputStream stream)
Public Attributes
final String	jacorbFolderPropertyName = "acs.system.classpath.jacorb.jardirs"
Private Member Functions
void	initdFolders () throws Exception
void	initPluginFolders ()
void	addPluginXML () throws IOException
void	addManifest () throws Exception
void	addJars () throws Exception
Private Attributes
String	jacorbFileOfJars
final String	target
final String	name
String[]	jarDirs
final boolean	wrapJars
File	pluginRootFolder = null
File	metaFolder = null
final String[]	jars
Static Private Attributes
static final Logger	logger = Logger.getLogger(PluginBuilder.class.getName())
static final LogHandler	logHandler = new LogHandler()

Detailed Description

Build an eclipse plugin from one or more jar files.

The required ACS jars are read from $INTROOT, $ACSROOT and so on.
The purpose of PluginBuilder is to build an eclipse plugin to import ACS jars while developing RCP applications for ACS. The computation requires:

the list of jars to include in the plugin
the name of the plugin to build
the eclipse plugin of ACS jars is built in the target location

The structure of a plugin is: plugin_folder META-INF MANIFEST.MF plugin.xml jarFile1.jar jarFile2.jar ... jarFile3.jar

Author:: acaproni

Since:: ACS-8.0.1

Constructor & Destructor Documentation

alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::PluginBuilder	(	String	pluginName,
		String	target,
		Boolean	wrap,
		String[]	jars
	)			throws Exception `[inline]`

Constructor

Parameters:

	pluginName	the name of the generated plugin
	target	the folder to install the created plugin into
	wrap	`true` if the jars must be copied in the destination plugin; `false` if the jars are linked into the plugin folder
	jars	The jars to wrap in the plugin (For example `lc.jar`)

References initdFolders(), jars, logger, name, target, and wrapJars.

Referenced by main().

Member Function Documentation

void alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::addJars ( ) throws Exception [inline, private]

Add (or link) the jars into the plugin folder.

jar files are found following ACS rules (i.e. first ../lib, then $INTROOT/lib and so on).

Exceptions:

Exception

in case of error

References alma::acs::eclipse::utils::jar::AcsFolders::getJar(), jarDirs, jars, logger, metaFolder, pluginRootFolder, and wrapJars.

Referenced by build().

void alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::addManifest ( ) throws Exception [inline, private]

Add the MANIFEST.MF to the META-INF folder.

Exceptions:

Exception

In case of error writing the manifest.

References logger, metaFolder, pluginRootFolder, and alma::acs::eclipse::utils::pluginbuilder::ManifestWriter::write().

Referenced by build().

void alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::addPluginXML ( ) throws IOException [inline, private]

Add the plugin.xml

Exceptions:

IOException

In case of erro writing the file

See also:: PluginXmlWriter

References pluginRootFolder, and alma::acs::eclipse::utils::pluginbuilder::PluginXmlWriter::write().

Referenced by build().

void alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::build ( ) throws Exception [inline]

Build the plugin

Exceptions:

Exception

In case of error building the plugin

References addJars(), addManifest(), addPluginXML(), initPluginFolders(), and logger.

Referenced by main().

void alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::initdFolders ( ) throws Exception [inline, private]

Get the folder to look for jars to wrap in the plugin

Exceptions:

Exception

If at least one of the folder is not valid

References jacorbFileOfJars, jacorbFolderPropertyName, jarDirs, and logger.

Referenced by PluginBuilder().

void alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::initPluginFolders ( ) [inline, private]

Create the folder structure of the plugin

References logger, metaFolder, name, pluginRootFolder, and target.

Referenced by build().

static void alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::main ( String[] args ) [inline, static]

The main

Parameters:

args

References build(), jars, logger, logHandler, name, PluginBuilder(), printUsage(), and target.

static void alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::printUsage ( OutputStream stream ) [inline, static]

Print the usage string in the passed stream

Parameters:

stream

The stream to print the string

Referenced by main().

Member Data Documentation

String alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::jacorbFileOfJars [private]

The folder where JacORB stores the jar files

Referenced by initdFolders().

final String alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::jacorbFolderPropertyName = "acs.system.classpath.jacorb.jardirs"

The jacorb folder of jar files.

It comes from the $JAVA_HOME environment variable.

Referenced by initdFolders().

String [] alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::jarDirs [private]

The folders to look for jars

Referenced by addJars(), and initdFolders().

final String [] alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::jars [private]

The jars to include in the created plugin.

Referenced by addJars(), main(), and PluginBuilder().

final Logger alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::logger = Logger.getLogger(PluginBuilder.class.getName()) [static, private]

The logger to print info and debug messages

Referenced by addJars(), addManifest(), build(), initdFolders(), initPluginFolders(), main(), and PluginBuilder().

final LogHandler alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::logHandler = new LogHandler() [static, private]

The handler getting logs

Referenced by main().

File alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::metaFolder = null [private]

The META-INF folder inside the plugin root folder

Referenced by addJars(), addManifest(), and initPluginFolders().

final String alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::name [private]

The name of the plugin

Referenced by initPluginFolders(), main(), and PluginBuilder().

File alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::pluginRootFolder = null [private]

The folder of the plugin where the jars are copied

It is the main folder of the plugin and its name usually has a form like alma.acs.eclipse.test_3.0.2.

Referenced by addJars(), addManifest(), addPluginXML(), and initPluginFolders().

final String alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::target [private]

The location in the file system where the generated plugin will be created.

target is a writable folder for example could be the target platform like ~/eclipse_target/eclipse/plugins/.

Referenced by initPluginFolders(), main(), and PluginBuilder().

final boolean alma::acs::eclipse::utils::pluginbuilder::PluginBuilder::wrapJars [private]

If true the jars are included in the plugin folder (i.e. they are copied fomr the ACS INTROOT, or ACSROOT into the plugin folder). If wrapJars is true the process bundles by wrapping.

If it is false, a link to the jars is created into the plugin folder. If wrapJars is false the process bundles by reference.

Referenced by addJars(), and PluginBuilder().

The documentation for this class was generated from the following file:

PluginBuilder.java
