DdtDialog Class Reference

#include <ddtDialog.hpp>

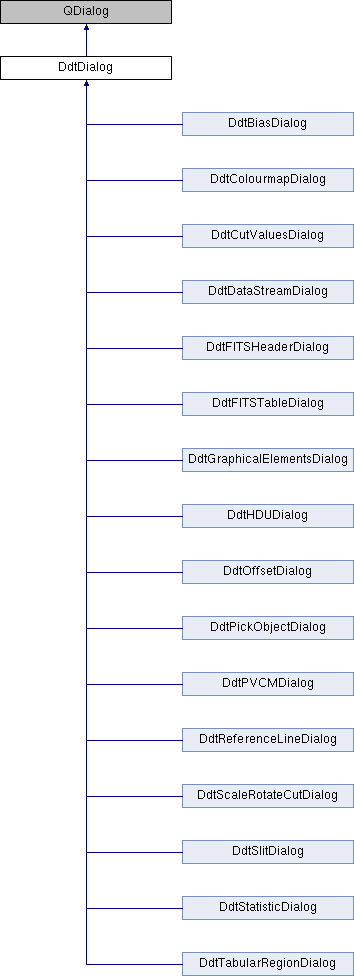

Inheritance diagram for DdtDialog:

Public Slots
virtual void	ConfirmPressed ()
virtual void	CancelPressed ()
virtual void	QuitPressed ()
virtual void	SetChangedParameter (const QString param_id, const QVariant parameter)

Signals
void	ParameterChanged (const QString dialog_id, const QString param_id, const QVariant parameter)

Public Member Functions
	DdtDialog (QWidget *parent=nullptr)
virtual	~DdtDialog ()
virtual void	SetInitialParameter (const QString parameter_id, const QVariant parameter)=0

Protected Member Functions
virtual void	CreateDialog ()=0
virtual void	AddDefaultButtonsToLayout (QBoxLayout *layout, bool show_confirm_button, bool show_quit_button, bool show_cancel_button)

Detailed Description

Base class for the DDT Dialogs

Constructor & Destructor Documentation

DdtDialog()

DdtDialog::DdtDialog ( QWidget *  parent = nullptr )

explicit

Constructor

Parameters

parent

Pointer to the parent widget

~DdtDialog()

DdtDialog::~DdtDialog ( )

virtualdefault

Destructor

Member Function Documentation

AddDefaultButtonsToLayout()

void DdtDialog::AddDefaultButtonsToLayout ( QBoxLayout *  layout, bool  show_confirm_button, bool  show_quit_button, bool  show_cancel_button  )

protectedvirtual

Add the default buttons to the dialog layout

CancelPressed

void DdtDialog::CancelPressed ( )

virtualslot

Slot called when the cancel button was pressed. Default behavior is to close the dialog.

ConfirmPressed

void DdtDialog::ConfirmPressed ( )

virtualslot

Slot called when the confirm button was pressed. Default behavior is to close the dialog.

CreateDialog()

virtual void DdtDialog::CreateDialog ( )

protectedpure virtual

Method to setup the dialog elements

Implemented in DdtScaleRotateCutDialog, DdtFITSTableDialog, DdtDataStreamDialog, DdtTabularRegionDialog, DdtStatisticDialog, DdtSlitDialog, DdtReferenceLineDialog, DdtPVCMDialog, DdtPickObjectDialog, DdtOffsetDialog, DdtHDUDialog, DdtGraphicalElementsDialog, DdtFITSHeaderDialog, DdtCutValuesDialog, DdtColourmapDialog, and DdtBiasDialog.

ParameterChanged

void DdtDialog::ParameterChanged ( const QString  dialog_id, const QString  param_id, const QVariant  parameter  )

signal

Paramter of dialog has changed

QuitPressed

void DdtDialog::QuitPressed ( )

virtualslot

Slot called when the quit button was pressed. Default behavior is to close the dialog.

SetChangedParameter

void DdtDialog::SetChangedParameter ( const QString  param_id, const QVariant  parameter  )

virtualslot

Slot called when a value of the dialog needs to be updated

Reimplemented in DdtStatisticDialog, DdtSlitDialog, DdtReferenceLineDialog, DdtPVCMDialog, and DdtHDUDialog.

SetInitialParameter()

virtual void DdtDialog::SetInitialParameter ( const QString  parameter_id, const QVariant  parameter  )

pure virtual

Method to set initial parameters that should be selected in a dialog at startup

Parameters

parameter_id	ID of the parameter to set
parameter	QVariant of the value to set

Implemented in DdtFITSHeaderDialog, DdtTabularRegionDialog, DdtStatisticDialog, DdtSlitDialog, DdtScaleRotateCutDialog, DdtReferenceLineDialog, DdtPVCMDialog, DdtPickObjectDialog, DdtOffsetDialog, DdtHDUDialog, DdtGraphicalElementsDialog, DdtFITSTableDialog, DdtDataStreamDialog, DdtCutValuesDialog, DdtColourmapDialog, and DdtBiasDialog.

---

The documentation for this class was generated from the following files:

• datavisualisation/widgetsdialogs/src/include/ddt/dialogs/ddtDialog.hpp
• datavisualisation/widgetsdialogs/src/dialogs/ddtDialog.cpp
