Abstract interface providing basic read and write facilities to a repository. More...

#include <repositoryIf.hpp>

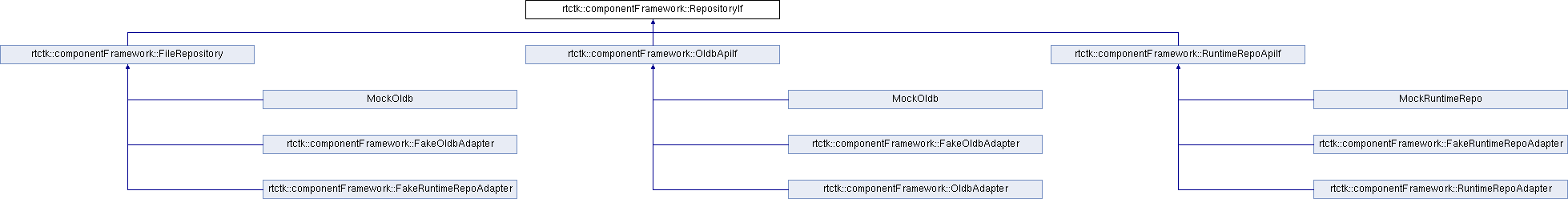

Inheritance diagram for rtctk::componentFramework::RepositoryIf:

Classes
class	Request
	A request object to pass information about datapoints that should be read (written) from (to) the repository. More...

class	Response
	An object used to wait for a request to complete. More...

Public Types
using	StringList = std::vector< std::string >

Public Member Functions
virtual	~RepositoryIf ()

virtual void	CreateDataPoint (const DataPointPath &path, const std::string &type)=0
	Creates a new datapoint in the repository with a specified type. More...

template<typename T >
void	CreateDataPointV2 (const DataPointPath &path)
	Creates a new datapoint in the repository. More...

template<typename T >
void	CreateDataPointV2 (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...

virtual void	DeleteDataPoint (const DataPointPath &path)=0
	Deletes a datapoint. More...

virtual std::string	GetDataPointType (const DataPointPath &path) const =0
	Fetches the type of the datapoint. More...

virtual size_t	GetDataPointSize (const DataPointPath &path) const =0
	Fetches the size of the datapoint's data. More...

virtual bool	DataPointExists (const DataPointPath &path) const =0
	Checks for the existence of a datapoint in the repository. More...

virtual std::pair< StringList, StringList >	GetChildren (const DataPointPath &path) const =0
	Queries the datapoints and child paths for a given path. More...

template<typename T >
T	GetDataPoint (const DataPointPath &path) const
	Fetches a datapoint from the repository. More...

template<typename T >
void	SetDataPoint (const DataPointPath &path, const T value)
	Sets a datapoint in the repository. More...

template<typename T >
void	ReadDataPoint (const DataPointPath &path, T &buffer) const
	Reads a datapoint from the repository. More...

template<typename T >
void	WriteDataPoint (const DataPointPath &path, const T &buffer)
	Writes a datapoint to the repository. More...

void	WriteDataPoint (const DataPointPath &path, const char *buffer)

virtual Response	SendReadRequest (const Request &request) const =0
	Sends a request to read data from the repository. More...

virtual Response	SendWriteRequest (const Request &request)=0
	Sends a request to write data to the repository. More...

template<>
void	CreateDataPointV2 (const DataPointPath &path, const char *default_value)

template<>
void	SetDataPoint (const DataPointPath &path, const char *value)

Detailed Description

Abstract interface providing basic read and write facilities to a repository.

Member Typedef Documentation

◆ StringList

using rtctk::componentFramework::RepositoryIf::StringList = std::vector<std::string>

Constructor & Destructor Documentation

◆ ~RepositoryIf()

rtctk::componentFramework::RepositoryIf::~RepositoryIf ( )

virtual

Member Function Documentation

◆ CreateDataPoint()

virtual void rtctk::componentFramework::RepositoryIf::CreateDataPoint	(	const DataPointPath &	path,
		const std::string &	type
	)

pure virtual

Creates a new datapoint in the repository with a specified type.

Parameters

[in]	path	The datapoint path that should be created.
[in]	type	A string indicating the type of the new datapoint. Valid values are indicated below.

The following are the supported values for the type string:

RtcBool
RtcInt32
RtcInt64
RtcFloat
RtcDouble
RtcString
RtcVectorBool
RtcVectorInt32
RtcVectorInt64
RtcVectorFloat
RtcVectorDouble
RtcVectorString
RtcMatrixBool
RtcMatrixInt32
RtcMatrixInt64
RtcMatrixFloat
RtcMatrixDouble
RtcMatrixString

Implemented in rtctk::componentFramework::FileRepository, MockRuntimeRepo, MockOldb, MockRuntimeRepo, and MockOldb.

◆ CreateDataPointV2() [1/3]

template<typename T >

void rtctk::componentFramework::RepositoryIf::CreateDataPointV2 ( const DataPointPath & path )

Creates a new datapoint in the repository.

The type of the datapoint is derived from the template argument type.

Parameters

[in] path The datapoint path that should be created.

◆ CreateDataPointV2() [2/3]

template<>

void rtctk::componentFramework::RepositoryIf::CreateDataPointV2	(	const DataPointPath &	path,
		const char *	default_value
	)

◆ CreateDataPointV2() [3/3]

template<typename T >

void rtctk::componentFramework::RepositoryIf::CreateDataPointV2	(	const DataPointPath &	path,
		const T	default_value
	)

Creates a new datapoint in the repository and sets a default value.

The type of the datapoint is derived from the template argument type.

Parameters

[in]	path	The datapoint path that should be created.
[in]	default_value	The default value that should be set for the new datapoint.

◆ DataPointExists()

virtual bool rtctk::componentFramework::RepositoryIf::DataPointExists ( const DataPointPath & path ) const

pure virtual

Checks for the existence of a datapoint in the repository.

Parameters

[in] path The datapoint path to check.

Returns: true if the datapoint path exists in the repository and false otherwise.

Implemented in rtctk::componentFramework::FileRepository, MockRuntimeRepo, MockOldb, MockRuntimeRepo, and MockOldb.

◆ DeleteDataPoint()

virtual void rtctk::componentFramework::RepositoryIf::DeleteDataPoint ( const DataPointPath & path )

pure virtual

Deletes a datapoint.

Parameters

[in] path The path of the datapoint to delete in the repository.

Implemented in rtctk::componentFramework::FileRepository, MockRuntimeRepo, MockOldb, MockRuntimeRepo, and MockOldb.

◆ GetChildren()

virtual std::pair<StringList, StringList> rtctk::componentFramework::RepositoryIf::GetChildren ( const DataPointPath & path ) const

pure virtual

Queries the datapoints and child paths for a given path.

This method will query all the available datapoints that are leaf nodes immediately below the given path and also the child paths, i.e. sub-folders when interpreting the repository as a hierarchical folder like structure. The set of immediate datapoint and child paths is returned as two separate lists.

If an error occurs when querying the the repository a std::runtime_error is thrown.

Parameters

[in] path The path in which to search for datapoints and child paths.

Returns: A std::pair or string lists, i.e. std::vector<std::string>, with the first list in the pair containing the datapoints found and the second list containing the child paths found. If no datapoints are found then the list for datapoints is empty. Similarly if not child paths are found then the child path list is empty.

Implemented in rtctk::componentFramework::FileRepository, MockRuntimeRepo, MockOldb, MockRuntimeRepo, and MockOldb.

◆ GetDataPoint()

template<typename T >

T rtctk::componentFramework::RepositoryIf::GetDataPoint ( const DataPointPath & path ) const

Fetches a datapoint from the repository.

The datapoint is read from the repository and returned. If an error occurs then a std::runtime_error is thrown.

Note: This method blocks while waiting for the read request from the repository to complete.

Parameters

[in] path The path of the datapoint that should be fetched from the repository.

Returns: The datapoint's value.

◆ GetDataPointSize()

virtual size_t rtctk::componentFramework::RepositoryIf::GetDataPointSize ( const DataPointPath & path ) const

pure virtual

Fetches the size of the datapoint's data.

This method will return one of the following values depending on the category of the datapoint's type:

Scalars: Will always return 1 for scalars such as RtcBool, RtcInt32, RtcInt64, RtcFloat, and RtcDouble.
Strings: Will return the length of the string, i.e. the number of characters in the string.
Vectors: Will return the number of elements in the vector.
Matrices: Will return the total number of elements in the matrix, i.e. the number of rows times the number of columns.

Returns: The number of elements in the datapoint's data.

Implemented in rtctk::componentFramework::FileRepository, MockRuntimeRepo, MockOldb, MockRuntimeRepo, and MockOldb.

◆ GetDataPointType()

virtual std::string rtctk::componentFramework::RepositoryIf::GetDataPointType ( const DataPointPath & path ) const

pure virtual

Fetches the type of the datapoint.

This will return the type used when the datapoint was created with the CreateDataPoint method. If the CreateDataPointV2 method was used instead then this returns the type string that was inferred by that method.

Returns: The type of the datapoint as a string, i.e. the type as is encoded in the underlying YAML file.

Implemented in rtctk::componentFramework::FileRepository, MockRuntimeRepo, MockOldb, MockRuntimeRepo, and MockOldb.

◆ ReadDataPoint()

template<typename T >

void rtctk::componentFramework::RepositoryIf::ReadDataPoint	(	const DataPointPath &	path,
		T &	buffer
	)		const

Reads a datapoint from the repository.

Fetches the data for a datapoint from the repository and updates a local buffer in-place. If an error occurs then a std::runtime_error is thrown.

Note: This method blocks while waiting for the data to be received from the repository.

Parameters

[in]	path	The path of the datapoint that should be fetched from the repository.
[in]	buffer	A reference to the local buffer that should be filled with the received data.

◆ SendReadRequest()

virtual Response rtctk::componentFramework::RepositoryIf::SendReadRequest ( const Request & request ) const

pure virtual

Sends a request to read data from the repository.

This method allows non-blocking and asynchronous reading of datapoints form the repository. The method returns immediately, allowing other work to be done in the calling thread while the read request is completed in the background. If any callback handlers were registered in request, they will be called as soon as the data is available for the respective datapoint.

Note: The buffers for the datapoints added to request must not be accessed until the Wait method of the response object returns successfully, i.e. without a timeout.

If an error occurs then a std::runtime_error is thrown.

Note: This method is not transactional or fully atomic. If an error occurs while reading the datapoints, some or all of the datapoint buffers registered with the read request may be left unmodified. It is however guaranteed that any particular datapoint buffer is either updated completely or not modified at all.

Parameters

[in] request The request object that contains all the datapoints to read.

Returns: A response object that must be used to synchronise with the completion of the read request.

Implemented in rtctk::componentFramework::FileRepository, MockRuntimeRepo, MockOldb, MockRuntimeRepo, and MockOldb.

◆ SendWriteRequest()

virtual Response rtctk::componentFramework::RepositoryIf::SendWriteRequest ( const Request & request )

pure virtual

Sends a request to write data to the repository.

This method allows non-blocking writing of datapoints to the repository. The method returns immediately, allowing other work to be done in the calling thread while the write request is completed in the background. If any callback handlers were registered in request, they will be called as soon as the respective datapoint's data has been sent and the buffer will no longer be accessed by the API, i.e. the caller can modify or release the buffer from that point on.

Note: The buffers for the datapoints added to request must not be modified or released until the Wait method of the response object returns successfully, i.e. without a timeout.

If an error occurs then a std::runtime_error is thrown.

Note: This method is not transactional or fully atomic. If an error occurs while writing the datapoints, only some of the datapoints registered with the write request may be actually updated in the repository. It is however guaranteed that any particular datapoint is either updated completely in the repository or not at all.

Parameters

[in] request The request object that contains all the datapoints to write.

Returns: A response object that must be used to synchronise with the completion of the write request.

Implemented in rtctk::componentFramework::FileRepository, MockRuntimeRepo, MockOldb, MockRuntimeRepo, and MockOldb.

◆ SetDataPoint() [1/2]

template<>

void rtctk::componentFramework::RepositoryIf::SetDataPoint	(	const DataPointPath &	path,
		const char *	value
	)

◆ SetDataPoint() [2/2]

template<typename T >

void rtctk::componentFramework::RepositoryIf::SetDataPoint	(	const DataPointPath &	path,
		const T	value
	)

Sets a datapoint in the repository.

A new value for the datapoint is sent to the repository and updated. If an error occurs then a std::runtime_error is thrown.

Note: This method blocks while waiting for the data to be sent to the repository.

Parameters

[in]	path	The path of the datapoint that should be updated in the repository.
[in]	value	The new data for the datapoint.

◆ WriteDataPoint() [1/2]

void rtctk::componentFramework::RepositoryIf::WriteDataPoint	(	const DataPointPath &	path,
		const char *	buffer
	)

◆ WriteDataPoint() [2/2]

template<typename T >

void rtctk::componentFramework::RepositoryIf::WriteDataPoint	(	const DataPointPath &	path,
		const T &	buffer
	)

Writes a datapoint to the repository.

Data is read from the buffer reference provided and sent to the repository to update the datapoint. If an error occurs then a std::runtime_error is thrown.

This method is preferred over SetDataPoint for large vectors and matrices, since passing a reference to the buffer is more efficient.

Note: This method blocks while waiting for the data to be sent to the repository.

Parameters

[in]	path	The path of the datapoint that should be updated in the repository.
[in]	buffer	A reference to the new data for the datapoint.

The documentation for this class was generated from the following files:

componentFramework/services/common/src/include/rtctk/componentFramework/repositoryIf.hpp
componentFramework/services/common/src/repositoryIf.cpp
