Standard NACO reference frames

This is set of standard NACO calibration frames.

Find here the NACO calibration plan.

Reference frames:

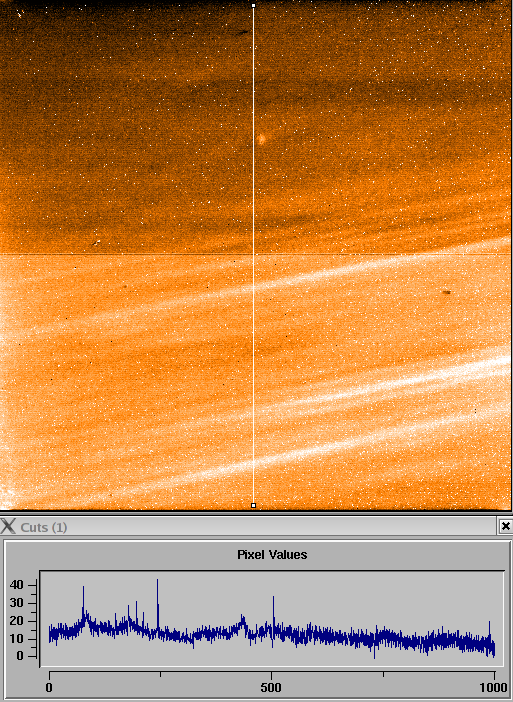

Standard NACO DARK Calibration Frames

Read-out mode	FNS-HS	FNS-HS	FNS-HS	DCR-HD	DCR-HD	DCR-HD	UCR-HB	UCR-HWD
Camera	S27	S27	S27	S13	S13	S13	L27	L27
DIT [s]	1.7927084	2.0	300.0	1.0	30.0	90.0	0.056	0.2

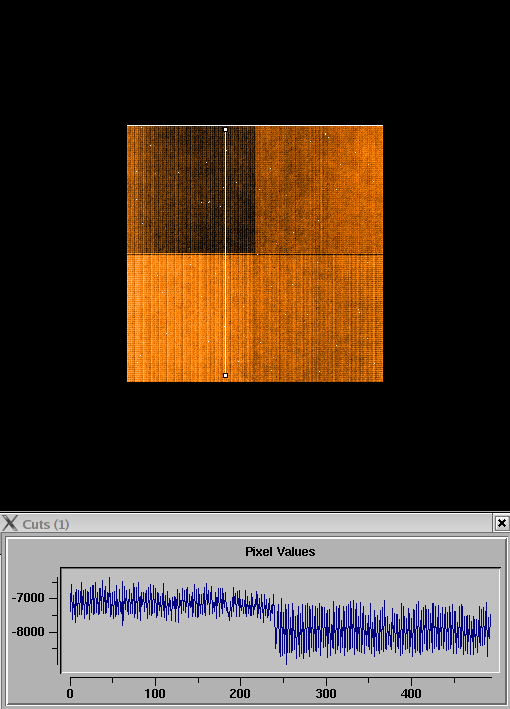

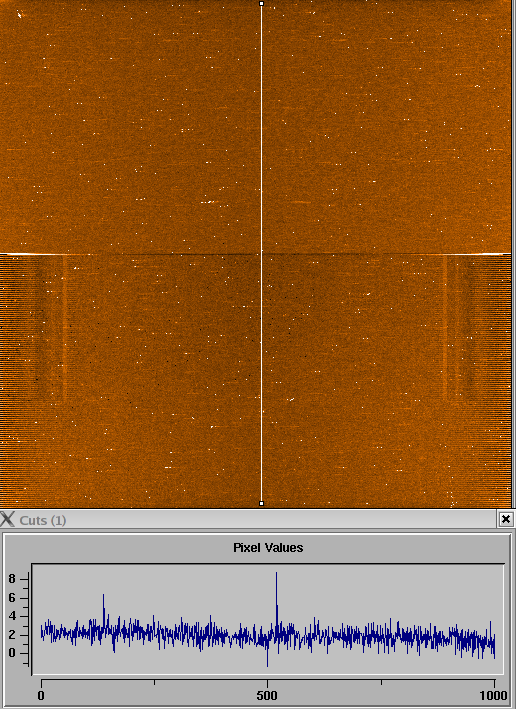

Dark
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	0.8 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

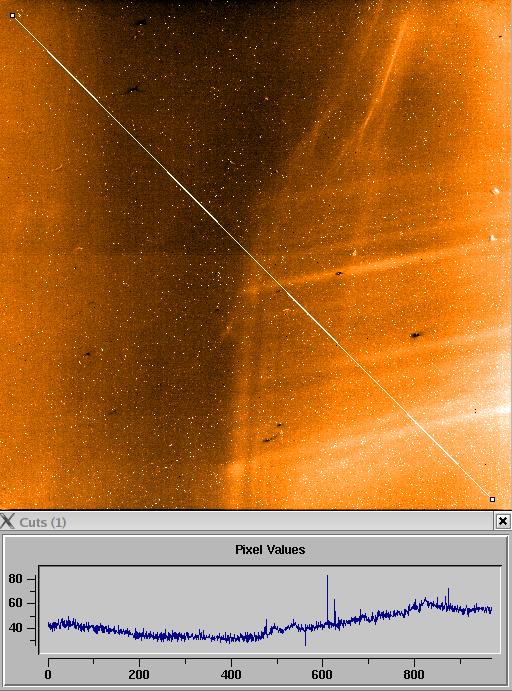

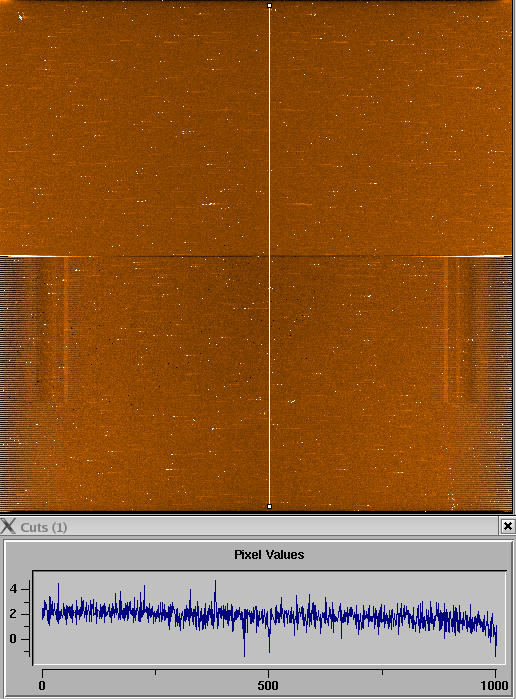

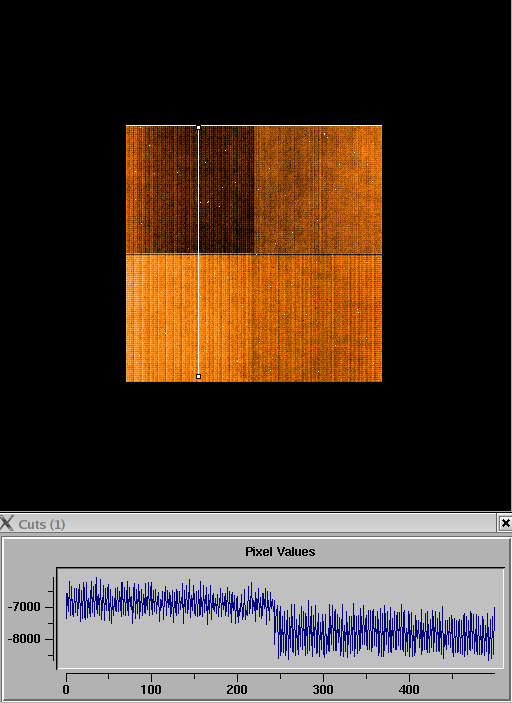

Dark product
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	0.8 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

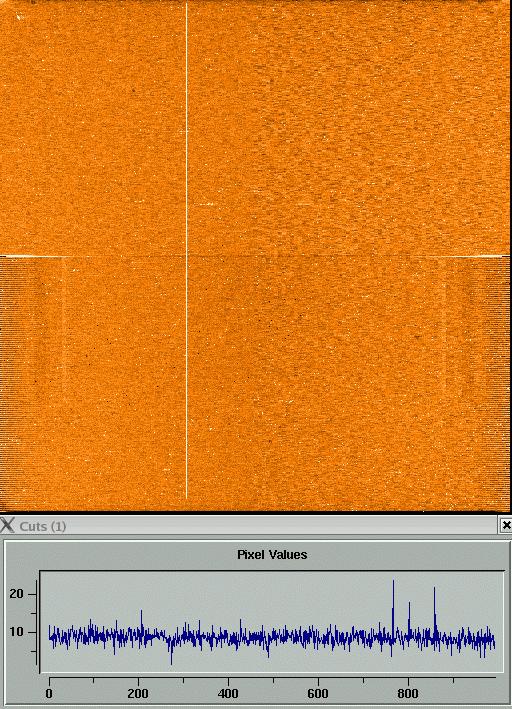

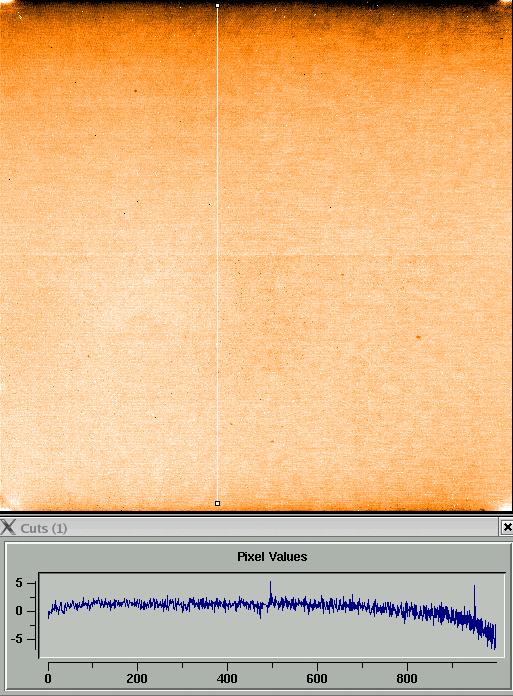

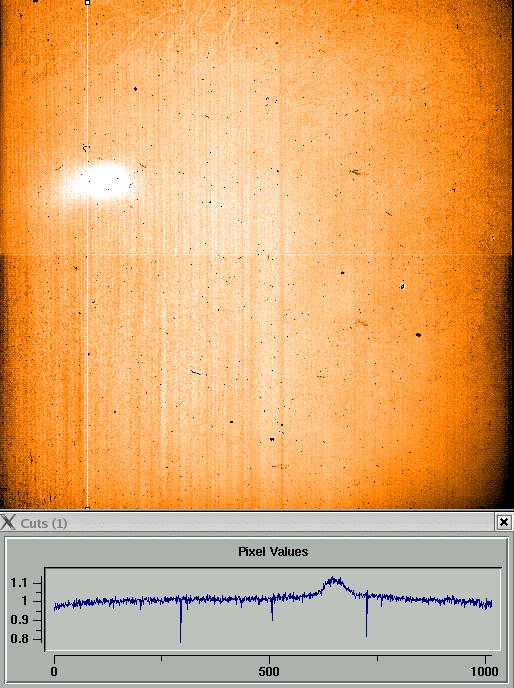

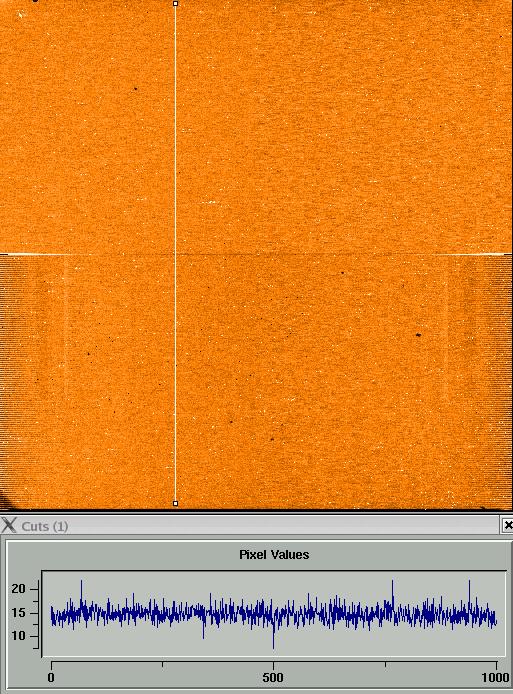

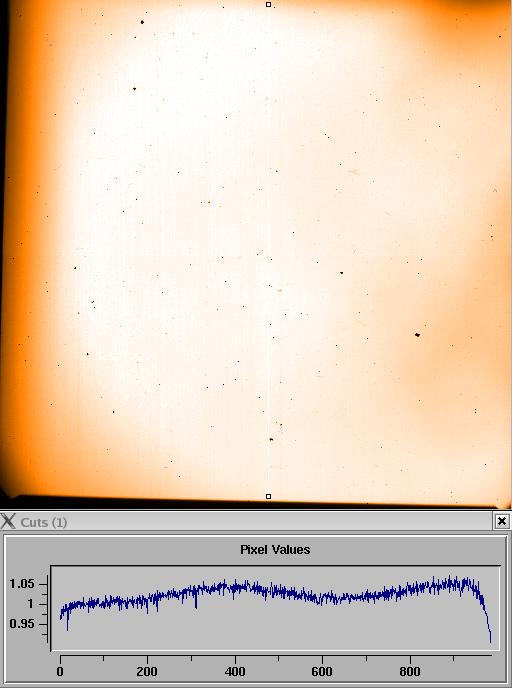

Standard NACO Lamp Flat Calibration Frames

NOTE: Starting from October 30, 2006 the Lamp ON flux level increased to about 3000-4000 ADU/pixel.

Read-out mode	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD
Camera	S13	S13	S13	S27	S27	S27	S54	S54	S54
Filter	J	H	Ks	J	H	Ks	J	H	Ks
DIT [s]	15	15	15	3	3	3	0.75	0.75	0.75

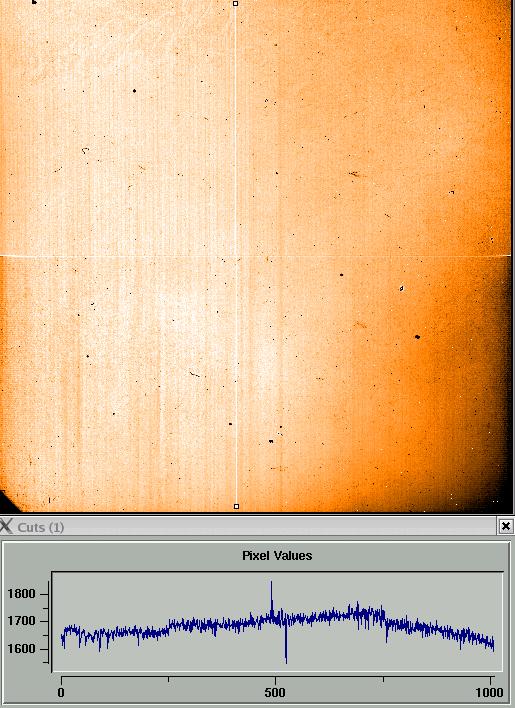

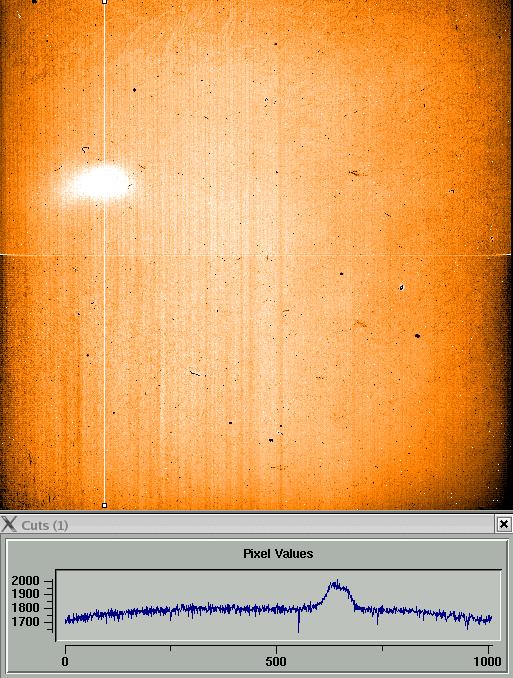

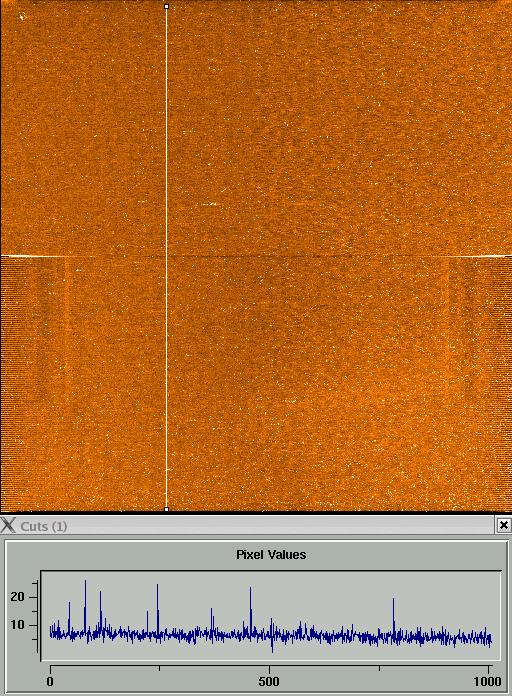

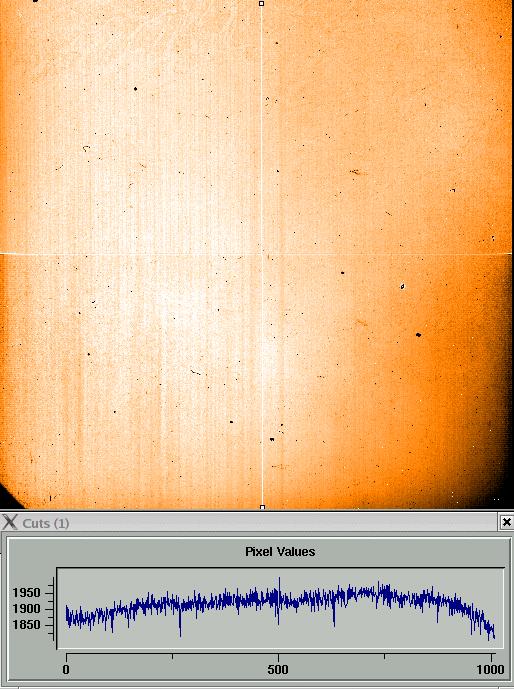

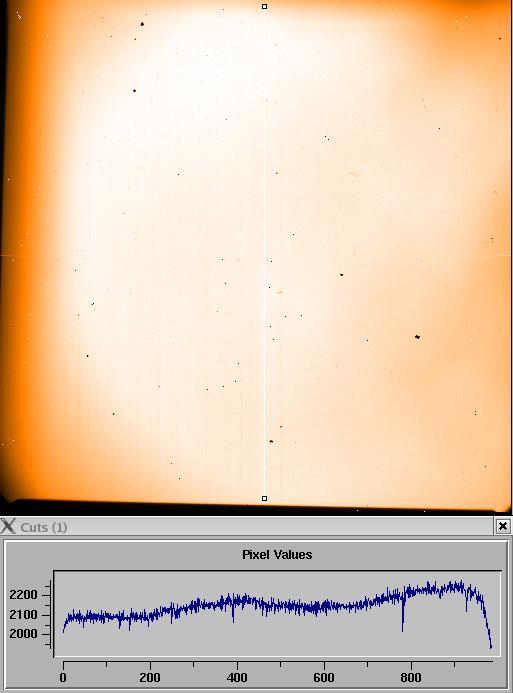

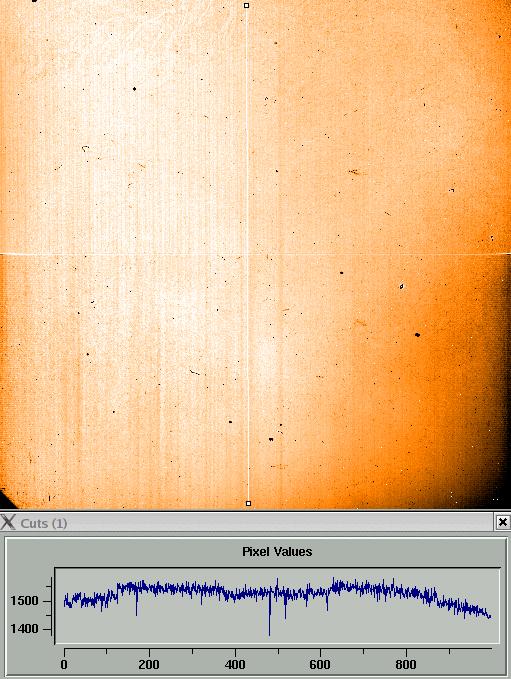

Lamp ON
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

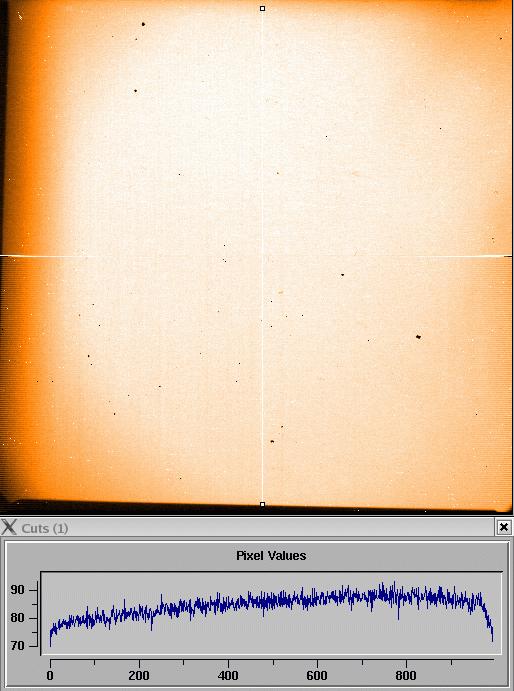

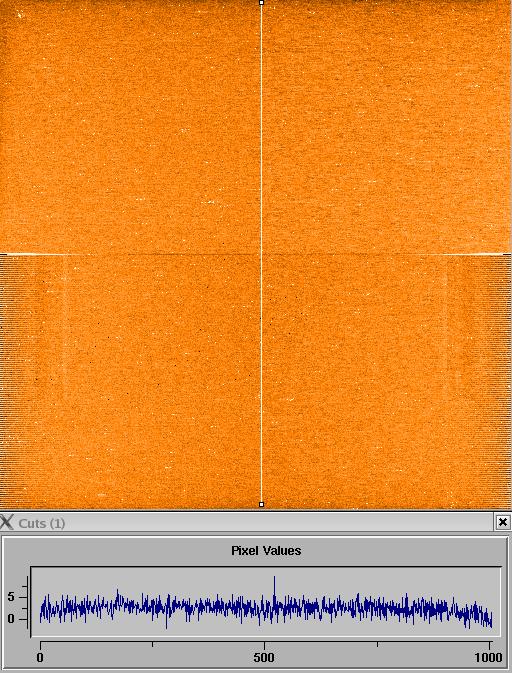

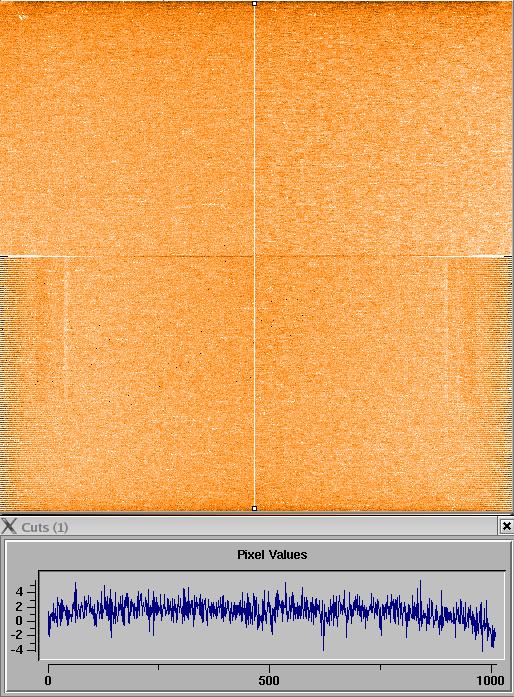

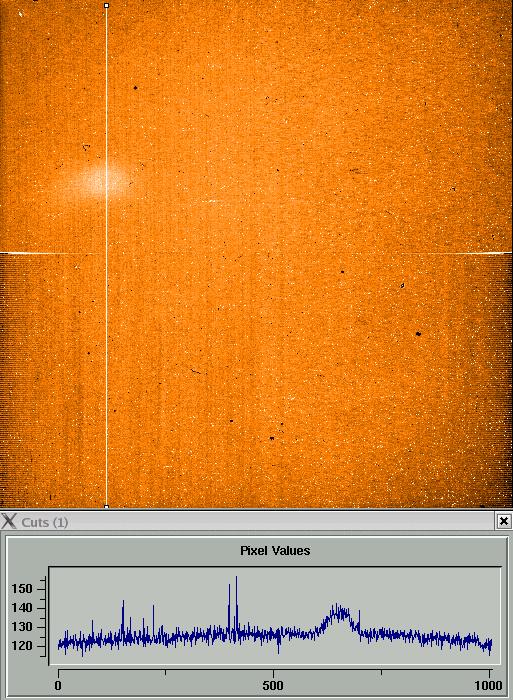

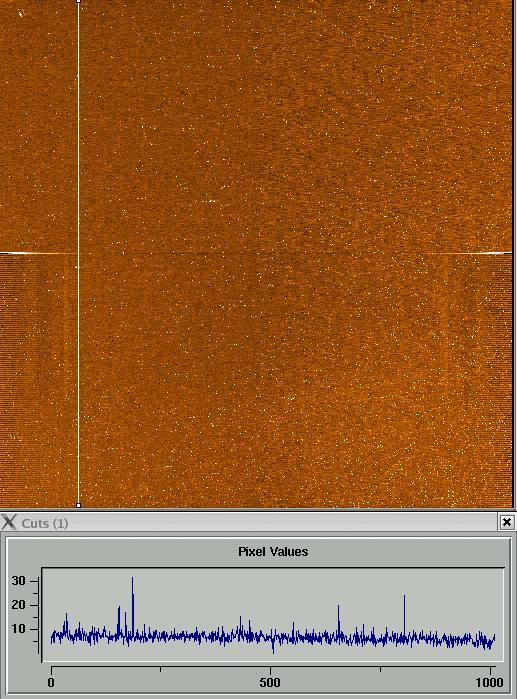

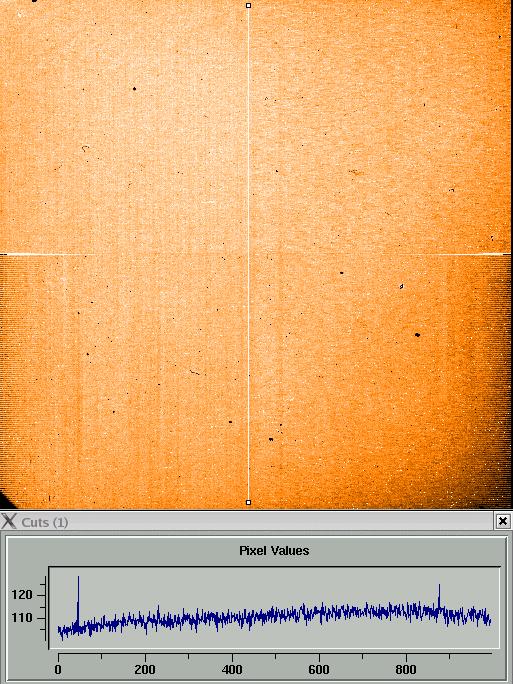

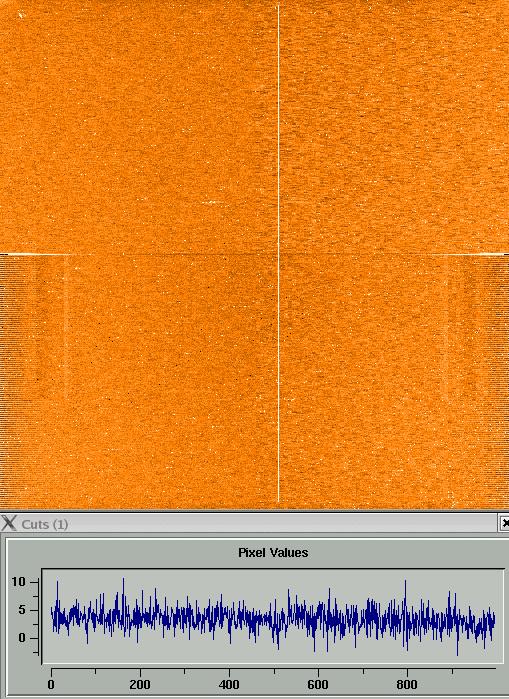

Lamp OFF
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

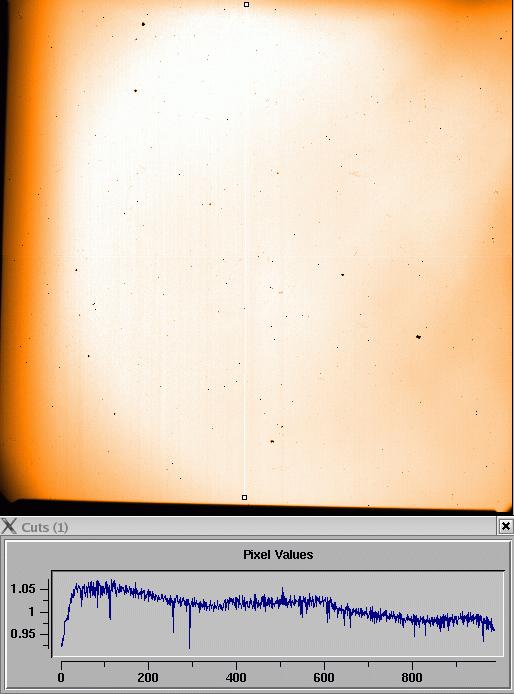

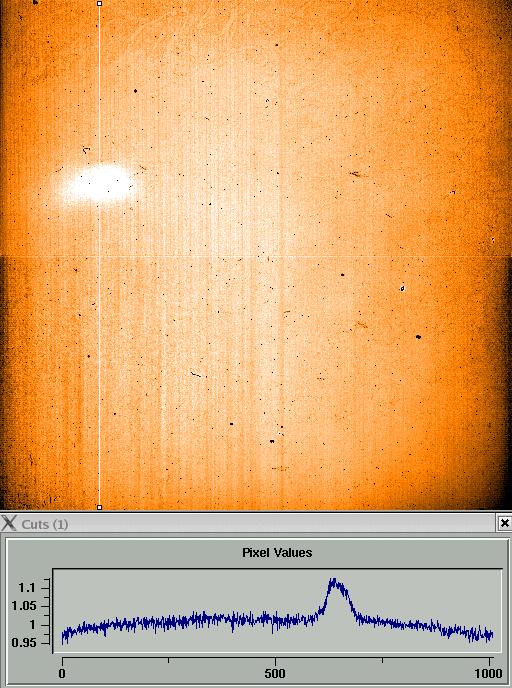

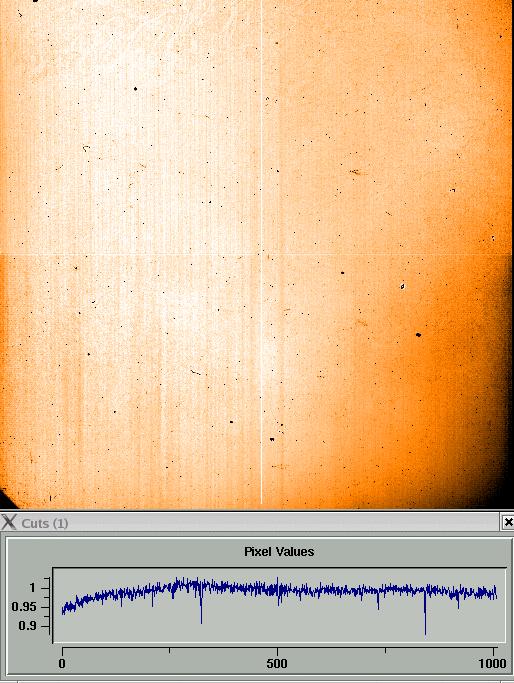

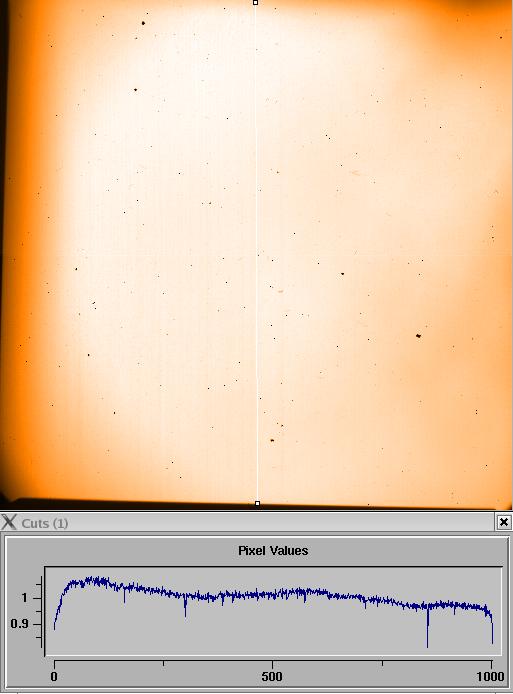

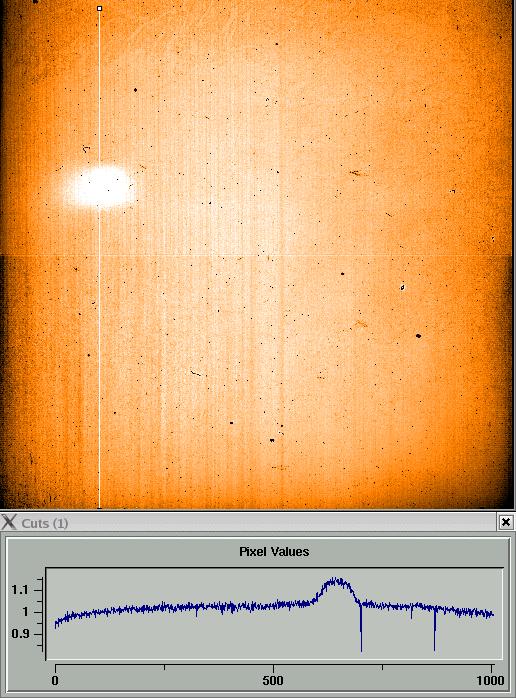

Lamp Product
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

Read-out mode	DCR-HD	DCR-HD	DCR-HD	FNS-HS	FNS-HS
Camera	S13	S27	S27	S27	S27
Filter	NB1.64	NB2.17	IB2.18	NB2.12	IB2.18
DIT [s]	15	3	3	3	3

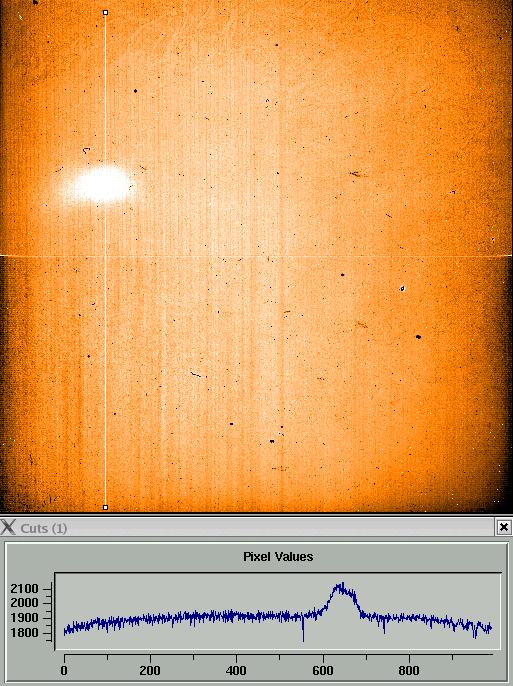

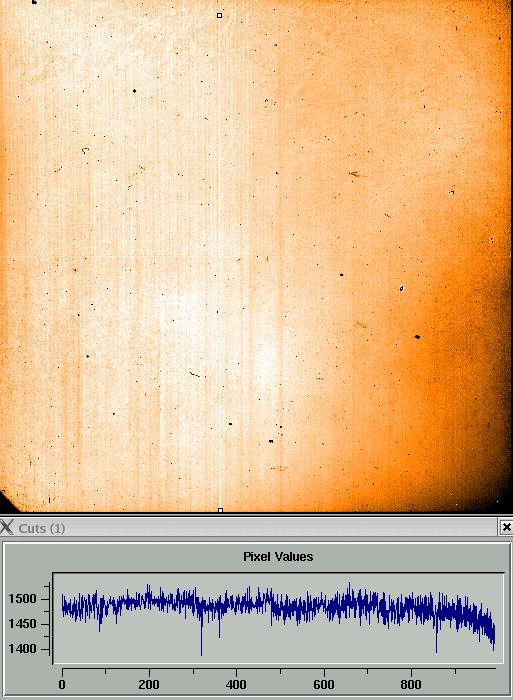

Lamp ON
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr

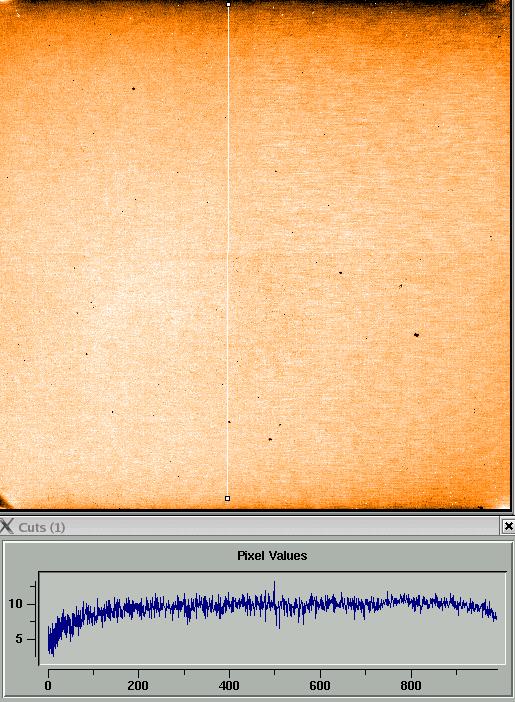

Lamp OFF
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr

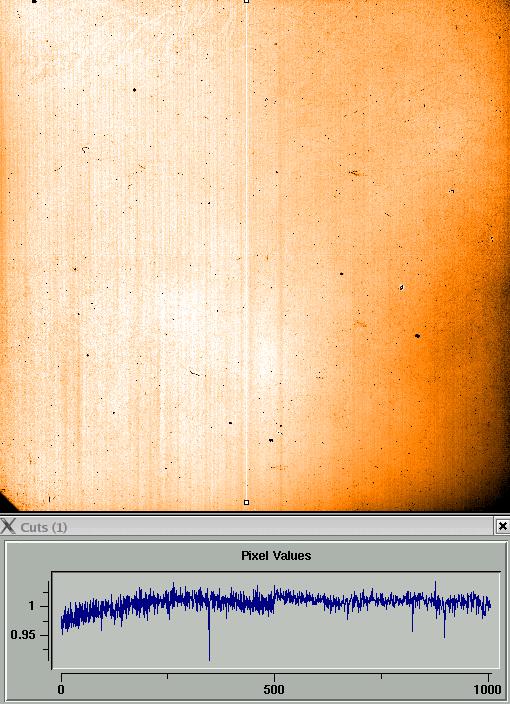

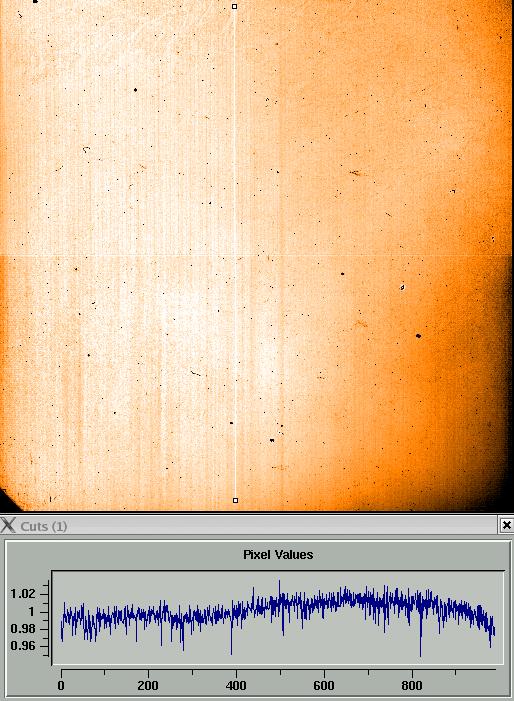

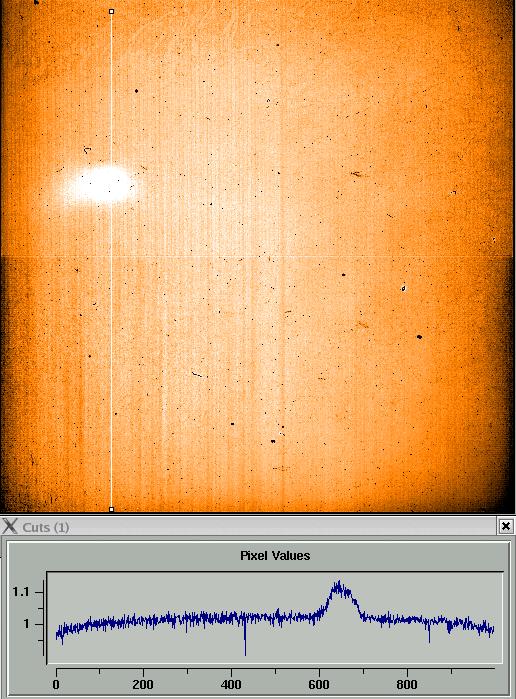

Lamp Product
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr

Standard NACO Twilight Flat Calibration Frames

Read-out mode	DCR-HD	DCR-HD	DCR-HD	DCR-HD	FNS-HS
Camera	S13	S27	S27	S27	S27
Filter	J	H	Ks	IB2.06	NB2.12
DIT [s]	8	1.5	10	30	45

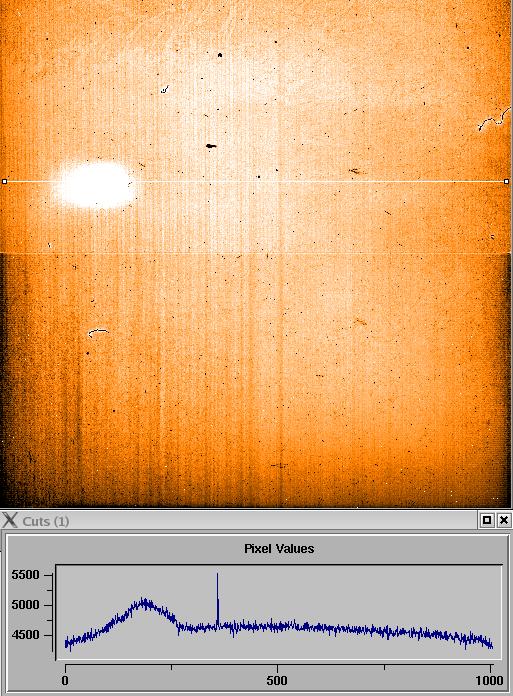

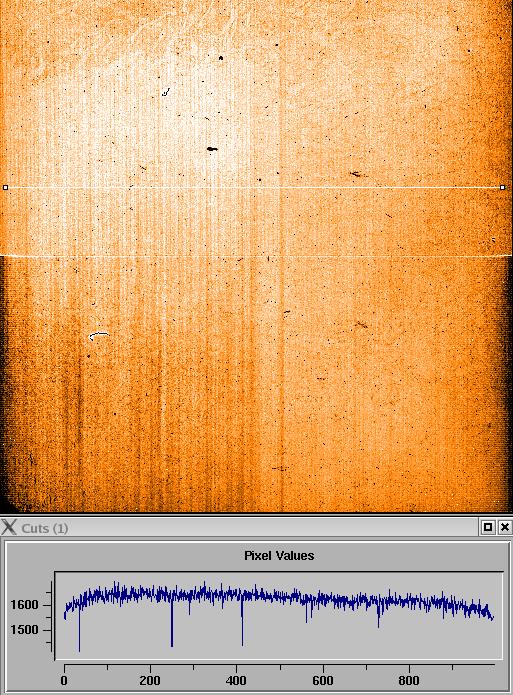

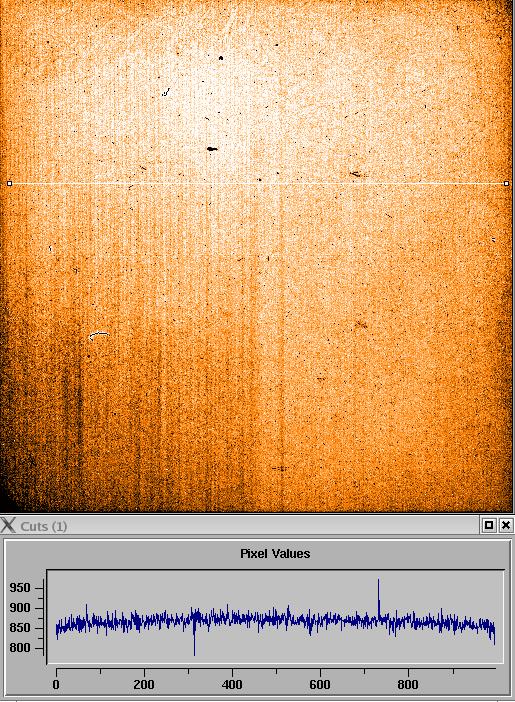

raw frames
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr

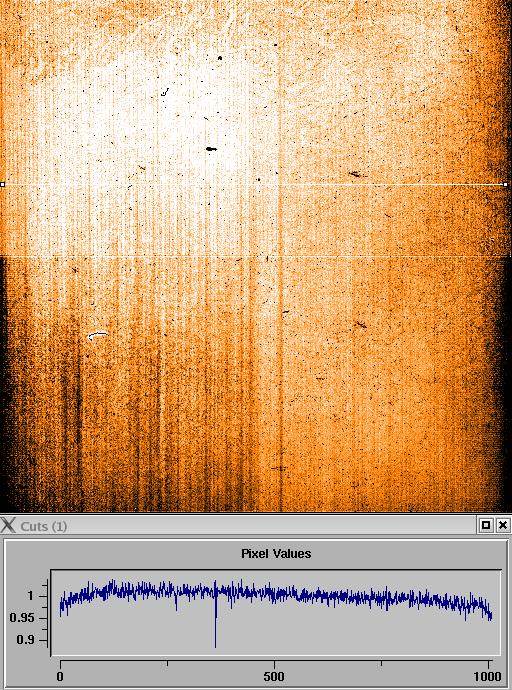

products
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr

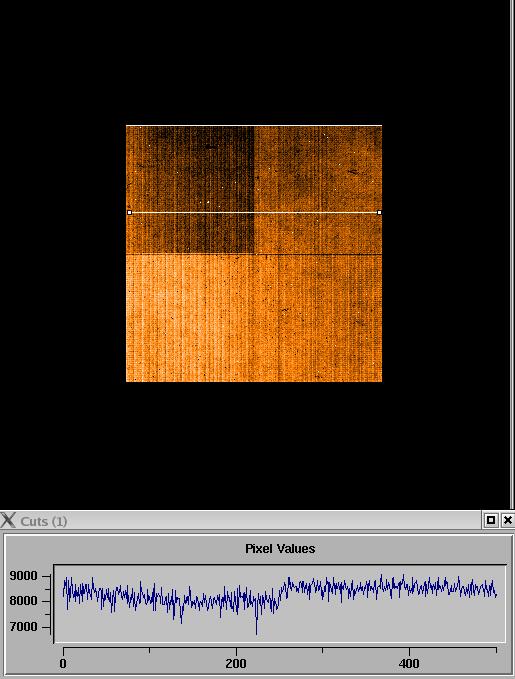

Standard NACO Sky Flat Calibration Frames

Read-out mode	UCR-HD	UCR-HWD	UCR-HB
Camera	L27	L27	L27
Filter	NB3.74	Lprime	Mprime
DIT [s]	1.0	0.2	0.056
raw frames
	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr

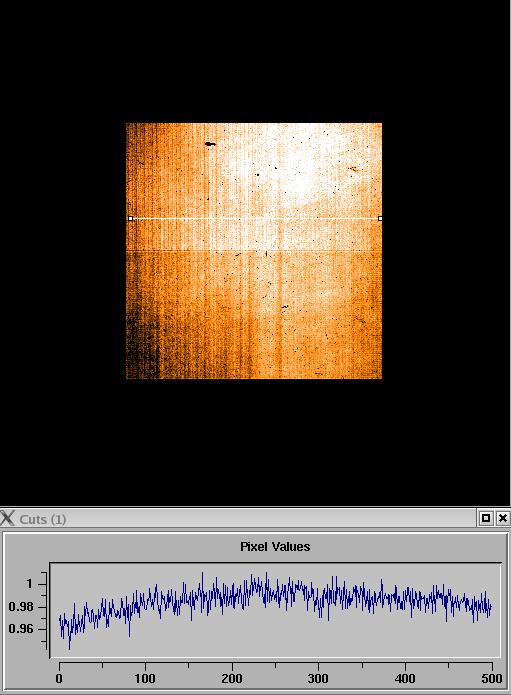

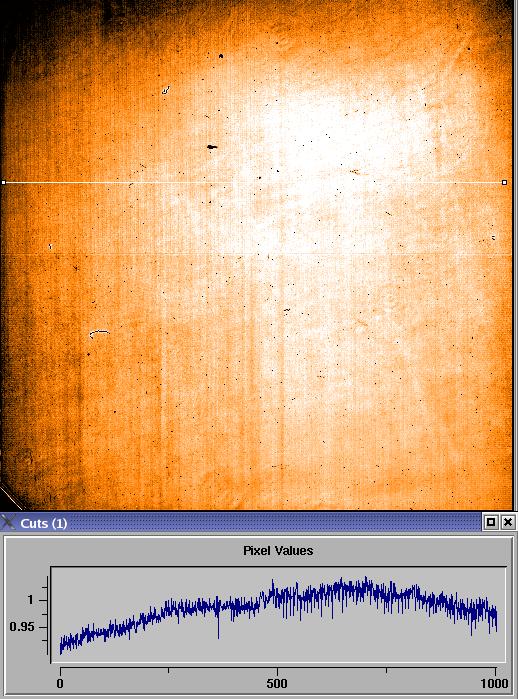

products
	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr

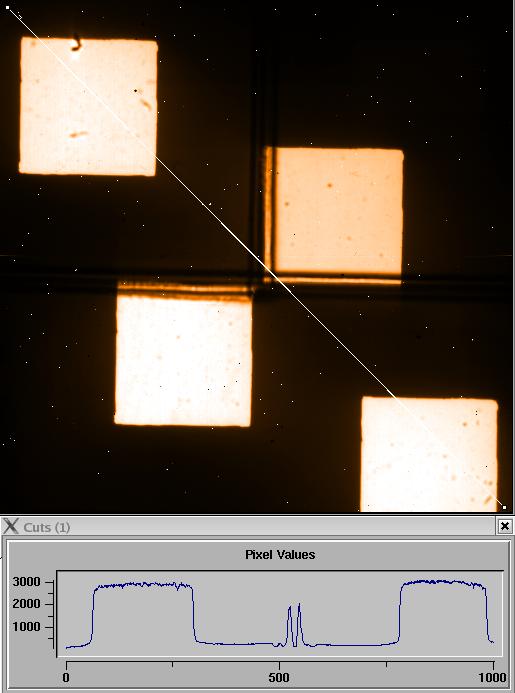

Standard NACO SDI Calibration Frames

Read-out mode	DCR-HD	FNS-HS			Read-out mode	DCR-HD	FNS-HS
Camera	SDI	SDI			Camera/Filter	SDI/H	SDI/H
DIT [s]	10.0	300.0			DIT [s]	3.0	3.0

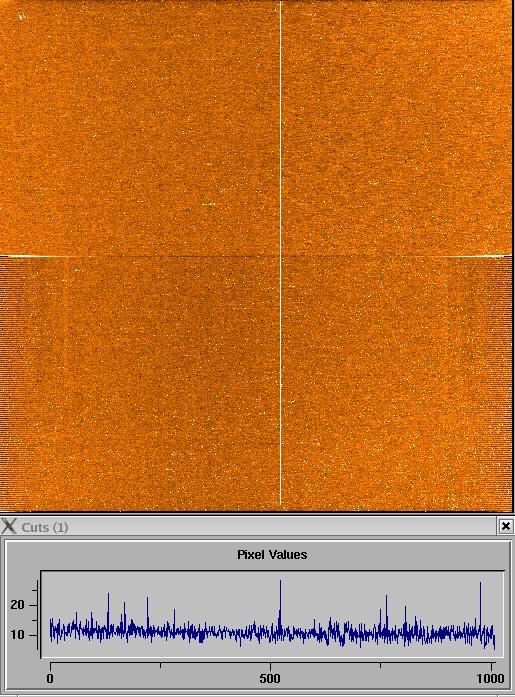

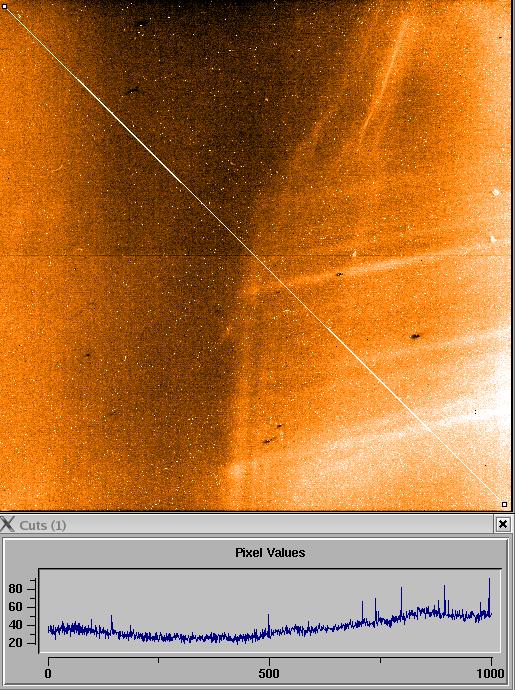

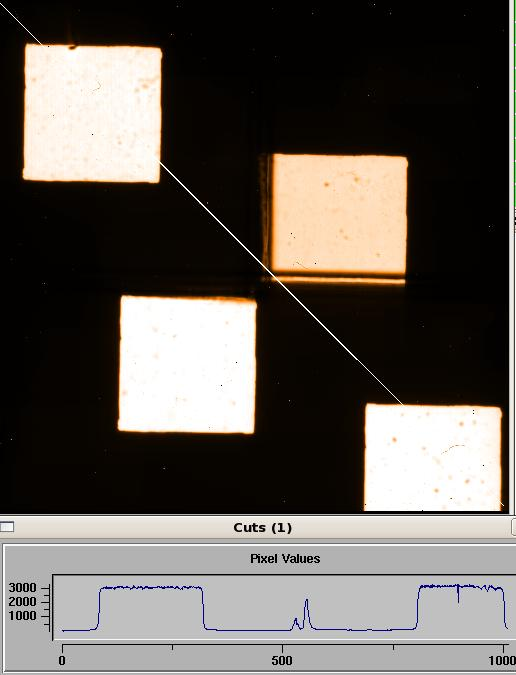

Dark					Lamp ON
	1.6 Mb	1.6 Mb				1.6 Mb	1.6 Mb
	hdr	hdr				hdr	hdr

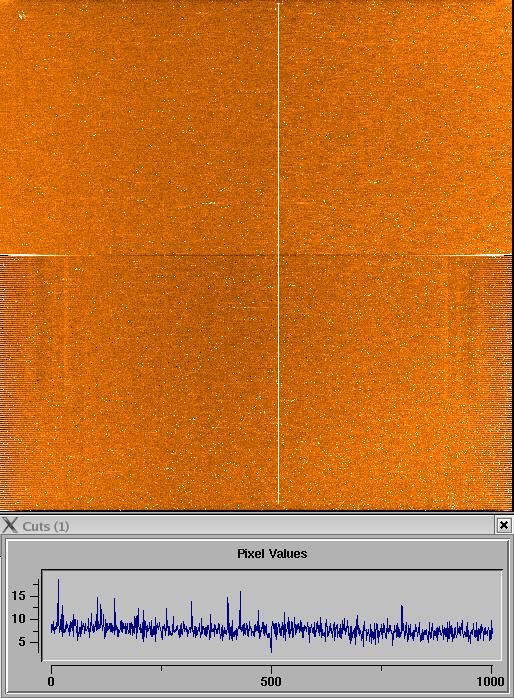

Dark product					Lamp OFF
	1.6 Mb	1.6 Mb				1.6 Mb	1.6 Mb
	hdr	hdr				hdr	hdr
