ESPRESSO trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-04-29T18:56:54 (UT)
  | now: 2024-04-30T10:00:53 (UT) muc11 QC pipeline: espdr-2.5.0 (installed 2022-06-28)
same group: LFC_HR_1x1 LFC_HR_2x1 LFC_UHR_1x1 LFC_MR_4x2 LFC_MR_8x4   counts
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
ESPRESSO news:
Report news:
DATE*: [?] 2024-04-23
report | NLT 		2024-04-24
report | NLT 		2024-04-25
report | NLT 		2024-04-26
report | NLT 		2024-04-27
report | NLT 		2024-04-28
report | NLT 		2024-04-29
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB none   ADU VAL12000,25000 69 fiba_counts_max_blue this | last_yr | all maximum counts in raw files, HR 1x1, fibre A, BLUE detector
2 •QC1DB none   ADU VAL12000,25000 69 fiba_counts_max_red this | last_yr | all maximum counts in raw files, HR 1x1, fibre A, RED detector
3 •QC1DB none   ADU VAL25000,55000 75 fiba_counts_max_blue this | last_yr | all maximum counts in raw files, HR 2x1, fibre A, BLUE detector
4 •QC1DB none   ADU VAL25000,55000 75 fiba_counts_max_red this | last_yr | all maximum counts in raw files, HR 2x1, fibre A, RED detector
5 •QC1DB none   ADU VAL12000,25000 71 fibb_counts_max_blue this | last_yr | all maximum counts in raw files, HR 1x1, fibre B, BLUE detector
6 •QC1DB none   ADU VAL12000,25000 71 fibb_counts_max_red this | last_yr | all maximum counts in raw files, HR 1x1, fibre B, RED detector
7 •QC1DB none   ADU VAL25000,55000 71 fibb_counts_max_blue this | last_yr | all maximum counts in raw files, HR 2x1, fibre B, BLUE detector
8 •QC1DB none   ADU VAL25000,55000 71 fibb_counts_max_red this | last_yr | all maximum counts in raw files, HR 2x1, fibre B, RED detector
*Data sources: QC1DB: QC1 database; LOCAL: local data source

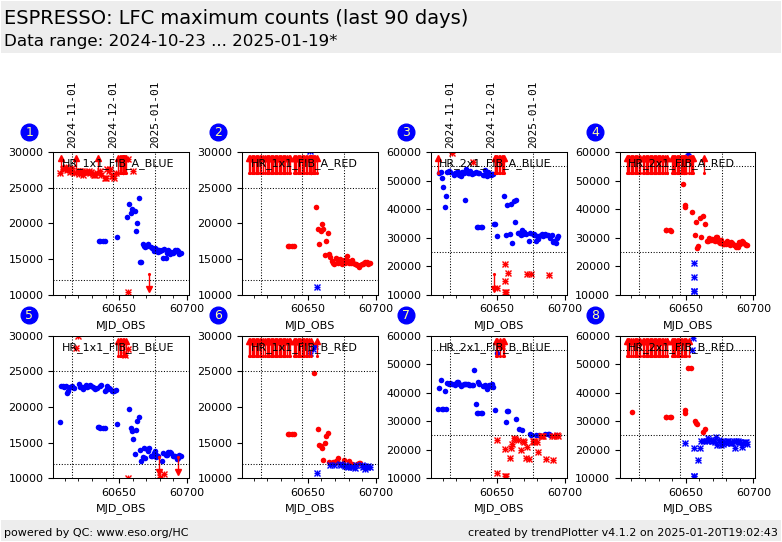

Plot 1
scores: 11|
data source:espresso_wave_lfc_a
(QC1 database)
dataset:fiba_counts_max_blue•
average:none
fixed thresholds:12000...25000ADU
N_data plotted:69
[click plot for closeup]
Plot 2
scores: 11|
data source:espresso_wave_lfc_a
(QC1 database)
dataset:fiba_counts_max_red•
average:none
fixed thresholds:12000...25000ADU
N_data plotted:69
[click plot for closeup]
Plot 3
scores: 16|
data source:espresso_wave_lfc_a
(QC1 database)
dataset:fiba_counts_max_blue•
average:none
fixed thresholds:25000...55000ADU
N_data plotted:75
[click plot for closeup]
Plot 4
scores: 16|
data source:espresso_wave_lfc_a
(QC1 database)
dataset:fiba_counts_max_red•
average:none
fixed thresholds:25000...55000ADU
N_data plotted:75
[click plot for closeup]
Plot 5
scores: 14|
data source:espresso_wave_lfc_b
(QC1 database)
dataset:fibb_counts_max_blue•
average:none
fixed thresholds:12000...25000ADU
N_data plotted:71
[click plot for closeup]
Plot 6
scores: 14|
data source:espresso_wave_lfc_b
(QC1 database)
dataset:fibb_counts_max_red•
average:none
fixed thresholds:12000...25000ADU
N_data plotted:71
[click plot for closeup]
Plot 7
scores: 12|
data source:espresso_wave_lfc_b
(QC1 database)
dataset:fibb_counts_max_blue•
average:none
fixed thresholds:25000...55000ADU
N_data plotted:71
[click plot for closeup]
Plot 8
scores: 12|
data source:espresso_wave_lfc_b
(QC1 database)
dataset:fibb_counts_max_red•
average:none
fixed thresholds:25000...55000ADU
N_data plotted:71
[click plot for closeup]
This plot

Trending plot for the total number of orders that are calibrated with the laser frequency comb (LFC) and for the total number of LFC lines that are used for the wavelength solution.



General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
