HealthCheck Monitor
   HOME | UsersGuide
  sl icon ALL INSTRUMENTS

all KPI reports
GRAVITY:
detector
Other HC:
QC links:
        [page auto-refreshes after 300 sec]   [stop | on]            [press Ctrl+Shift+R to enforce refresh of scores, dates and news]
GRAVITY trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-01-21T18:28:36 (UT)
  | now: 2022-01-22T02:11:29 (UT) muc05 QC pipeline: gravity-1.5.0 (installed 2021-09-01)
same group: dark_level dark_rms   badpix acqcam
General news:
GRAVITY news:
Report news:
DATE*: [?] 2022-01-15
report | NLT
2022-01-16
report | NLT
2022-01-17
report | NLT
2022-01-18
report | NLT
2022-01-19
report | NLT
2022-01-20
report | NLT
2022-01-21
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 4.63 none VAL4.5,5.3 3 darkrms_sc this | last_yr | all RMS in dark, LOW resolution, Science Camera (SC) detector, SPLIT polarisation, DIT=0.3 sec
2 QC1DB MEDIAN 4.83 none VAL4.6,5.6 125 darkrms_sc this | last_yr | all RMS in dark, MEDIUM resolution, Science Camera (SC) detector, SPLIT polarisation, DIT=0.3 sec
3 QC1DB MEDIAN 5 none VAL4.6,5.6 9 darkrms_sc this | last_yr | all RMS in dark, HIGH resolution, Science Camera (SC) detector, SPLIT polarisation, DIT=0.3 sec
4 QC1DB MEDIAN 13.1 none VAL12.0,14.5 137 darkrms_ft this | last_yr | all RMS in dark, Fringe Tracker (FT) detector, SPLIT polarisation, DIT=0.00085 sec
5 QC1DB MEDIAN   none VAL4.6,5.3 0 darkrms_sc this | last_yr | all RMS in dark, LOW resolution, Science Camera (SC) detector, COMBINED polarisation, DIT=0.3 sec
6 QC1DB MEDIAN 4.87 none VAL4.75,5.65 47 darkrms_sc this | last_yr | all RMS in dark, MEDIUM resolution, Science Camera (SC) detector, COMBINED polarisation, DIT=0.3 sec
7 QC1DB MEDIAN 4.9 none VAL4.6,5.6 38 darkrms_sc this | last_yr | all RMS in dark, HIGH resolution, Science Camera (SC) detector, COMBINED polarisation, DIT=0.3 sec
8 QC1DB MEDIAN 13.4 none VAL12.0,14.5 85 darkrms_ft this | last_yr | all RMS in dark, Fringe Tracker (FT) detector, COMBINED polarisation, DIT=0.00085 sec
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 2|
data source:gravity_dark
(QC1 database)
dataset:darkrms_sc
median:4.63none
fixed thresholds:4.5...5.3none
N_data plotted:3
[click plot for closeup]
Plot 2
scores: 24|
data source:gravity_dark
(QC1 database)
dataset:darkrms_sc
median:4.83none
fixed thresholds:4.6...5.6none
N_data plotted:125
[click plot for closeup]
Plot 3
scores: 4|
data source:gravity_dark
(QC1 database)
dataset:darkrms_sc
median:5none
fixed thresholds:4.6...5.6none
N_data plotted:9
[click plot for closeup]
Plot 4
scores: 24|
data source:gravity_dark
(QC1 database)
dataset:darkrms_ft
median:13.1none
fixed thresholds:12.0...14.5none
N_data plotted:137
[click plot for closeup]
Plot 5
scores: 8|
data source:gravity_dark
(QC1 database)
dataset:darkrms_sc
median:no datanone
fixed thresholds:4.6...5.3none
N_data plotted:0
[click plot for closeup]
Plot 6
scores: 2|
data source:gravity_dark
(QC1 database)
dataset:darkrms_sc
median:4.87none
fixed thresholds:4.75...5.65none
N_data plotted:47
[click plot for closeup]
Plot 7
scores: 3|
data source:gravity_dark
(QC1 database)
dataset:darkrms_sc
median:4.9none
fixed thresholds:4.6...5.6none
N_data plotted:38
[click plot for closeup]
Plot 8
scores: 3|
data source:gravity_dark
(QC1 database)
dataset:darkrms_ft
median:13.4none
fixed thresholds:12.0...14.5none
N_data plotted:85
[click plot for closeup]

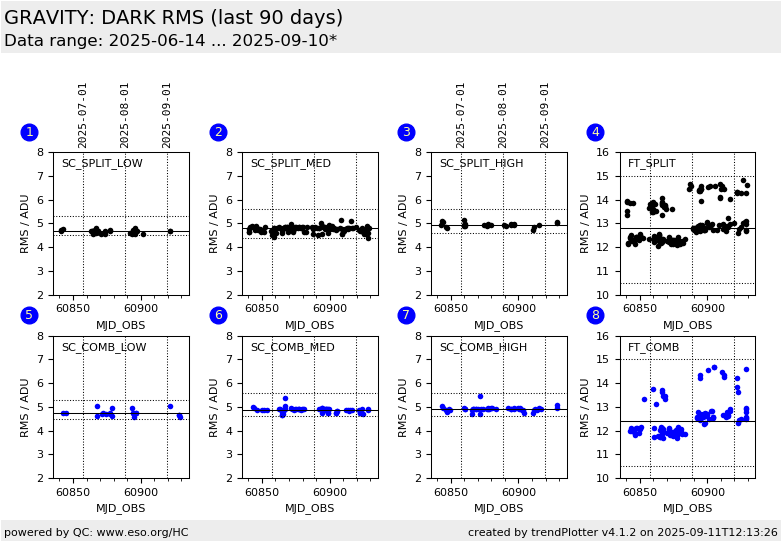

This plot

Trending plots for dark exposures of the Fringe Tracker (FT) and Science Camera (SC) detectors. Plotted are the dark level (FT), the bias level (SC), and the RMS of the master darks (both). The dark level is determined from the master dark whereas the bias is determined from the input raw frames and subtracted when creating the master in case of the SC detector.

The SC detector features a windowed read-out that depends on the spectral resolution (low, medium, or high) and on the polarimetry mode (splitted or combined). QC parameters from darks are only plotted for SC DITs of 0.3 sec and FT DITs of 0.00085 sec, respectively. For the dark level, only darks taken together with the P2VM calibrations are selected. These have FDDL WINDOW = 0.1 (only available since 2019-05-01 in the database).


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
