SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2019-06-28T05:03:52 (UT)
  | now: 2022-05-22T20:54:13 (UT) muc04 QC pipeline: sinfo-3.2.5 (installed 2019-05-09)
same group: std_FOV std_Y_position
General news:
SINFONI news: 2019-06-26: SINFONI taken out of operations
Report news:
DATE*: [?] 2019-06-24
report | NLT
2019-06-25
report | NLT
2019-06-26
no data | NLT
2019-06-27
no data | NLT
2019-06-28
no data | NLT
2019-06-29
no data | NLT
2019-06-30
no data | NLT
r...
Raw CAL displays:
raw raw no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
products products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB none   ADU none  10 qc_ypos this | last_yr | all y position of the reconstructed cube: J-band/250 mas scale
1 QC1DB none   ADU none  0 qc_ypos this | last_yr | all y position of the reconstructed cube: J-band/100 mas scale
1 QC1DB none   ADU none  2 qc_ypos this | last_yr | all y position of the reconstructed cube: J-band/25 mas scale

2 QC1DB none   ADU none  31 qc_ypos this | last_yr | all y position of the reconstructed cube: H-band/250 mas scale
2 QC1DB none   ADU none  0 qc_ypos this | last_yr | all y position of the reconstructed cube: H-band/100 mas scale
2 QC1DB none   ADU none  0 qc_ypos this | last_yr | all y position of the reconstructed cube: H-band/25 mas scale

3 QC1DB none   ADU none  41 qc_ypos this | last_yr | all y position of the reconstructed cube: K-band/250 mas scale
3 QC1DB none   ADU none  12 qc_ypos this | last_yr | all y position of the reconstructed cube: K-band/100 mas scale
3 QC1DB none   ADU none  7 qc_ypos this | last_yr | all y position of the reconstructed cube: K-band/25 mas scale

4 QC1DB none   ADU none  8 qc_ypos this | last_yr | all y position of the reconstructed cube: H+K-band/250 mas scale
4 QC1DB none   ADU none  5 qc_ypos this | last_yr | all y position of the reconstructed cube: H+K-band/100 mas scale
4 QC1DB none   ADU none  22 qc_ypos this | last_yr | all y position of the reconstructed cube: H+K-band/25 mas scale

*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:sinfoni_std
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_ypos
average:none
thresholds:none
N_data plotted:10
[click plot for closeup]
Plot 2
scores: not implemented
data source:sinfoni_std
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_ypos
average:none
thresholds:none
N_data plotted:31
[click plot for closeup]
Plot 3
scores: not implemented
data source:sinfoni_std
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_ypos
average:none
thresholds:none
N_data plotted:41
[click plot for closeup]
Plot 4
scores: not implemented
data source:sinfoni_std
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_ypos
average:none
thresholds:none
N_data plotted:8
[click plot for closeup]
This plot

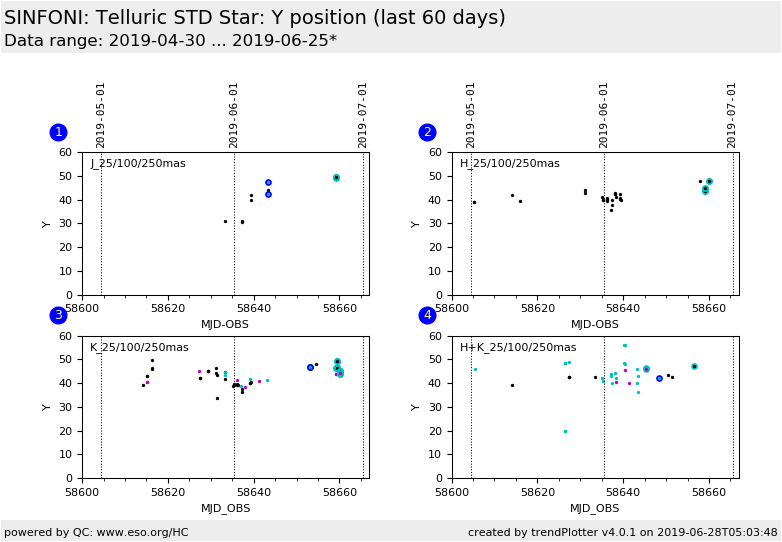

These are the trending plots to monitor the position of the telluric STD stars on the detector.

There are 2 blind spots in the SINFONI FOV. One in the center due to a disc of Bad pixels and a smaller one due to slit24 falling off the right edge of the detector.

The Telluric STD should not be place directly in the middle of the FOV (blind spot). Find more info here (Internal WIki page).




General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
