SPHERE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-04-18T04:32:32 (UT)
  | now: 2024-04-18T05:19:58 (UT) muc03 QC pipeline: spher-0.52.0 (installed 2024-03-22)
same group: CI_PHOT CI_STREHL CI_PEAK CI_FLUX
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SPHERE news: Note that the current Health Check monitor runs with an incomplete pipeline and an incomplete set of QC1 parameters. QCG can currently not guarantee completeness and significance at the usual level.
Report news:
DATE*: [?] 2024-04-11
report | NLT
2024-04-12
no data | NLT
2024-04-13
no data | NLT
2024-04-14
no data | NLT
2024-04-15
no data | NLT
2024-04-16
report | NLT
2024-04-17
report | NLT
r...
Raw CAL displays:
raw no CAL raw files no CAL raw files no CAL raw files no CAL raw files raw no CAL raw files
P...
CAL product quality:
products no CAL products no CAL products no CAL products no CAL products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB none   MAG none  0 qc_zpoint1_corrND this | last_yr | all J-band, left beam, ND_3.5
1 QC1DB none   MAG none  6 qc_zpoint1_corrND this | last_yr | all J-band, left beam, ND_2.0
2 QC1DB none   MAG none  3 qc_zpoint1_corrND this | last_yr | all H-band, left beam, ND_3.5
2 QC1DB none   MAG none  4 qc_zpoint1_corrND this | last_yr | all H-band, left beam, ND_2.0
3 QC1DB none   MAG none  4 qc_zpoint1_corrND this | last_yr | all K-band, left beam, ND_3.5
3 QC1DB none   MAG none  1 qc_zpoint1_corrND this | last_yr | all K-band, left beam, ND_2.0
4 QC1DB none   MAG none  0 qc_zpoint2_corrND this | last_yr | all J-band, right beam, ND_3.5
4 QC1DB none   MAG none  6 qc_zpoint2_corrND this | last_yr | all J-band, right beam, ND_2.0
5 QC1DB none   MAG none  3 qc_zpoint2_corrND this | last_yr | all H-band, right beam, ND_3.5
5 QC1DB none   MAG none  4 qc_zpoint2_corrND this | last_yr | all H-band, right beam, ND_2.0
6 QC1DB none   MAG none  4 qc_zpoint2_corrND this | last_yr | all K-band, right beam, ND_3.5
6 QC1DB none   MAG none  1 qc_zpoint2_corrND this | last_yr | all K-band, right beam, ND_2.0
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:sphere_irdis_photstd
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_zpoint1_corrND
average:none
thresholds:none
N_data plotted:0
[click plot for closeup]
Plot 2
scores: not implemented
data source:sphere_irdis_photstd
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_zpoint1_corrND
average:none
thresholds:none
N_data plotted:3
[click plot for closeup]
Plot 3
scores: not implemented
data source:sphere_irdis_photstd
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_zpoint1_corrND
average:none
thresholds:none
N_data plotted:4
[click plot for closeup]
Plot 4
scores: not implemented
data source:sphere_irdis_photstd
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_zpoint2_corrND
average:none
thresholds:none
N_data plotted:0
[click plot for closeup]
Plot 5
scores: not implemented
data source:sphere_irdis_photstd
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_zpoint2_corrND
average:none
thresholds:none
N_data plotted:3
[click plot for closeup]
Plot 6
scores: not implemented
data source:sphere_irdis_photstd
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_zpoint2_corrND
average:none
thresholds:none
N_data plotted:4
[click plot for closeup]
This plot

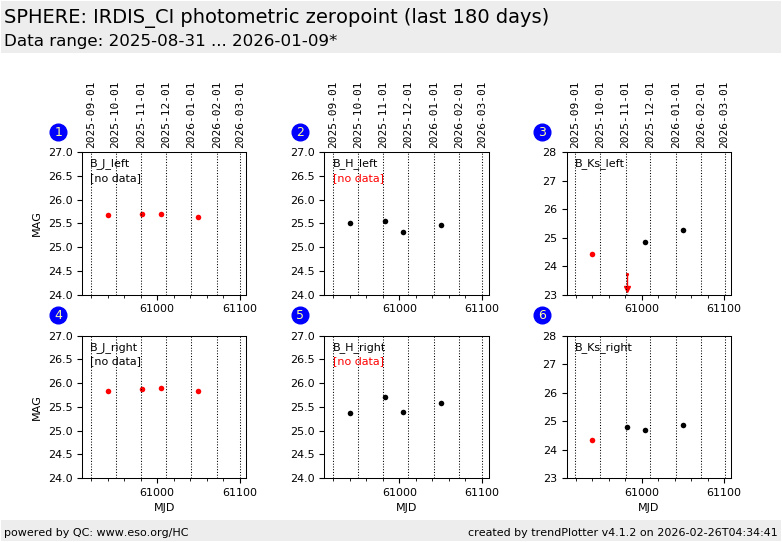

This plot shows the IRDIS photometric zeropoints.

Photometric standard stars are acquired since start of operations (2015-04) every 30 days as part of the IRDIS calibration plan in CI mode in four broad band filters Y, J, H and K. Further setup parameters are the CPI neutral density filter, the AO loop status and the wavefront sensor spatial filter. Only closed loop observations are shown in this plot. Open loop observational results are available in the QC1 database.

Photometric zeropoints are calculated by the IRDIS pipeline recipe since 2017-11.
The catalogue in use does not contain Y-band magnitudes.
No airmass dependent extinction correction is applied.
The neutral density filter correction is applied.



General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
