NACO:
Reference frames

Standard NACO reference frames

This is set of standard NACO calibration frames.

Find here the NACO calibration plan.

Reference frames:

IMAGING

SPECTROSCOPY

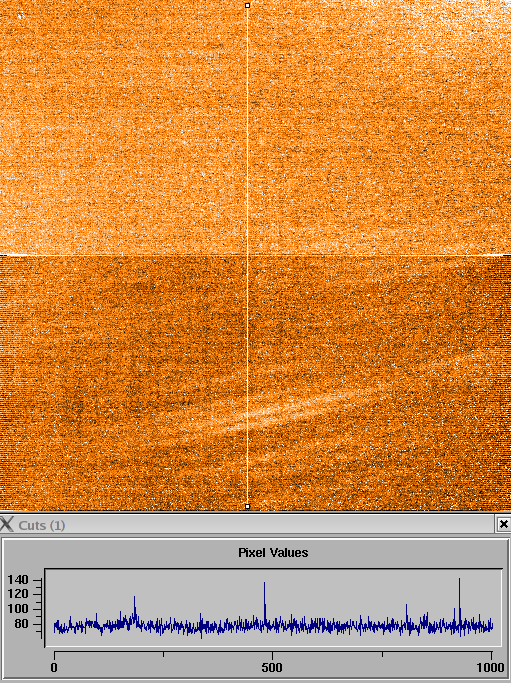

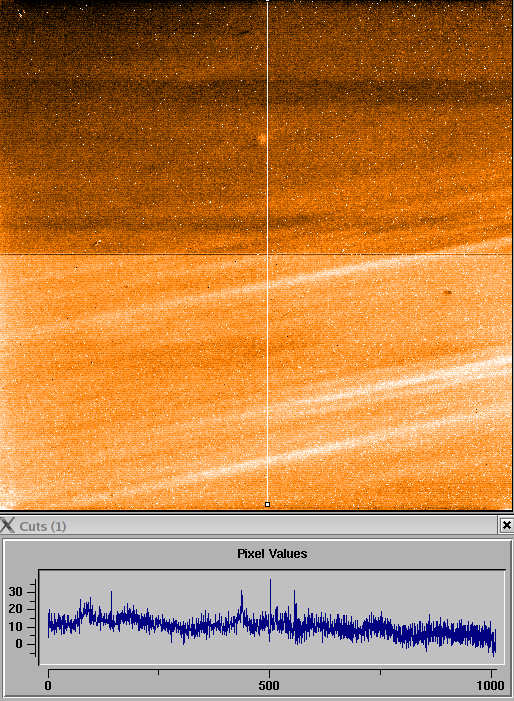

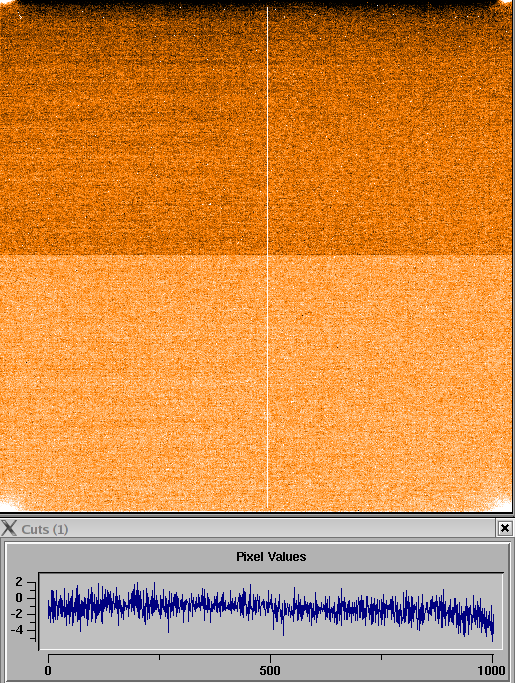

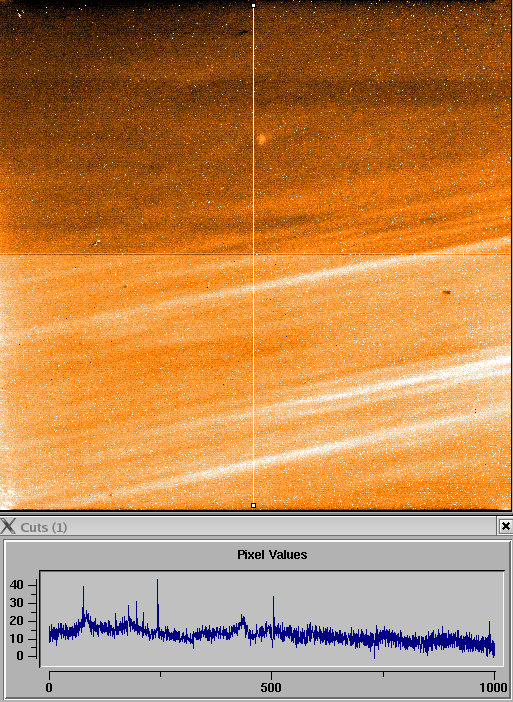

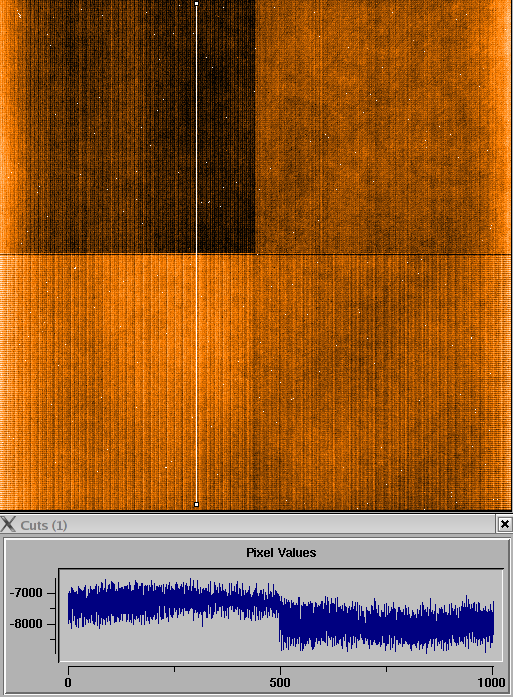

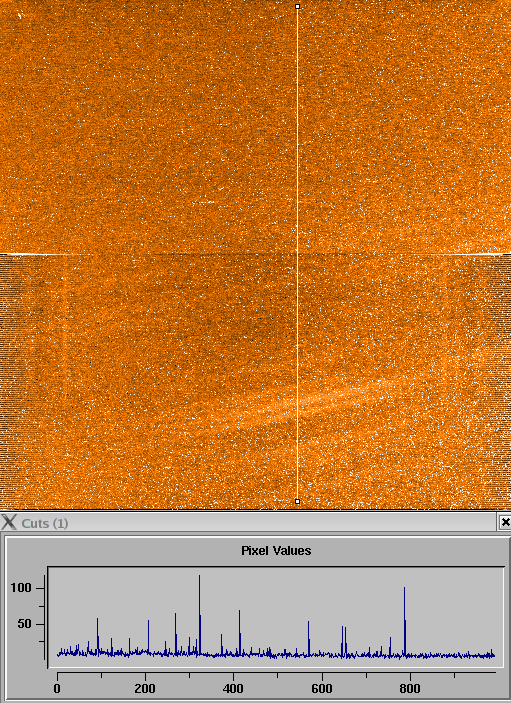

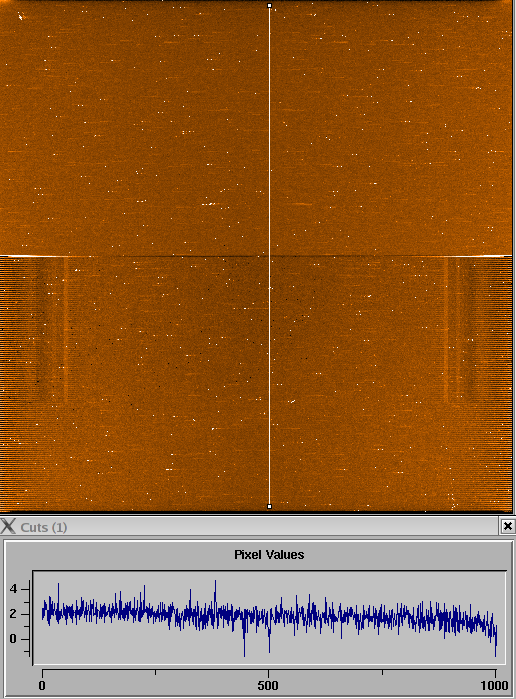

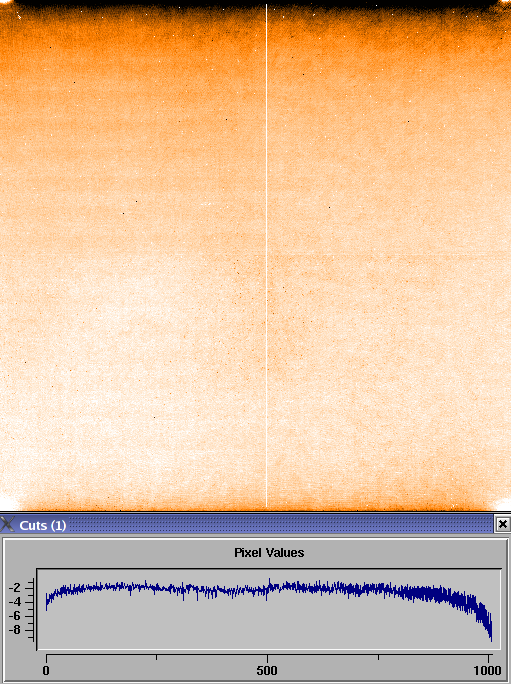

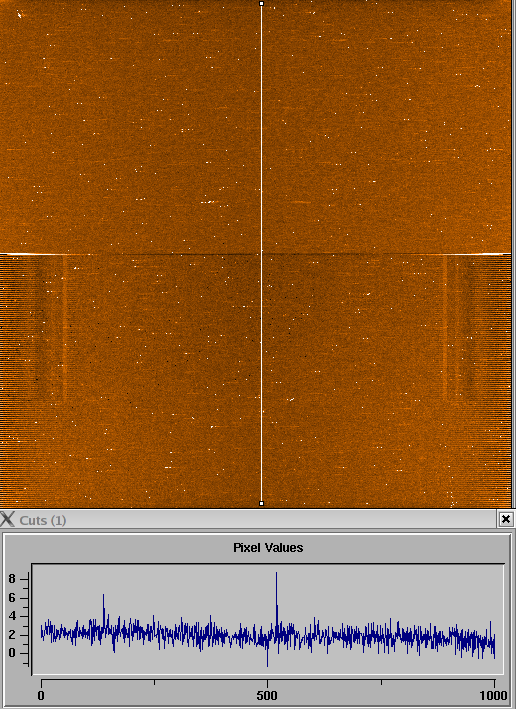

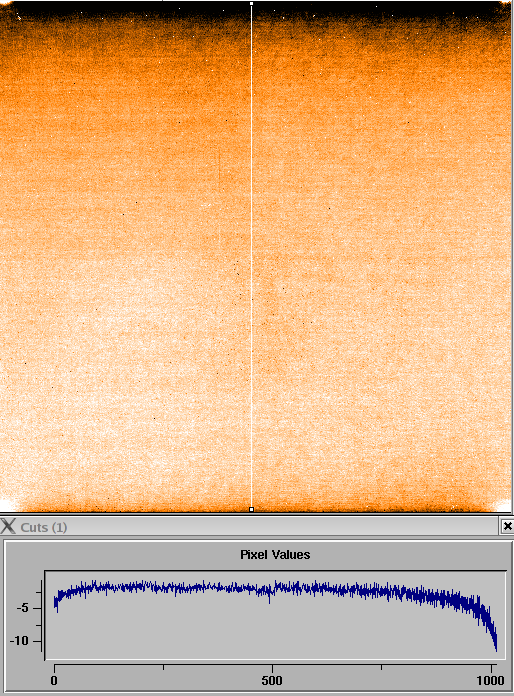

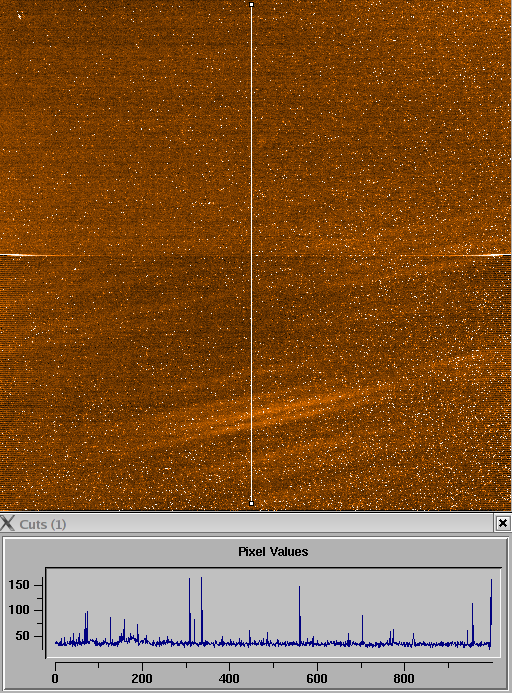

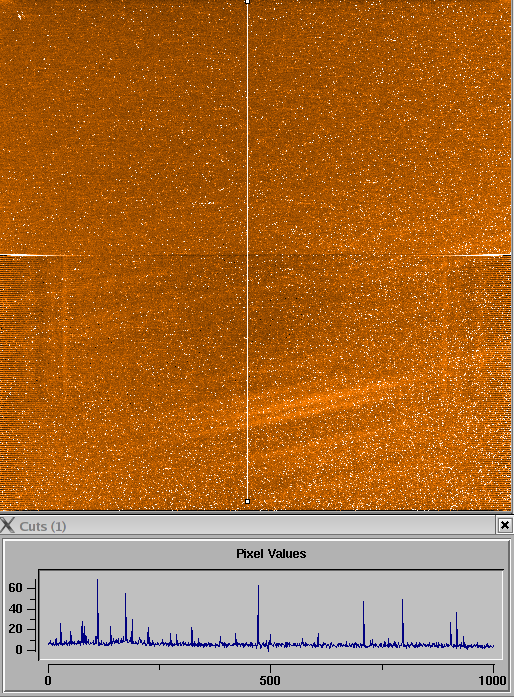

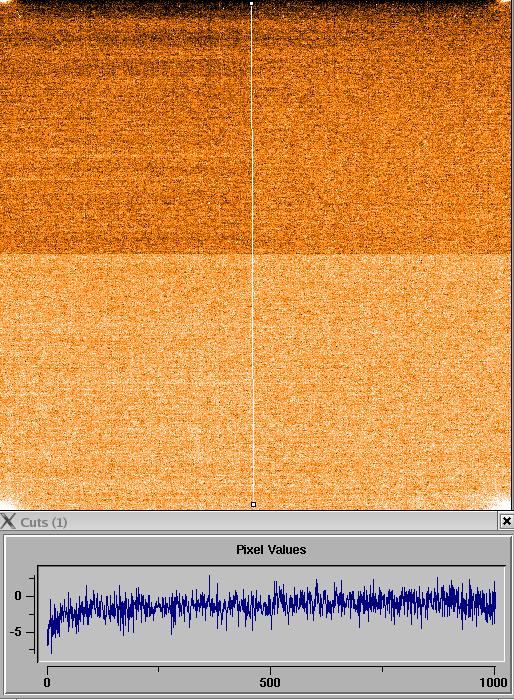

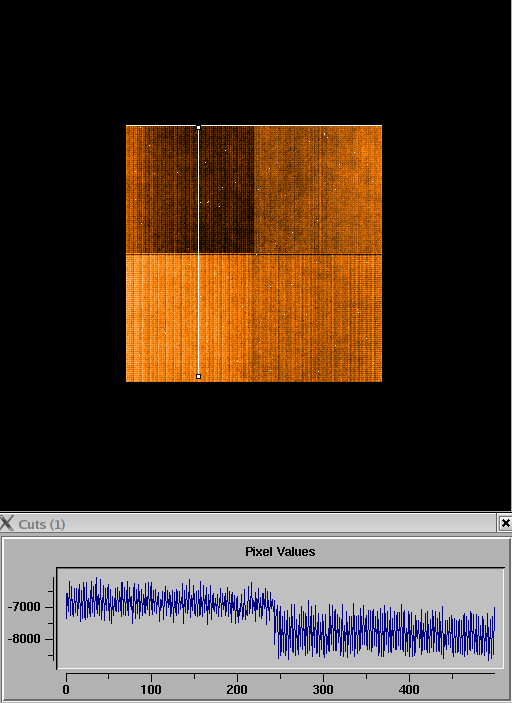

Standard NACO DARK Calibration Frames

Read-out mode (DET.NCORRS.NAME- DET.MODE.NAME)	FNS-HS	FNS-HS	FNS-HS	DCR-HD	DCR-HD	DCR-HD	UCR-HB	UCR-HWD
Camera (INS.OPTI7.NAME)	S27	S27	S27	S13	S13	S13	L27	L27
DIT [s]	1.7927084	2.0	300.0	1.0	30.0	90.0	0.056	0.2

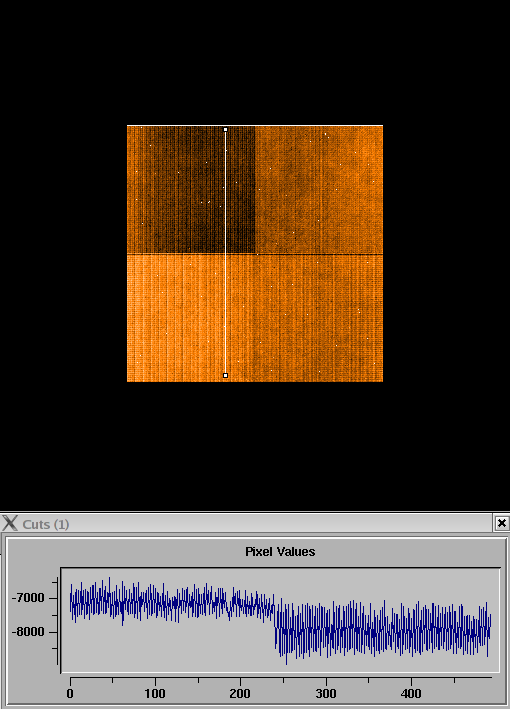

Dark
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	0.8 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

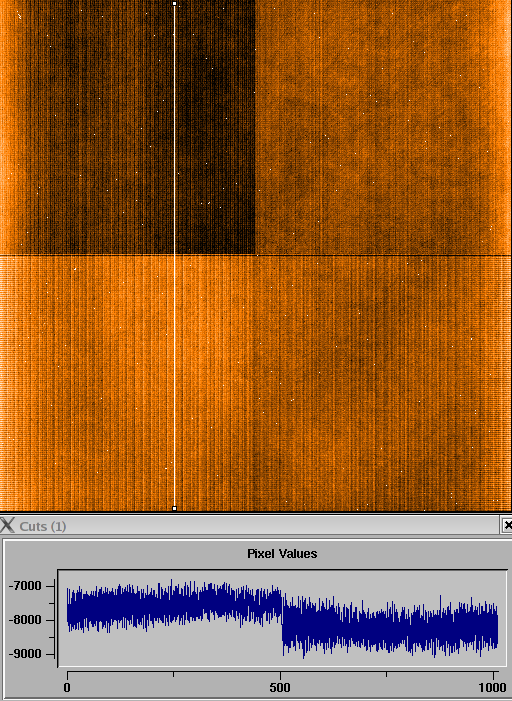

Dark product
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	0.8 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

---

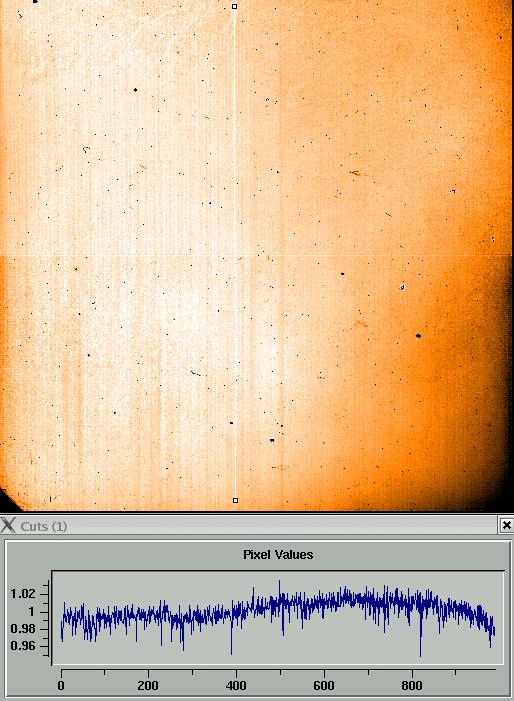

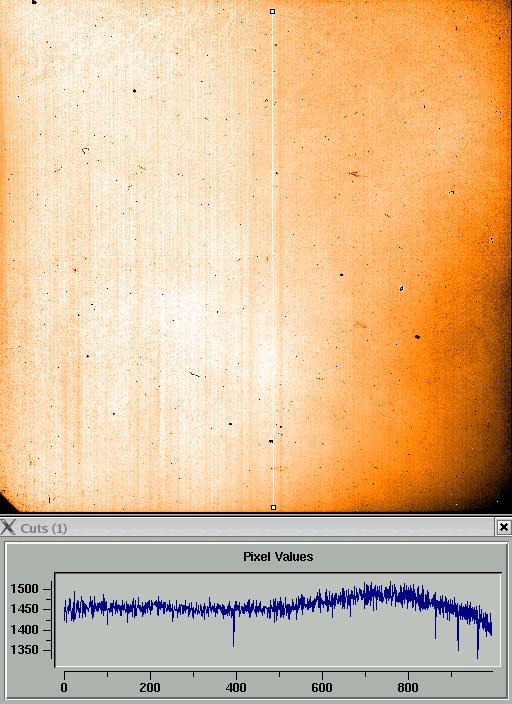

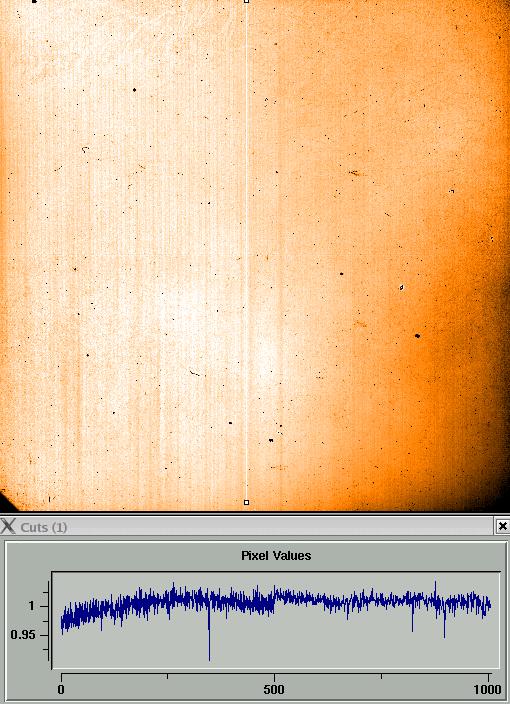

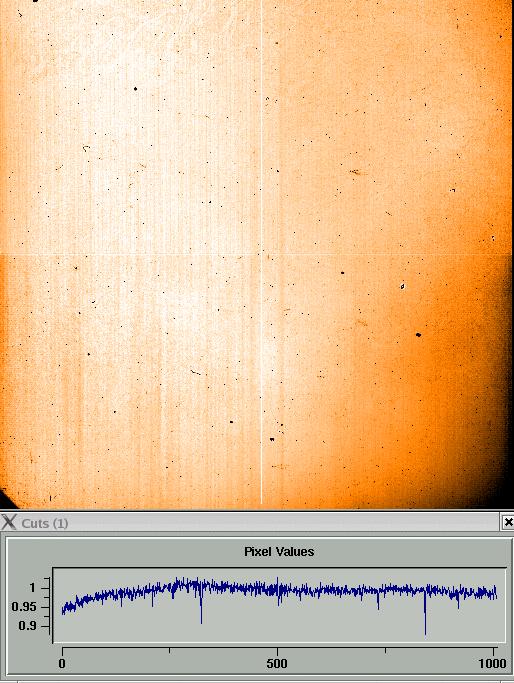

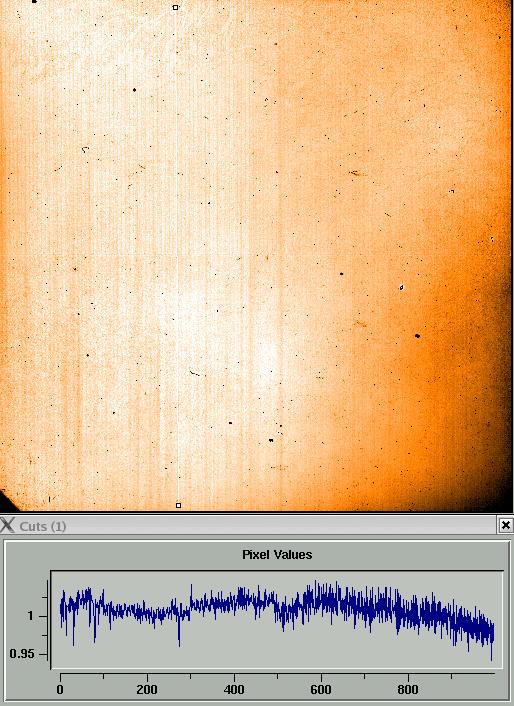

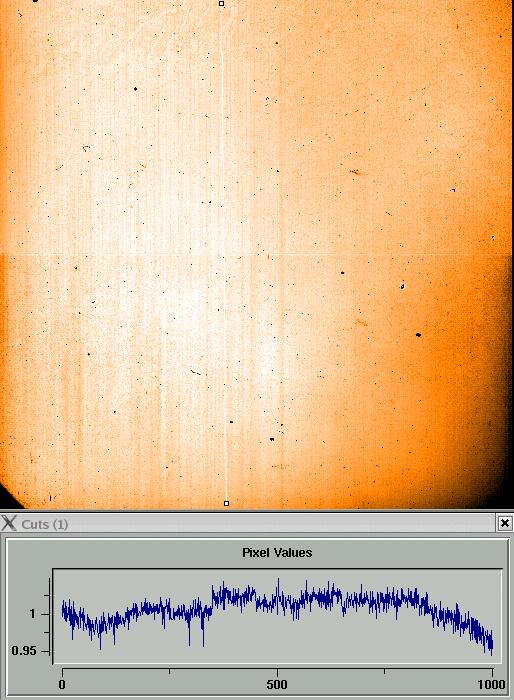

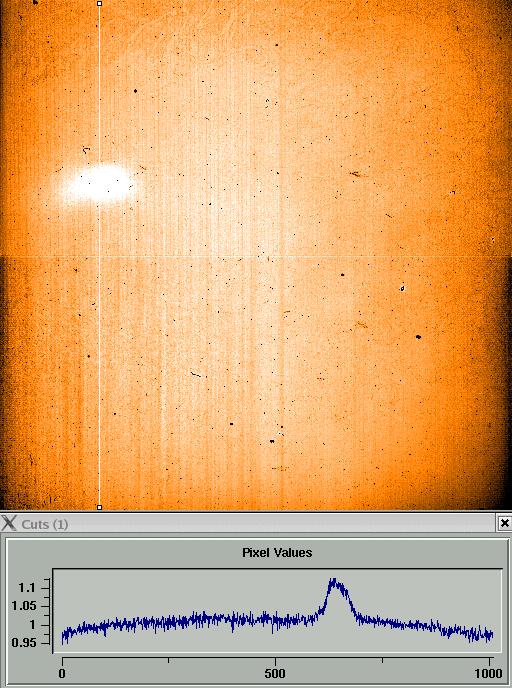

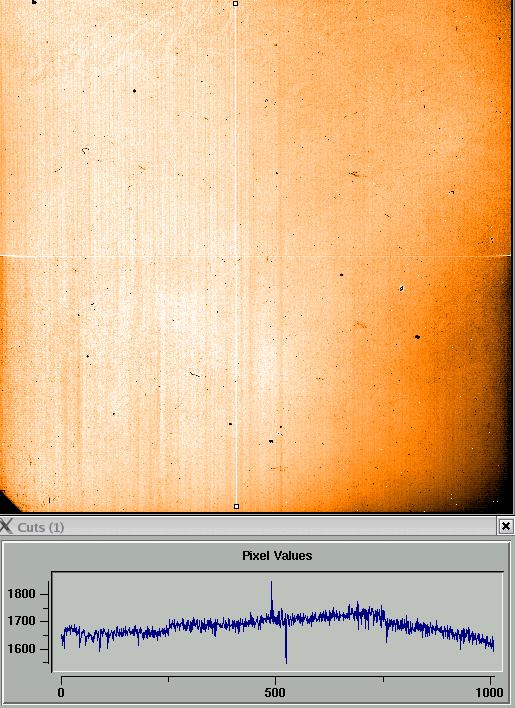

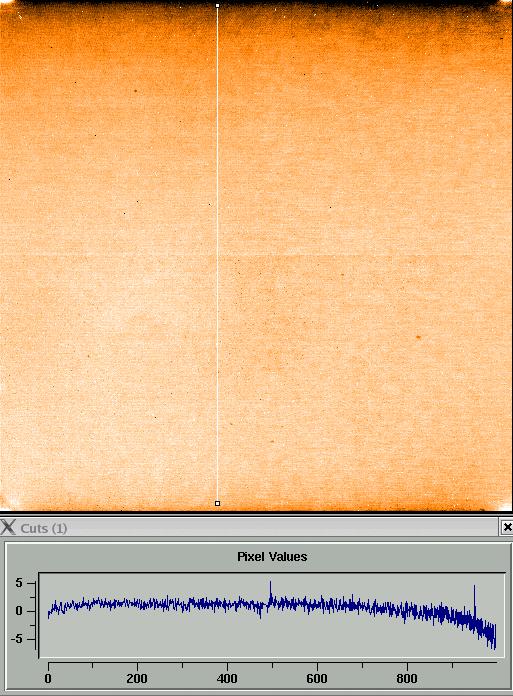

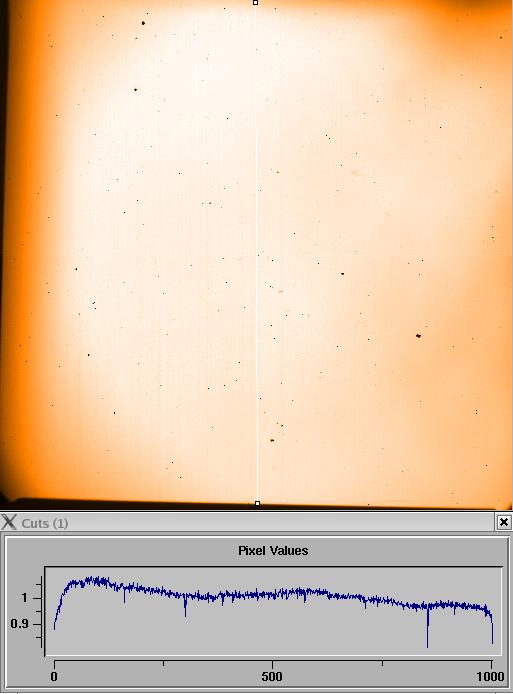

Standard NACO Lamp Flat Calibration Frames

NOTE: Starting from October 30, 2006 the Lamp ON flux level increased to about 3000-4000 ADU/pixel.

Read-out mode (DET.NCORRS.NAME- DET.MODE.NAME)	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD	DCR-HD
Camera (INS.OPTI7.NAME)	S13	S13	S13	S27	S27	S27	S54	S54	S54
Filter (INS.OPTI5.NAME, INS.OPTI6.NAME)	J	H	Ks	J	H	Ks	J	H	Ks
DIT [s]	15	15	15	3	3	3	0.75	0.75	0.75
Lamp ON
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

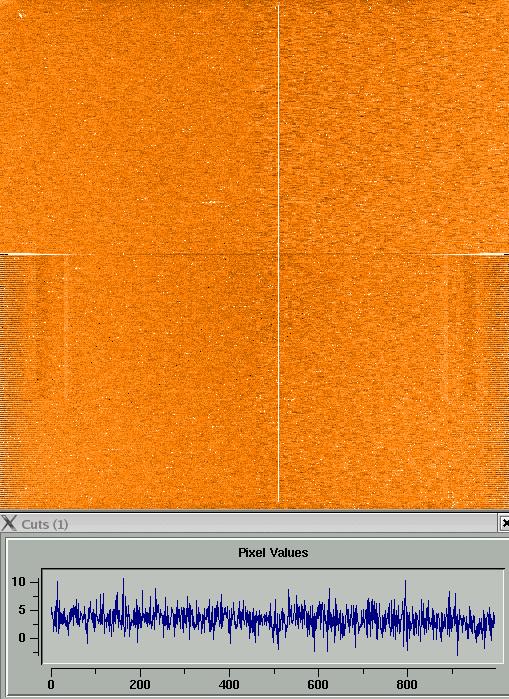

Lamp OFF
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

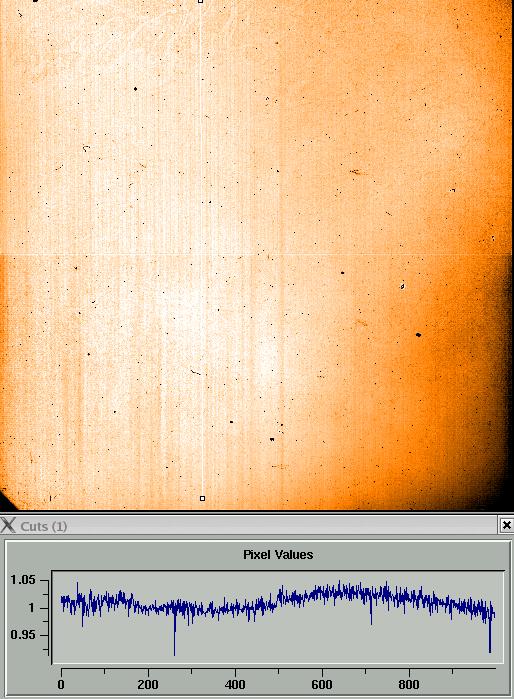

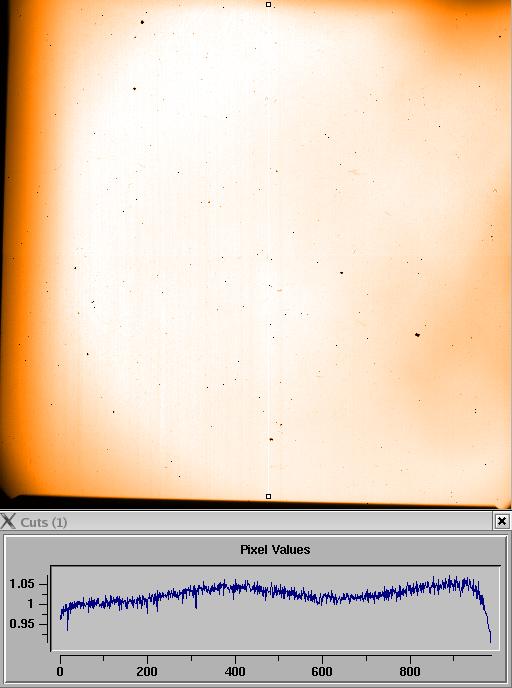

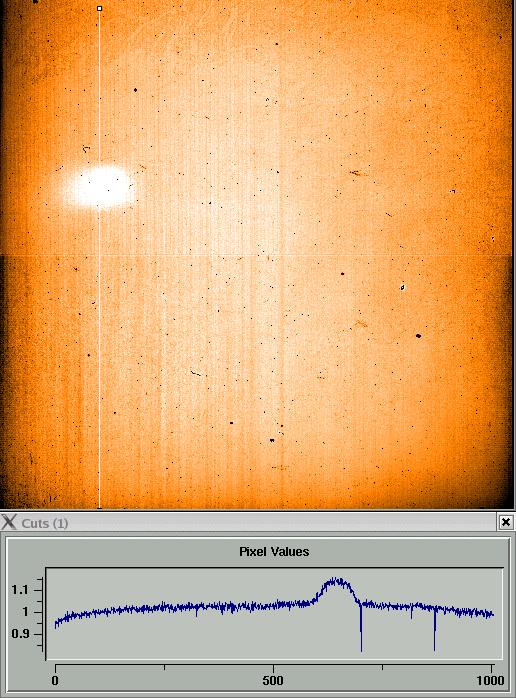

Lamp Product
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr	hdr

Read-out mode (DET.NCORRS.NAME- DET.MODE.NAME)	DCR-HD	DCR-HD	DCR-HD	FNS-HS	FNS-HS
Camera (INS.OPTI7.NAME)	S13	S27	S27	S27	S27
Filter (INS.OPTI5.NAME, INS.OPTI6.NAME)	NB1.64	NB2.17	IB2.18	NB2.12	IB2.18
DIT [s]	15	3	3	3	3

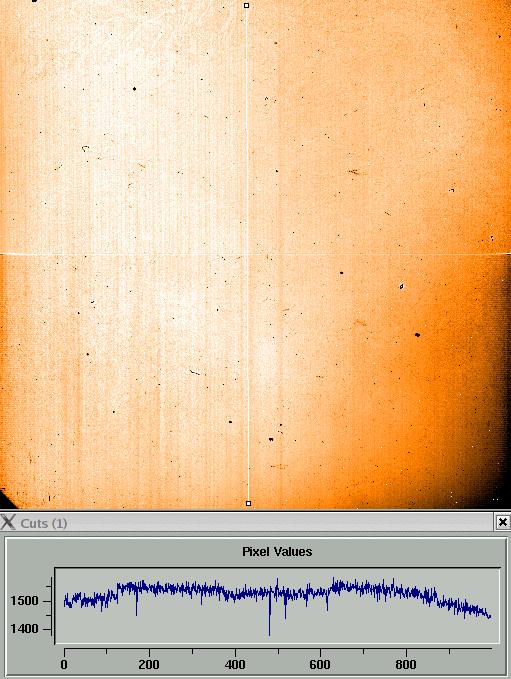

Lamp ON
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr

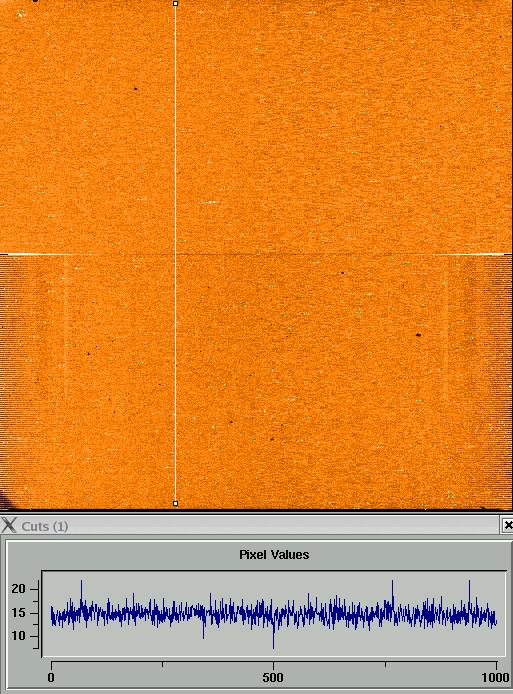

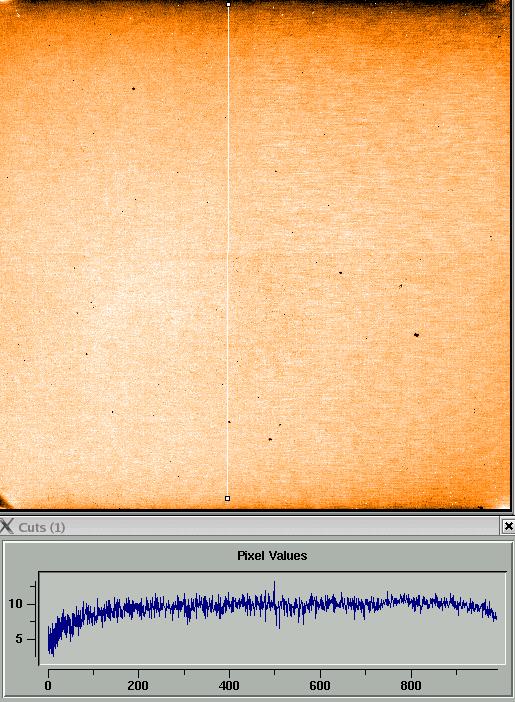

Lamp OFF
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr
Lamp Product
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr

---

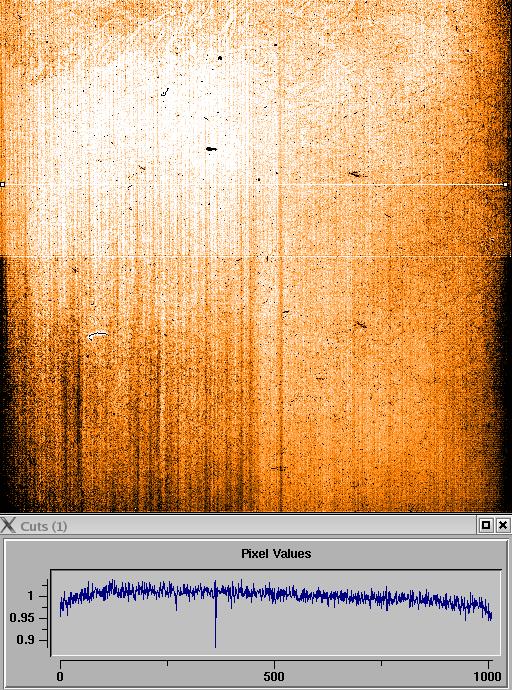

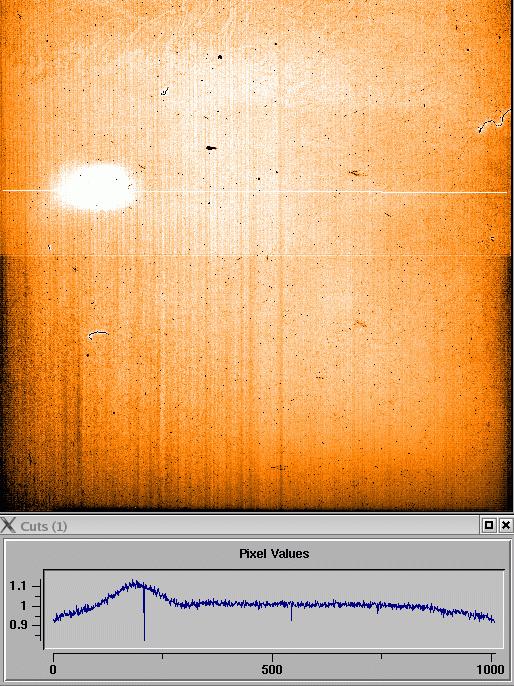

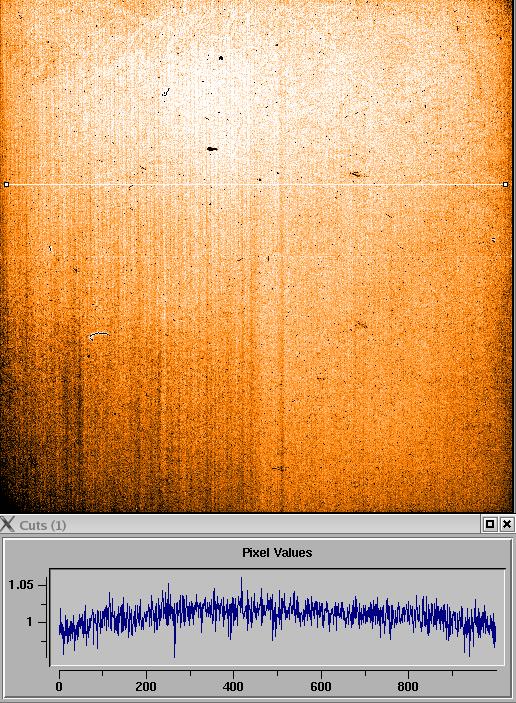

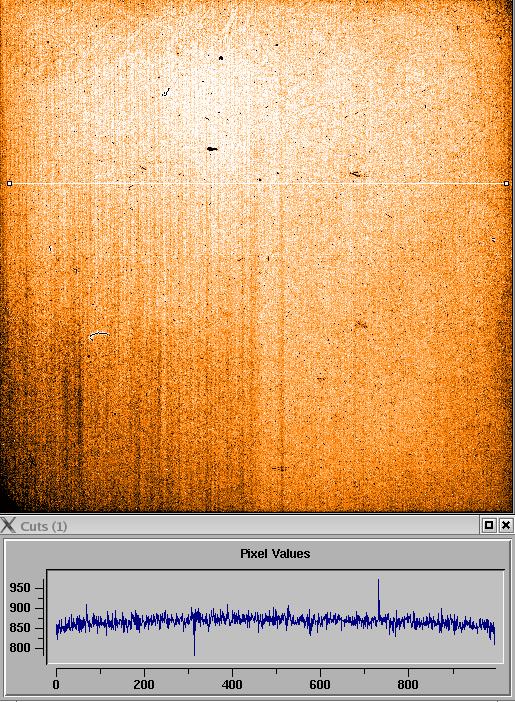

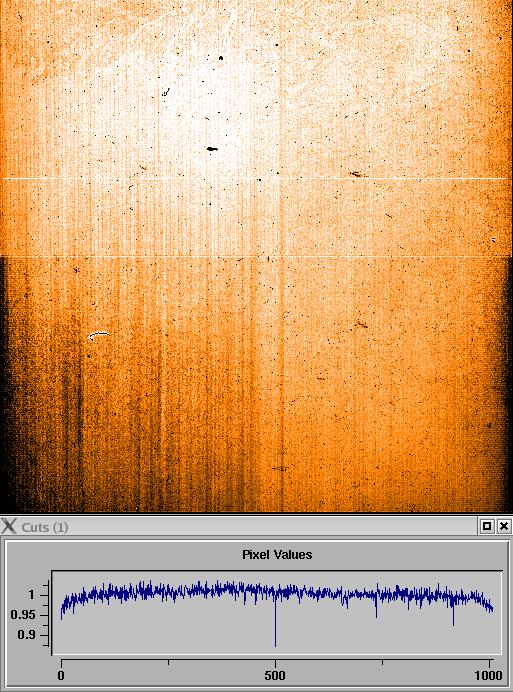

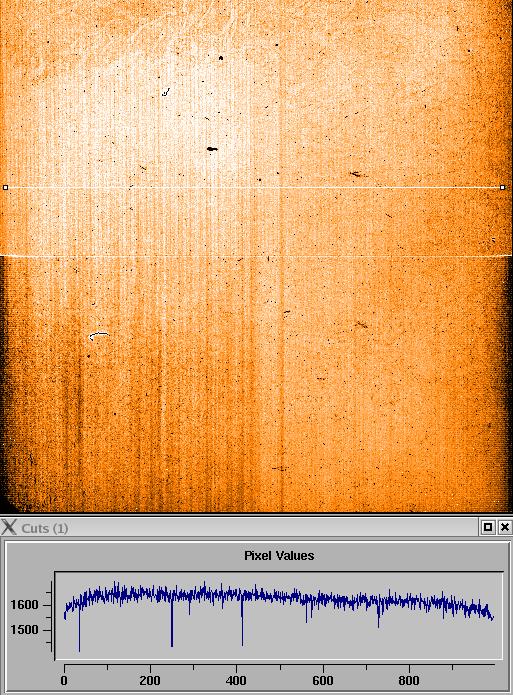

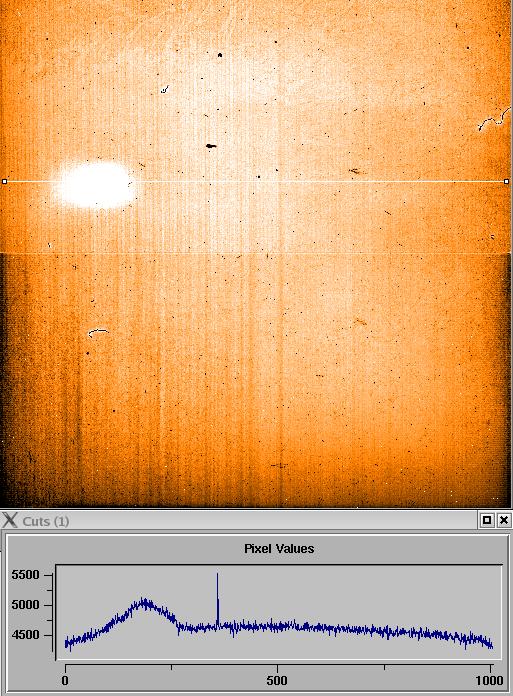

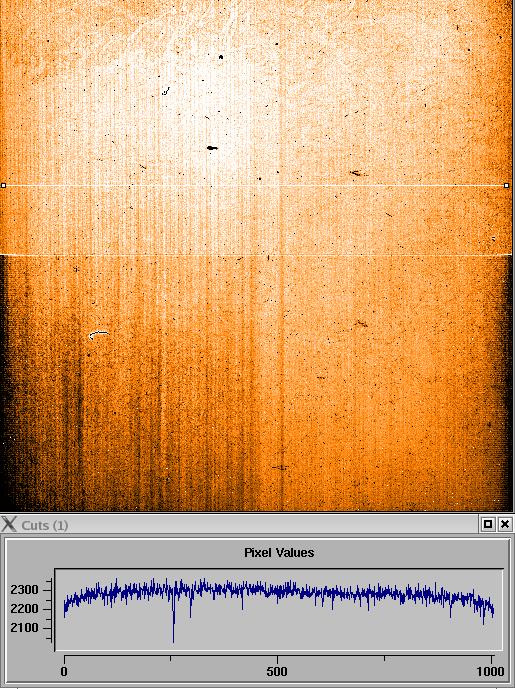

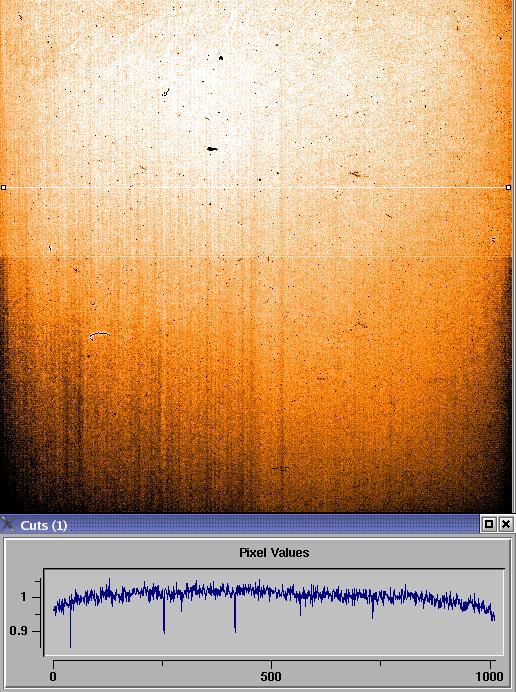

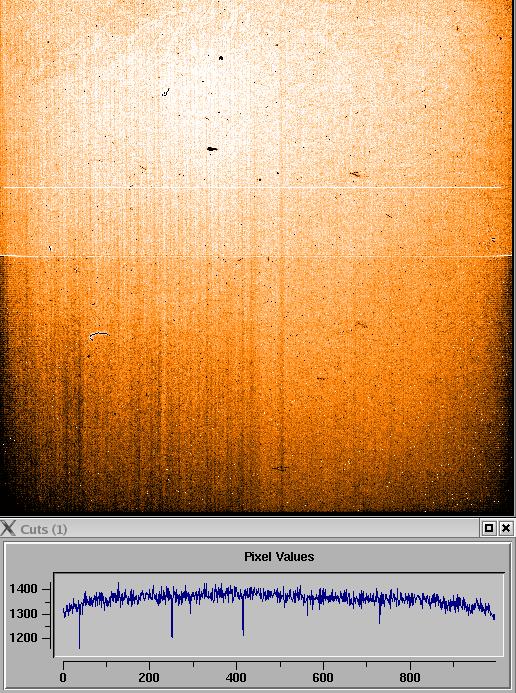

Standard NACO Twilight Flat Calibration Frames

Read-out mode (DET.NCORRS.NAME- DET.MODE.NAME)	DCR-HD	DCR-HD	DCR-HD	DCR-HD	FNS-HS
Camera (INS.OPTI7.NAME)	S13	S27	S27	S27	S27
Filter (INS.OPTI5.NAME, INS.OPTI6.NAME)	J	H	Ks	IB2.06	NB2.12
DIT [s]	8	1.5	10	30	45
raw frames
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr
products
	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr	hdr	hdr

---

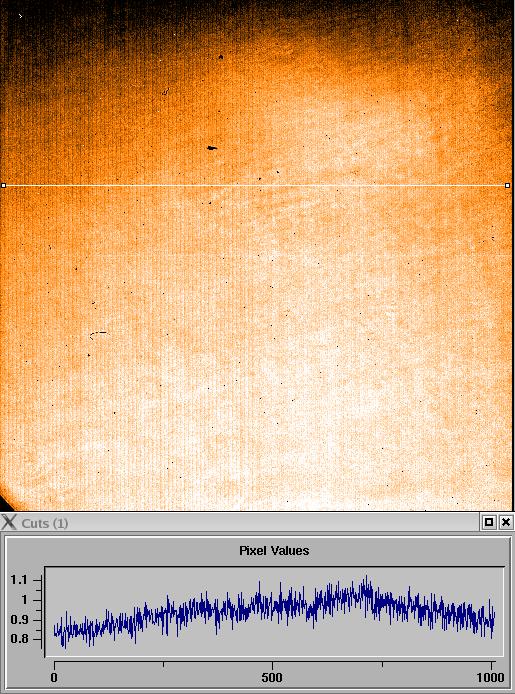

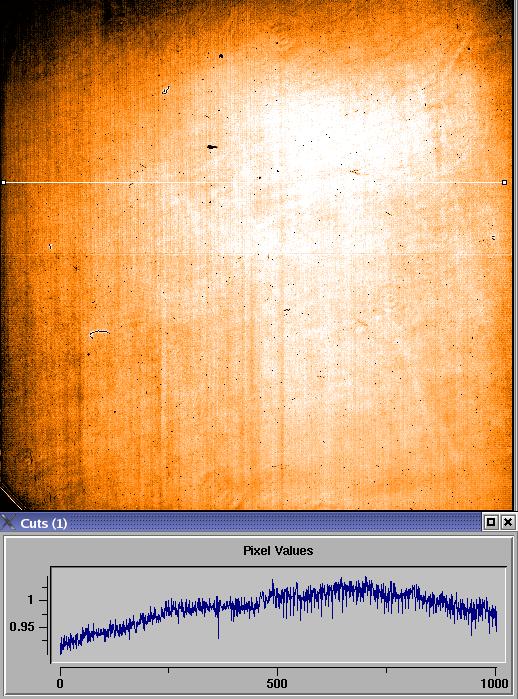

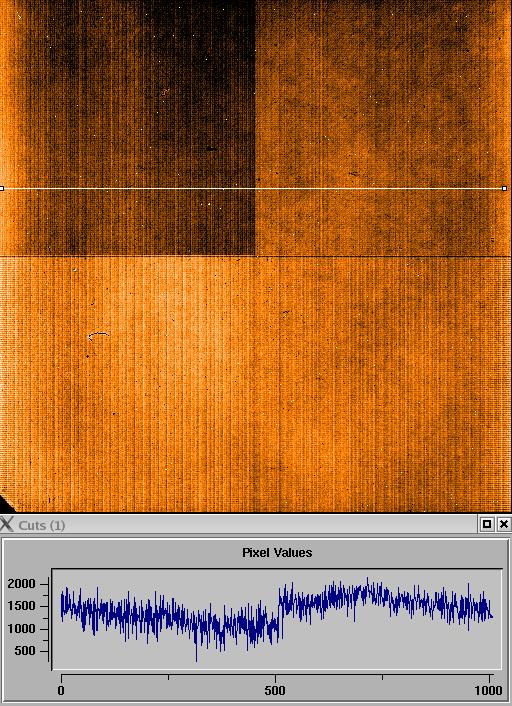

Standard NACO Sky Flat Calibration Frames

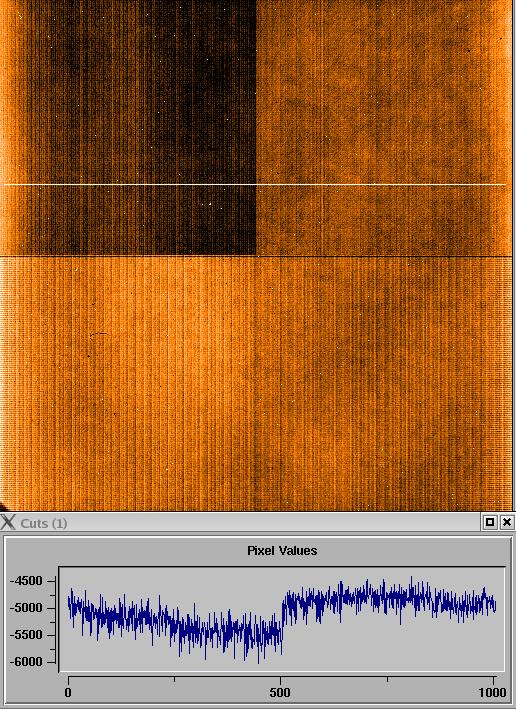

Read-out mode (DET.NCORRS.NAME- DET.MODE.NAME)	UCR-HD	UCR-HWD	UCR-HB
Camera (INS.OPTI7.NAME)	L27	L27	L27
Filter (INS.OPTI5.NAME, INS.OPTI6.NAME)	NB3.74	Lprime	Mprime
DIT [s]	1.0	0.2	0.056
raw frames
	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr
products
	1.6 Mb	1.6 Mb	1.6 Mb
	hdr	hdr	hdr

---

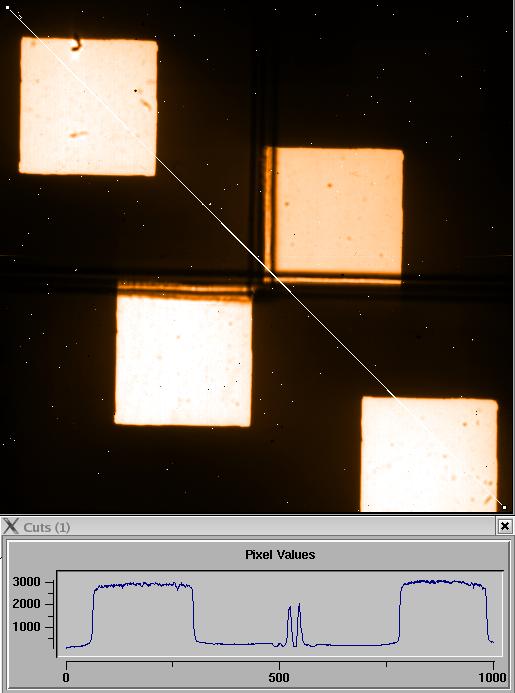

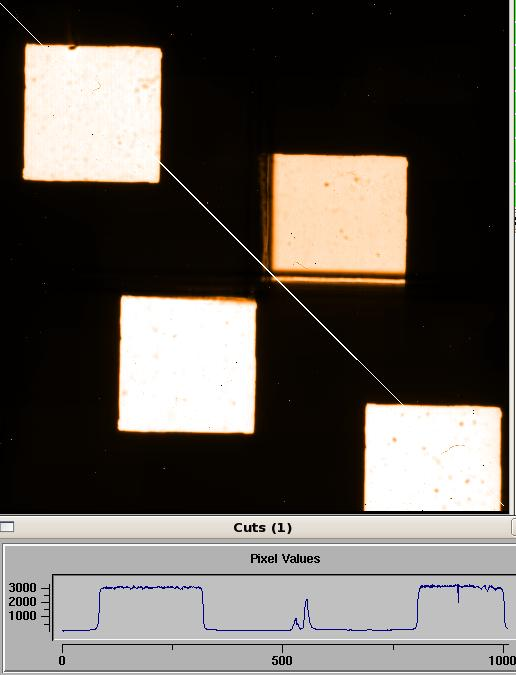

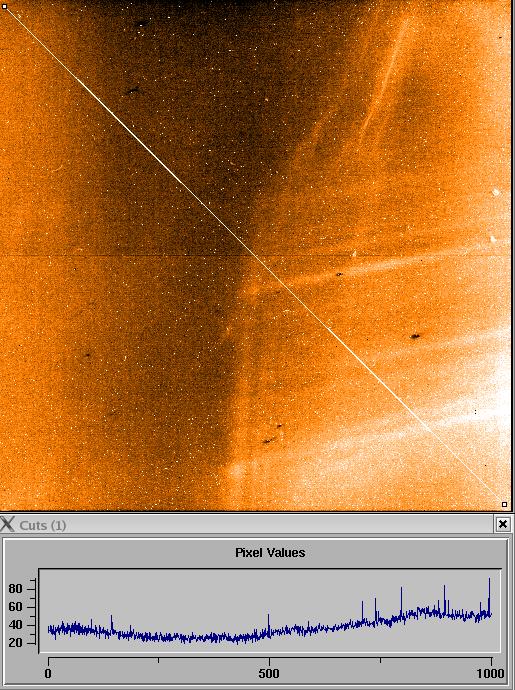

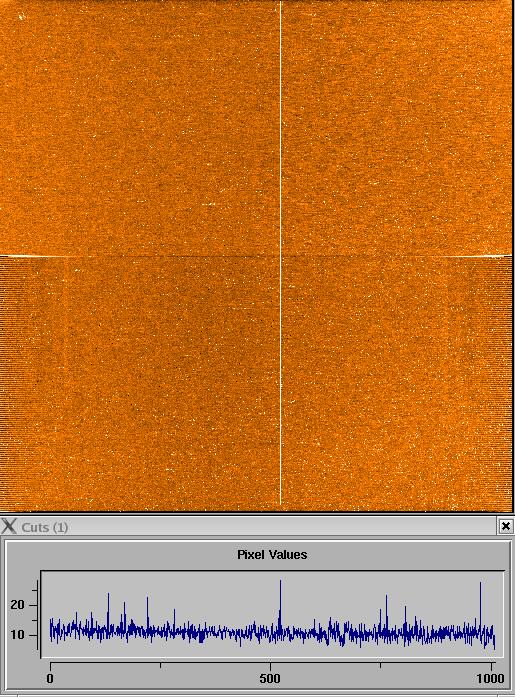

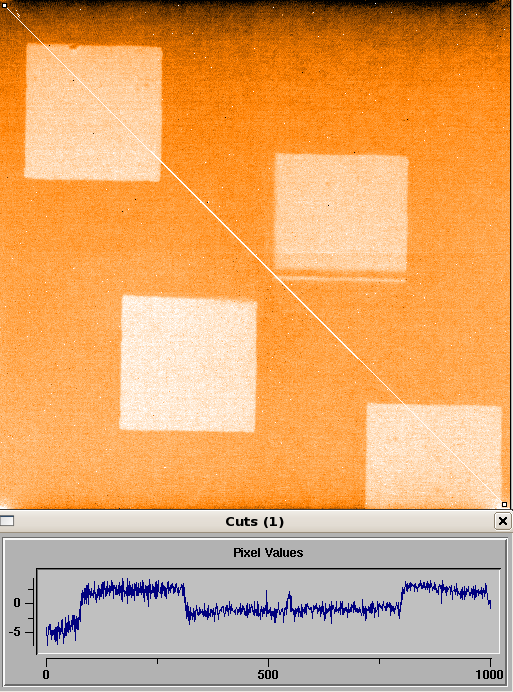

Standard NACO SDI Calibration Frames

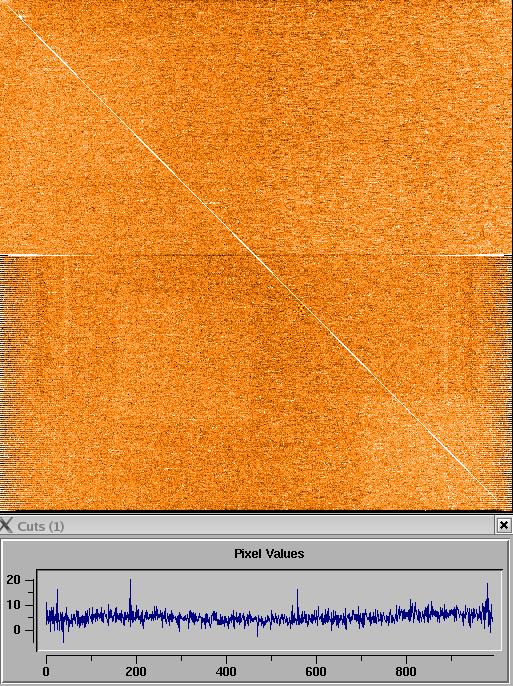

Read-out mode (DET.NCORRS.NAME- DET.MODE.NAME)	DCR-HD	FNS-HS			Read-out mode (DET.NCORRS.NAME- DET.MODE.NAME)	DCR-HD	FNS-HS
Camera (INS.OPTI7.NAME)	SDI	SDI			Camera/Filter	SDI/H	SDI/H
DIT [s]	10.0	300.0			DIT [s]	3.0	3.0

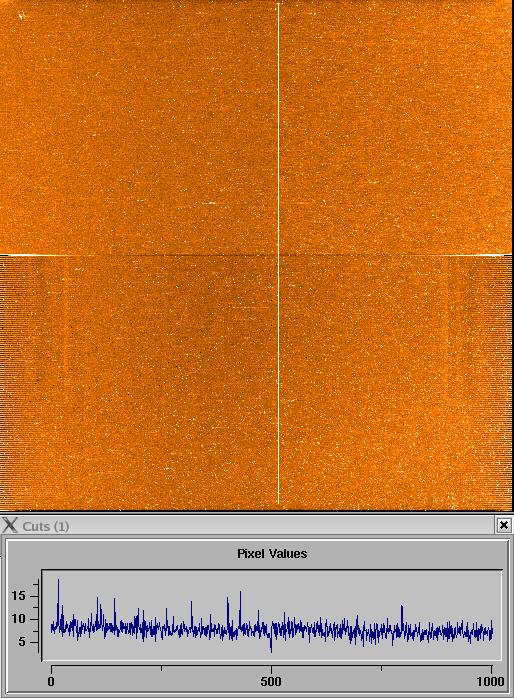

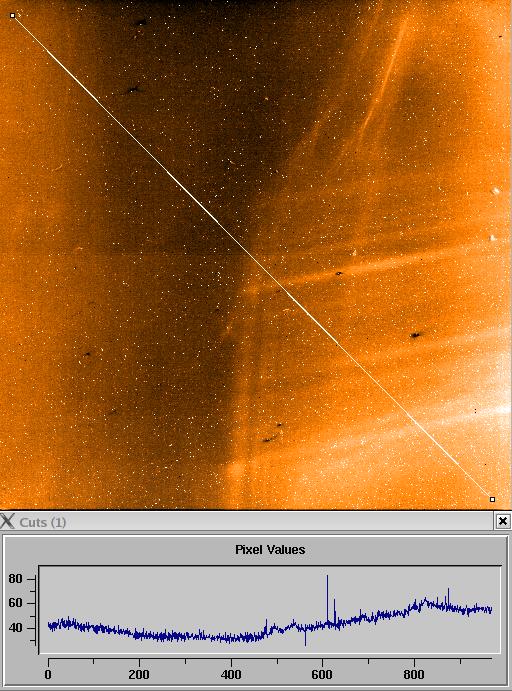

Dark					Lamp ON
	1.6 Mb	1.6 Mb				1.6 Mb	1.6 Mb
	hdr	hdr				hdr	hdr
Dark product					Lamp OFF
	1.6 Mb	1.6 Mb				1.6 Mb	1.6 Mb
	hdr	hdr				hdr	hdr

---
