baciPcommonImpl_T.h File Reference

#include "baciDB.h"
#include <acsutil.h>
#include <baci.h>
#include <baciS.h>
#include <baciCORBA.h>
#include <baciCORBAMem.h>
#include <baciEvent.h>
#include <baciDevIOMem.h>
#include <baciCharacteristicModelImpl.h>
#include <ACSErrTypeCommon.h>
#include <ACSErrTypeDevIO.h>
#include <baciErrTypeProperty.h>
#include <baciErrTypeDevIO.h>

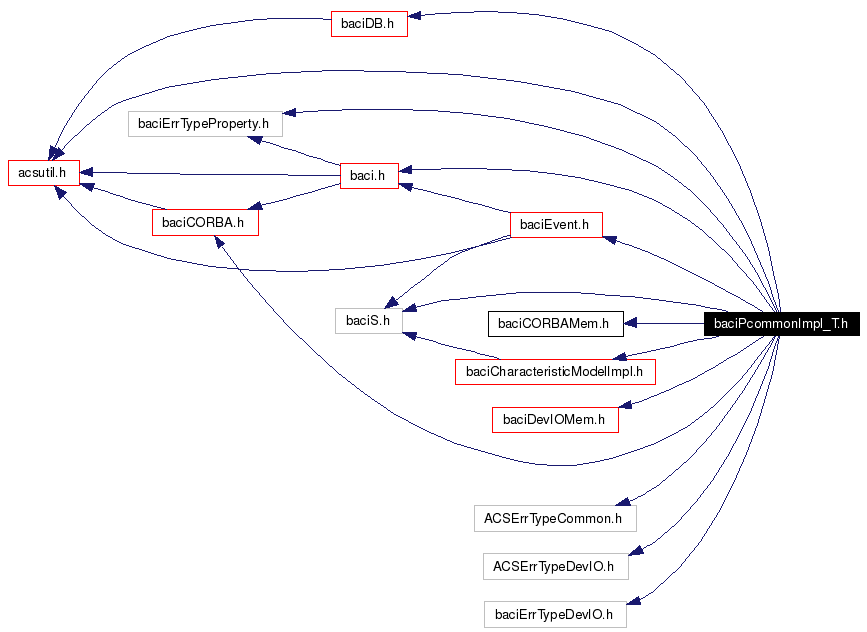

Include dependency graph for baciPcommonImpl_T.h:

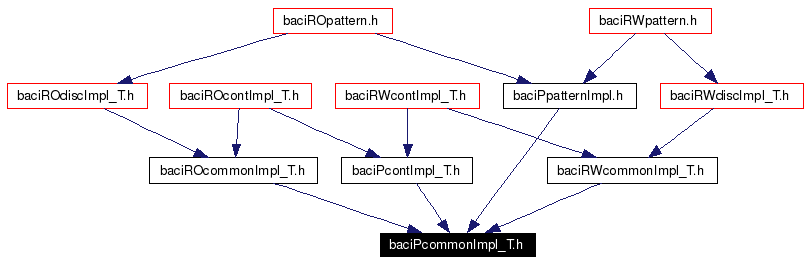

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	baci
Classes
class	baci::CDBconverter< T >
class	baci::CDBconverter< ACE_CString >
class	baci::PcommonImpl<>
Defines
#define	HISTORY_SIZE   32
#define	ACS_P_T(T, TC)   TC, ACS::CB##T, ACS::T##Seq, ACS::T##Seq_out, ACS::Monitor##T, baci::Monitor##T,TC, TC, TC
#define	ACS_P_TL   T, TCB, TSeq, TSeq_out, TMonitor, TMonitorImpl, TM, TS, TSM, POA_SK
#define	ACS_P_C   class T, class TCB, class TSeq, class TSeq_out, class TMonitor, class TMonitorImpl, class TM, class TS, class TSM, class POA_SK

---

Detailed Description

Header file for BACI Common Property Template Class. Includes the basic and common functionality for all types of properties. Also includes the basic characteristics of all properties. This class also has the function to create the monitor.

---

Define Documentation

#define ACS_P_C   class T, class TCB, class TSeq, class TSeq_out, class TMonitor, class TMonitorImpl, class TM, class TS, class TSM, class POA_SK

Helper macro for use with templated parameters.

#define ACS_P_T (  T, TC   )     TC, ACS::CB##T, ACS::T##Seq, ACS::T##Seq_out, ACS::Monitor##T, baci::Monitor##T,TC, TC, TC

Helper macro for use with templated parameters.

#define ACS_P_TL   T, TCB, TSeq, TSeq_out, TMonitor, TMonitorImpl, TM, TS, TSM, POA_SK

Helper macro for use with templated parameters.

#define HISTORY_SIZE   32

This is the history size that is basically the maximum number of values for a BACI property that will be saved by the Property. Used in conjunction with the get_history IDL method I believe.

---
