baci::PcommonImpl<> Class Template Reference

#include <baciPcommonImpl_T.h>

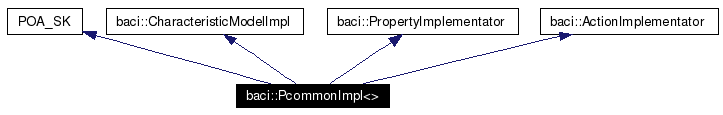

Inheritance diagram for baci::PcommonImpl<>:

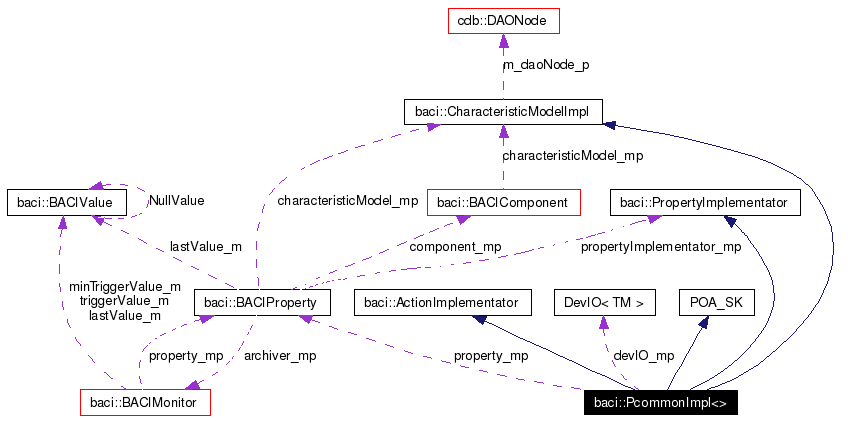

[legend]Collaboration diagram for baci::PcommonImpl<>:

[legend]List of all members.

Public Member Functions
	PcommonImpl (const ACE_CString &name, BACIComponent *component_p, DevIO< TM > *devIO, bool flagdeldevIO)
virtual	~PcommonImpl ()
virtual int	initialization ()
CORBA::Object_ptr	getCORBAReference () const
BACIProperty *	getProperty () const
virtual void	destroy ()
DevIO< TM > *	getDevIO () const
virtual ActionRequest	getValueAction (BACIComponent *component_p, int callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual ActionRequest	invokeAction (int function, BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual void	getValue (BACIProperty *property, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual char *	name ()
virtual char *	characteristic_component_name ()
virtual CORBA::Boolean	initialize_devio ()
virtual char *	description ()
virtual char *	format ()
virtual char *	units ()
virtual ACS::pattern	resolution ()
virtual ACS::TimeInterval	default_timer_trigger ()
virtual ACS::TimeInterval	min_timer_trigger ()
virtual TS	default_value ()
virtual T	get_sync (ACSErr::Completion_out c)
virtual void	get_async (TCB *cb, const ACS::CBDescIn &desc)
virtual CORBA::Long	get_history (CORBA::Long n_last_values, TSeq_out vs, ACS::TimeSeq_out ts)
virtual TMonitor *	create_monitor (TCB *cb, const ACS::CBDescIn &desc)
virtual TMonitor *	create_postponed_monitor (ACS::Time start_time, TCB *cb, const ACS::CBDescIn &desc)
Protected Types
typedef int	callbackID
typedef int const CBDescIn &	descIn
typedef int const CBDescIn BACIValue *	value
typedef int const CBDescIn BACIValue ACSErr::Completion &	completion
typedef int const CBDescIn BACIValue ACSErr::Completion CBDescOut &	descOut
Protected Member Functions
virtual bool	readCharacteristics ()
void	addValueToHistory (ACS::Time time, TM &value)
typedef	ActionRequest (PcommonImpl< ACS_P_TL >::*ActionFunction)(BACIComponent *component_p
Protected Attributes
BACIProperty *	property_mp
	BACI property.
DevIO< TM > *	devIO_mp
bool	deldevIO_m
TM	value_m
int	initialization_m
	Initialization status.
bool	destroyed_m
	Destroy status.
CORBA::Object_ptr	reference_mp
	CORBA reference.
TM	historyValue_m [HISTORY_SIZE]
	history value buffer
ACS::Time	historyTime_m [HISTORY_SIZE]
	history time buffer
int	historyStart_m
	history start pointer
bool	historyTurnaround_m
	history end pointer
bool	initializeDevIO_m
ACE_CString	description_m
ACE_CString	format_m
ACE_CString	units_m
ACS::pattern	resolution_m
TSM	defaultValue_m
ACS::TimeInterval	defaultTimerTrig_m
ACS::TimeInterval	minTimerTrig_m
Private Member Functions
void	operator= (const PcommonImpl &)
	PcommonImpl (const PcommonImpl &)

---

Detailed Description

template<ACS_P_C>
class baci::PcommonImpl<>

Implementation of P (common) property

Warning:

We have virtual inheritance from PortableServer::RefCountServantBase because of a bug in gcc 2.95 (see SPR. ALMASW2001075)

---

Constructor & Destructor Documentation

template<ACS_P_C > baci::PcommonImpl<>::PcommonImpl (  const ACE_CString &  name, BACIComponent *  component_p, DevIO< TM > *  devIO, bool  flagdeldevIO )

Constuctor Parameters: name  property name (e.q. AMSMount:decliantion) component_p  parent of the property

template<ACS_P_C > virtual baci::PcommonImpl<>::~PcommonImpl (   )  [virtual]

Destructor

template<ACS_P_C > baci::PcommonImpl<>::PcommonImpl (  const PcommonImpl<> &   )  [private]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

template<ACS_P_C > void baci::PcommonImpl<>::addValueToHistory (  ACS::Time  time, TM &  value )  [protected]

template<ACS_P_C > virtual char* baci::PcommonImpl<>::characteristic_component_name (   )  [virtual]

template<ACS_P_C > virtual TMonitor* baci::PcommonImpl<>::create_monitor (  TCB *  cb, const ACS::CBDescIn &  desc )  [virtual]

template<ACS_P_C > virtual TMonitor* baci::PcommonImpl<>::create_postponed_monitor (  ACS::Time  start_time, TCB *  cb, const ACS::CBDescIn &  desc )  [virtual]

template<ACS_P_C > virtual ACS::TimeInterval baci::PcommonImpl<>::default_timer_trigger (   )  [virtual]

template<ACS_P_C > virtual TS baci::PcommonImpl<>::default_value (   )  [virtual]

template<ACS_P_C > virtual char* baci::PcommonImpl<>::description (   )  [virtual]

template<ACS_P_C > virtual void baci::PcommonImpl<>::destroy (   )  [virtual]

Destructor method This method must be called to destroy property, POA will call destructor (direct call of destructor will most likely cause code to crash)

template<ACS_P_C > virtual char* baci::PcommonImpl<>::format (   )  [virtual]

template<ACS_P_C > virtual void baci::PcommonImpl<>::get_async (  TCB *  cb, const ACS::CBDescIn &  desc )  [virtual]

template<ACS_P_C > virtual CORBA::Long baci::PcommonImpl<>::get_history (  CORBA::Long  n_last_values, TSeq_out  vs, ACS::TimeSeq_out  ts )  [virtual]

template<ACS_P_C > virtual T baci::PcommonImpl<>::get_sync (  ACSErr::Completion_out  c  )  [virtual]

template<ACS_P_C > CORBA::Object_ptr baci::PcommonImpl<>::getCORBAReference (   )  const [inline]

Get CORBA referece of this object Returns: reference to CORBa object

template<ACS_P_C > DevIO<TM>* baci::PcommonImpl<>::getDevIO (   )  const [inline]

DevIO accessor

template<ACS_P_C > BACIProperty* baci::PcommonImpl<>::getProperty (   )  const [inline]

BACI Monitor instance accessor

template<ACS_P_C > virtual void baci::PcommonImpl<>::getValue (  BACIProperty *  property, BACIValue *  value, Completion &  completion, CBDescOut &  descOut )  [virtual]

Get value method (value accessor) Parameters: property  property which requested value value  value to be returned completion  error handling structure descOut  callback descriptor Implements baci::PropertyImplementator.

template<ACS_P_C > virtual ActionRequest baci::PcommonImpl<>::getValueAction (  BACIComponent *  component_p, int  callbackID, const CBDescIn &  descIn, BACIValue *  value, Completion &  completion, CBDescOut &  descOut )  [virtual]

template<ACS_P_C > virtual int baci::PcommonImpl<>::initialization (   )  [inline, virtual]

Property construction status method After contruction of a property, this method will be called to check if construction was successful; if not, monitor will be destroyed by parent Returns: 0 on success or any other value (value can indicate cause of faulire) on faulure Reimplemented from baci::PropertyImplementator.

template<ACS_P_C > virtual CORBA::Boolean baci::PcommonImpl<>::initialize_devio (   )  [virtual]

template<ACS_P_C > virtual ActionRequest baci::PcommonImpl<>::invokeAction (  int  function, BACIComponent *  component_p, const int &  callbackID, const CBDescIn &  descIn, BACIValue *  value, Completion &  completion, CBDescOut &  descOut )  [virtual]

Action dispatcher function Parameters: function  action funtion to be invoked component_p  owner of the action callbackID  id of the callback to be notified descIn  callback descriptor (passed by client) value  action data (e.g. value to be set) completion  error handing structure descOut  callback descriptor which will be passed to client Returns: request to be performed by BACI reqNone - do nothing (action will be kept in queue) reqInvokeWorking - invoke <type>Callback::working reqInvokeDone - invoke <type>Callback::done and destroy callback reqDestroy - destroy callback (callback should has been called already by function) Implements baci::ActionImplementator. Reimplemented in baci::RWcommonImpl<>, baci::RWcontImpl<>, baci::RWcommonImpl< ACS_RW_TL >, and baci::RWcontImpl< ACS_RW_TL >.

template<ACS_P_C > virtual ACS::TimeInterval baci::PcommonImpl<>::min_timer_trigger (   )  [virtual]

template<ACS_P_C > virtual char* baci::PcommonImpl<>::name (   )  [virtual]

template<ACS_P_C > void baci::PcommonImpl<>::operator= (  const PcommonImpl<> &   )  [private]

ALMA C++ coding standards state assignment operators should be disabled.

template<ACS_P_C > virtual bool baci::PcommonImpl<>::readCharacteristics (   )  [protected, virtual]

Read characteristics from CDB Parameters: propertyName  name of the property whose characteristics to read Returns: true on success, false on failure Reimplemented from baci::CharacteristicModelImpl. Reimplemented in baci::ROcommonImpl<>, baci::ROcontImpl<>, baci::RWcontImpl<>, baci::ROcommonImpl< ACS_RO_TL >, baci::ROcontImpl< ACS_RO_TL >, and baci::RWcontImpl< ACS_RW_TL >.

template<ACS_P_C > virtual ACS::pattern baci::PcommonImpl<>::resolution (   )  [virtual]

template<ACS_P_C > virtual char* baci::PcommonImpl<>::units (   )  [virtual]

---

Member Data Documentation

template<ACS_P_C > ACS::TimeInterval baci::PcommonImpl<>::defaultTimerTrig_m [protected]

template<ACS_P_C > TSM baci::PcommonImpl<>::defaultValue_m [protected]

template<ACS_P_C > bool baci::PcommonImpl<>::deldevIO_m [protected]

template<ACS_P_C > ACE_CString baci::PcommonImpl<>::description_m [protected]

template<ACS_P_C > bool baci::PcommonImpl<>::destroyed_m [protected]

Destroy status.

template<ACS_P_C > DevIO<TM>* baci::PcommonImpl<>::devIO_mp [protected]

template<ACS_P_C > ACE_CString baci::PcommonImpl<>::format_m [protected]

template<ACS_P_C > int baci::PcommonImpl<>::historyStart_m [protected]

history start pointer

template<ACS_P_C > ACS::Time baci::PcommonImpl<>::historyTime_m[HISTORY_SIZE] [protected]

history time buffer

template<ACS_P_C > bool baci::PcommonImpl<>::historyTurnaround_m [protected]

history end pointer

template<ACS_P_C > TM baci::PcommonImpl<>::historyValue_m[HISTORY_SIZE] [protected]

history value buffer

template<ACS_P_C > int baci::PcommonImpl<>::initialization_m [protected]

Initialization status.

template<ACS_P_C > bool baci::PcommonImpl<>::initializeDevIO_m [protected]

Characteristics

template<ACS_P_C > ACS::TimeInterval baci::PcommonImpl<>::minTimerTrig_m [protected]

template<ACS_P_C > BACIProperty* baci::PcommonImpl<>::property_mp [protected]

BACI property.

template<ACS_P_C > CORBA::Object_ptr baci::PcommonImpl<>::reference_mp [protected]

CORBA reference.

template<ACS_P_C > ACS::pattern baci::PcommonImpl<>::resolution_m [protected]

template<ACS_P_C > ACE_CString baci::PcommonImpl<>::units_m [protected]

template<ACS_P_C > TM baci::PcommonImpl<>::value_m [protected]

---

The documentation for this class was generated from the following file:

• baciPcommonImpl_T.h

---
