baci::BACIComponent Class Reference

#include <baciBACIComponent.h>

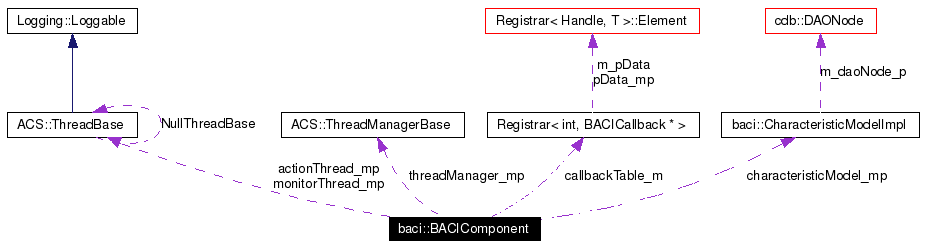

Collaboration diagram for baci::BACIComponent:

[legend]List of all members.


Public Member Functions
	BACIComponent (ACS::ThreadManager thrMgr, const ACE_CString &name, CharacteristicModelImpl characteristicModel, const ACS::TimeInterval &actionThreadResponseTime=defaultRTResponseTime_m, const ACS::TimeInterval &actionThreadSleepTime=minRTSleepTime_m, const ACS::TimeInterval &monitorThreadResponseTime=defaultMTResponseTime_m, const ACS::TimeInterval &monitorThreadSleepTime=minMTSleepTime_m)
	~BACIComponent ()
const char *	getName () const
int	registerCallback (const BACIValue::Type type, Callback_ptr callback_p, const CBDescIn descIn)
int	registerAction (const BACIValue::Type type, Callback_ptr callback_p, const CBDescIn descIn, ActionImplementator *actionImplementator_, int actionFunction_)
int	registerAction (const BACIValue::Type type, Callback_ptr callback_p, const CBDescIn descIn, ActionImplementator *actionImplementator_, int actionFunction, const BACIValue &value)
BACIThreadManager *	getThreadManager () const
ACS::TimeInterval	getMTResponseTime () const
void	setMTResponseTime (const ACS::TimeInterval &_monitorThreadResponseTime)
ACS::TimeInterval	getMTSleepTime () const
void	setMTSleepTime (const ACS::TimeInterval &_monitorThreadSleepTime)
ACS::TimeInterval	getRTResponseTime () const
void	setRTResponseTime (const ACS::TimeInterval &_actionThreadResponseTime)
ACS::TimeInterval	getRTSleepTime () const
void	setRTSleepTime (const ACS::TimeInterval &_actionThreadSleepTime)
bool	dispatchCallback (int callbackID, const BACIValue &value, CBDescOut &descOut, const Completion &completion, const BACIMonitor *archiver=0)
bool	finishCallback (int callbackID, const BACIValue &value, CBDescOut &descOut, const Completion &completion)
bool	isInDestructionState () const
int	getActionCount () const
void	pushAction (BACIAction *action)
BACIAction *	popAction ()
void	removeCallbackAndAction (int callbackID)
BACICallback *	getCallback (int callbackID)
void	removeCallback (int callbackID)
int	getPropertyCount () const
BACIProperty *	getPropertyAt (int pos) const
void	stopAllThreads ()
bool	startAllThreads ()
void	startMonitoringThread ()
void	startActionThread ()
void	stopMonitoringThread ()
void	stopActionThread ()
bool	isMonitoringActive ()
bool	isActionThreadActive ()
CharacteristicModelImpl *	getCharacteristicModel () const
Protected Member Functions
BACIThread *	getActionThread () const
BACIThread *	getMonitorThread () const
int	getThreadCount () const
void	removeAction (int callbackID)
void	addProperty (BACIProperty *property)
void	removeProperty (BACIProperty *property)
Static Protected Attributes
const ACS::TimeInterval	defaultRTResponseTime_m
const ACS::TimeInterval	minRTSleepTime_m
const ACS::TimeInterval	defaultMTResponseTime_m
const ACS::TimeInterval	minMTSleepTime_m
Private Member Functions
void	operator= (const BACIComponent &)
	BACIComponent (const BACIComponent &)
Private Attributes
ACE_CString	name_m
CharacteristicModelImpl *	characteristicModel_mp
BACICallbackTable	callbackTable_m
BACIActionQueue	actionQueue_m
BACIPropertyVector	propertyVector_m
ACS::TimeInterval	actionThreadResponseTime_m
ACS::TimeInterval	actionThreadSleepTime_m
ACS::TimeInterval	monitorThreadResponseTime_m
ACS::TimeInterval	monitorThreadSleepTime_m
BACIThread *	actionThread_mp
BACIThread *	monitorThread_mp
BACIThreadManager *	threadManager_mp
bool	inDestructionState_m
BACIMutex	actionQueueMutex_m
BACIMutex	propertyVectorMutex_m
BACIMutex	callbackTableMutex_m

Detailed Description

Class represeting BACI Component Component is responsible for action, monitor dispatching

Author:: Matej Sekoranja, Jozef Stefan Institute, Slovenia

Constructor & Destructor Documentation

baci::BACIComponent::BACIComponent ( ACS::ThreadManager * thrMgr,

const ACE_CString & name,

CharacteristicModelImpl * characteristicModel,

const ACS::TimeInterval & actionThreadResponseTime = defaultRTResponseTime_m,

const ACS::TimeInterval & actionThreadSleepTime = minRTSleepTime_m,

const ACS::TimeInterval & monitorThreadResponseTime = defaultMTResponseTime_m,

const ACS::TimeInterval & monitorThreadSleepTime = minMTSleepTime_m

)

Component constructor that allows to pass thread manager This class is a property containder providing action and monitor queues.
Parameters:

threadManager ACS Thread Manager

name name of the Component

characteristicModel characteristic model to be used to retrieve data

actionThreadResponseTime response time of the action thread in 100ns unit

actionThreadSleepTime sleep time of the action thread in 100ns unit

monitorThreadResponseTime response time of the monitor thread in 100ns unit

monitorThreadSleepTime sleep time of the monitor thread in 100ns unit

baci::BACIComponent::~BACIComponent ( )

baci::BACIComponent::BACIComponent ( const BACIComponent & ) [private]

ALMA C++ coding standards state copy constructors should be disabled.

Member Function Documentation

void baci::BACIComponent::addProperty ( BACIProperty * property ) [protected]

bool baci::BACIComponent::dispatchCallback ( int callbackID,

const BACIValue & value,

CBDescOut & descOut,

const Completion & completion,

const BACIMonitor * archiver = 0

)

bool baci::BACIComponent::finishCallback ( int callbackID,

const BACIValue & value,

CBDescOut & descOut,

const Completion & completion

)

int baci::BACIComponent::getActionCount ( ) const [inline]

BACIThread* baci::BACIComponent::getActionThread ( ) const [inline, protected]

BACICallback* baci::BACIComponent::getCallback ( int callbackID )

CharacteristicModelImpl* baci::BACIComponent::getCharacteristicModel ( ) const [inline]

BACIThread* baci::BACIComponent::getMonitorThread ( ) const [inline, protected]

ACS::TimeInterval baci::BACIComponent::getMTResponseTime ( ) const [inline]

ACS::TimeInterval baci::BACIComponent::getMTSleepTime ( ) const [inline]

const char* baci::BACIComponent::getName ( void ) const [inline]

BACIProperty* baci::BACIComponent::getPropertyAt ( int pos ) const

int baci::BACIComponent::getPropertyCount ( ) const [inline]

ACS::TimeInterval baci::BACIComponent::getRTResponseTime ( ) const [inline]

ACS::TimeInterval baci::BACIComponent::getRTSleepTime ( ) const [inline]

int baci::BACIComponent::getThreadCount ( ) const [inline, protected]

BACIThreadManager* baci::BACIComponent::getThreadManager ( ) const [inline]

bool baci::BACIComponent::isActionThreadActive ( )

Returns true if Action Thread is active, i.e. if the action thread is created and resumed.

bool baci::BACIComponent::isInDestructionState ( ) const [inline]

bool baci::BACIComponent::isMonitoringActive ( )

Returns true if monitoring is active, i.e. if monitoring thread is created and resumed.

void baci::BACIComponent::operator= ( const BACIComponent & ) [private]

ALMA C++ coding standards state assignment operators should be disabled.

BACIAction* baci::BACIComponent::popAction ( )

void baci::BACIComponent::pushAction ( BACIAction * action )

int baci::BACIComponent::registerAction ( const BACIValue::Type type,

Callback_ptr callback_p,

const CBDescIn descIn,

ActionImplementator * actionImplementator_,

int actionFunction,

const BACIValue & value

)

Register action to BACI
Parameters:

type callback type (e.g. type double means callback is type of CBdouble)

callback callback reference

descIn callback descriptor (passed by client)

actionImplemenator action implementator

actionFunction_ action function to be invoked in execute action

Returns:
callback ID (0 on failure)

int baci::BACIComponent::registerAction ( const BACIValue::Type type,

Callback_ptr callback_p,

const CBDescIn descIn,

ActionImplementator * actionImplementator_,

int actionFunction_

)

Register action to BACI
Parameters:

type callback type (e.g. type double means callback is type of CBdouble)

callback callback reference

descIn callback descriptor (passed by client)

actionImplemenator action implementator

actionFunction action function to be invoked in execute action

value action data (e.g. value to be set)

Returns:
callback ID (0 on failure)

int baci::BACIComponent::registerCallback ( const BACIValue::Type type,

Callback_ptr callback_p,

const CBDescIn descIn

)

Register callback to BACI
Parameters:

type callback type (e.g. type double means callback is type of CBdouble)

callback callback reference

descIn callback descriptor (passed by client)

Returns:
callback ID (0 on failure)

void baci::BACIComponent::removeAction ( int callbackID ) [protected]

void baci::BACIComponent::removeCallback ( int callbackID )

void baci::BACIComponent::removeCallbackAndAction ( int callbackID )

void baci::BACIComponent::removeProperty ( BACIProperty * property ) [protected]

void baci::BACIComponent::setMTResponseTime ( const ACS::TimeInterval & _monitorThreadResponseTime )

void baci::BACIComponent::setMTSleepTime ( const ACS::TimeInterval & _monitorThreadSleepTime )

void baci::BACIComponent::setRTResponseTime ( const ACS::TimeInterval & _actionThreadResponseTime )

void baci::BACIComponent::setRTSleepTime ( const ACS::TimeInterval & _actionThreadSleepTime )

void baci::BACIComponent::startActionThread ( )

Creates and starts the Action thread. The thread which is used for executing asyhronous commmand. In case of an error it throws an exception:
Exceptions:

ACSErrTypeCommon::NullPointerExImpl if there is no thread manager

acsthreadErrType::CanNotCreateThreadExImpl if the thread can not be created

bool baci::BACIComponent::startAllThreads ( )

void baci::BACIComponent::startMonitoringThread ( )

Creates and starts the Monitoring thread. In case of an error it throws an exception:
Exceptions:

ACSErrTypeCommon::NullPointerExImpl if there is no thread manager

acsthreadErrType::CanNotCreateThreadExImpl if the thread can not be created

void baci::BACIComponent::stopActionThread ( )

Stops (suspends) the Action thread. If the thread is already suspended, or if it has not been created yet, it just returns.

void baci::BACIComponent::stopAllThreads ( )

void baci::BACIComponent::stopMonitoringThread ( )

Stops (suspends) the Monitoring thread If the thread is already suspended, or if it has not been created yet, it just returns.
