baci::BACICallback Class Reference

#include <baciBACICallback.h>

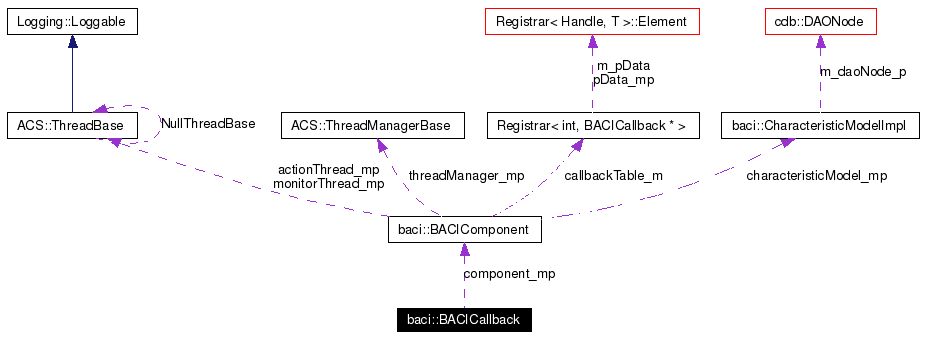

Collaboration diagram for baci::BACICallback:

[legend]List of all members.

Public Member Functions
	BACICallback (const int &id_, Callback_ptr callback_, const BACIValue::Type type_, const CBDescIn &descIn_, BACIComponent *component_p)
	~BACICallback ()
BACICallback &	operator= (const BACICallback &cb)
bool	operator== (const BACICallback &cb) const
int	getID () const
void	succeeded ()
void	failed ()
bool	isOK ()
void	setRemoveOnFailure (bool removeOnFailure_)
bool	doRemoveOnFailure () const
Callback_ptr	getCallback () const
BACIValue::Type	getType () const
CBDescIn	getDescIn () const
BACIComponent *	getComponent () const
Private Member Functions
	BACICallback (const BACICallback &)
Private Attributes
int	id_m
Callback_ptr	callback_mp
BACIValue::Type	type_m
CBDescIn	descIn_m
BACIComponent *	component_mp
int	failureCount_m
bool	removeOnFailure_m
Static Private Attributes
const int	failureLimitCount_m

---

Detailed Description

BACI Callback wrapper Callbacks are needed for actions and monitors

Author:

Matej Sekoranja, Jozef Stefan Institute, Slovenia

---

Constructor & Destructor Documentation

baci::BACICallback::BACICallback (  const int &  id_, Callback_ptr  callback_, const BACIValue::Type  type_, const CBDescIn &  descIn_, BACIComponent *  component_p )  [inline]

Contructor Parameters: id_  id of the callback to be notified callback_  callback reference type_  callback type (e.g. type double means callback is type of CBdouble) descIn_  callback descriptor (passed by client) component_p  parent object where callback is saved (owner of the callback)

baci::BACICallback::~BACICallback (   )  [inline]

Destructor

baci::BACICallback::BACICallback (  const BACICallback &   )  [private]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

bool baci::BACICallback::doRemoveOnFailure (   )  const [inline]

Set if callback can be removed if invokation failure limit is exceeded Returns: true if it can be removed, otherwise false

void baci::BACICallback::failed (   )

Report failed invokation Increases failure counter and destroys callback if failure limit has been exceeded

Callback_ptr baci::BACICallback::getCallback (   )  const [inline]

Get callback reference Returns: callback reference

BACIComponent* baci::BACICallback::getComponent (   )  const [inline]

Get Component (owner of the callback) Returns: pointer to Component object

CBDescIn baci::BACICallback::getDescIn (   )  const [inline]

Get callback descriptor Returns: callback descriptor (passed by client)

int baci::BACICallback::getID (   )  const [inline]

Get callback ID Returns: callback ID

BACIValue::Type baci::BACICallback::getType (   )  const [inline]

Get callback type Returns: callback type

bool baci::BACICallback::isOK (   )  [inline]

Get callback status (if invokations are successful) Returns: true if OK, otherwise false

BACICallback& baci::BACICallback::operator= (  const BACICallback &  cb  )  [inline]

Assignment operator

bool baci::BACICallback::operator== (  const BACICallback &  cb  )  const [inline]

Compare (equals) operator

void baci::BACICallback::setRemoveOnFailure (  bool  removeOnFailure_  )  [inline]

Get callback remove on failure state Parameters: removeOnFailure_  true if it can be removed, otherwise false

void baci::BACICallback::succeeded (   )  [inline]

Report successful invokation Resets failure counter to zero

---

Member Data Documentation

Callback_ptr baci::BACICallback::callback_mp [private]

Callback reference

BACIComponent* baci::BACICallback::component_mp [private]

Callback owner

CBDescIn baci::BACICallback::descIn_m [private]

Callback descriptor (passed by client)

int baci::BACICallback::failureCount_m [private]

Invokation failure counter

const int baci::BACICallback::failureLimitCount_m [static, private]

Invokation failure limit

int baci::BACICallback::id_m [private]

Callback ID

bool baci::BACICallback::removeOnFailure_m [private]

State if callback can be removed if invokation failure counter si exceeded

BACIValue::Type baci::BACICallback::type_m [private]

Callback type

---

The documentation for this class was generated from the following file:

• baciBACICallback.h

---
