baci::BACIAction Class Reference

#include <baciBACIAction.h>

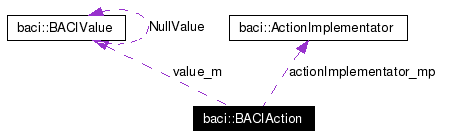

Collaboration diagram for baci::BACIAction:

[legend]List of all members.

Public Member Functions
	BACIAction ()
	BACIAction (ActionImplementator *actionImplementator_, int actionFunction_, int callbackID_)
	BACIAction (ActionImplementator *actionImplementator_, int actionFunction_, int callbackID_, const BACIValue &value_)
BACIAction &	operator= (const BACIAction &action)
bool	operator== (const BACIAction &action) const
ActionRequest	invoke (BACIComponent *component_p, int callbackID_, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
int	getActionFunction () const
ActionImplementator *	getActionImplementator () const
int	getCallbackID () const
BACIValue	getValue () const
BACIValue *	getValueRef () const
bool	isCompleted () const
Completion	getCompletion () const
void	setCompletion (const Completion &c)
Private Member Functions
	BACIAction (const BACIAction &)
Private Attributes
int	actionFunction_m
ActionImplementator *	actionImplementator_mp
int	callbackID_m
BACIValue	value_m
bool	completed_m
Completion	completion_m

---

Detailed Description

Class representing BACI Action Since all BACI asynchronious class has to keep all needed data to invoke action in the future...

Author:

Matej Sekoranja, Jozef Stefan Institute, Slovenia

---

Constructor & Destructor Documentation

baci::BACIAction::BACIAction (   )  [inline]

Null contructor

baci::BACIAction::BACIAction (  ActionImplementator *  actionImplementator_, int  actionFunction_, int  callbackID_ )  [inline]

Null value constructor Parameters: actionFunction_  action function to be invoked in execute action callbackID_  id of the callback to be invoked

baci::BACIAction::BACIAction (  ActionImplementator *  actionImplementator_, int  actionFunction_, int  callbackID_, const BACIValue &  value_ )  [inline]

Constructor Parameters: actionImplemenator_  action implementator actionFunction_  action function to be invoked in execute action callbackID_  id of the callback to be invoked value_  action data (e.g. value to be set)

baci::BACIAction::BACIAction (  const BACIAction &   )  [private]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

int baci::BACIAction::getActionFunction (   )  const [inline]

Get BACI Action Function Returns: action function

ActionImplementator* baci::BACIAction::getActionImplementator (   )  const [inline]

Get BACI Action Implementator Returns: action implementator

int baci::BACIAction::getCallbackID (   )  const [inline]

Get callback ID Returns: callback ID

Completion baci::BACIAction::getCompletion (   )  const [inline]

Get completion data Returns: completion data

BACIValue baci::BACIAction::getValue (   )  const [inline]

Get action data Returns: action data (e.g. value to be set)

BACIValue* baci::BACIAction::getValueRef (   )  const [inline]

Get reference to action data Returns: action data (e.g. value to be set)

ActionRequest baci::BACIAction::invoke (  BACIComponent *  component_p, int  callbackID_, const CBDescIn &  descIn, BACIValue *  value, Completion &  completion, CBDescOut &  descOut )  [inline]

Invoke action Parameters: component_p  owner of the action callbackID  id of the callback to be notified descIn  callback descriptor (passed by client) value  action data (e.g. value to be set) completion  error handing structure descOut  callback descriptor which will be passed to client Returns: request to be performed by BACI

bool baci::BACIAction::isCompleted (   )  const [inline]

Get completion state Returns: completion state

BACIAction& baci::BACIAction::operator= (  const BACIAction &  action  )  [inline]

Assignment operator

bool baci::BACIAction::operator== (  const BACIAction &  action  )  const [inline]

Compare (equals) operator

void baci::BACIAction::setCompletion (  const Completion &  c  )  [inline]

Set completion state to true

---

Member Data Documentation

int baci::BACIAction::actionFunction_m [private]

BACI Action Function

ActionImplementator* baci::BACIAction::actionImplementator_mp [private]

BACI Action Implementator

int baci::BACIAction::callbackID_m [private]

Callback ID

bool baci::BACIAction::completed_m [private]

Completion state

Completion baci::BACIAction::completion_m [private]

Completion data

BACIValue baci::BACIAction::value_m [private]

Action data (e.g. value to be set)

---

The documentation for this class was generated from the following file:

• baciBACIAction.h

---
