baci::BACIProperty Class Reference

#include <baciBACIProperty.h>

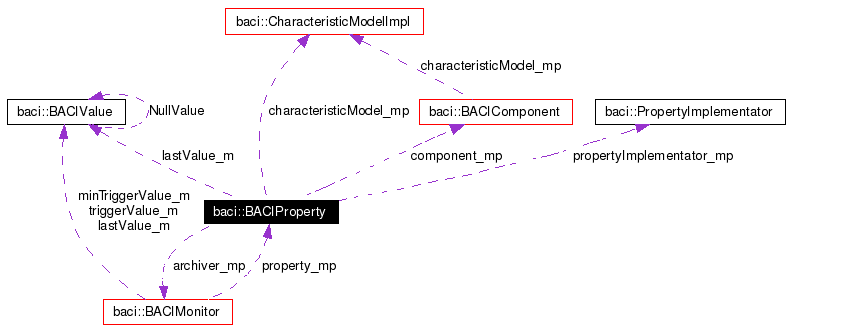

Collaboration diagram for baci::BACIProperty:

[legend]List of all members.

Public Member Functions
	BACIProperty (const ACE_CString &name_, PropertyImplementator *propertyImplementator_, CharacteristicModelImpl *characteristicModel_, const BACIValue &defaultValue_, BACIComponent *component_p)
	~BACIProperty ()
const char *	getName () const
BACIValue::Type	getType () const
PropertyImplementator *	getPropertyImplementator () const
CharacteristicModelImpl *	getCharacteristicModel () const
void	getValue (BACIProperty *property, BACIValue *value, Completion &completion, CBDescOut &descOut)
BACIComponent *	getComponent () const
int	getMonitorCount () const
BACIMonitor *	getMonitorAt (int pos) const
bool	hasTriggerOnValueMonitor () const
ACS::TimeInterval	getPollInterval () const
ACS::TimeInterval	getLastPollTime () const
ACS::TimeInterval	getMonMinTriggerTime () const
BACIValue	getLastValue () const
void	setPollInterval (const ACS::TimeInterval &_pollInterval)
void	setLastPollTime (const ACS::TimeInterval &_lastPollTime)
void	setMonMinTriggerTime (const ACS::TimeInterval &_interval)
void	setLastValue (const BACIValue &_lastValue)
void	dispatchMonitors (Completion &completion, CBDescOut &descOut)
void	updateMonitorStates ()
bool	isInDestructionState () const
Protected Member Functions
void	addMonitor (BACIMonitor *monitor)
void	removeMonitor (BACIMonitor *monitor)
ACS::TimeInterval	GCD (ACS::TimeInterval t1, ACS::TimeInterval t2)
Private Member Functions
void	operator= (const BACIProperty &)
	BACIProperty (const BACIProperty &)
Private Attributes
ACE_CString	name_m
PropertyImplementator *	propertyImplementator_mp
CharacteristicModelImpl *	characteristicModel_mp
BACIValue	lastValue_m
BACIComponent *	component_mp
BACIMonitorVector	monitorVector_m
bool	triggerOnValueMonitor_m
ACS::TimeInterval	pollInterval_m
ACS::TimeInterval	lastPollTime_m
ACS::TimeInterval	monMinTriggerTime_m
BACIMonitor *	archiver_mp
BACIValue::Type	type_m
bool	inDestructionState_m
BACIMutex	monitorVectorMutex_m

---

Detailed Description

Class represeting BACI Property (Paramenter)

Author:

Matej Sekoranja, Jozef Stefan Institute, Slovenia

---

Constructor & Destructor Documentation

baci::BACIProperty::BACIProperty (  const ACE_CString &  name_, PropertyImplementator *  propertyImplementator_, CharacteristicModelImpl *  characteristicModel_, const BACIValue &  defaultValue_, BACIComponent *  component_p )

Constructor Parameters: name_  property name propertyImplementator_  property implementator refernce characteristicModel  characteristic model to be used to retrieve data defaultValue_  property default value (identifies type of this property - value MUST NOT BE NullValue!!!) component_p  property owner

baci::BACIProperty::~BACIProperty (   )

Destructor

baci::BACIProperty::BACIProperty (  const BACIProperty &   )  [private]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

void baci::BACIProperty::addMonitor (  BACIMonitor *  monitor  )  [protected]

void baci::BACIProperty::dispatchMonitors (  Completion &  completion, CBDescOut &  descOut )

ACS::TimeInterval baci::BACIProperty::GCD (  ACS::TimeInterval  t1, ACS::TimeInterval  t2 )  [protected]

CharacteristicModelImpl* baci::BACIProperty::getCharacteristicModel (   )  const [inline]

BACIComponent* baci::BACIProperty::getComponent (   )  const [inline]

ACS::TimeInterval baci::BACIProperty::getLastPollTime (   )  const [inline]

BACIValue baci::BACIProperty::getLastValue (   )  const [inline]

BACIMonitor* baci::BACIProperty::getMonitorAt (  int  pos  )  const [inline]

int baci::BACIProperty::getMonitorCount (   )  const [inline]

ACS::TimeInterval baci::BACIProperty::getMonMinTriggerTime (   )  const [inline]

const char* baci::BACIProperty::getName (  void   )  const [inline]

ACS::TimeInterval baci::BACIProperty::getPollInterval (   )  const [inline]

PropertyImplementator* baci::BACIProperty::getPropertyImplementator (   )  const [inline]

BACIValue::Type baci::BACIProperty::getType (   )  const [inline]

void baci::BACIProperty::getValue (  BACIProperty *  property, BACIValue *  value, Completion &  completion, CBDescOut &  descOut )  [inline]

Get value method (value accessor) Parameters: property  property which requested value value  value to be returned completion  error handling structure descOut  callback descriptor

bool baci::BACIProperty::hasTriggerOnValueMonitor (   )  const [inline]

bool baci::BACIProperty::isInDestructionState (   )  const [inline]

void baci::BACIProperty::operator= (  const BACIProperty &   )  [private]

ALMA C++ coding standards state assignment operators should be disabled.

void baci::BACIProperty::removeMonitor (  BACIMonitor *  monitor  )  [protected]

void baci::BACIProperty::setLastPollTime (  const ACS::TimeInterval &  _lastPollTime  )  [inline]

void baci::BACIProperty::setLastValue (  const BACIValue &  _lastValue  )  [inline]

void baci::BACIProperty::setMonMinTriggerTime (  const ACS::TimeInterval &  _interval  )  [inline]

void baci::BACIProperty::setPollInterval (  const ACS::TimeInterval &  _pollInterval  )  [inline]

void baci::BACIProperty::updateMonitorStates (   )

---

Member Data Documentation

BACIMonitor* baci::BACIProperty::archiver_mp [private]

CharacteristicModelImpl* baci::BACIProperty::characteristicModel_mp [private]

BACIComponent* baci::BACIProperty::component_mp [private]

bool baci::BACIProperty::inDestructionState_m [private]

ACS::TimeInterval baci::BACIProperty::lastPollTime_m [private]

BACIValue baci::BACIProperty::lastValue_m [private]

BACIMonitorVector baci::BACIProperty::monitorVector_m [private]

BACIMutex baci::BACIProperty::monitorVectorMutex_m [private]

ACS::TimeInterval baci::BACIProperty::monMinTriggerTime_m [private]

ACE_CString baci::BACIProperty::name_m [private]

ACS::TimeInterval baci::BACIProperty::pollInterval_m [private]

PropertyImplementator* baci::BACIProperty::propertyImplementator_mp [private]

bool baci::BACIProperty::triggerOnValueMonitor_m [private]

BACIValue::Type baci::BACIProperty::type_m [private]

---

The documentation for this class was generated from the following file:

• baciBACIProperty.h

---
