baci::RWcommonImpl<> Class Template Reference

#include <baciRWcommonImpl_T.h>

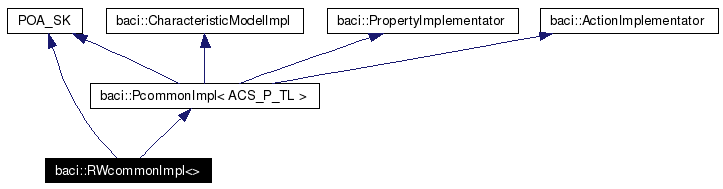

Inheritance diagram for baci::RWcommonImpl<>:

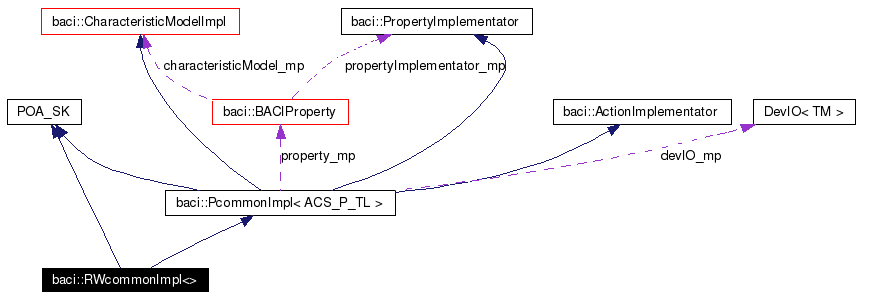

[legend]Collaboration diagram for baci::RWcommonImpl<>:

[legend]List of all members.

Public Member Functions
	RWcommonImpl (const ACE_CString &name, BACIComponent *component_p, DevIO< TM > *devIO, bool flagdeldevIO)
	RWcommonImpl (bool init, const ACE_CString &name, BACIComponent *component_p, DevIO< TM > *devIO, bool flagdeldevIO)
virtual	~RWcommonImpl ()
virtual ActionRequest	setValueAction (BACIComponent *component_p, int callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual ActionRequest	invokeAction (int function, BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual void	setValue (BACIProperty *property, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual ACSErr::Completion *	set_sync (TIN value)
virtual void	set_async (TIN value, ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc)
virtual void	set_nonblocking (TIN value)

---

Detailed Description

template<ACS_RW_C>
class baci::RWcommonImpl<>

Implementation of RWcommonImpl property

Warning:

We have virtual inheritance from PortableServer::RefCountServantBase because of a bug in gcc 2.95 (see SPR. ALMASW2001075)

---

Constructor & Destructor Documentation

template<ACS_RW_C > baci::RWcommonImpl<>::RWcommonImpl (  const ACE_CString &  name, BACIComponent *  component_p, DevIO< TM > *  devIO, bool  flagdeldevIO )

Constuctor Parameters: name  property name (e.q. AMSMount:decliantion) component_p  parent of the property

template<ACS_RW_C > baci::RWcommonImpl<>::RWcommonImpl (  bool  init, const ACE_CString &  name, BACIComponent *  component_p, DevIO< TM > *  devIO, bool  flagdeldevIO )

Constuctor that calls only readCharacteristics() Parameters: name  property name (e.q. AMSMount:decliantion)

template<ACS_RW_C > virtual baci::RWcommonImpl<>::~RWcommonImpl (   )  [virtual]

Destructor

---

Member Function Documentation

template<ACS_RW_C > virtual ActionRequest baci::RWcommonImpl<>::invokeAction (  int  function, BACIComponent *  component_p, const int &  callbackID, const CBDescIn &  descIn, BACIValue *  value, Completion &  completion, CBDescOut &  descOut )  [virtual]

Action dispatcher function (overrides from Pcommon) Parameters: function  action funtion to be invoked component_p  owner of the action callbackID  id of the callback to be notified descIn  callback descriptor (passed by client) value  action data (e.g. value to be set) completion  error handing structure descOut  callback descriptor which will be passed to client Returns: request to be performed by BACI reqNone - do nothing (action will be kept in queue) reqInvokeWorking - invoke <type>Callback::working reqInvokeDone - invoke <type>Callback::done and destroy callback reqDestroy - destroy callback (callback should has been called already by function) Reimplemented from baci::PcommonImpl< ACS_P_TL >. Reimplemented in baci::RWcontImpl<>, and baci::RWcontImpl< ACS_RW_TL >.

template<ACS_RW_C > virtual void baci::RWcommonImpl<>::set_async (  TIN  value, ACS::CBvoid_ptr  cb, const ACS::CBDescIn &  desc )  [virtual]

template<ACS_RW_C > virtual void baci::RWcommonImpl<>::set_nonblocking (  TIN  value  )  [virtual]

template<ACS_RW_C > virtual ACSErr::Completion* baci::RWcommonImpl<>::set_sync (  TIN  value  )  [virtual]

template<ACS_RW_C > virtual void baci::RWcommonImpl<>::setValue (  BACIProperty *  property, BACIValue *  value, Completion &  completion, CBDescOut &  descOut )  [virtual]

Set value method (value mutator) To make RW property simetric to RO property Parameters: property  property which requested value value  value to be returned completion  error handling structure descOut  callback descriptor Reimplemented in PowerSupplyCurrent, baci::RWcontImpl<>, baci::RWSeqContImpl<>, and baci::RWcontImpl< ACS_RW_TL >.

template<ACS_RW_C > virtual ActionRequest baci::RWcommonImpl<>::setValueAction (  BACIComponent *  component_p, int  callbackID, const CBDescIn &  descIn, BACIValue *  value, Completion &  completion, CBDescOut &  descOut )  [virtual]

---

The documentation for this class was generated from the following file:

• baciRWcommonImpl_T.h

---
