baci::MonitorEventDispatcher< T, TCB, POA_CB > Class Template Reference

#include <baciAlarm_T.h>

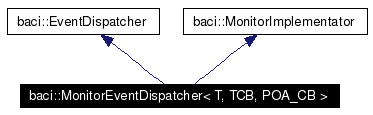

Inheritance diagram for baci::MonitorEventDispatcher< T, TCB, POA_CB >:

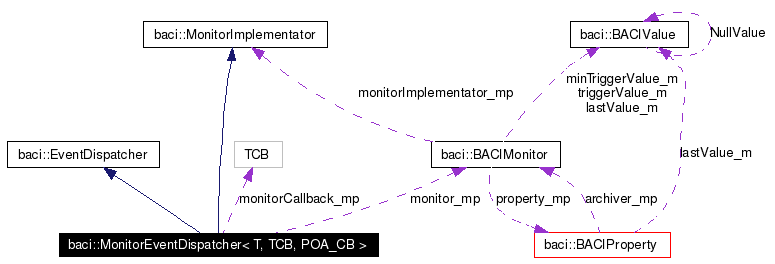

[legend]Collaboration diagram for baci::MonitorEventDispatcher< T, TCB, POA_CB >:

[legend]List of all members.

Public Member Functions
	MonitorEventDispatcher (const CBDescIn &descIn, const ACS::TimeInterval &interval, BACIProperty *property)
virtual	~MonitorEventDispatcher ()
virtual int	subscribe (EventStrategy *event)
virtual int	unsubscribe (EventStrategy *event)
virtual void	dispatch (T value, const ACSErr::Completion &c, const ACS::CBDescOut &desc)
virtual void	suspend ()
virtual void	resume ()
virtual void	monitorDestroyed (void)
virtual void	monitorStateChanged (void)
Private Member Functions
void	operator= (const MonitorEventDispatcher &)
	MonitorEventDispatcher (const MonitorEventDispatcher &)
Private Attributes
int	callbackID_m
BACIMonitor *	monitor_mp
TCB *	monitorCallback_mp
EventCB< T, TCB, POA_CB > *	callbackServant_mp

template<class T, class TCB, class POA_CB>
class baci::MonitorEventDispatcher< T, TCB, POA_CB >

---

Constructor & Destructor Documentation

template<class T, class TCB, class POA_CB> baci::MonitorEventDispatcher< T, TCB, POA_CB >::MonitorEventDispatcher (  const CBDescIn &  descIn, const ACS::TimeInterval &  interval, BACIProperty *  property )

template<class T, class TCB, class POA_CB> virtual baci::MonitorEventDispatcher< T, TCB, POA_CB >::~MonitorEventDispatcher (   )  [virtual]

template<class T, class TCB, class POA_CB> baci::MonitorEventDispatcher< T, TCB, POA_CB >::MonitorEventDispatcher (  const MonitorEventDispatcher< T, TCB, POA_CB > &   )  [private]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

template<class T, class TCB, class POA_CB> virtual void baci::MonitorEventDispatcher< T, TCB, POA_CB >::dispatch (  T  value, const ACSErr::Completion &  c, const ACS::CBDescOut &  desc )  [virtual]

template<class T, class TCB, class POA_CB> virtual void baci::MonitorEventDispatcher< T, TCB, POA_CB >::monitorDestroyed (  void   )  [virtual]

Destructor method This method is called when BACI monitor implementation is beeing destroyed and notifies implementator also to destroy itself. Implements baci::MonitorImplementator.

template<class T, class TCB, class POA_CB> virtual void baci::MonitorEventDispatcher< T, TCB, POA_CB >::monitorStateChanged (  void   )  [virtual]

Monitor state changed motification method This method is called when state of BACI monitor state is changed Implements baci::MonitorImplementator.

template<class T, class TCB, class POA_CB> void baci::MonitorEventDispatcher< T, TCB, POA_CB >::operator= (  const MonitorEventDispatcher< T, TCB, POA_CB > &   )  [private]

ALMA C++ coding standards state assignment operators should be disabled.

template<class T, class TCB, class POA_CB> virtual void baci::MonitorEventDispatcher< T, TCB, POA_CB >::resume (   )  [virtual]

Inform dispatcher that one subscreiber has resumed its monitoring Implements baci::EventDispatcher.

template<class T, class TCB, class POA_CB> virtual int baci::MonitorEventDispatcher< T, TCB, POA_CB >::subscribe (  EventStrategy *  event  )  [virtual]

Subscribe event Parameters: event  event to be subscribed Returns: 0 in success Reimplemented from baci::EventDispatcher.

template<class T, class TCB, class POA_CB> virtual void baci::MonitorEventDispatcher< T, TCB, POA_CB >::suspend (   )  [virtual]

Inform dispatcher that one subscreiber has suspended its monitoring Implements baci::EventDispatcher.

template<class T, class TCB, class POA_CB> virtual int baci::MonitorEventDispatcher< T, TCB, POA_CB >::unsubscribe (  EventStrategy *  event  )  [virtual]

Unsubscribe event Parameters: event  event to be unsubscribed Returns: 0 on success Reimplemented from baci::EventDispatcher.

---

Member Data Documentation

template<class T, class TCB, class POA_CB> int baci::MonitorEventDispatcher< T, TCB, POA_CB >::callbackID_m [private]

template<class T, class TCB, class POA_CB> EventCB<T, TCB, POA_CB>* baci::MonitorEventDispatcher< T, TCB, POA_CB >::callbackServant_mp [private]

template<class T, class TCB, class POA_CB> BACIMonitor* baci::MonitorEventDispatcher< T, TCB, POA_CB >::monitor_mp [private]

template<class T, class TCB, class POA_CB> TCB* baci::MonitorEventDispatcher< T, TCB, POA_CB >::monitorCallback_mp [private]

---

The documentation for this class was generated from the following file:

• baciAlarm_T.h

---
