ESPRESSO trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-07-14T18:57:22 (UT)
  | now: 2024-07-14T21:05:26 (UT) muc11 QC pipeline: espdr-2.5.0 (installed 2022-06-28)
same group: SNR_HR_1x1 SNR_HR_2x1 SNR_HR_4x2 SNR_UHR_1x1 SNR_MR_4x2 SNR_MR_8x4
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
The links to KMOS, UVES, and ESPRESSO have been moved to a new section (qcFlow operational) at the lower part of the navigation bar.
ESPRESSO news:
Report news:
DATE*: [?] 2024-07-07
report | NLT
2024-07-08
report | NLT
2024-07-09
report | NLT
2024-07-10
report | NLT
2024-07-11
report | NLT
2024-07-12
report | NLT
2024-07-13
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB none   NONE none  86 fiba_snr_avg this | last_yr | all SNR, average per order, fibre A
2 QC1DB none   ADU VAL20000,60000 86 fiba_counts_max_blue this | last_yr | all maximum number of counts on BLUE detector, fibre A
3 QC1DB none   ADU VAL20000,60000 86 fiba_counts_max_red this | last_yr | all maximum number of counts on RED detector, fibre A
4 QC1DB none   NONE none  86 fibb_snr_avg this | last_yr | all SNR, average per order, fibre B
5 QC1DB none   ADU VAL20000,60000 86 fibb_counts_max_blue this | last_yr | all maximum number of counts on BLUE detector, fibre B
6 QC1DB none   ADU VAL20000,60000 86 fibb_counts_max_red this | last_yr | all maximum number of counts on RED detector, fibre B
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:espresso_flat
(QC1 database)
dataset:fiba_snr_avg
average:none
thresholds:none
N_data plotted:86
[click plot for closeup]
Plot 2
scores: 7|
data source:espresso_flat
(QC1 database)
dataset:fiba_counts_max_blue
average:none
fixed thresholds:20000...60000ADU
N_data plotted:86
[click plot for closeup]
Plot 3
scores: 7|
data source:espresso_flat
(QC1 database)
dataset:fiba_counts_max_red
average:none
fixed thresholds:20000...60000ADU
N_data plotted:86
[click plot for closeup]
Plot 4
scores: not implemented
data source:espresso_flat
(QC1 database)
dataset:fibb_snr_avg
average:none
thresholds:none
N_data plotted:86
[click plot for closeup]
Plot 5
scores: 7|
data source:espresso_flat
(QC1 database)
dataset:fibb_counts_max_blue
average:none
fixed thresholds:20000...60000ADU
N_data plotted:86
[click plot for closeup]
Plot 6
scores: 7|
data source:espresso_flat
(QC1 database)
dataset:fibb_counts_max_red
average:none
fixed thresholds:20000...60000ADU
N_data plotted:86
[click plot for closeup]
This plot

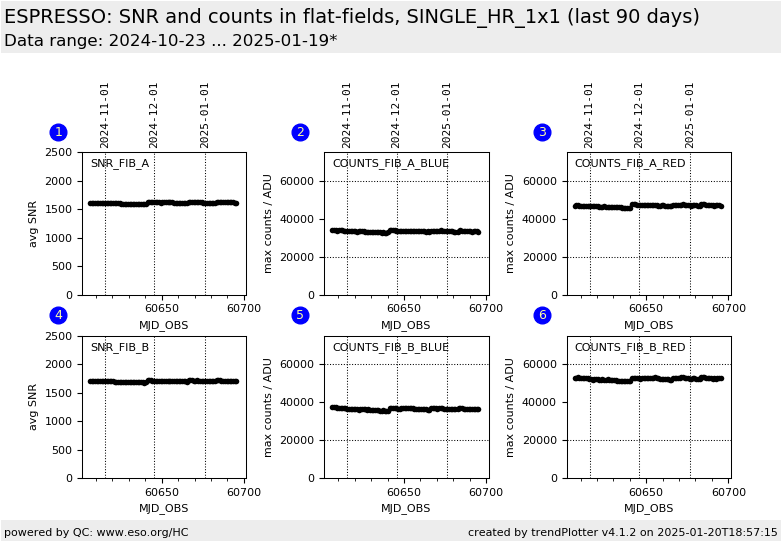

Trending plots for flat-field calibrations. The plot show the minimum signal-to-noise ratio (SNR) that is achieved per spectroscopic order and the maximum number of counts per detector. Counts are converted from ADU into electrons. The plots come separately for fibre A and B.

The upper limit for the counts has been set slightly below the saturation limit of 65535 ADU, converted into electrons.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
