HAWKI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-06-15T16:31:00 (UT)
  | now: 2024-06-16T05:36:16 (UT) muc04 QC pipeline: hawki-2.4.12 (installed 2023-06-22)
same group: Median_Dark Mean_RON Reset_Anomaly RON_vs_DIT
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
The links to KMOS, UVES, and ESPRESSO have been moved to a new section (qcFlow operational) at the lower part of the navigation bar.
HAWKI news:
Report news:
DATE*: [?] 2024-06-09
report | NLT
2024-06-10
report | NLT
2024-06-11
report | NLT
2024-06-12
report | NLT
2024-06-13
report | NLT
2024-06-14
report | NLT
2024-06-15
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB none   ADU none  385 qc_ron23 this | last_yr | all DARK ReadOut Noise vs. DIT, chip 4
2 QC1DB none   ADU none  385 qc_ron23 this | last_yr | all DARK ReadOut Noise vs. DIT, chip 3
3 QC1DB none   ADU none  385 qc_ron23 this | last_yr | all DARK ReadOut Noise vs. DIT, chip 4
4 QC1DB none   ADU none  385 qc_ron23 this | last_yr | all DARK ReadOut Noise vs. DIT, chip 3
5 QC1DB none   ADU none  385 qc_ron23 this | last_yr | all DARK ReadOut Noise vs. DIT, chip 1
6 QC1DB none   ADU none  385 qc_ron23 this | last_yr | all DARK ReadOut Noise vs. DIT, chip 2
7 QC1DB none   ADU none  385 qc_ron23 this | last_yr | all DARK ReadOut Noise vs. DIT, chip 1
8 QC1DB none   ADU none  385 qc_ron23 this | last_yr | all DARK ReadOut Noise vs. DIT, chip 2
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 5
scores: not implemented
data source:hawki_dark
(QC1 database)
dataset:qc_ron23
average:none
thresholds:none
N_data plotted:385
[click plot for closeup]
Plot 6
scores: not implemented
data source:hawki_dark
(QC1 database)
dataset:qc_ron23
average:none
thresholds:none
N_data plotted:385
[click plot for closeup]
Plot 2
scores: not implemented
data source:hawki_dark
(QC1 database)
dataset:qc_ron23
average:none
thresholds:none
N_data plotted:385
[click plot for closeup]
Plot 1
scores: not implemented
data source:hawki_dark
(QC1 database)
dataset:qc_ron23
average:none
thresholds:none
N_data plotted:385
[click plot for closeup]
Plot 7
scores: not implemented
data source:hawki_dark
(QC1 database)
dataset:qc_ron23
average:none
thresholds:none
N_data plotted:385
[click plot for closeup]
Plot 8
scores: not implemented
data source:hawki_dark
(QC1 database)
dataset:qc_ron23
average:none
thresholds:none
N_data plotted:385
[click plot for closeup]
Plot 4
scores: not implemented
data source:hawki_dark
(QC1 database)
dataset:qc_ron23
average:none
thresholds:none
N_data plotted:385
[click plot for closeup]
Plot 3
scores: not implemented
data source:hawki_dark
(QC1 database)
dataset:qc_ron23
average:none
thresholds:none
N_data plotted:385
[click plot for closeup]

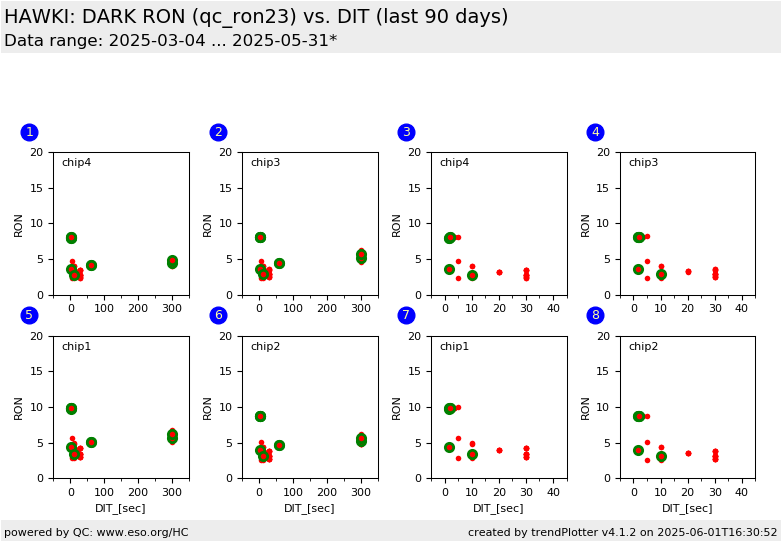

This plot

Trending report for correlation between DIT and RON.

Each plot displays the ReadOut Noise as a function of DIT

Name:
Fits header: DET.DIT and QC.RON.MEAN
QC1 DB: det_dit and qc_ron_mean in hawki_dark.

Description:
The mean of the dark ReadOut Noise values is plotted as a function of Detector Integration Time (DIT). Setup:
All DITs

These plots describe:
Fig. 1. chip4: The QC parameter QC.RON.MEAN as a funtion of DET.DIT for chip #4.
Fig. 2. chip4: The QC parameter QC.RON.MEAN as a funtion of DET.DIT for chip #3.
Fig. 5. chip4: The QC parameter QC.RON.MEAN as a funtion of DET.DIT for chip #1.
Fig. 6. chip4: The QC parameter QC.RON.MEAN as a funtion of DET.DIT for chip #2.
Fig. 3. chip1: Same as Fig. 1, but showing the detail for DET.DIT less than 45 sec.
Fig. 4. chip1: Same as Fig. 2, but showing the detail for DET.DIT less than 45 sec.
Fig. 7. chip1: Same as Fig. 5, but showing the detail for DET.DIT less than 45 sec.
Fig. 8. chip1: Same as Fig. 6, but showing the detail for DET.DIT less than 45 sec.

Find more information on the HAWKI DARK calibration tutorial page.




General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
