HAWKI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-12-02T16:30:19 (UT)
  | now: 2024-12-02T20:26:45 (UT) muc04 QC pipeline: hawki-2.4.12 (installed 2023-06-22)
same group: ZP_Y ZP_J ZP_H ZP_Ks
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
HAWKI news:
Report news:
DATE*: [?] 2024-11-25
report | NLT
2024-11-26
report | NLT
2024-11-27
report | NLT
2024-11-28
report | NLT
2024-11-29
report | NLT
2024-11-30
report | NLT
2024-12-01
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 25.8 mag none  16 qc_atx0 this | last_yr | all Measured zero-points, chip 4
2 QC1DB MEDIAN 25.8 mag none  15 qc_atx0 this | last_yr | all Measured zero-points, chip 3
3 QC1DB MEDIAN 25.8 mag none  14 qc_atx0 this | last_yr | all Means of the measured zero-points of the four chips
4 QC1DB MEDIAN 25.7 mag none  14 qc_atx0 this | last_yr | all Measured zero-points, chip 1
5 QC1DB MEDIAN 25.8 mag none  14 qc_atx0 this | last_yr | all Measured zero-points, chip 2
6 QC1DB none   mag none  13 qc_atx0 this | last_yr | all Standard deviations of the measured zero-points of the four chips
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 4
scores: not implemented
data source:hawki_zp
(QC1 database)
dataset:qc_atx0
median:25.7mag
thresholds:none
N_data plotted:14
[click plot for closeup]
Plot 5
scores: not implemented
data source:hawki_zp
(QC1 database)
dataset:qc_atx0
median:25.8mag
thresholds:none
N_data plotted:14
[click plot for closeup]
Plot 2
scores: not implemented
data source:hawki_zp
(QC1 database)
dataset:qc_atx0
median:25.8mag
thresholds:none
N_data plotted:15
[click plot for closeup]
Plot 1
scores: not implemented
data source:hawki_zp
(QC1 database)
dataset:qc_atx0
median:25.8mag
thresholds:none
N_data plotted:16
[click plot for closeup]
Plot 3
scores: not implemented
data source:hawki_zp
(QC1 database)
dataset:qc_atx0
median:25.8mag
thresholds:none
N_data plotted:14
[click plot for closeup]
Plot 6
scores: not implemented
data source:hawki_zp
(QC1 database)
dataset:qc_atx0
average:none
thresholds:none
N_data plotted:13
[click plot for closeup]
This plot

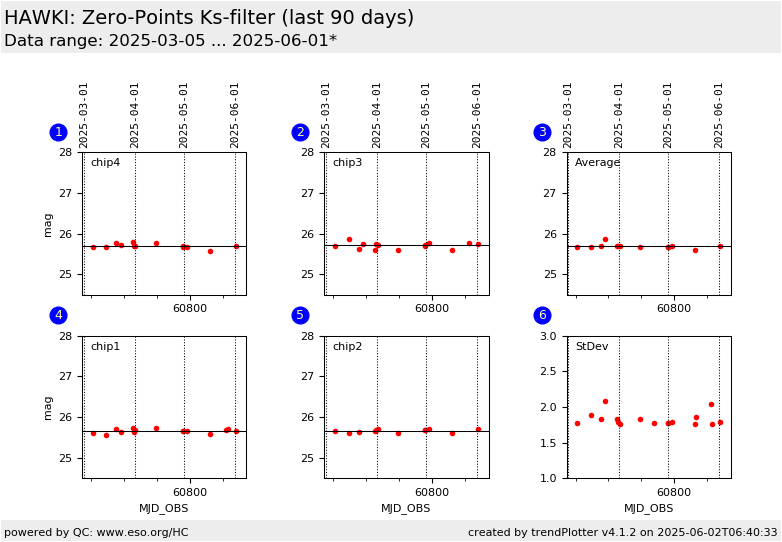

This is trending plot for the extinction corrected photometric zeropoints (at airmass X=0), derived from photometric standard star calibration frames observed in Ks filter.

On 2016-11-19 new, CASU pipeline was adopted (green vertical line), which uses revised method for calculating zeropoints. It takes into accout DET.NDIT in the total observing time (DET.DITxDET.NDIT) rather than DET.DIT as was done by the previous pipeline. To bring the values to the same level, the CASU zeropoints are corrected by
"+ 2.5 * log10(NDIT)" in this plot. Only data taken with DET.NDIT=5 are plotted.

Fig. 1. chip4: The zeropoints for chip #4.
Fig. 2. chip3: The zeropoints for chip #3.
Fig. 3. Average: The zeropoints averaged over all detectors. This view is sensitive to common changes.
Fig. 4. chip1: The zeropoints for chip #1.
Fig. 5. chip2: The zeropoints for chip #2.
Fig. 6. Scatter View: The standard deviation of the zeropoints, obtained from the sample of all detectors. This view is sensitive changes of individual detectors.

Major M1 mirror recoating events are marked with a blue vertical bar.

Find more information on the HAWKI photometric zeropoint tutorial page.




General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
