MATISSE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-07-28T10:43:55 (UT)
  | now: 2022-08-13T02:27:06 (UT) muc12 QC pipeline: matisse-1.7.5 (installed 2022-05-12)
same group: Max_LM_OO Max_N_OO Max_LM_II Max_N_II OPD_LM OPD_N
General news:
MATISSE news: When applicable, HC plots for the HIGH+ modes (L and M) and N-HIGH are in the process of beeing implemented
Report news:
DATE*: [?] 2022-08-06
report | NLT
2022-08-07
report | NLT
2022-08-08
report | NLT
2022-08-09
report | NLT
2022-08-10
report | NLT
2022-08-11
report | NLT
2022-08-12
report | NLT
r...
Raw CAL displays:
n/a n/a n/a n/a n/a n/a n/a
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial: n/a | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 6.27 microns none  323 max_opd this | last_yr | all Maximum OPD (6 baselines) - AQUARIUS (MATISSE-N) - LOW OUT-OUT
2 QC1DB MEDIAN   microns none  0 max_opd this | last_yr | all Maximum OPD (6 baselines) - AQUARIUS (MATISSE-N) - MED OUT-OUT
3 QC1DB MEDIAN 5.09 microns none  11 max_opd this | last_yr | all Maximum OPD (6 baselines) - AQUARIUS (MATISSE-N) - LOW OUT-OUT
*Data sources: QC1DB: QC1 database; LOCAL: local data source

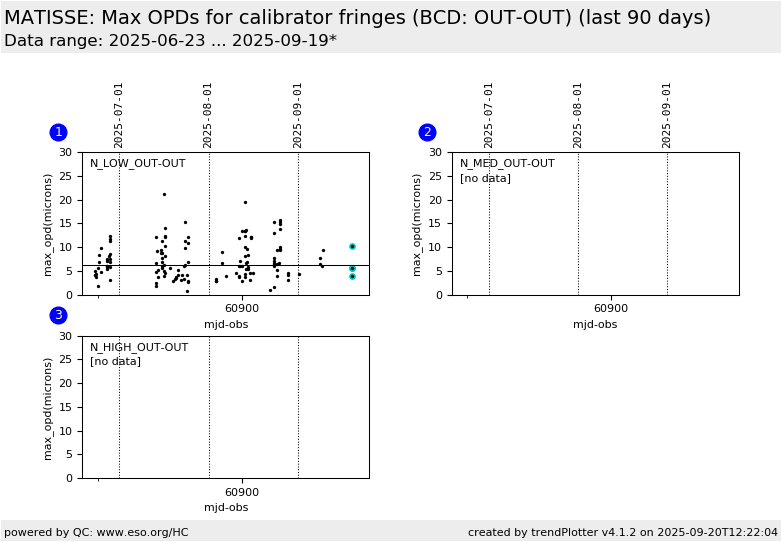

Plot 1
scores: not implemented
data source:matisse_visibilities
(QC1 database)
dataset:max_opd
median:6.27microns
thresholds:none
N_data plotted:323
[click plot for closeup]
Plot 2
scores: not implemented
data source:matisse_visibilities
(QC1 database)
dataset:max_opd
median:no datamicrons
thresholds:none
N_data plotted:0
[click plot for closeup]
Plot 3
scores: not implemented
data source:matisse_visibilities
(QC1 database)
dataset:max_opd
median:5.09microns
thresholds:none
N_data plotted:11
[click plot for closeup]
This plot

The averaged OPD is calculated per baseline for the different input raw files.
The maximum of the averaged OPD for the 6 baselines is plotted here.
Specifications are 100 microns/8h for MATISSE-LM and 300 for MATISSE-N.
The OPD must be stable to 20 microns to achieve less than 1% contrast loss during the night.
The max OPD for each baseline is plotted under OPD_LM and OPD_N (both for OUT-OUT and IN-IN configurations of the BCD)


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
