UVES trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-05-22T06:01:23 (UT)
  | now: 2022-05-22T21:09:52 (UT) muc02 QC pipeline: uves-6.1.7 (installed 2022-03-21)
same group: Median Master_RON Raw_RON Struct_X Struct_Y Pattern_noise
General news:
UVES news:
Report news:
DATE*: [?] 2022-05-15
report | NLT
2022-05-16
report | NLT
2022-05-17
report | NLT
2022-05-18
report | NLT
2022-05-19
report | NLT
2022-05-20
report | NLT
2022-05-21
report | NLT
r...
Raw CAL displays:
raw raw raw raw no CAL raw files raw raw
P...
CAL product quality:
products products products products no CAL products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 6.66 NONE VAL0,14 86 max_ratio this | last_yr | all maximum of the ratio STD/STD_MAD for the input files, BLUE CCD, readout mode 225kHz,1x1,low
2 QC1DB MEDIAN 3.48 NONE VAL0,7 118 max_ratio this | last_yr | all same, for REDL CCD
3 QC1DB MEDIAN 6.1 NONE VAL0,20 118 max_ratio this | last_yr | all same, for REDU CCD

4 QC1DB MEDIAN 2.04 NONE VAL0,10 89 max_ratio this | last_yr | all same as Fig. 1, for readout mode 50kHz,2x2,high
5 QC1DB MEDIAN 4.88 NONE VAL0,7 89 max_ratio this | last_yr | all same, for REDL CCD
6 QC1DB MEDIAN 2.98 NONE VAL0,10 89 max_ratio this | last_yr | all same, for REDU CCD
8 QC1DB MEDIAN 255 NONE VAL0,45 13 max_ratio this | last_yr | all same, for REDL CCD for readout mode 625kHz,1x1,low
9 QC1DB MEDIAN 1.99e+04 NONE VAL0,900 13 max_ratio this | last_yr | all same, for REDU CCD

*Data sources: QC1DB: QC1 database; LOCAL: local data source

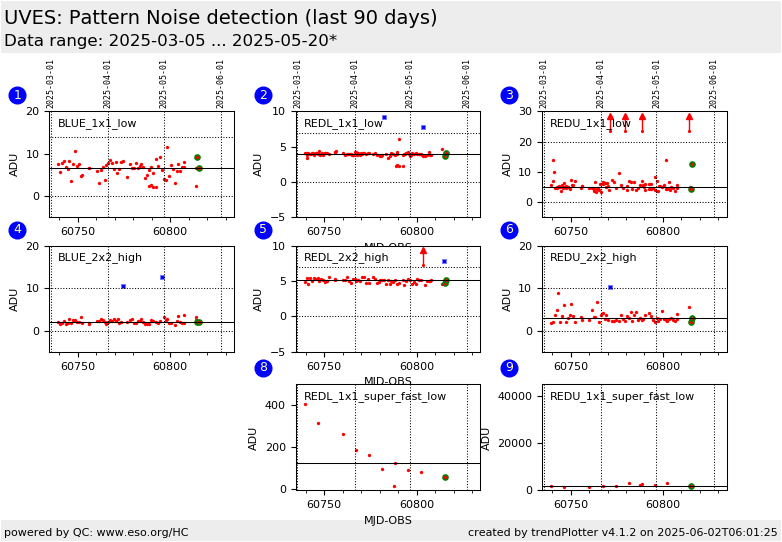

Plot 1
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:max_ratio
median:6.66NONE
fixed thresholds:0...14NONE
N_data plotted:86
[click plot for closeup]
Plot 2
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:max_ratio
median:3.48NONE
fixed thresholds:0...7NONE
N_data plotted:118
[click plot for closeup]
Plot 3
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:max_ratio
median:6.1NONE
fixed thresholds:0...20NONE
N_data plotted:118
[click plot for closeup]
Plot 4
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:max_ratio
median:2.04NONE
fixed thresholds:0...10NONE
N_data plotted:89
[click plot for closeup]
Plot 5
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:max_ratio
median:4.88NONE
fixed thresholds:0...7NONE
N_data plotted:89
[click plot for closeup]
Plot 6
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:max_ratio
median:2.98NONE
fixed thresholds:0...10NONE
N_data plotted:89
[click plot for closeup]
Plot 8
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:max_ratio
median:255NONE
fixed thresholds:0...45NONE
N_data plotted:13
[click plot for closeup]
Plot 9
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:max_ratio
median:1.99e+04NONE
fixed thresholds:0...900NONE
N_data plotted:13
[click plot for closeup]
This plot

Since 2021 the uves_cal_mbias recipe is executed with the --pd_noise_compute=TRUE command line option that performs a 2D Fourier transform of each of the five raw BIAS frames and calculates the (not robust) standard deviation and (robust) MAD (median absolute deviation). For each input raw files, both parameters are ingested into the QC1 DB as well as their ratio std/stdmad. In addition the maximum of the five std/stdMAD values (max_ratio) is ingested and monitored here . The purpose of the analysis is to discriminate statistical noise, and non-statistical noise.
