VIRCAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-01-26T22:05:58 (UT)
  | now: 2022-01-27T16:44:58 (UT) muc07 QC pipeline: vcam-2.3.5 (installed 2020-04-01)
same group: MEDIAN_NB980 NB118 _Z _Y _J _H _K   RANGE_N980 NB118 _Z _Y _J _H _K
General news:
VIRCAM news:
Report news:
DATE*: [?] 2022-01-20
report | NLT
2022-01-21
report | NLT
2022-01-22
report | NLT
2022-01-23
report | NLT
2022-01-24
report | NLT
2022-01-25
report | NLT
2022-01-26
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 8.21e+03 AAD VAL4000,10000 25 qc_dome_medavg this | last_yr | all DOMERAWAVG, average over all 16 detectors
2 QC1DB MEDIAN 8.29e+03 ADU VAL3000,14000 400 qc_dome_medavg this | last_yr | all DOMERAWAVG, values of all detetcors
3 QC1DB MEDIAN 1.19e+03 ADU VAL400,1500 25 qc_dome_medavg this | last_yr | all DOMERAWAVG, stdev over all detectors
4 LOCAL none   ADU none  416 qc_dome_medavg n/a
4 LOCAL none   ADU none  0 qc_dome_medavg n/a DOMERAWAVG, outlier detector
*Data sources: QC1DB: QC1 database; LOCAL: local data source

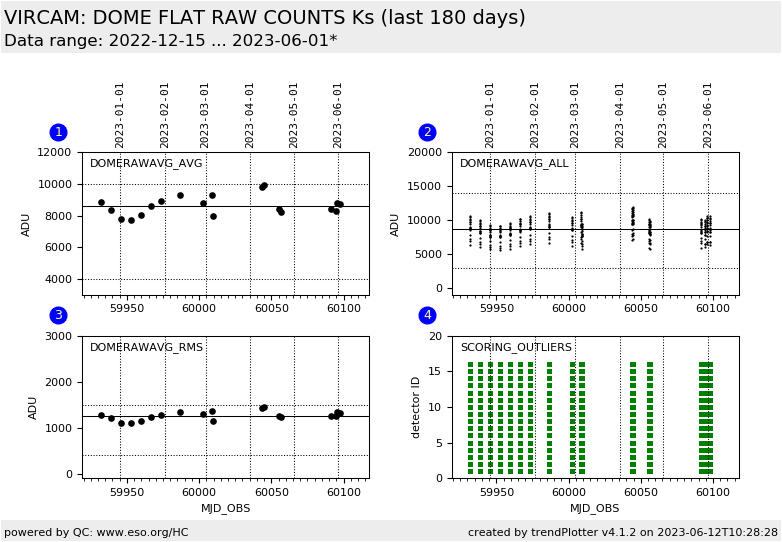

Plot 1
scores: 2|
data source:vircam_domeflat
(QC1 database)
dataset:qc_dome_medavg
median:8.21e+03AAD
fixed thresholds:4000...10000AAD
N_data plotted:25
[click plot for closeup]
Plot 2
scores: not implemented
data source:vircam_domeflat
(QC1 database)
dataset:qc_dome_medavg
median:8.29e+03ADU
fixed thresholds:3000...14000ADU
N_data plotted:400
[click plot for closeup]
Plot 3
scores: 2|
data source:vircam_domeflat
(QC1 database)
dataset:qc_dome_medavg
median:1.19e+03ADU
fixed thresholds:400...1500ADU
N_data plotted:25
[click plot for closeup]
Plot 4
scores: not implemented
data source:local data source
dataset:
(numbers below apply to this dataset)
qc_dome_medavg
average:none
thresholds:none
N_data plotted:416
[click plot for closeup]
This plot

The scoring thresholds of the individual chips used in box (4) are:

CHIP_16 3000 14000
CHIP_15 3000 14000
CHIP_14 3000 14000
CHIP_13 3000 14000
CHIP_12 3000 14000
CHIP_11 3000 14000
CHIP_10 3000 14000
CHIP_9 3000 14000
CHIP_8 3000 14000
CHIP_7 3000 14000
CHIP_6 3000 14000
CHIP_5 3000 14000
CHIP_4 3000 14000
CHIP_3 3000 14000
CHIP_2 3000 14000
CHIP_1 3000 14000



General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
