VIRCAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-05-18T21:33:19 (UT)
  | now: 2022-05-19T18:02:08 (UT) muc07 QC pipeline: vcam-2.3.9 (installed 2022-03-17)
same group: ELL_NB118 ELL_Z ELL_Y ELL_J ELL_H ELL_K
General news:
VIRCAM news:
Report news:
DATE*: [?] 2022-05-12
report | NLT
2022-05-13
report | NLT
2022-05-14
report | NLT
2022-05-15
report | NLT
2022-05-16
report | NLT
2022-05-17
report | NLT
2022-05-18
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.0603 none VAL-0.01,0.2 6 qc_ellipticity this | last_yr | all PSF Ellipticity (1-b/a) NB118, average over all 16 detectors
2 QC1DB MEDIAN 0.0559 none VAL0.01,0.2 96 qc_ellipticity this | last_yr | all PSF Ellipticity (1-b/a) NB118, values of all detetcors
3 QC1DB MEDIAN 0.0129 none VAL0.0,0.1 6 qc_ellipticity this | last_yr | all PSF Ellipticity (1-b/a) NB118, stdev over all detectors
4 LOCAL none   none none  96 qc_ellipticity n/a Score per Detector: Green = within the thresholds
4 LOCAL none   none none  0 qc_ellipticity n/a Score per Detector: Red = beyond thresholds
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 2|
data source:vircam_photstd
(QC1 database)
dataset:qc_ellipticity
median:0.0603none
fixed thresholds:-0.01...0.2none
N_data plotted:6
[click plot for closeup]
Plot 2
scores: not implemented
data source:vircam_photstd
(QC1 database)
dataset:qc_ellipticity
median:0.0559none
fixed thresholds:0.01...0.2none
N_data plotted:96
[click plot for closeup]
Plot 3
scores: 2|
data source:vircam_photstd
(QC1 database)
dataset:qc_ellipticity
median:0.0129none
fixed thresholds:0.0...0.1none
N_data plotted:6
[click plot for closeup]
Plot 4
scores: not implemented
data source:local data source
dataset:
(numbers below apply to this dataset)
qc_ellipticity
average:none
thresholds:none
N_data plotted:96
[click plot for closeup]

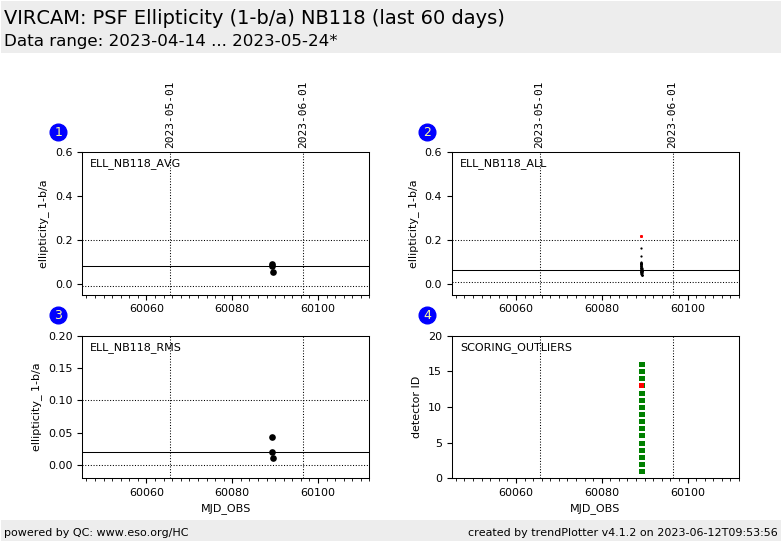

This plot

Trending plot for image quality.

QC parameters is derived from each detector of daily photometric standard star calibrations.

Name:
Fits header: QC ELLIPTICITY,
QC1 DB: qc_ellipticity

Description:
median ellipticity of the sources = (1-b/a).

Setup:
INS.FILT1.NAME = NB118

These plots describe:
Fig. 1. Average view: The QC parameter averaged over all detectors. This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors. This view is sensitive changes of individual detectors.
Fig. 4. Scoring View: Scoring values of all 16 QC parameters. Green = within the acceptance thresholds. Red = beyond the acceptance thresholds.

Find more information on the VIRCAM STD tutorial page.




General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
