rad::ConfigurableActionMgr Class Reference

#include <configurableActionMgr.hpp>

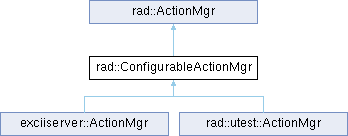

Inheritance diagram for rad::ConfigurableActionMgr:

Public Member Functions
	ConfigurableActionMgr ()
virtual	~ConfigurableActionMgr ()
virtual void	CreateActions (Application &appl)=0
virtual void	CreateActivities (Application &appl)=0
void	CreateActionsForStdEvents (Application &appl, DataContext &the_data)
void	CreateActionsForAppEvents (Application &appl, DataContext &the_data)
void	Initialize ()
void	Configure (const std::vector< std::string > &keys)
	ConfigurableActionMgr (const ConfigurableActionMgr &)=delete
ConfigurableActionMgr &	operator= (const ConfigurableActionMgr &)=delete
	Disable copy constructor.
Public Member Functions inherited from rad::ActionMgr
	ActionMgr ()
virtual	~ActionMgr ()
template<class T >
void	RegisterAction (const std::string &id, void(T::*method)(scxml4cpp::Context *c), T *group)
template<class T >
void	RegisterGuard (const std::string &id, bool(T::*method)(scxml4cpp::Context *c), T *group)
void	AddAction (scxml4cpp::Action *the_action)
void	AddActionGroup (rad::ActionGroup *the_action_group)
void	AddActivity (scxml4cpp::Activity *the_activity)
ActionList &	GetActions ()
ActionGroupList &	GetActionGroups ()
ActivityList &	GetActivities ()
scxml4cpp::Action *	FindAction (const std::string &id)
ActionGroup *	FindActionGroup (const std::string &id)
void	DelAction (const std::string &id)
	ActionMgr (const ActionMgr &)=delete
ActionMgr &	operator= (const ActionMgr &)=delete
	Disable copy constructor.

Detailed Description

This class adds to the rad::ActionMgr base class the methods for the creation of the actions required for the handling of the ELT Standard Interface (CreateStdCmdsActions) and the LSV Common Interface (CreateLsvCmdsActions).

It provides also the methods to re-initialize (Initialize) and re-configure (Configure) the actions and activities.

Constructor & Destructor Documentation

ConfigurableActionMgr() [1/2]

rad::ConfigurableActionMgr::ConfigurableActionMgr

(

)

Default constructor.

~ConfigurableActionMgr()

rad::ConfigurableActionMgr::~ConfigurableActionMgr ( )

virtual

Default destructor.

ConfigurableActionMgr() [2/2]

rad::ConfigurableActionMgr::ConfigurableActionMgr ( const ConfigurableActionMgr & )

delete

Member Function Documentation

Configure()

void rad::ConfigurableActionMgr::Configure

(

const std::vector< std::string > &

keys

)

Propagate the re-configuration notification to all registered ActionGroup and Activities objects.

Parameters

keys	Modified parameters. Empty vector means all params have changed.

CreateActions()

virtual void rad::ConfigurableActionMgr::CreateActions ( Application & appl )

pure virtual

This interface should be used by the application to create the ActionGroup objects and register their methods as action or guard callback.

The implementation of this interface is required by the Application class (Init method) to be able to properly set-up the application and load the State Machine model.

Parameters

appl	Reference to the application that can be injected in the ActionGroup object so that actions and guards can for example trigger internal event.

Implemented in exciiserver::ActionMgr, and rad::utest::ActionMgr.

CreateActionsForAppEvents()

void rad::ConfigurableActionMgr::CreateActionsForAppEvents	(	Application &	appl,
		DataContext &	the_data )

Create the ActionsLsv object and register its methods as action objects. The ActionsStd class contains the actions/callbacks to process the LSV Common Interface requests.

Parameters

appl	Reference to the Application object that is injected in the ActionGroup so that action methods can trigger internal events.
the_data	Reference to the application specific DataConext object that is injected in the ActionGroup so that action methods can share data.

CreateActionsForStdEvents()

void rad::ConfigurableActionMgr::CreateActionsForStdEvents	(	Application &	appl,
		DataContext &	the_data )

Create the ActionsStd object and register its methods as action objects. The ActionsStd class contains the actions/callbacks to process the ELT Standard Interface requests.

Parameters

appl	Reference to the Application object that is injected in the ActionGroup so that action methods can trigger internal events.
the_data	Reference to the application specific DataConext object that is injected in the ActionGroup so that action methods can share data.

CreateActivities()

virtual void rad::ConfigurableActionMgr::CreateActivities ( Application & appl )

pure virtual

This interface should be used by the application to create the Activity objects.

The implementation of this interface is required by the Application class (Init method) to be able to properly set-up the application and load the State Machine model.

Parameters

appl	Reference to the Application object that can be injected in the lsv::app::Activity object so that actions and guards can for example trigger internal event.

Implemented in exciiserver::ActionMgr, and rad::utest::ActionMgr.

Initialize()

void rad::ConfigurableActionMgr::Initialize

(

)

Propagate the re-initialization notification to all registered ActionGroup and Activities objects.

operator=()

ConfigurableActionMgr & rad::ConfigurableActionMgr::operator= ( const ConfigurableActionMgr & )

delete

Disable copy constructor.

---

The documentation for this class was generated from the following files:

• rad/cpp/app/src/include/rad/configurableActionMgr.hpp
• rad/cpp/app/src/configurableActionMgr.cpp
