#include <Activity.h>

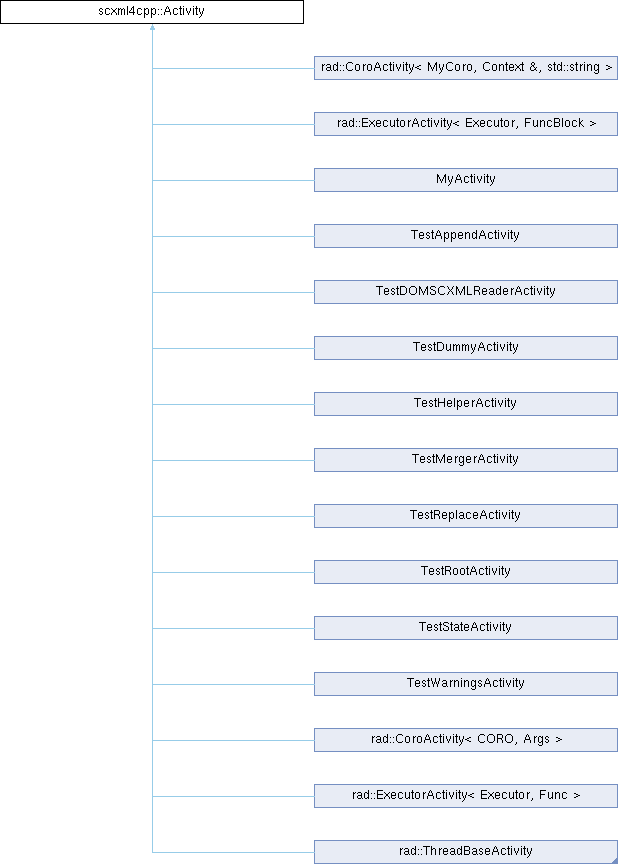

Inheritance diagram for scxml4cpp::Activity:

Public Member Functions
	Activity (const std::string &id)

virtual	~Activity ()

virtual void	start (Context *c)=0

virtual void	stop (Context *c)=0

std::string	getId () const

void	setId (const std::string &id)

Detailed Description

This class represents an interface for a Do-Activity.

A Do-Activity is a possibly long lasting task that is started by the State Machine interpreter and executed either asynchronously or in a separate thread.

Constructor & Destructor Documentation

◆ Activity()

scxml4cpp::Activity::Activity ( const std::string & id )

Creates a generic activity object.

Parameters

id	Activity identifier.

◆ ~Activity()

scxml4cpp::Activity::~Activity ( )

virtual

Reimplemented in rad::utest::Activity.

Member Function Documentation

◆ getId()

std::string scxml4cpp::Activity::getId ( ) const

Returns: the activity identifier.

◆ setId()

void scxml4cpp::Activity::setId ( const std::string & id )

Set the activity identifier.

Parameters

id	Activity identifier.

◆ start()

virtual void scxml4cpp::Activity::start ( Context * c )

pure virtual

Start activity.

Implemented in TestDummyActivity, MyActivity, TestHelperActivity, TestMergerActivity, TestStateActivity, TestAppendActivity, TestDOMSCXMLReaderActivity, TestReplaceActivity, TestRootActivity, TestWarningsActivity, rad::ThreadBaseActivity, rad::CoroActivity< CORO, Args >, rad::CoroActivity< MyCoro, Context &, std::string >, rad::ExecutorActivity< Executor, Func >, and rad::ExecutorActivity< Executor, FuncBlock >.

◆ stop()

virtual void scxml4cpp::Activity::stop ( Context * c )
