rad::ThreadBaseActivity Class Reference

#include <activity.hpp>

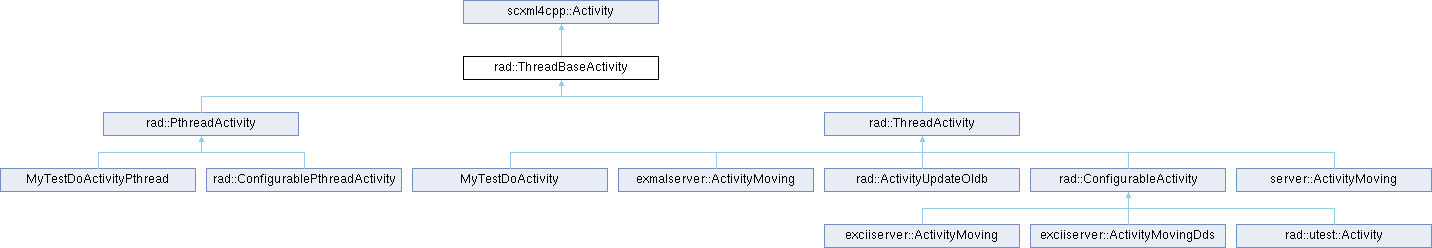

Inheritance diagram for rad::ThreadBaseActivity:

Public Member Functions
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
void	start (scxml4cpp::Context *c) override
void	stop (scxml4cpp::Context *c) override
virtual pthread_t	GetNativeHandle () const =0
bool	IsStopRequested () const
virtual bool	IsThreadJoined () const =0
Public Member Functions inherited from scxml4cpp::Activity
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)

Protected Member Functions
virtual void	StartThread ()=0
virtual void	JoinThread ()=0

Detailed Description

Base class for different implementations of threaded activities.

It implements start(), stop() from scxml4cpp::Activity and provides IsStopRequested() which returns true if the activity implementation should stop and exit.

Implementations need to implement thread-specific methods:

• StartThread
• StopThread
• IsThreadJoined
• GetNativeHandle

This is a shared base for std::thread and pthread_t based threaded activities.

Note

that other perfectly valid options exist for interrupting the activity when it's time to stop. For example by using condition variables. This could be provided as a templated policy or a runtime provided implementation.

Attention

methods of this class are not thread safe with the only exception for IsStopRequested.

Constructor & Destructor Documentation

ThreadBaseActivity()

rad::ThreadBaseActivity::ThreadBaseActivity ( ThreadBaseActivity const & )

delete

Member Function Documentation

GetNativeHandle()

virtual pthread_t rad::ThreadBaseActivity::GetNativeHandle ( ) const

pure virtual

Returns

Interface to obtain the native thread handle.

Implemented in rad::ThreadActivity, and rad::PthreadActivity.

IsStopRequested()

bool rad::ThreadBaseActivity::IsStopRequested ( ) const

inline

Method used by child classes to check whether they should be stopping.

Returns

true if the activity should terminate, false otherwise.

IsThreadJoined()

virtual bool rad::ThreadBaseActivity::IsThreadJoined ( ) const

pure virtual

Interface to be implemented by child classes to verify whether the thread is running or not.

Returns

true if the thread is not running, false otherwise.

Implemented in rad::ThreadActivity, and rad::PthreadActivity.

JoinThread()

virtual void rad::ThreadBaseActivity::JoinThread ( )

protectedpure virtual

Implemented in rad::ThreadActivity, and rad::PthreadActivity.

start()

void rad::ThreadBaseActivity::start ( scxml4cpp::Context * c )

overridevirtual

Start the thread implementing the activity.

Parameters

c	SCXML context.

Note

Will stop() activity if it's running.

Implements scxml4cpp::Activity.

StartThread()

virtual void rad::ThreadBaseActivity::StartThread ( )

protectedpure virtual

Implemented in rad::ThreadActivity, and rad::PthreadActivity.

stop()

void rad::ThreadBaseActivity::stop ( scxml4cpp::Context * c )

overridevirtual

Stop the thread implementing the activity.

Parameters

c	SCXML context.

Implements scxml4cpp::Activity.

---

The documentation for this class was generated from the following files:

• rad/cpp/sm/src/include/rad/activity.hpp
• rad/cpp/sm/src/activity.cpp
